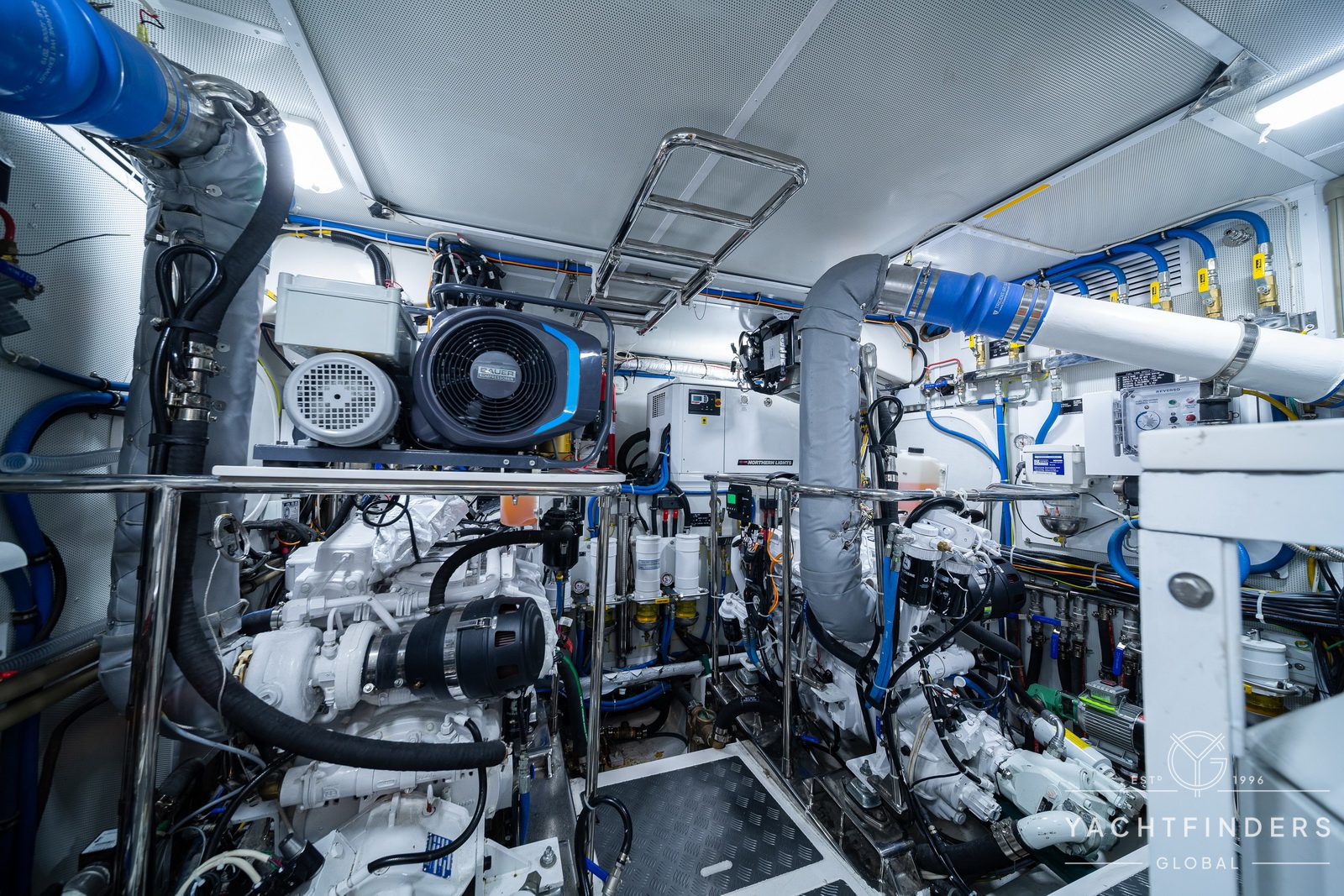

Engineering

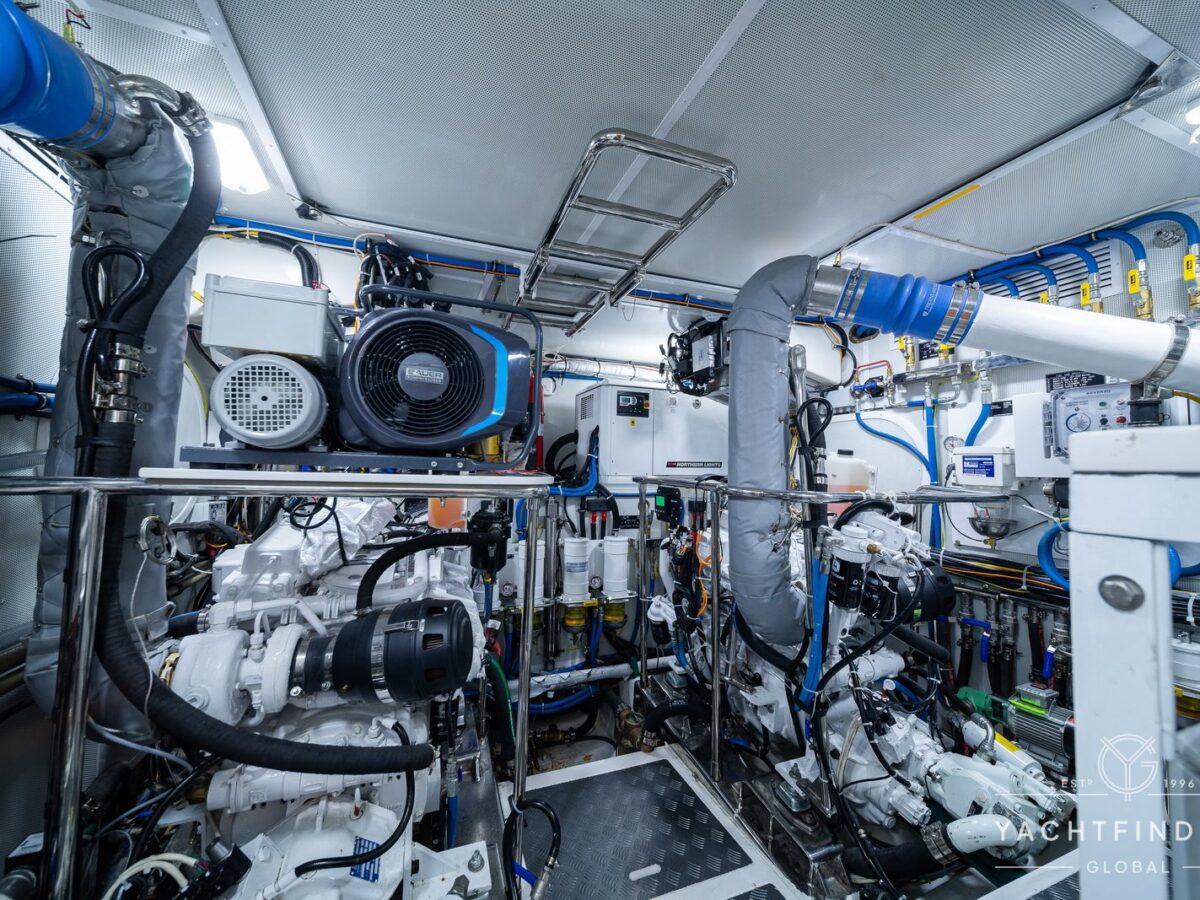

Twin John Deere 4045AFM85 180hp@ 2400 rpm M2 rating, ZF220 gearbox, with extended run oil pans code 19CZ, 50Amp alternators over standard
Extra Balmar 190amp 24V alternator with WS500 regulator on each engine Northern Lights 26Kw main generator with Hydraulic PTO
Northern Lights 10kw 1500rpm 50hz 2nd generator
Trac 25HP bow C stern thrusters, 300/9x zero speed stabilizer, PTO pumps (Twin engines C 26kw generator with PTO pad),
Reverso #GP3023-24V DC powered oil change system plumbed to the engine, gearbox and generator.
Workbench above the large generator
Trident Water heater with dual electric and dual heating coil linked to main engine and generator
Fireboy fire extinguisher with automatic shut-off system
Fireboy fire extinguisher with automatic shut-off system in electric room

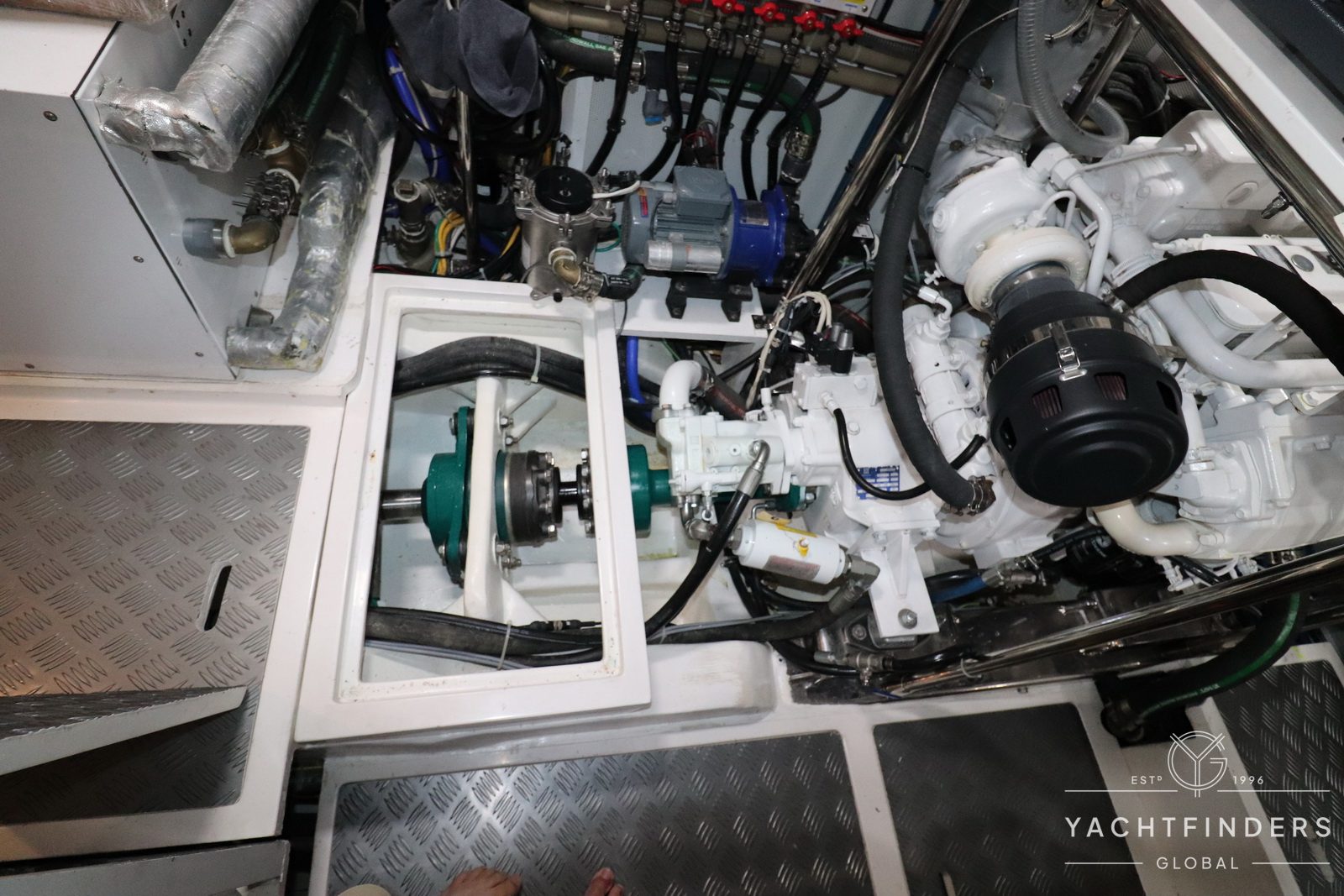

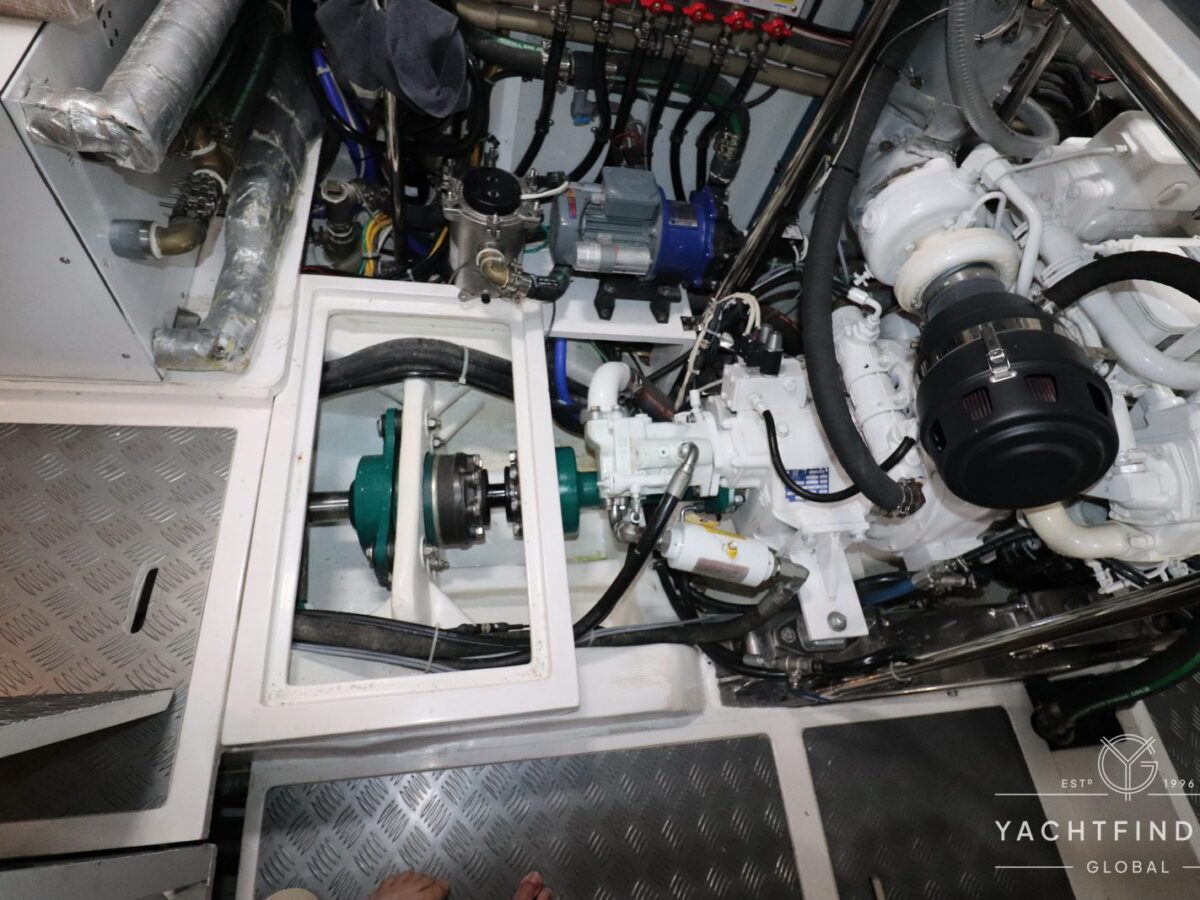

Blockland Aquadrive pressure bearing system on shaft CV42 for 2.5″ shaft for twin engines
Amartech line cutter on engine shafts
Seastar Optimus EPS steering, two independent pumps and rams Amartech Anti-vibration engine mount
2X NiBrAl alloy four-blade counter-rotating propellers built to I.S.O. class 1
2 X 1100 Gal fuel tanks interconnect by 2″ pipe to accommodate self-balancing and filing from a single point
340-day fuel tank at the front of the engine room, dual pump, large filter for fuel transfer, Fuel Polishing system with manifolds
2 X 77/000 Btu Webasto chilled water air conditioning with oversized air handlers (2 salons, 2
master cabin, one each in VIP, Twin, Crew, Electrical room and engine room)
Electrosex Clearline system to prevent any growth in aircon seawater system Glendinning C-7 cable master – 100ft cable and container
Lightning grounding system

.Pumps

Electrical

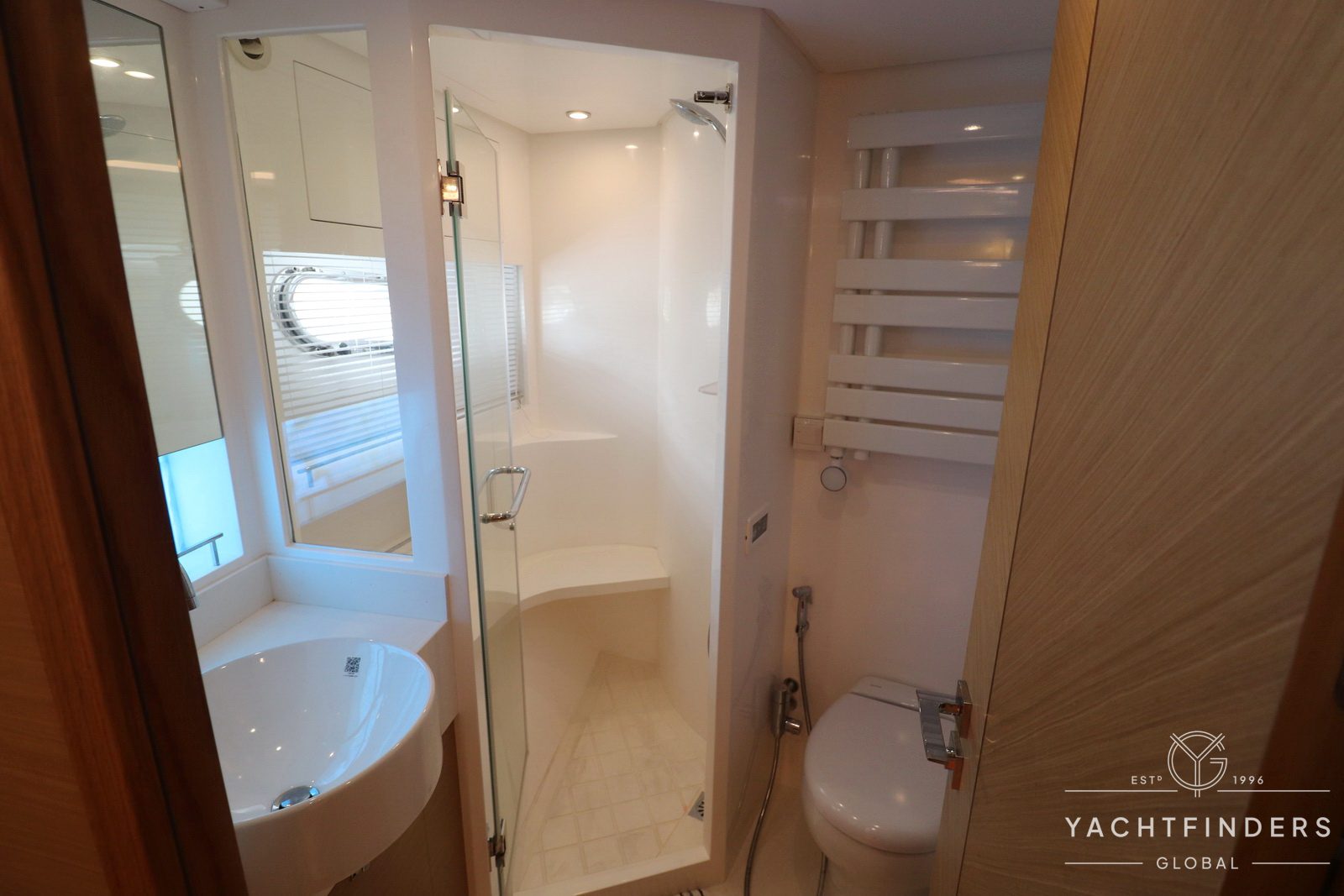

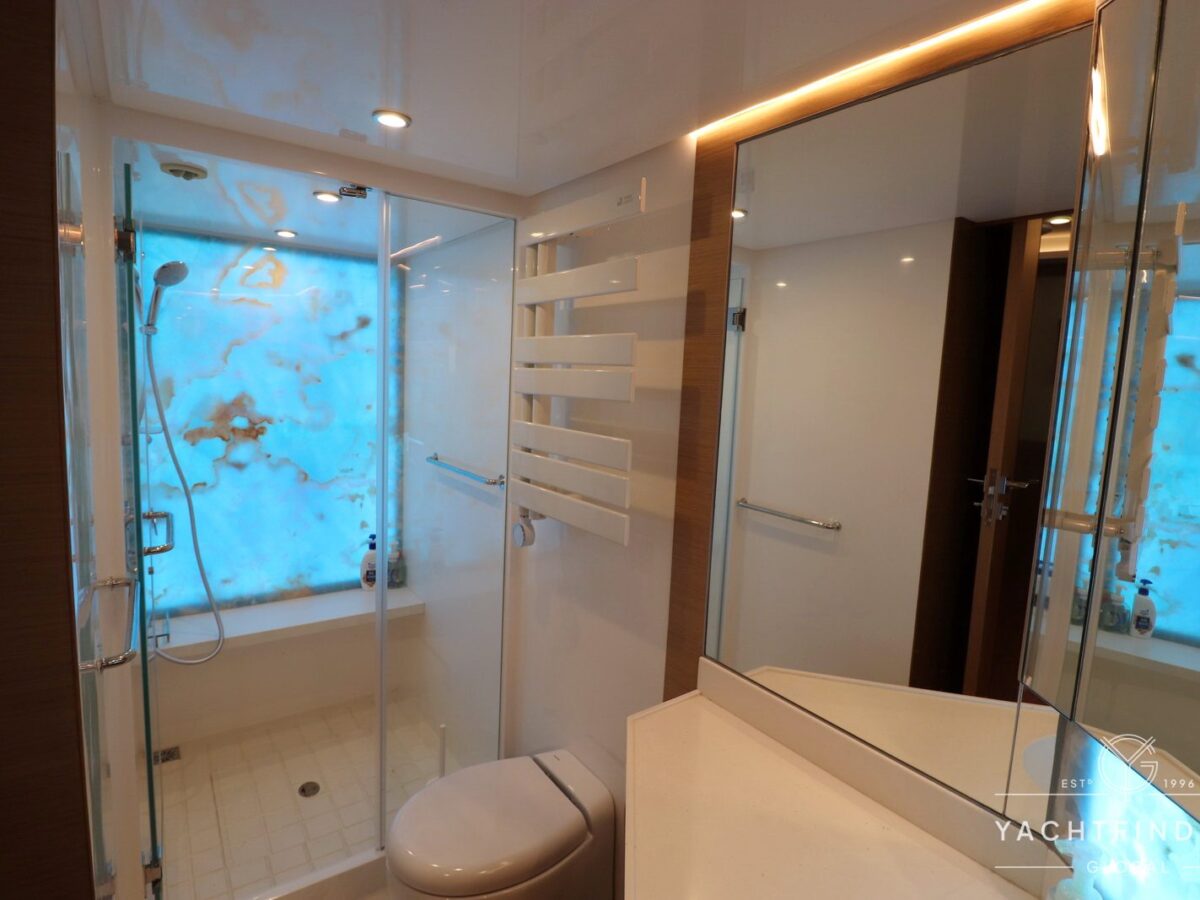

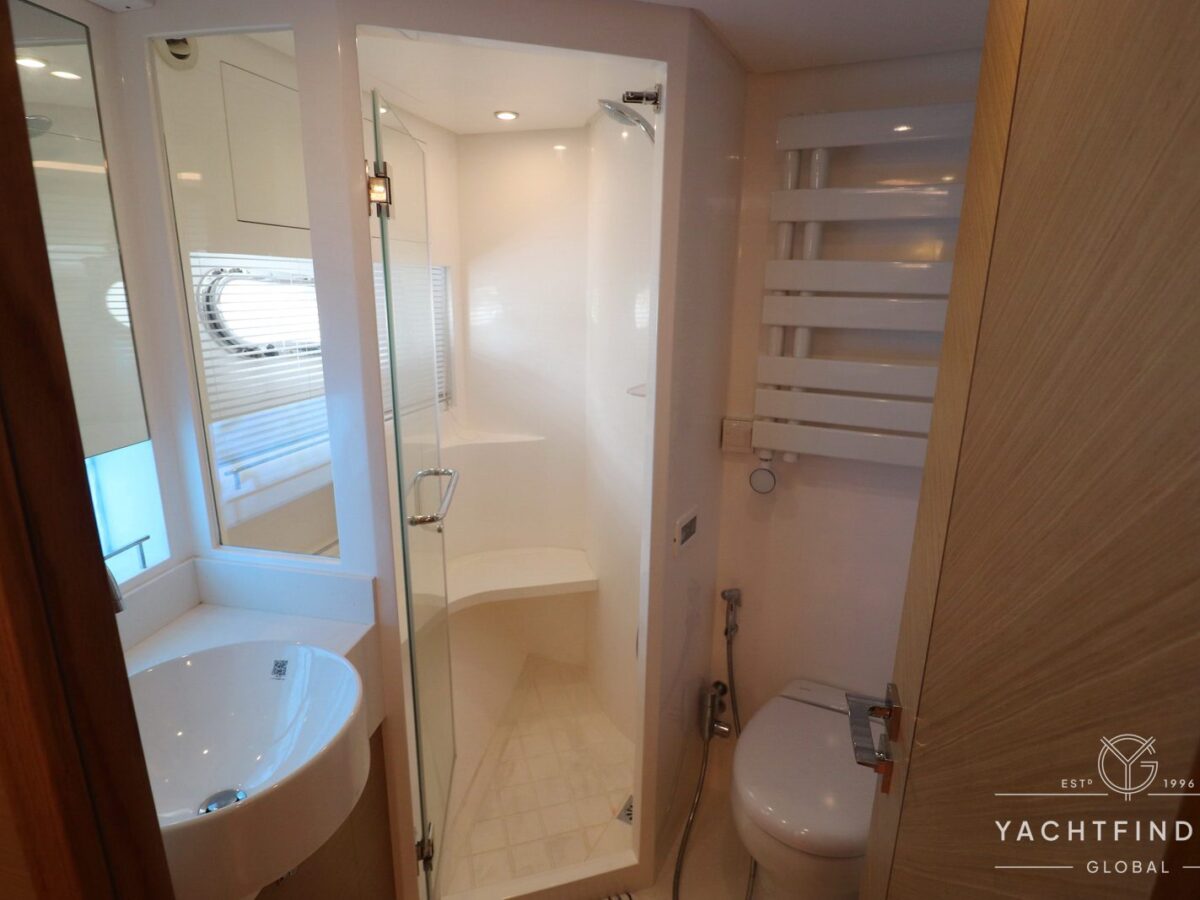

Heated electric towel rail for two heads

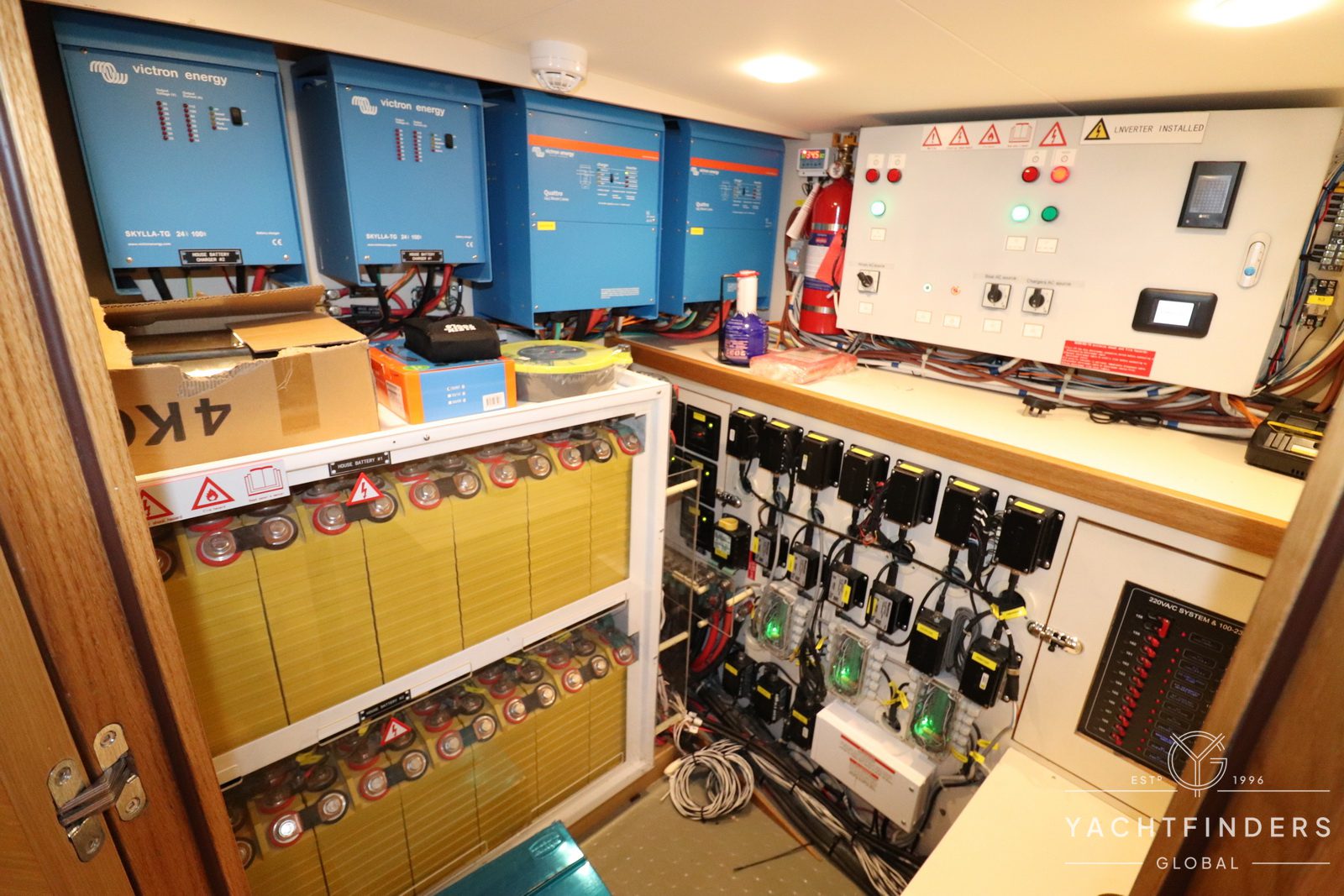

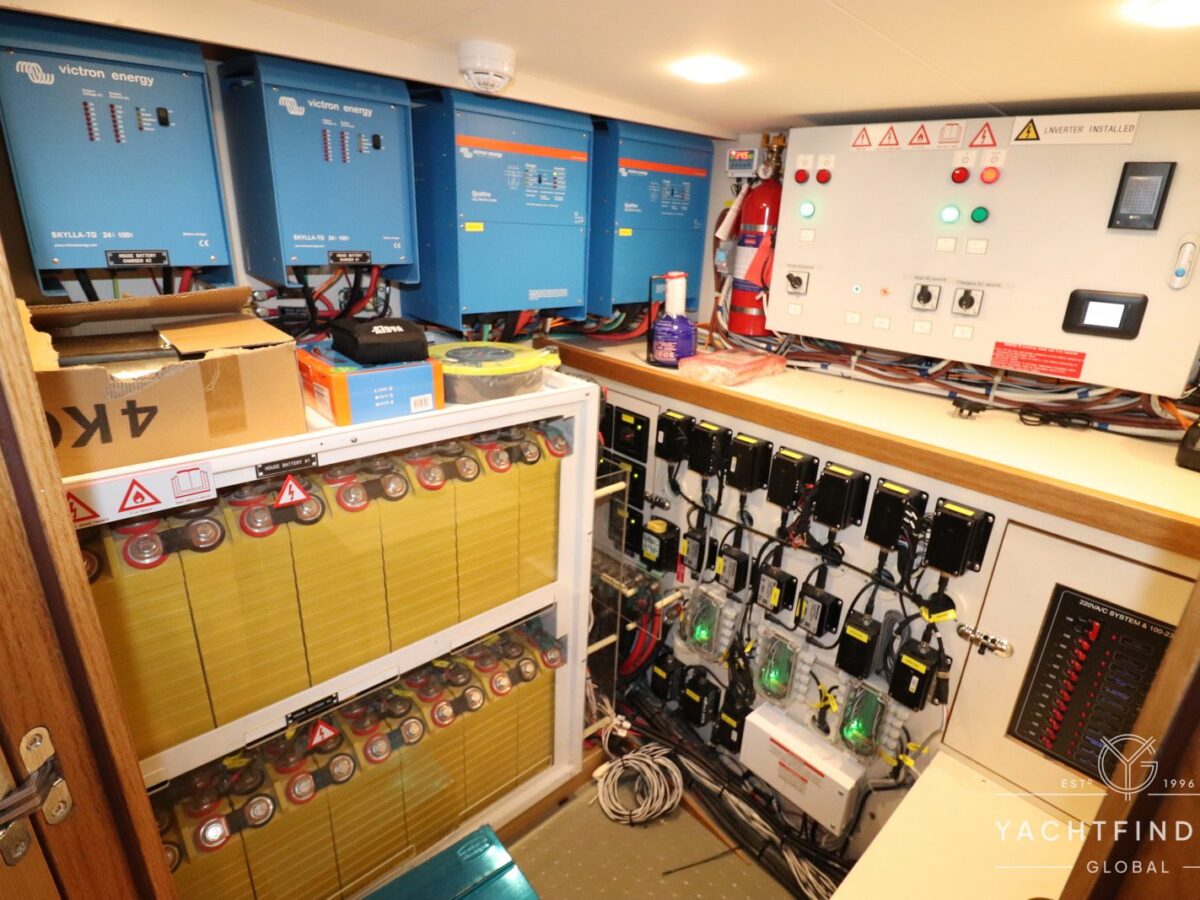

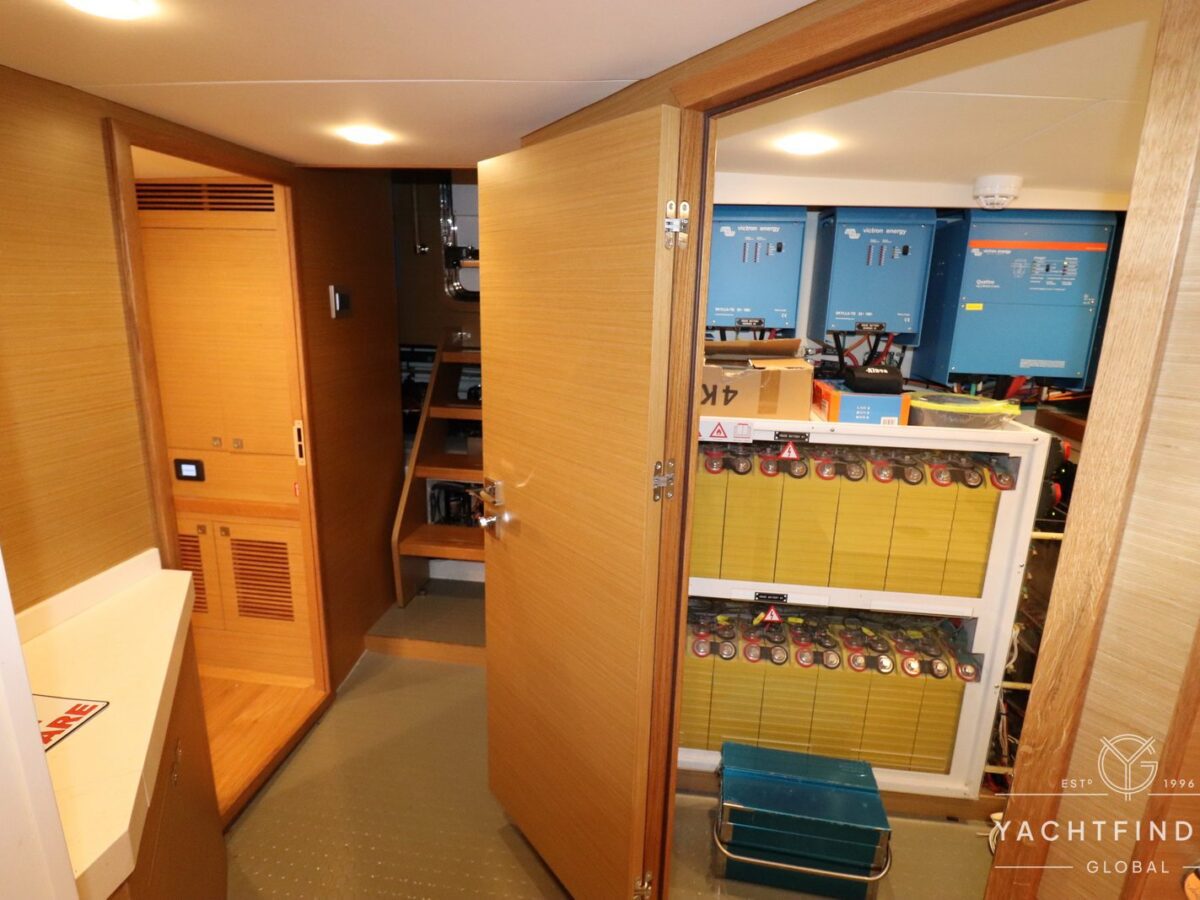

2000 Ah Lifepo4 house battery (16 units of Winston 1000AMP 3.2V batteries and REC BMS battery control C monitor system connected to Victron Cerbo Gx)
2 X Victron 8kw Quattro inverters
3 X Victron Skyla universal power input chargers (allow connection to any frequency and voltage in the world via separate shore power)
Victron chargers for starting batteries
2Kw solar panels on hardtop with Victron ppt
Additional 300A batteries in the pilothouse cabinet for navigation backup
Data network cabling (CAT6) is throughout the boat, with outlets in all cabins at the PH salon FB. cockpit
220v/50hz onboard power in compliance with EU and CE standards

.Pumps:

Electronics

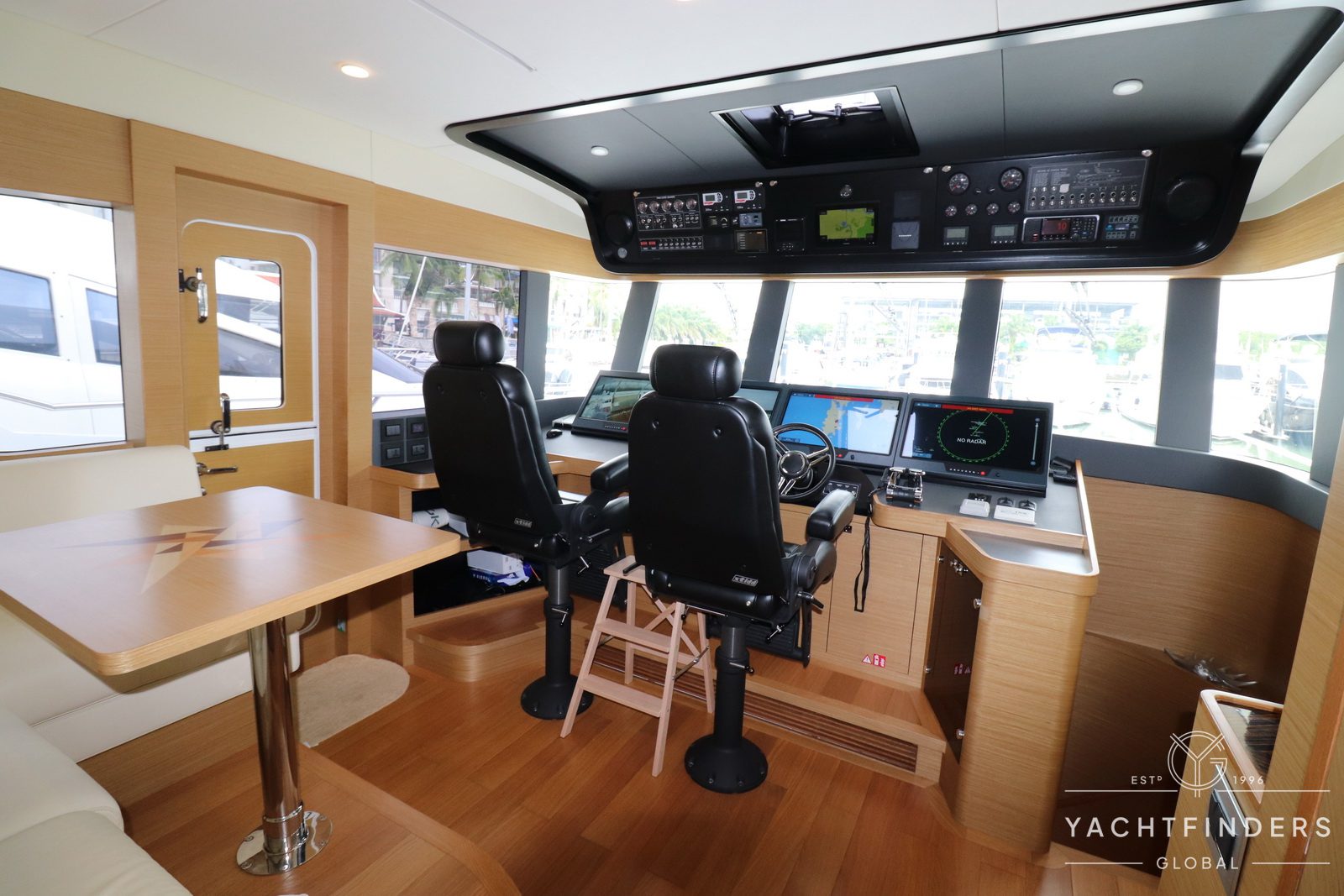

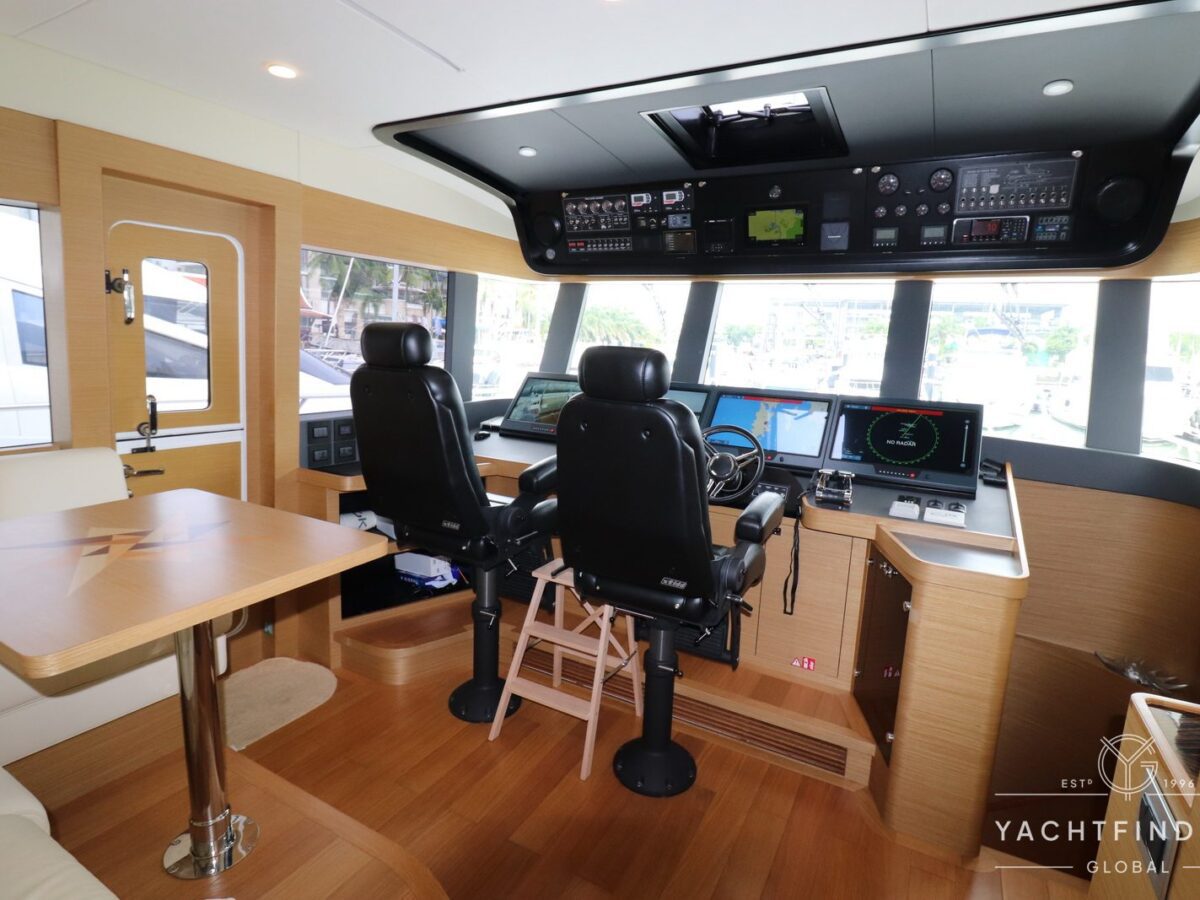

Pilothouse: Furuno TZT2BB2 dual chartplotters, 4X24” marine touch screens Furuno DRS12ANXT
6” primary radar, Furuno DRSD4NXT secondary radar
SCX20 Satellite GPS, PG700 heading, Furuno Navpilot 300 autopilot and instruments
Furuno DFF3D sounder, Class A AIS SiTex, Icom M605 main VHF, Flir M304, Syonix Nightwave night vision camera
Secondary navigation system: Garmin GPSmap 8400 Chartplotter, Panoptix forward-looking sonar,
Vesper Cortex VHF C AIS

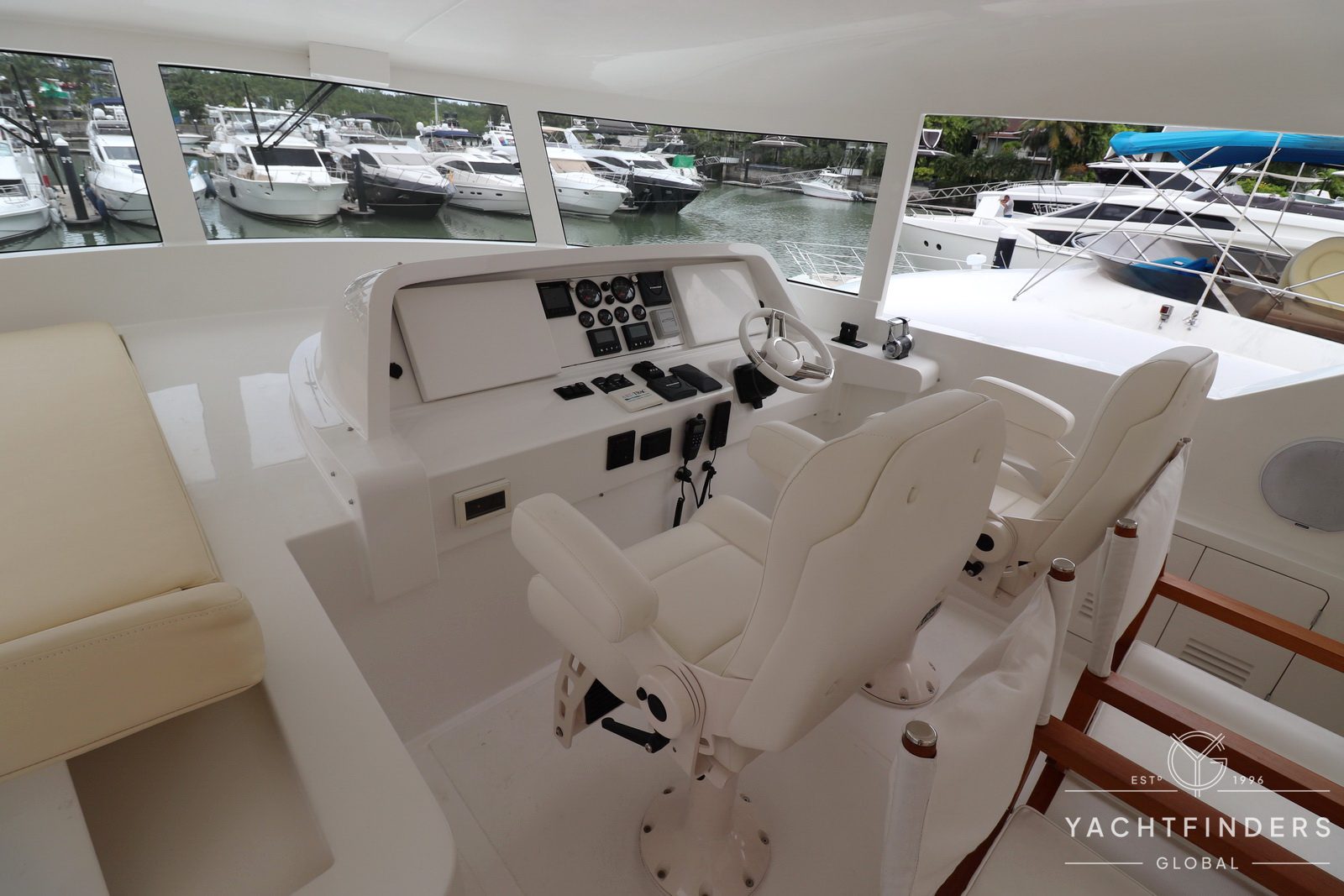

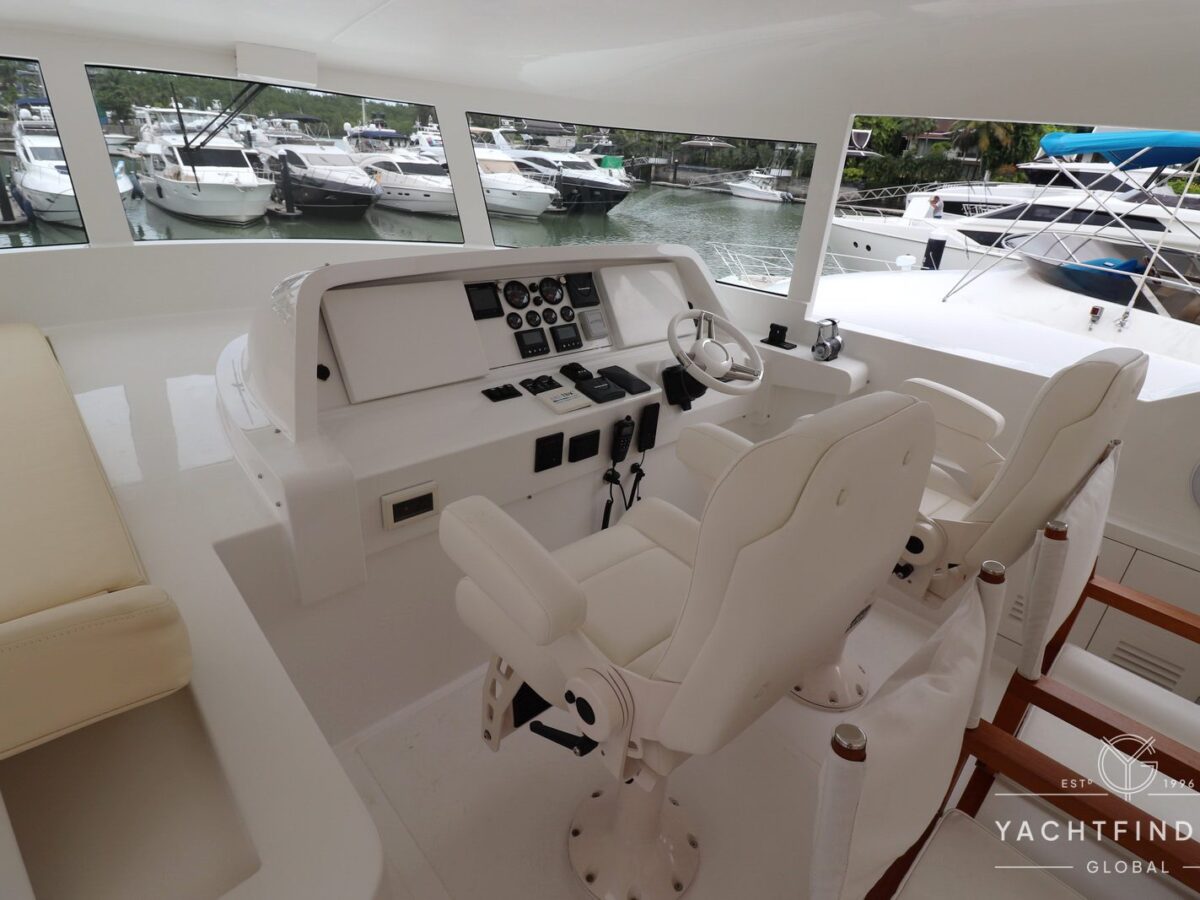

Flybridge: Furuno TZT2BB Chartplotter with 2X 16” screens, Autopilot control, instruments, engine controls, Thruster controls
Extensive Maretron system,
Security camera system with movement recording,
Starlink High-performance antenna integrated with Peplink wifi system Pepling 5G dual router and external wifi
Iridium Go Exec backup satellite comms
Fusion sound system in all cabins, PH, Salon, Cockpit, Flybridge Dockmate wireless remote yacht control
Hella LED flood lights aft, boat deck, sides and two forward spotlights ACR Searchlight
Kahlenberg dual trumpet #DO-A with chrome finish and fog timer 230VAC compressor w/24VDC
solenoid

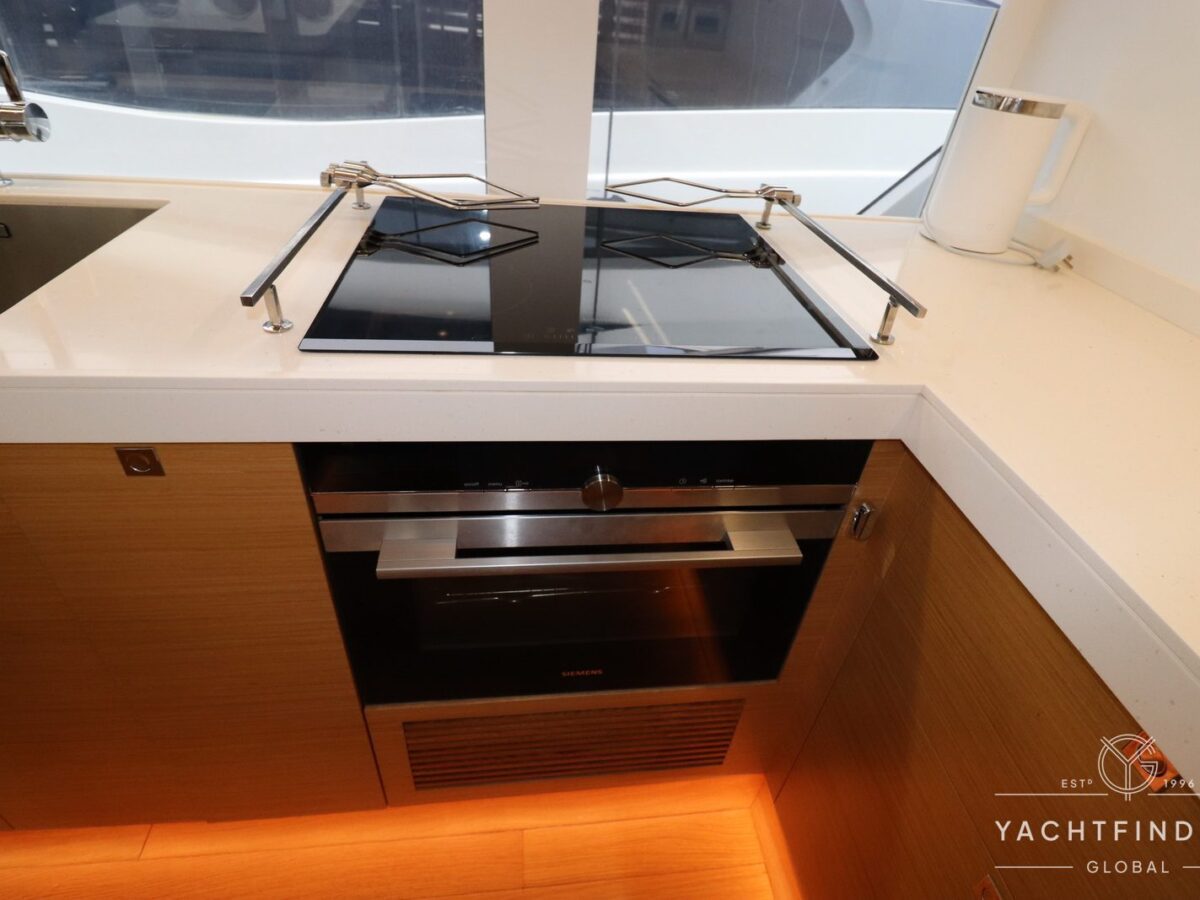

.Galley equipment:
