New layout and lifted Ònishes herald a new era for Clipper

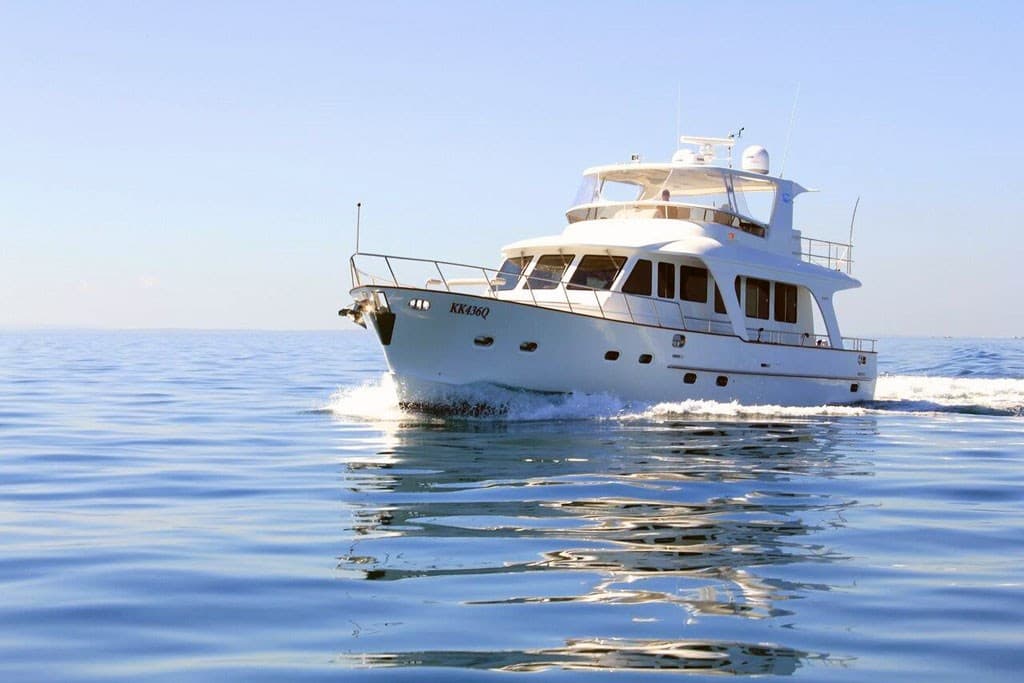

The Cordova 60 is one of the prettiest boats in today’s Clipper Óeet.
It’s got a balanced motor yacht line, rather than that the ‘clunkiness’ of a trawler, and now the Series II version has something else. This is a new-generation Clipper with a more practical layout by way of a big aft galley and hopper window, single-level salon and helm deck, plus lifted Òt and contemporary Ònish. These things help put the traditional Clipper marque in front of today’s luxury-Motoryacht buyers. There’s still the semi-displacement hull that Clipper espouses for economical passage making and a get-out-of-trouble fast clip of 20 knots-plus. But if you like to mix up your motor cruising with some entertaining, this new Series II Cordova 60 is for you
Interested In This Boat?
General
| Year: | 2015 |
| Price: | $1,900,000 |
| Additional Charges: | None |
| Boat Type: | Power |
| Hull Type: | Semi Displacement |
| Location: | Auckland |
| Engine/Fuel: | Diesel |
| Hull Material: | GRP |
Dimensions
| Length: | 60 ft |
| LOA: | 18.6m |
| Beam: | 5.12m |
| Draft: | 1.57m |
| Displacement: | 26.8 ton |
Engines
| No. of Engines: | Two |
| Engine Brand: | Cummins QSM 11 |
| Engine(s) HP: | 715hp |
| Hours: | 1400 hours |
Builder / Designer
| Builder: | Clipper Motor Yachts |
| Designer: | Clipper Motor Yachts |
Tankage
| Fuel: | 4300Lt |
| Water: | 1500Lt |
ACCOMMODATION
8 Berth & 4 Cabins

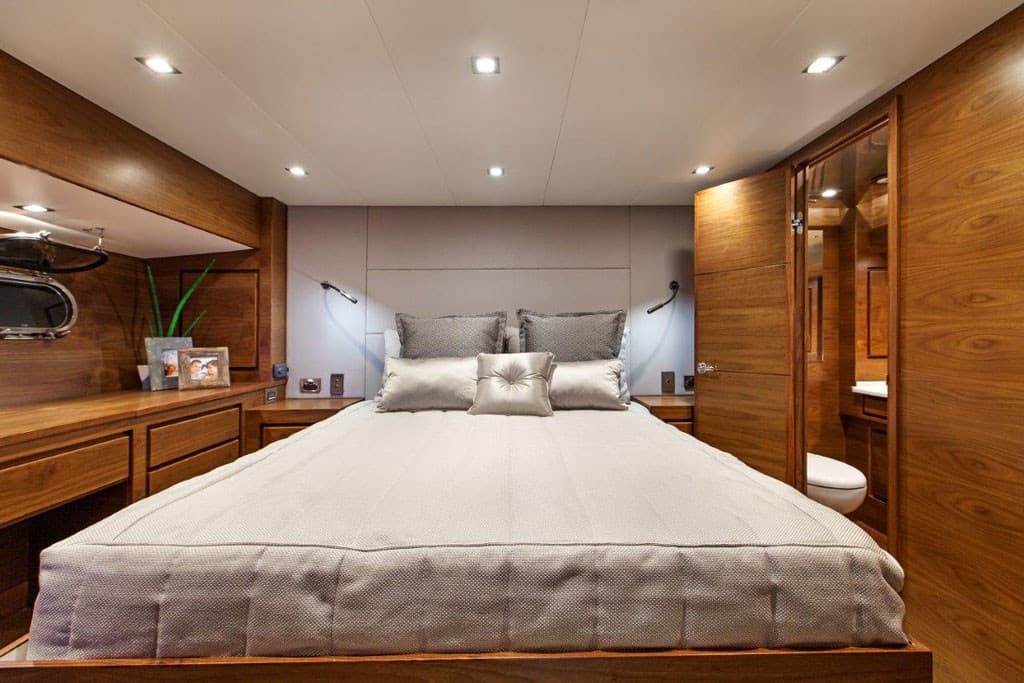

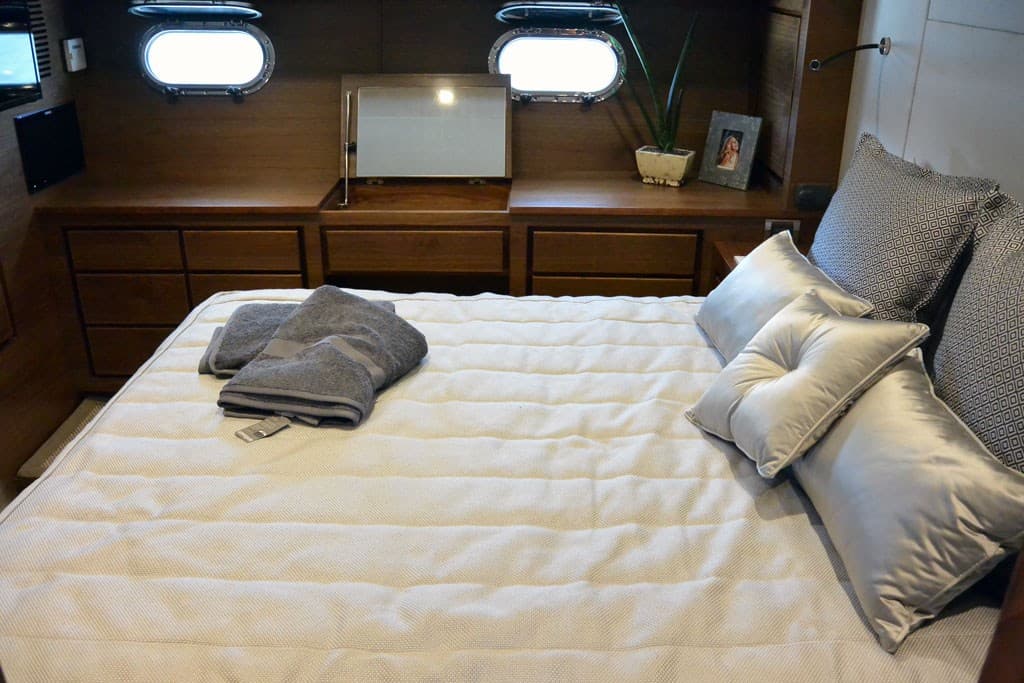

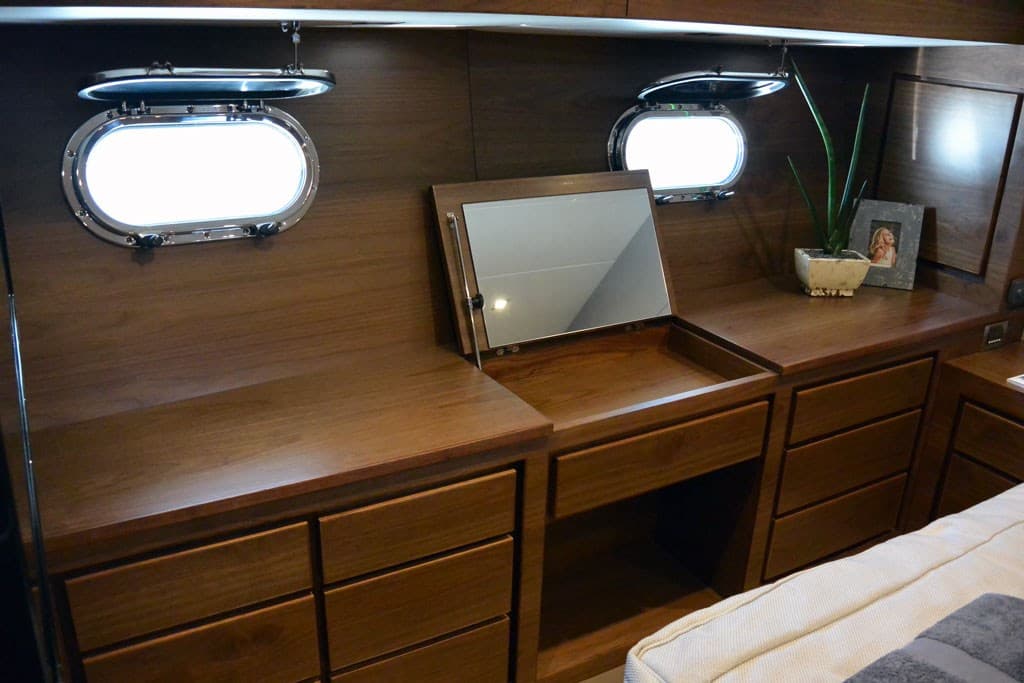

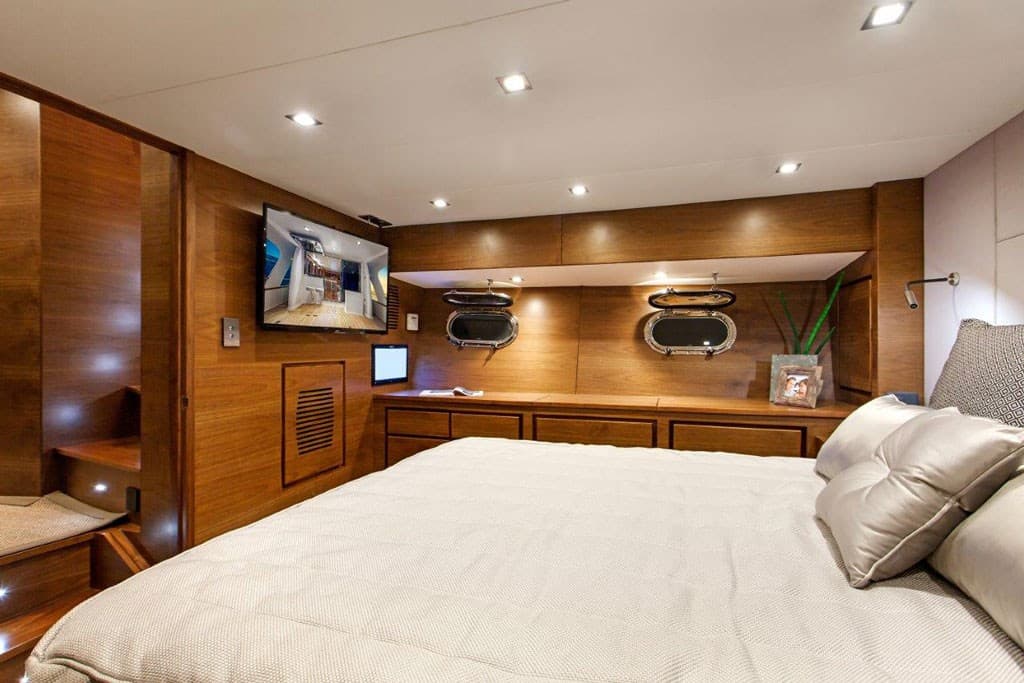

Master with ensuite – Full beam

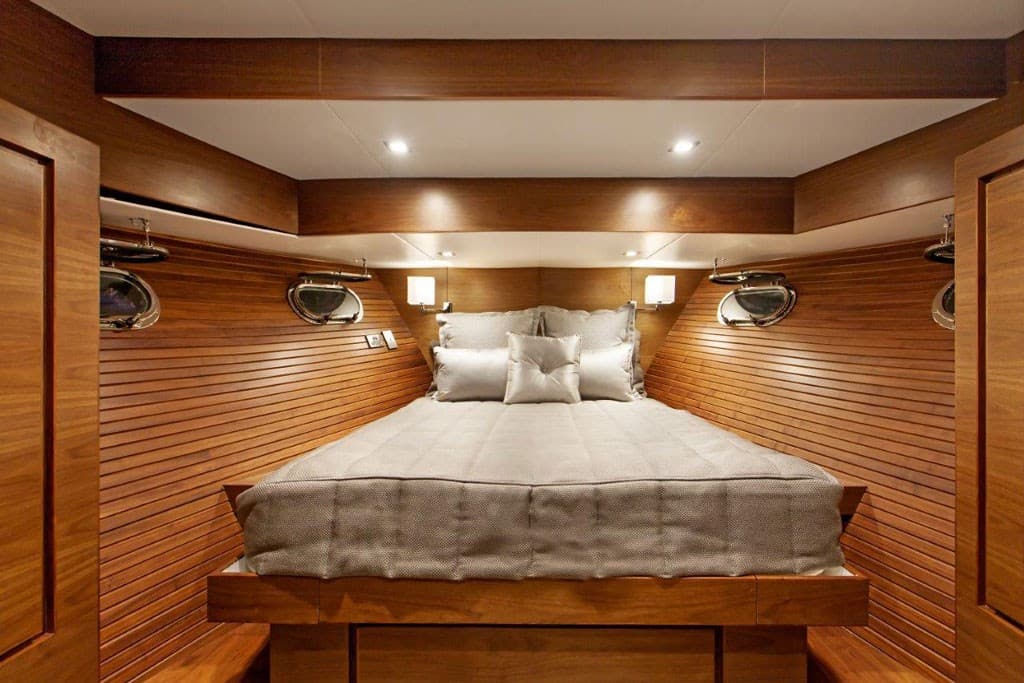

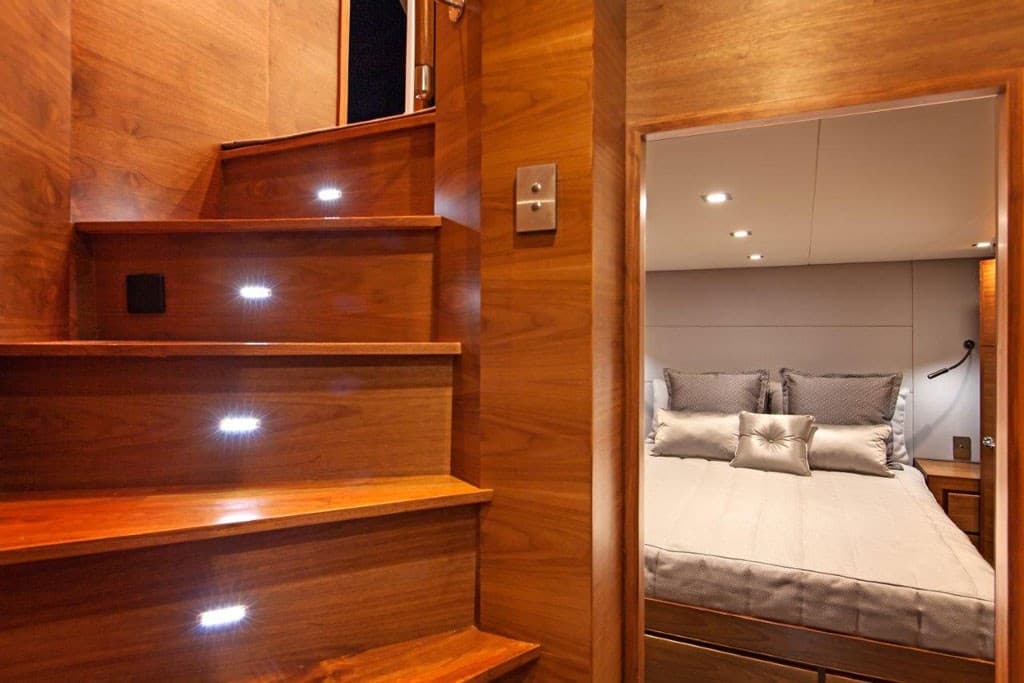

VIP guest cabin – Double
2x 2 berth single cabins

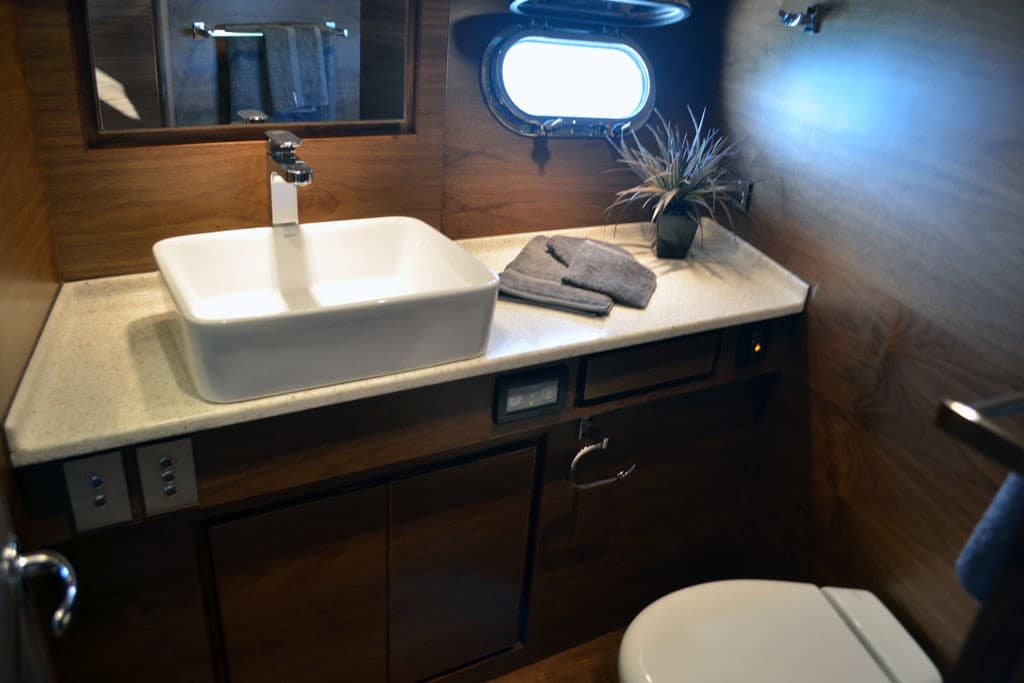

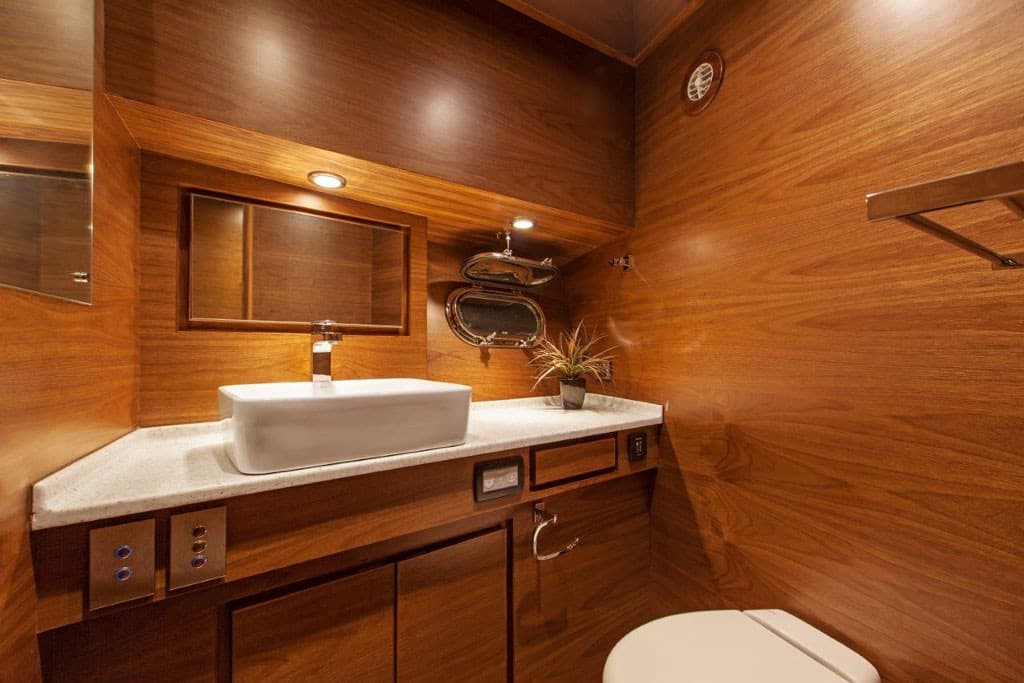

Guest bathroom with shower and toilet

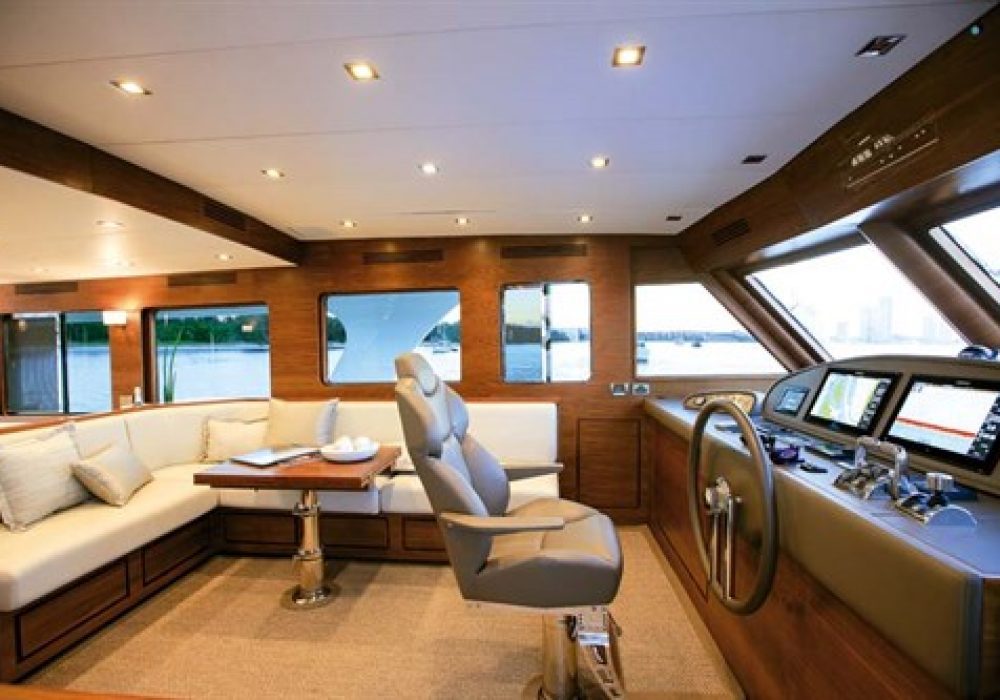

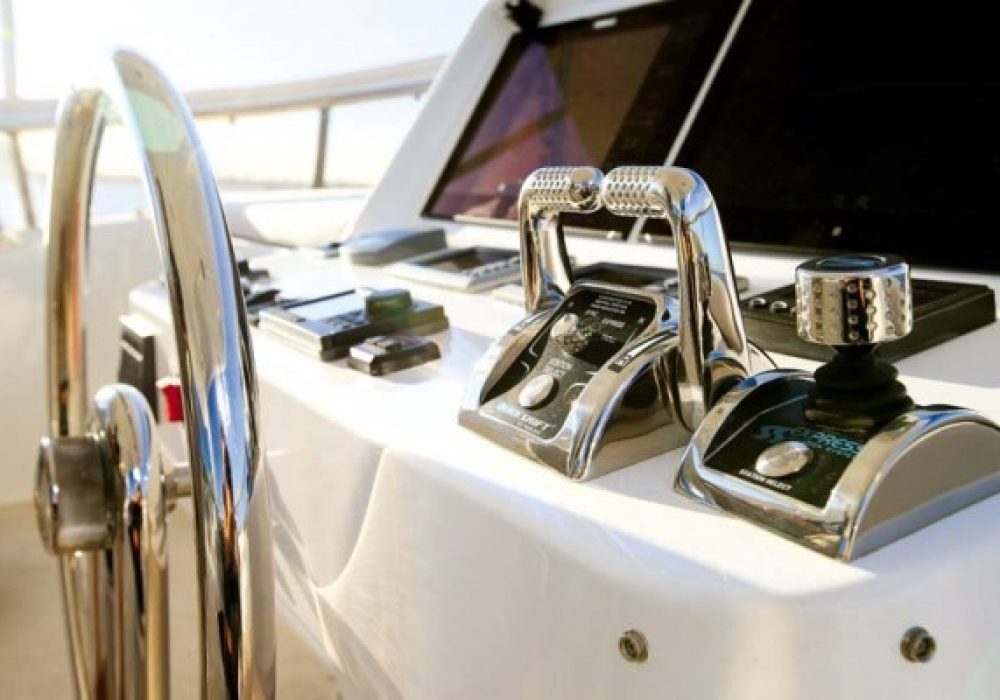

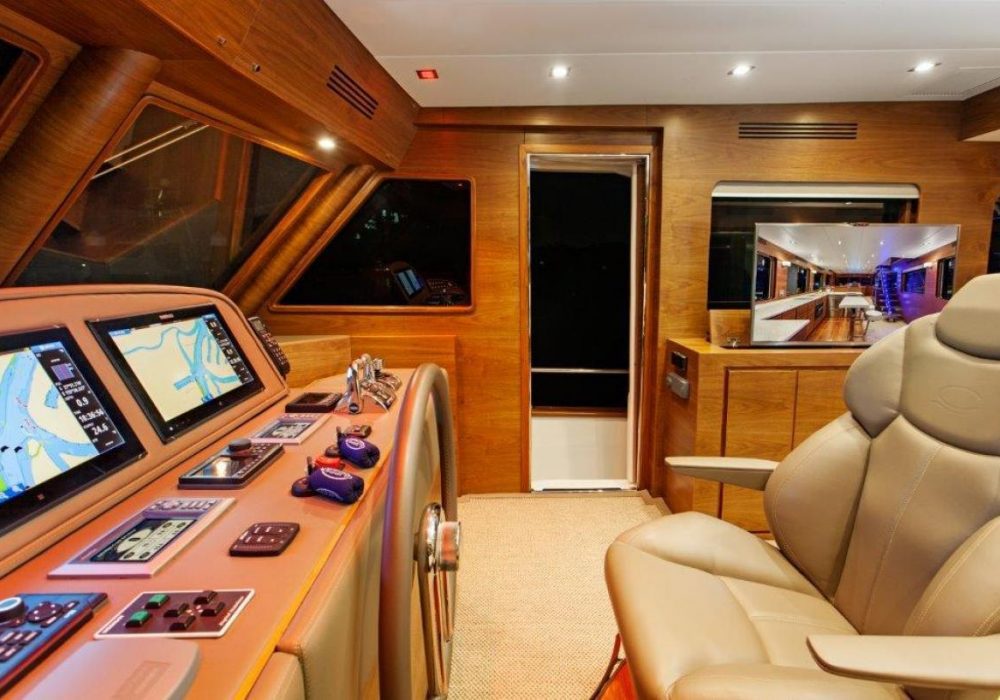

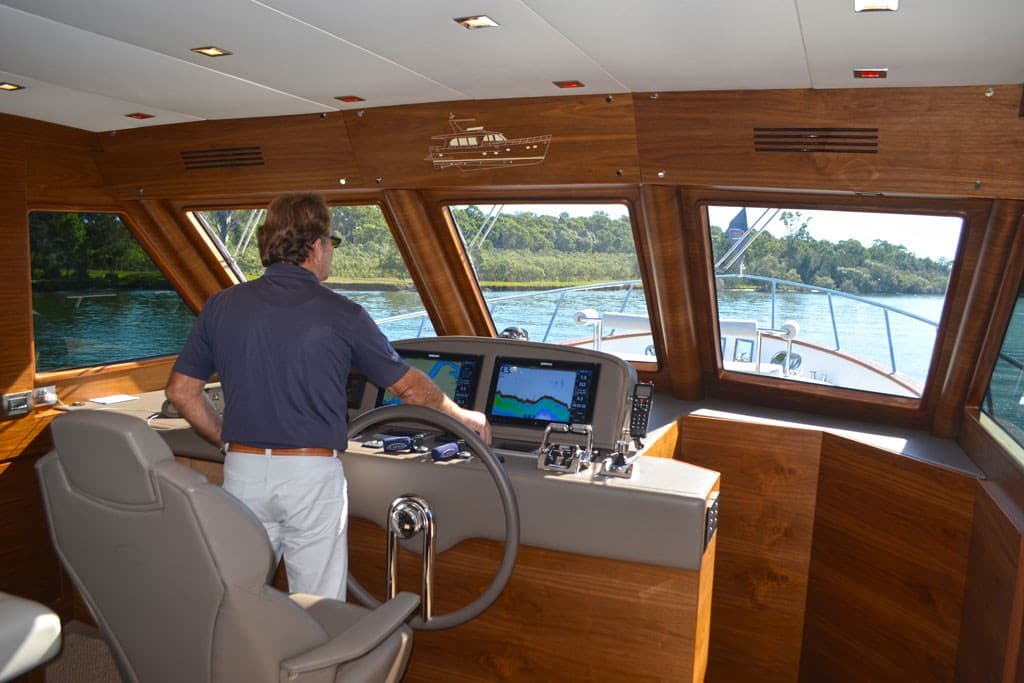

Wheelhouse: Single helm chair, electronic navigational and communications instruments and devices repeated on flybridge but with two helm chairs
Saloons: Upper and lower with island tables, LG popup TV to starboard, leather upholstery

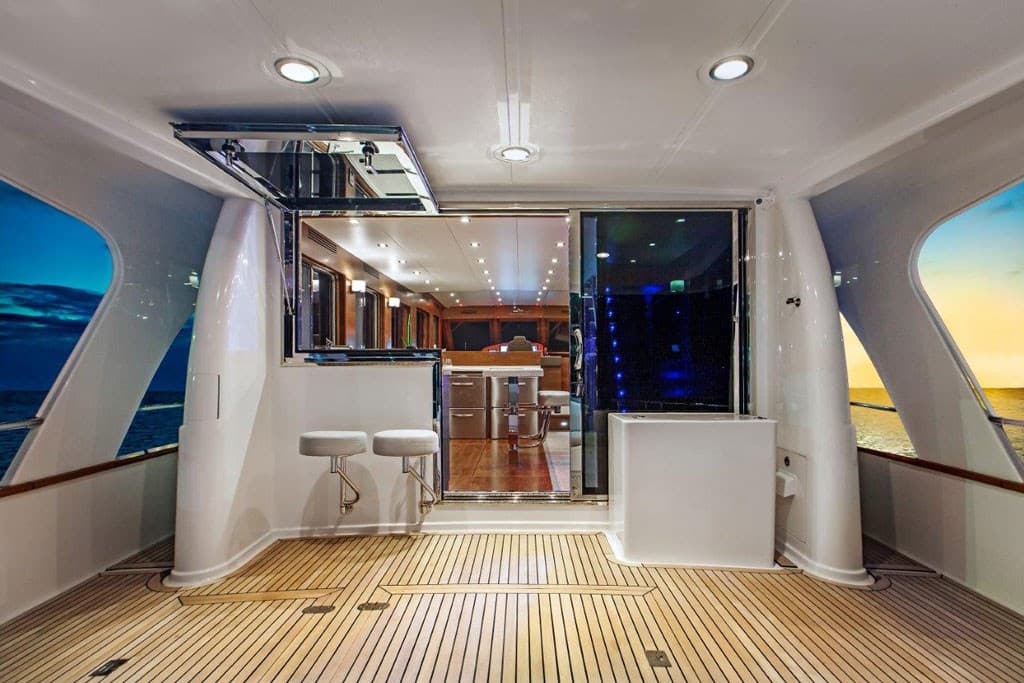

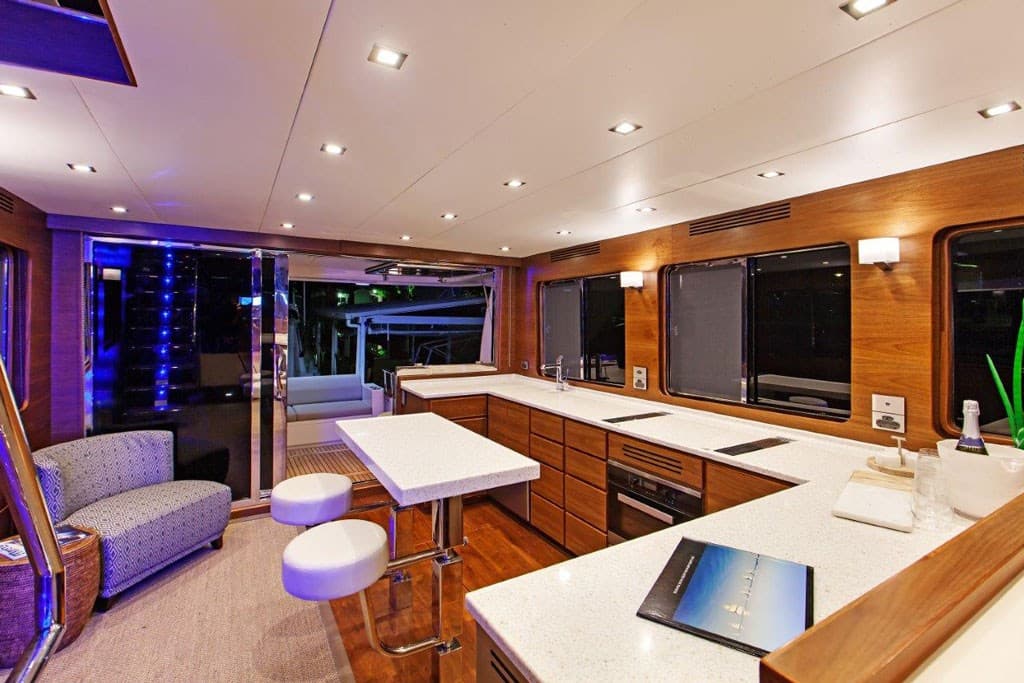

Galley: U-Shaped sink/bench with 4 elements ceramic electric cooktop, convection microwave oven, island table, servery aft with large opening window
.MOORING EQUIPMENT
Anchor 1:1x 60kg Ultra anchor, serial no: 13123105 with 100m x 13mm short link chain
Anchor 2:1x 30kg Rocna, with 10m x 10mm short link chain and 100m of nylon anchor rope.
Windlass: Muir hydraulic, model no: HR-4000
AUXILIARY MACHINERY

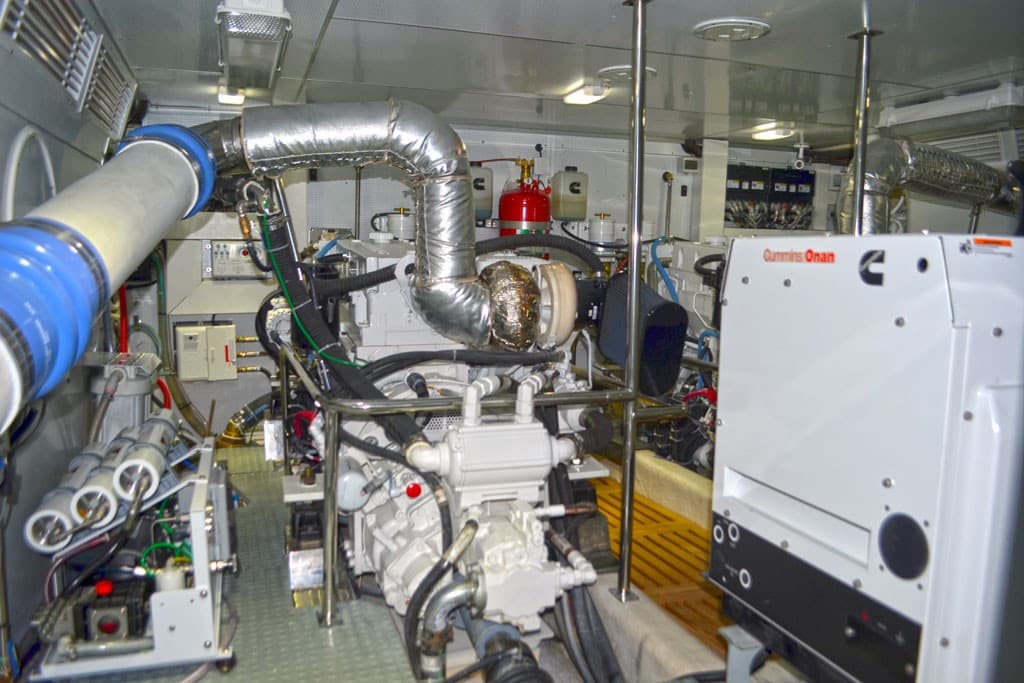

Generator: Cummins / Onan
Generator Model No:MDKBT-1321519, Silenced enclosed diesel single phase generator set, spec B, 22.5KVA @ 1500 RPM, 501-lz / 220v, 120.3A
Location: Aft to port in the main engine room
Generator Serial No: Al 30445744
Generator Hours: 492 Indicated Hours
Refrigeration: 2×2 drawer Vitrifrigo DT Series – 180 litres each – Model: DWI 80.2DT INOX, Cruise – Air A/C systems comprising: 4x 16000 BTU and Ix 12000 BTU units
Hydraulic System: for power-assisted steering, 2x hydraulic pumps driven off the back of marine gears
Shafts: 2x Stainless steel
Propeller: 2x 4 Blade, Bronze alloy
.
Bow Thruster: Twin disc hydraulic, model no: BP400
Stern Thruster: Twin disc hydraulic, model no: BP400
Stabilizers: Wesmar
Trim Tabs: Bennett BXT
Swim Platform: ADC, Hydraulic operation, 600kg capacity with provisions to mount RIB
Exhaust: Wet, Trunked Via Side of Hull
Instruments / Alarms: Installed in Wheel House and Flybridge, repeaters in master and crew cabins.
Bilge Alarm: Yes, with float switches, Installed
ELECTRONIC & NAVIGATIONAL EQUIPMENT
Multi Combo Unit: Simrad 19″ glass screen multi-units featuring GPS, Chart Plotter, Sounder, Radar and Forward Scanning Sonar
GPS: Simrad – Integrated
Radar:2x Simrad – Ix Broadband with radome antenna
Ix Conventional with open array scanner
Sounder: Simrad – Dual frequency, 50/200 kHz
Autopilot: Simard – Model: AP-28 with repeater on flybridge
Compasses:2x Ritchie – dampened
Engine Monitoring System: Cummins Smartcraft vessel view multi-function units at the helm and flybridge stations
Sonar: Simrad – Forward scanning system
.RADIOS & COMMUNICATIONS
VHF: Simrad – Wired HS90 and 2x wireless HS 35 handsets
Other: Fusion Audio System
Satellite: KVH TracVision DVB
Searchlight: Installed with controls at the helm
ELECTRICAL INSTALLATION
12 V DC, 24 V DC, 240AC and Shore Power
Connector
Alternators: 2x 24 v DC off main engines
Generator: 22.5KVA Generator: Onan MDKBT/U
Generator Serial No: Al 30445744
Batteries: Total 8 batteries
Other Equipment: Automatic Battery Chargers Inverters: 3000 watts installed
.TANKS and PUMPS
PUMPS
Bilge: 5x Electric pumps
Fuel Transfer: Electric pumps
Freshwater / Macerator: Electric pump arrangements
Watermaker / De-Salination: SK, 95 Litre/Hour, Model SC-600
TANKS
Fuel Tank: Total 5800 Litre, 2x 2150, 2x 750
Fresh Water Tank:1x 1500 Litre
Blackwater Holding Tank:1x 418 Litre
Grey Water Holding Tank:1x 418 Litre
ACCOMMODATION
8 Berth & 4 Cabins
Master with ensuite – Full beam
VIP guest cabin – Double
2x 2 berth single cabins
Guest bathroom with shower and toilet
Wheelhouse: Single helm chair, electronic navigational and communications instruments and devices repeated on flybridge but with two helm chairs
Saloons: Upper and lower with island tables, LG popup TV to starboard, leather upholstery
Galley: U-Shaped sink/bench with 4 elements ceramic electric cooktop, convection microwave oven, island table, servery aft with large opening window
MOORING EQUIPMENT
Anchor 1:1x 60kg Ultra anchor, serial no: 13123105 with 100m x
13mm short link chain
Anchor 2: 1x 30kg Rocna, with 10m x 10mm short link chain and 100m of nylon anchor rope.
Windlass: Muir hydraulic, model no: HR-4000
.
FIRE FIGHTING EQUIPMENT
Seafire Novec 1230, Inert gas, Engine room smothering system Fire extinguishers as required, fire blanket.
TENDER VESSEL
Tender: Brig 3.8m centre console RIB
Tender Registration no: X0150Q
Tender Engine: BF50D 50HP Honda outboard Serial no: BBEJ-1 114226
Disclaimer
We offer the details of this vessel in good faith, but unfortunately, we cannot promise or warrant its accuracy, information or warrant the condition of the vessel, its machinery or equipment. A buyer should instruct his agents or a surveyor to confirm such details as the buyer desires and validate them independently.
This vessel is offered subject to prior sale, price change, or withdrawal without notice.
