Construction
Hull lamination:
Hull lamination schedule per construction plan, the area below water line to use “Cook”
Gelcoat and vinylester resin for the first three (3) layers. Deck lamination schedule per
construction plan. Construction plans pertaining to structure to be based on standards
set by the CE standard.
FRP Details:
Cook Gelcoat for hull, deck, superstructure and non-skid surfaces.
Hand laid bi-axis and uni-direction stitched woven roving/mat.
Vacuum resin infusion hull and superstructure.
3 watertight bulkheads (chain locker & collision locker, forward E/R, Aft E/R).
Transverse frames and longitudinal girders system.
Vinylester resin for the first three layers.
FRP radar arch

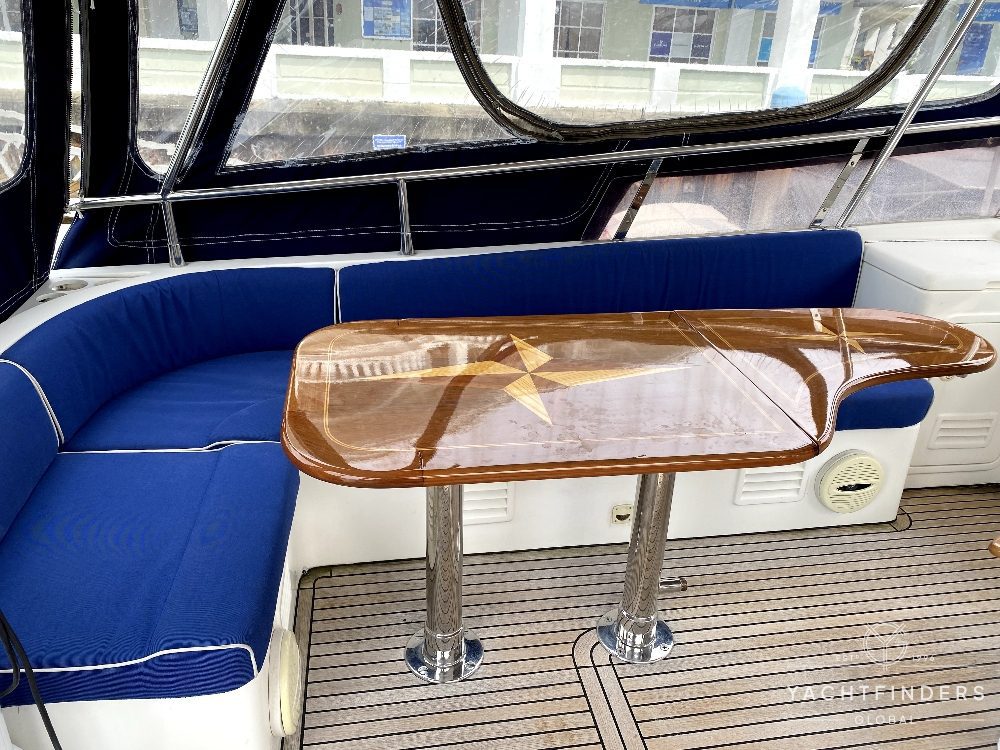

Built in settee at fly bridge.
Integral full protected keel & rudder shoe.
Recessed bow thruster tunnel.
Integral FRP stern thruster casing (Option).
Core Materials:
Cabin side (vertical surfaces): Corecell of varying degrees of thickness.
Cabin top and deck (horizontal surfaces): Baltec or equivalent vertical end grain balsa,
1″ thick.
Deck/hull joint:
Between deck and hull flange: 3M 5200
Inside of joint: Three (3) layers M. & W.R. in all accessible locations
Mechanical fastening: 3/8″ thru-bolts on 6″ centers
Longitudinal Stringer:
Hull: Full length each port and starboard
Water tight bulkheads:
Water tight bulkheads per construction drawing to include, but not limited to the
following areas: Between lazarette and E/R, E/R and lower cabins, Aft bulkhead of Fwd.
Guest cabin and chain locker/collision bulkhead.
Electrical & Mechanical Equipment

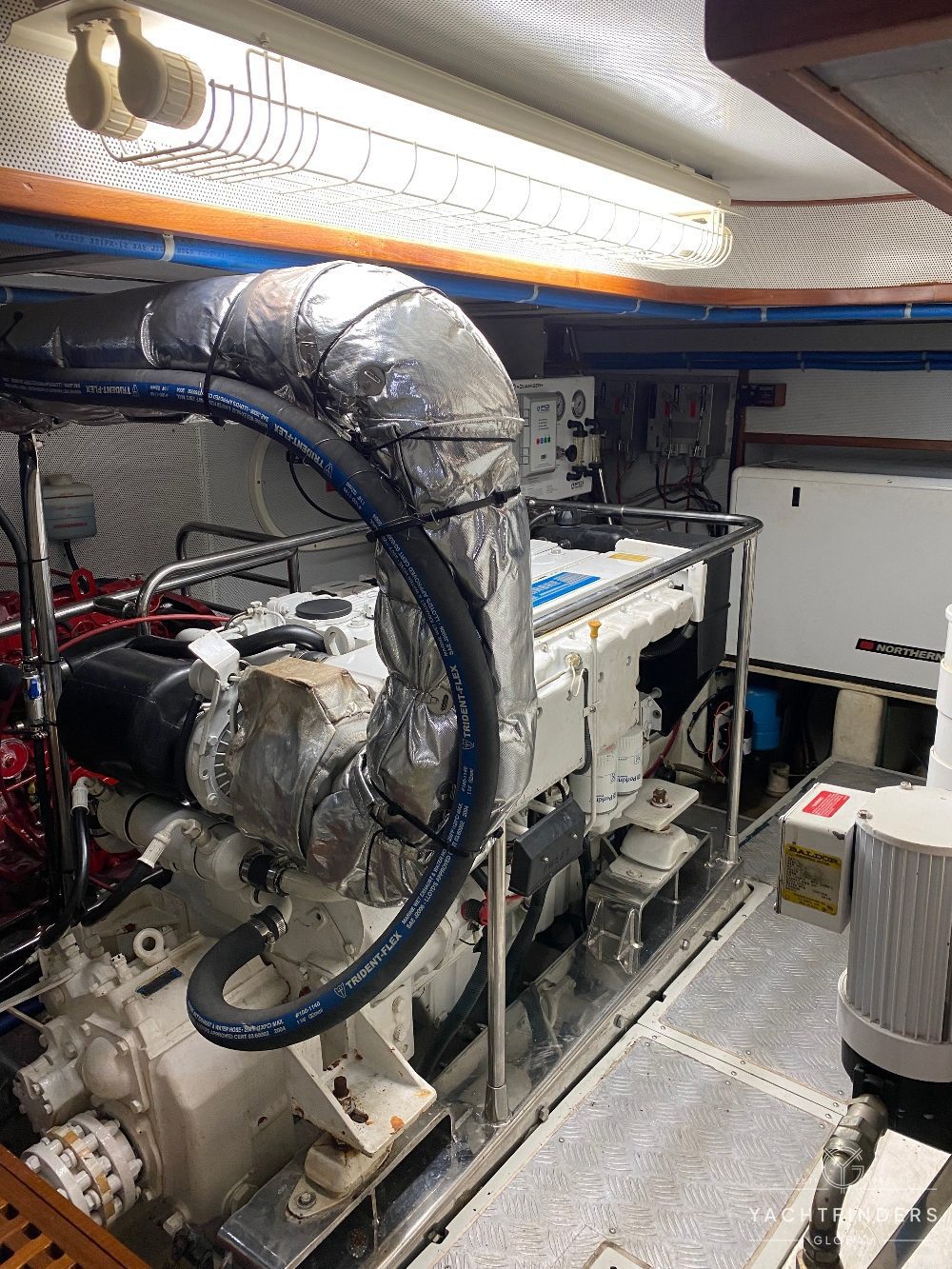

1 x Perkin Sabre M185C + wing engine with folding prop
Drive Shaft
692 hrs Main Engine/ 66 hrs Get Home Engine/ 452 Genset
Power System 12V / 230V/ 50Hz
Generator Northern Lights
7000 BTU in guest cabin

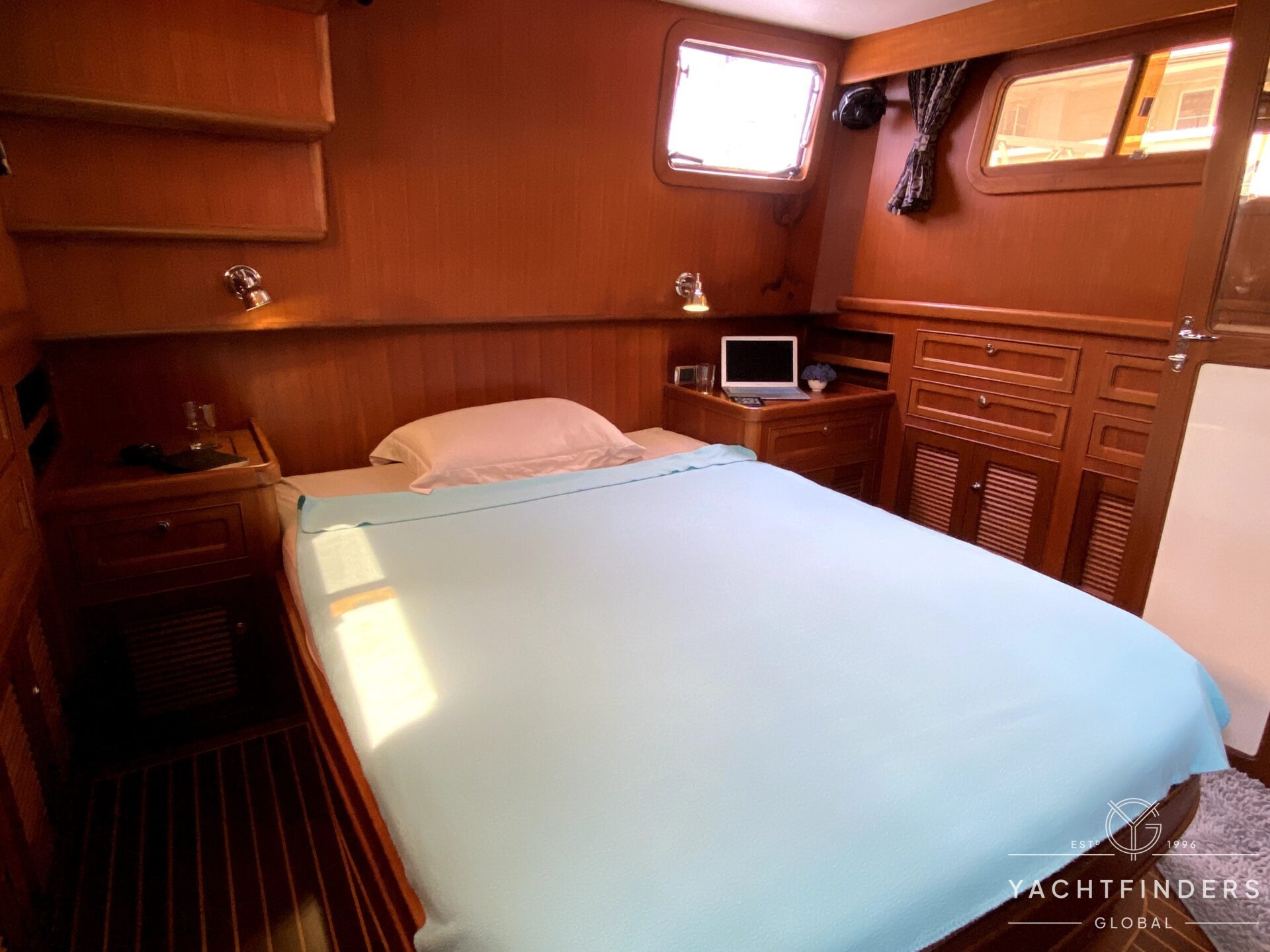

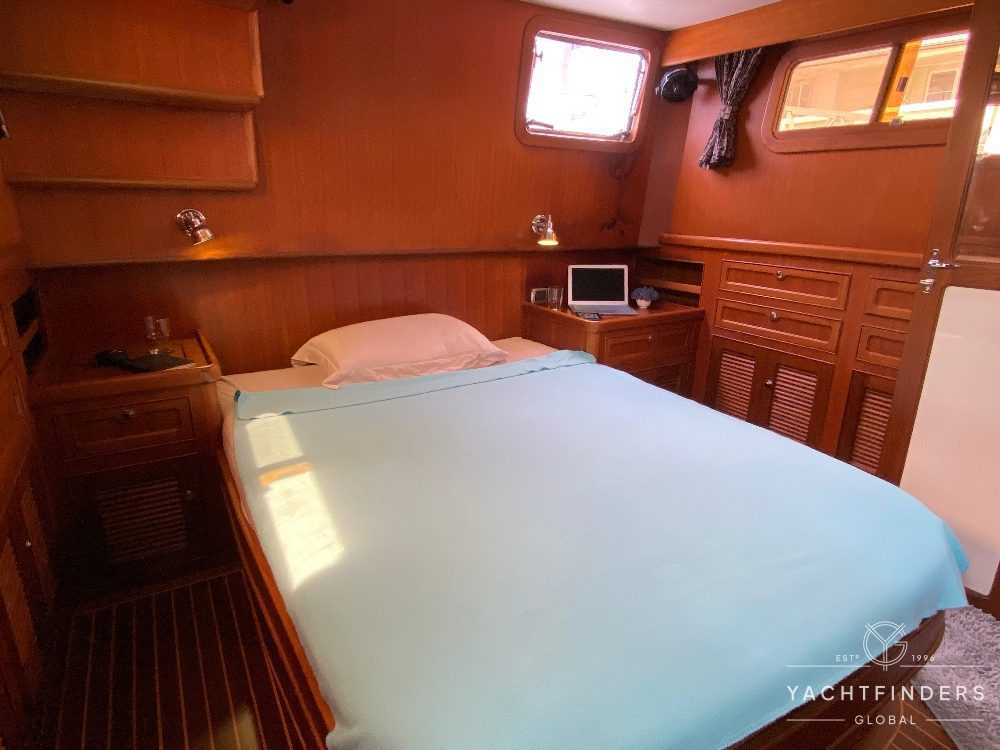

12,000 BTU in master cabin
16,000 BTU in saloon
Battery charger, Victron Intelligent charger
Engine batteries (New 2022)
Service batteries (New 2022)
Bow thruster battery (New 2022)
Generator battery (New 2022)
Fuel polishing system and flowscan
Exterior Features & Equipment
Anchor, Chain, Rope – Muir Cougar
Windlass
Boarding/ Swim ladder
Deck Shower hot and cold
Electric Crane (DC Power)
Tender/ Outboard, Quicksilver, Mercury 5 HP
Teak deck
