General


Year: 2024
Price: US$2,680,000
Additional Charges: Plus GST, Duty & Freight
Boat Type: Power
Hull Type: Semi Displacement
Location: New Boat
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 62 ft
LOA: 20.71m
LWL: 18.75m
Beam: 5.69m
Draft: 1.65m
Bridge Clearance: 8.1m
Displacement: 48 Tonnes

Engines


No. of Engines: Two
Engine Brand: Man i6-800 800 hp @ 2,300 rpm.
Engine(s) HP: 800hp
Cruising Speed: 13 kn
Max Speed: 18 kn

Builder / Designer


Builder: Selene
Designer: Howard Chen

Tankage


Fuel: 3526 Litres
Water: 600 Litres
Holding: 455 Litres

Construction


  • Superstructure with vacuum bagging
  • Vinylester resin at the hull and ISO resin at deck & F/B before core material
  • Cook gel coat light tan for the non-skid
  • Double with moulded upper & lower rub rail capped with S/S rub rail

.


Foam structural bulkheads and cabin sole padded and bonded as per schedule
Integral swim platform with extended hull underneath
Recessed bow thruster tunnel

Interior


 FOUNDATIONAL MATERIALS

  • Light teak (straight grain )
  • Door locks and handles for interior doors
  • Latch for all locker doors and drawers
  • Bird style door catcher for all overhead locker doors
  • Cantalupi LED lights system
  • Cabin LED reading lights
  • Solid teak and holly sole w/ teak border GENERAL
  • S/S #316 opening portlights with safety covers
  • S/S #316 hatches for pilothouse and fwd. stateroom
  • Diamond Sea-glaze or (equivalent) for pilothouse Stb side
  • S/S #316 solid upper and lower dual fender rails
  • S/S #316 handrail for foredeck and dinghy deck

.


  • S/S #316 telescope swim ladder
  • S/S #316 telescope swim ladder
  • Transom gates swing-out
  • Afterdeck side gates
  • Storage locker inside Portuguese bridge 5
  • Portuguese bridge access gate to the foredeck
  • Deck moulded inlay pattern non-skid to fore, side, aft, fly ridge decks and swim platform
  • Teak burgee and flagstaffs  Freeing port for fore, side and aft.
  • S/S #316 bow and stern flag pole socket
  • Teak cap rail for aft. Deck
  • Portuguese bridge access gate to the foredeck
  • S/S #316 self-lock type exterior gate handles
  • Cantalupi LED exterior dome lights
  • Cantalupi LED exterior courtesy lights
  • International anti-fouling bottom paint
  • International Gel shield primer coating
  • Awl-grip boot top line

Pilothouse


  • Helm station w/ complete engine instrument
  • panels with alarm rock switch panel for function
  • Overhead electronics locker above the helm station
  • Inside access to flybridge stbd. side with S/S
  • hatch door from P/H
  • The electronic engine control system
  • One Selene brand pilot seat
  • Diamond Sea-glaze or (equivalent) for
  • pilothouse Stb side
  • Chart drawer under chart locker
  • Raised L-shapes settee for a port with upholstery,
  • large P/H table convert to watch berth Ø
  • Overhead electronics locker above the helm station
  • Overhead ventilation hatches
  • Overhead vinyl throughout
  • Teak & holly sole
  • Tempered window glass, tinted 12mm.
  • Cantalupi LED dome lights

.


  • Cantalupi LED step lights
  • Steering and engine controls, with 24” teak
  • steering wheel
  • Ritchie Compass (Option)
  • Horn control
  • Wiring routes to facilitate equipment installation
  • Backlit electrical & Battery Master Switch panel
  • Alarm and advisory panel
  • Mimic panels
  • Teak table with single stainless steel leg
  • Exalto Wiper
  • Control for bow thruster (Option)
  • Air-conditioning (Option)
  • Generator start/stop & digital control panel
  • Windlass up/down switch & control circuit
  • breaker
  • Fire system and high-level bilge alarms
  • Bilge pump control switches on the mimic panel

Accommodation

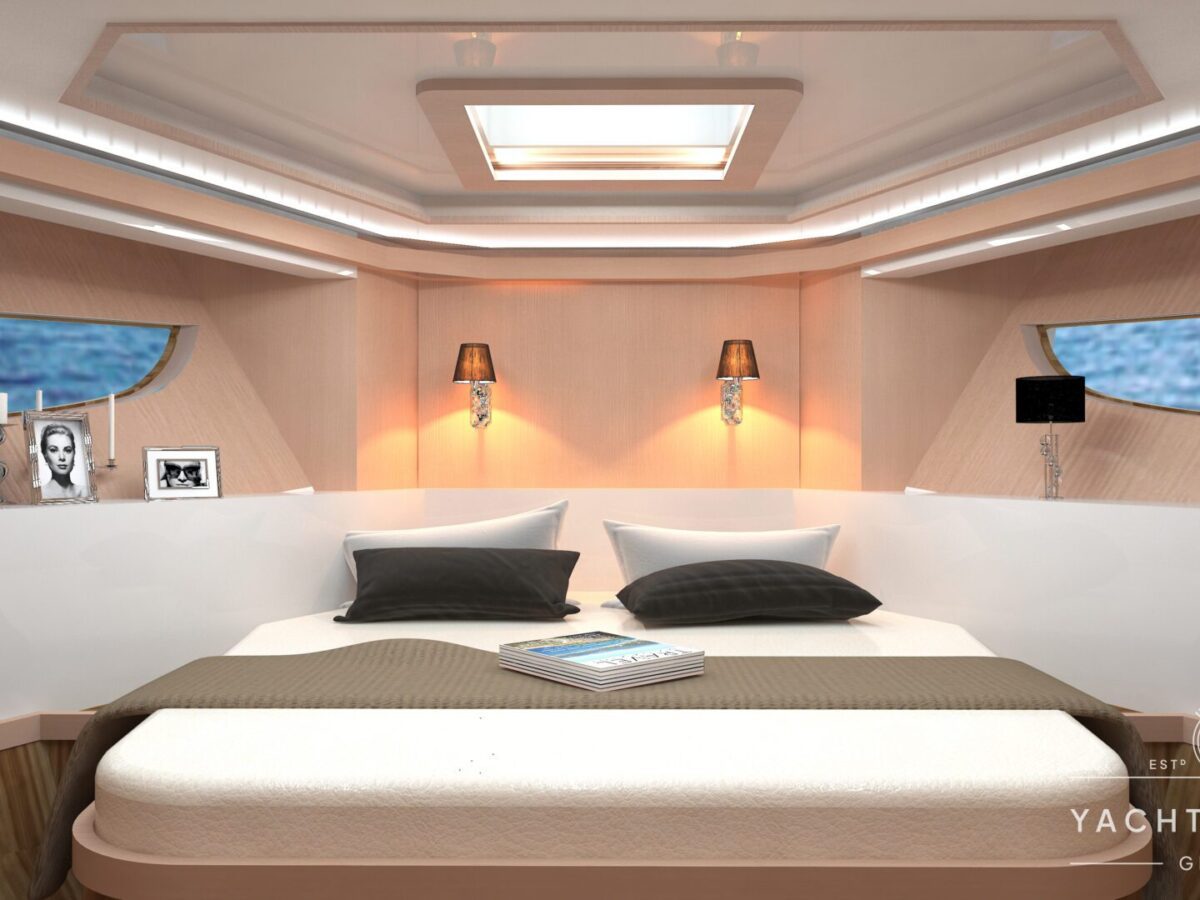

FORWARD STATEROOM / VIP STATEROOM

  • Queen-size berth w/ 5” foam mattress
  • Front and side cabinets 7
  • Hanging lockers w/ automatic light
  • Wood countertop
  • Cabin LED reading lights
  • Cantalupi LED dome lights
  • S/S #316 hatch
  • S/S #316 opening portlights

FORWARD / VIP HEAD

  • Tecma fresh water toilet
  • Shower room w/ teak removable grating panel
  • Cantalupi LED dome lights
  • Tempered clear glass shower clear door
  • Vanity unit w/ integral washbasin
  • Grohe single-lever hat and cold shower faucet
  • Granite floor (or teak and holly floor w/ teak
  • border)
  • Mirror w/ teak frame
  • S/S #316 tissue paper holder
  • Telescope escape ladder in the forward stateroom

.

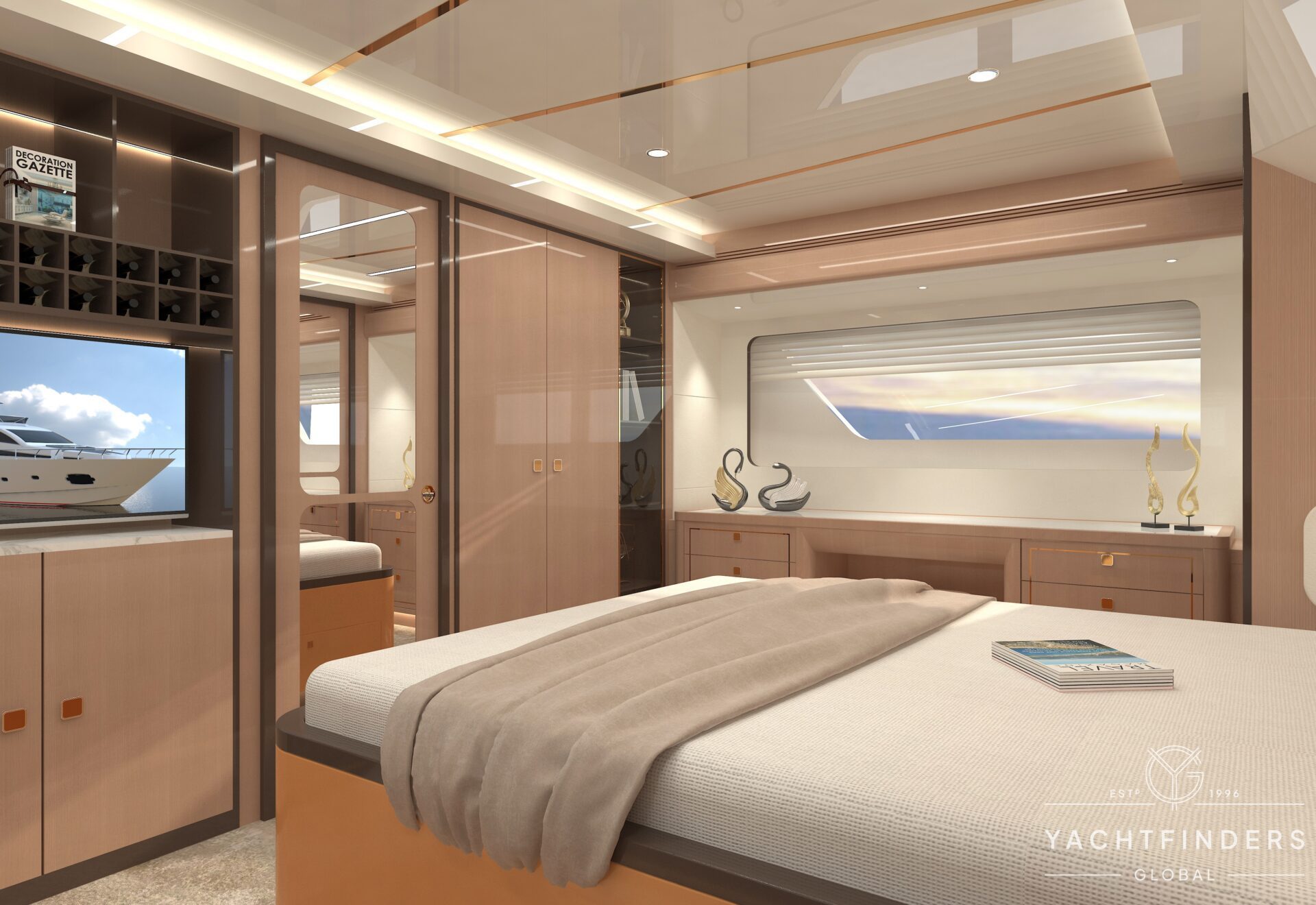

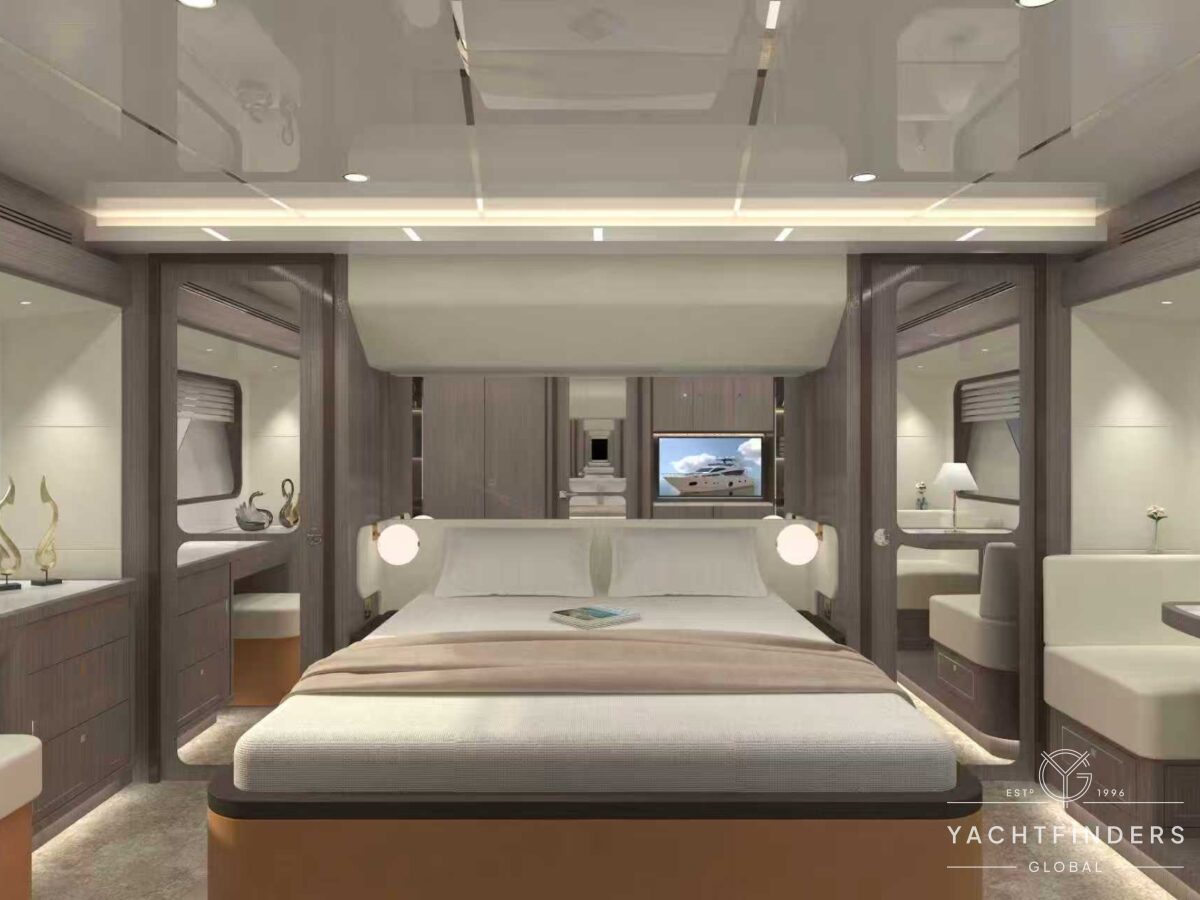

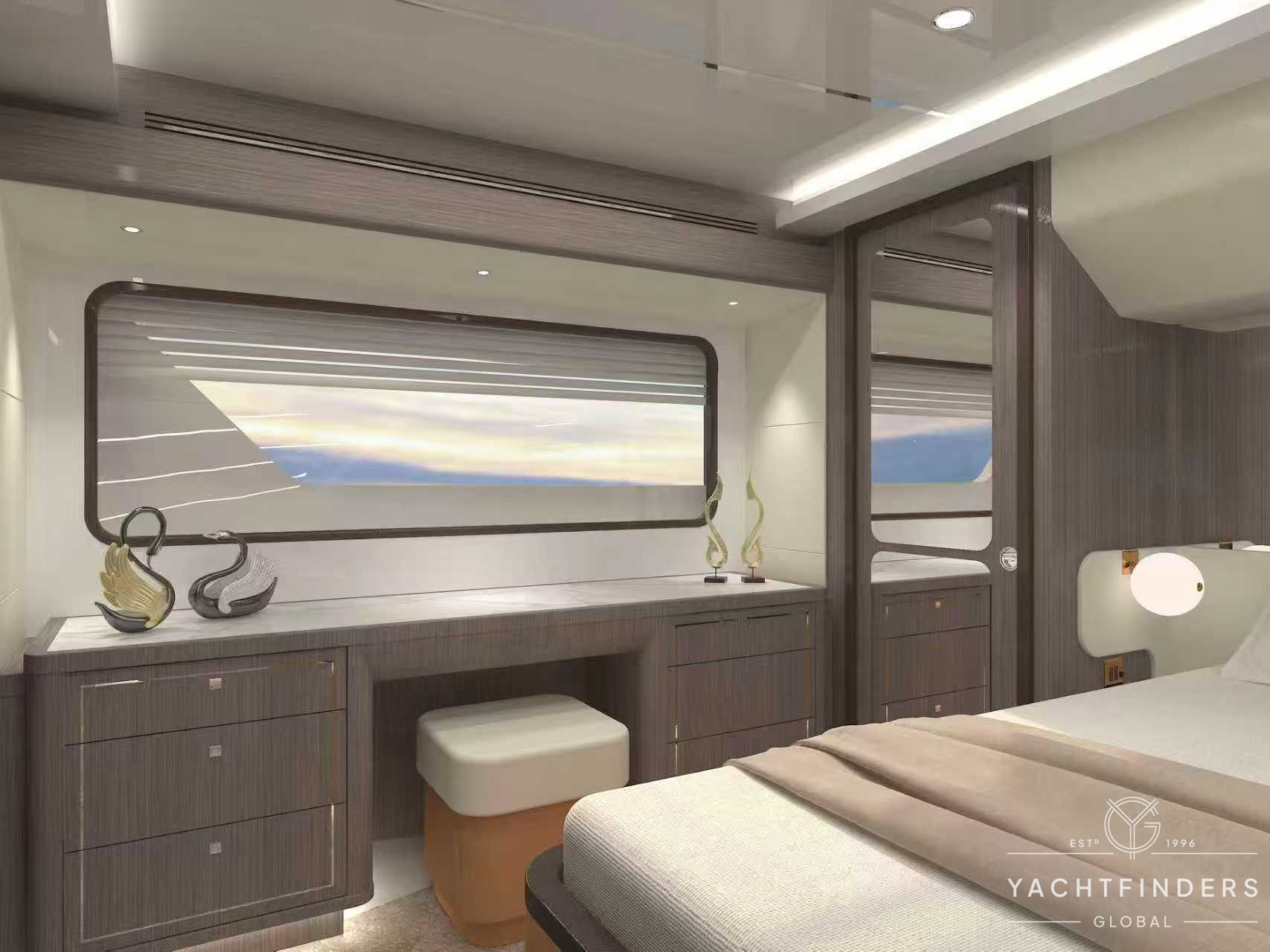

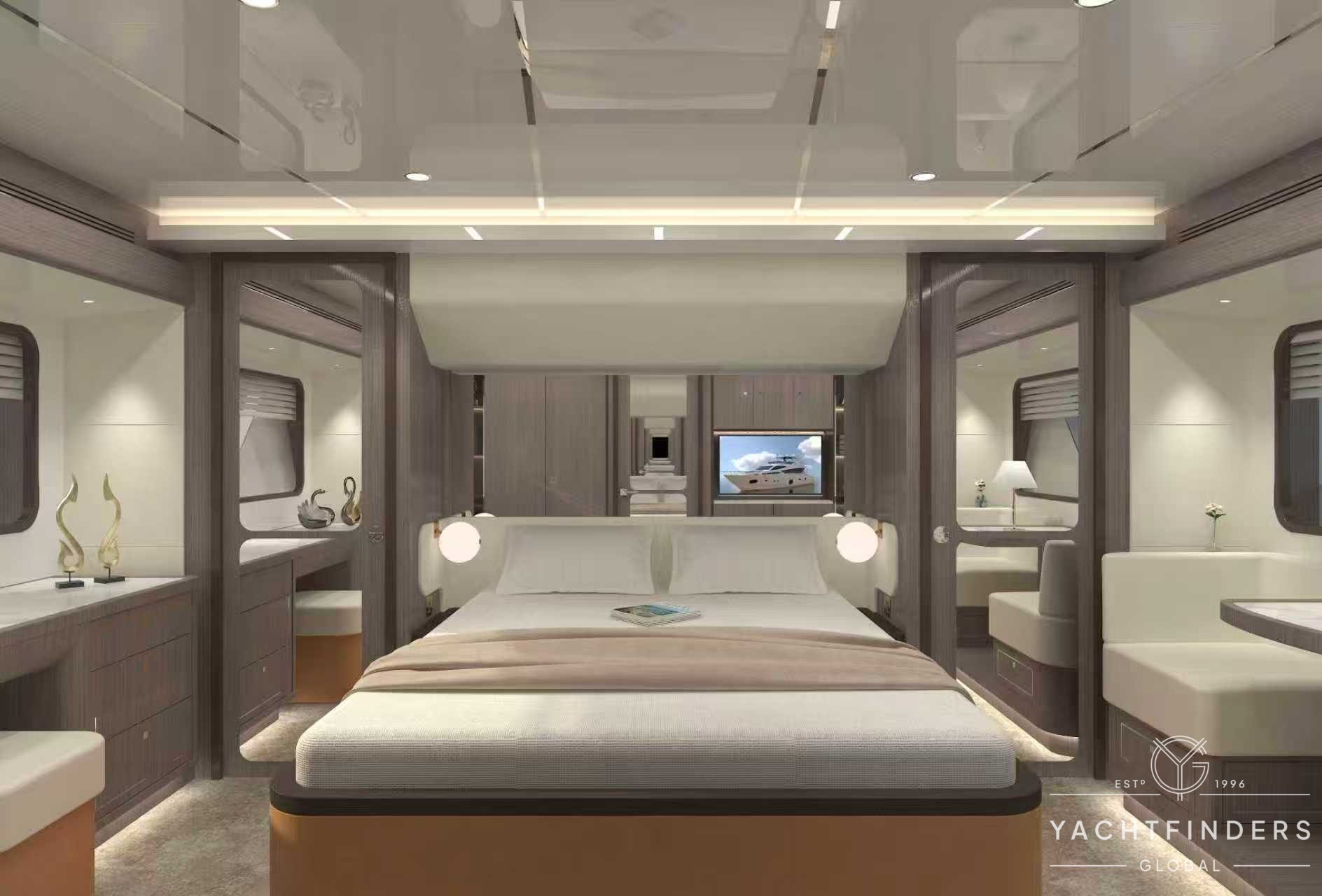

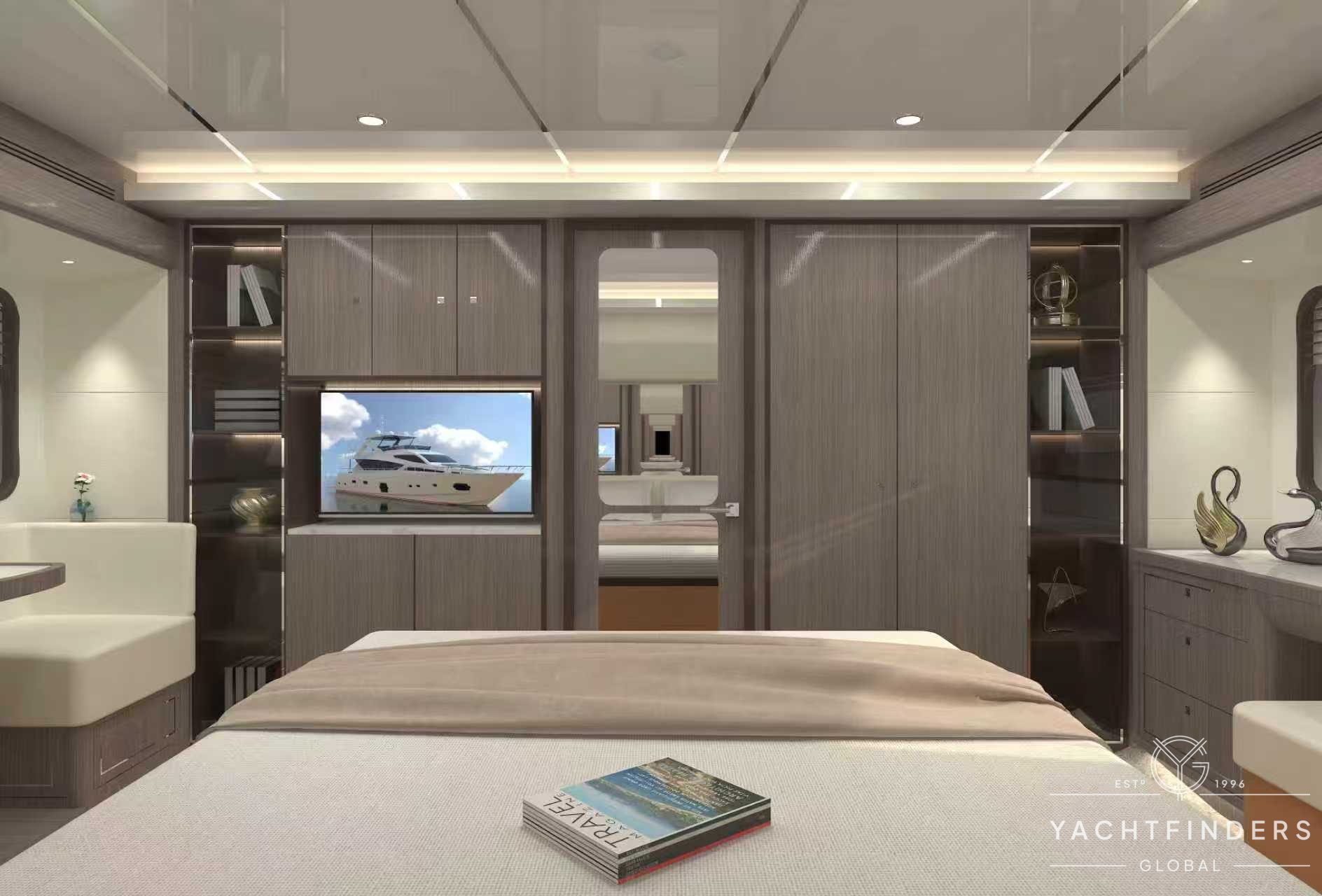

MASTER STATEROOM

  • Queen-size berth w/ 5” foam mattress
  • Side cabinets and bureau drawers
  • Cedar-lined wardrobe w/ automatic light
  • TV cabinet
  • Wood veneer countertop
  • Cantalupi LED reading lights
  • Cantalupi LED dome lights
  • Mirror w/ teak frame
  • S/S #316 opening portlights

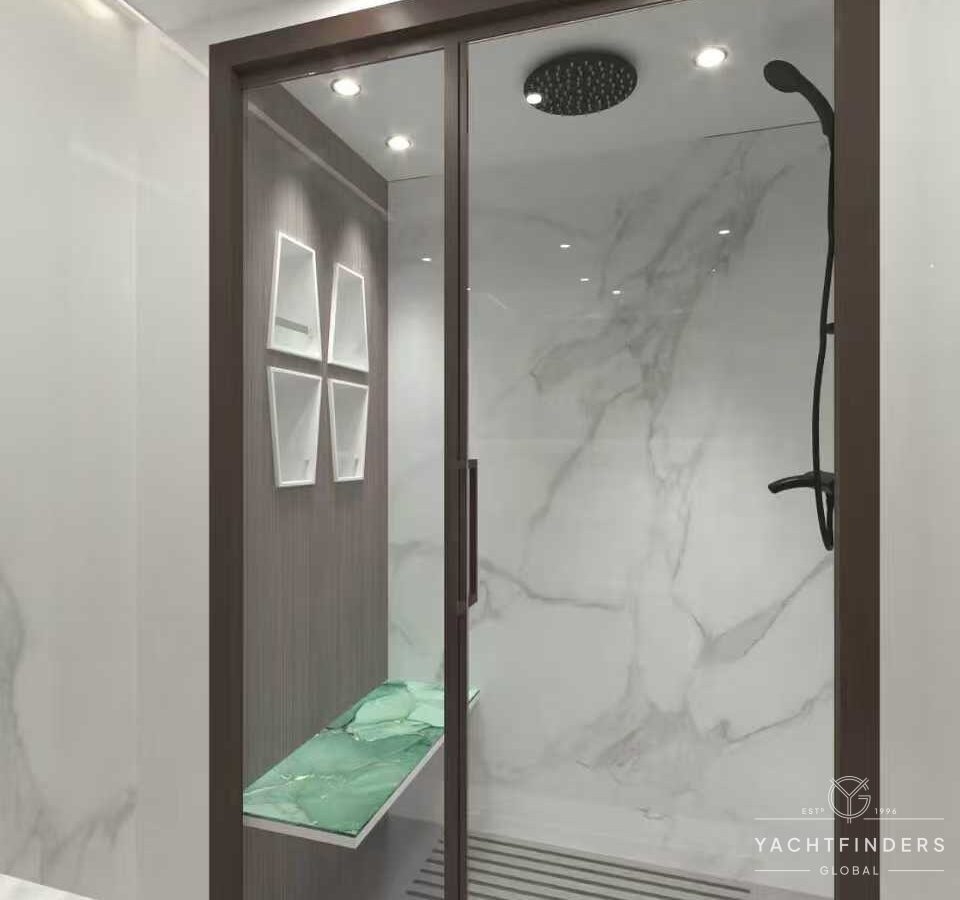

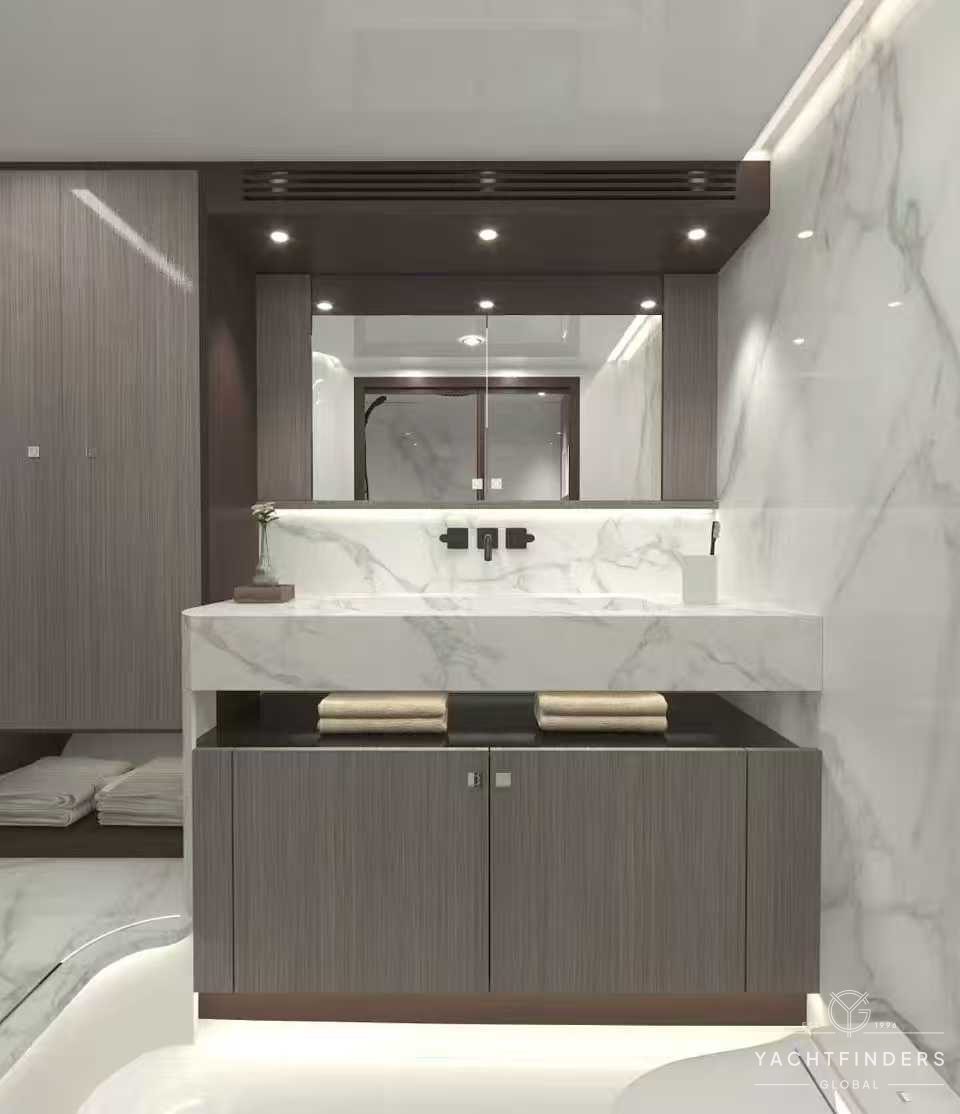

MASTER HEAD

  • Tecma fresh water toilet
  • Johnson dia. 3” exhaust fan
  • Cantalupi LED dome lights
  • Corian countertop and splash
  • Vanity unit w/ integrated washbasin
  • Tempered clear glass shower door
  • Mirror w/teak frame 8
  • Grohe single lever hot/cold water shower faucet
  • Shower room w/ teak removable grating panel
  • Granite floor (or teak and holly floor with teak
  • boarder)
  • S/S #316 tissue paper holder
  • S/S #316 opening portlights

Saloon


  • L-shaped settee w/ upholstery,with file drawer
  • and hatches for storage
  • Hi-lo dining table
  • Pre-wiring for A/V system
  • TV cabinet
  • Cantalupi LED dome lights
  • Cabin LED reading light

.


S/S one pies sliding rear doors with fixed glass
windows for salon entrance
Overhead window glass, tinted 1/4” side & rear
Teak overhead grab rail
Tempered window glass, tinted 1/4” side & rear
Self-lock window stopper
Smoke & Co detector (Option)

Gallery


  • Corian Countertop w/ backsplash
  • Drawers & cabinets lined with Formica
  • Electric exhaust fan above the stove
  • Grohe single lever swivel type faucet
  • S/S #316 double sink
  • Cabinet with slides out shelves for bottle and glass storage
  • Lamp push-button latches on all doors and drawers
  • Overhead cabinet with louvre doors
  • Teak & holly sole

.


Cantalupi LED ceiling lights
Siemens stove microwave
Force 10 gas stove
Siemens electric cooktop  ( Option)
Siemens electric oven ( Option)
Full high galley refrigerator 6
Ice-maker (Option)
Torrid 20 gal water heater
Emergency access to engine room thru cabin sole

Exterior


  • S/S #316 grab rail
  • Manship open hatch from the flybridge to the pilothouse
  • FRP BBQ cabinet
  • Washbasin w/folded faucet
  • FRP radar arch 2
  • One Selene helm seat
  • Chart countertop
  • Tinted plexiglass windscreen with S/S #316 bracket
  • Dinghy space on the flybridge deck
  • Table and L-settee with Sunbrella marine upholstery, hatch with storage underneath
  • Boat deck drain to the waterline
  • FRP hardtop with lights (option)
  • Large hull windows in the master stateroom

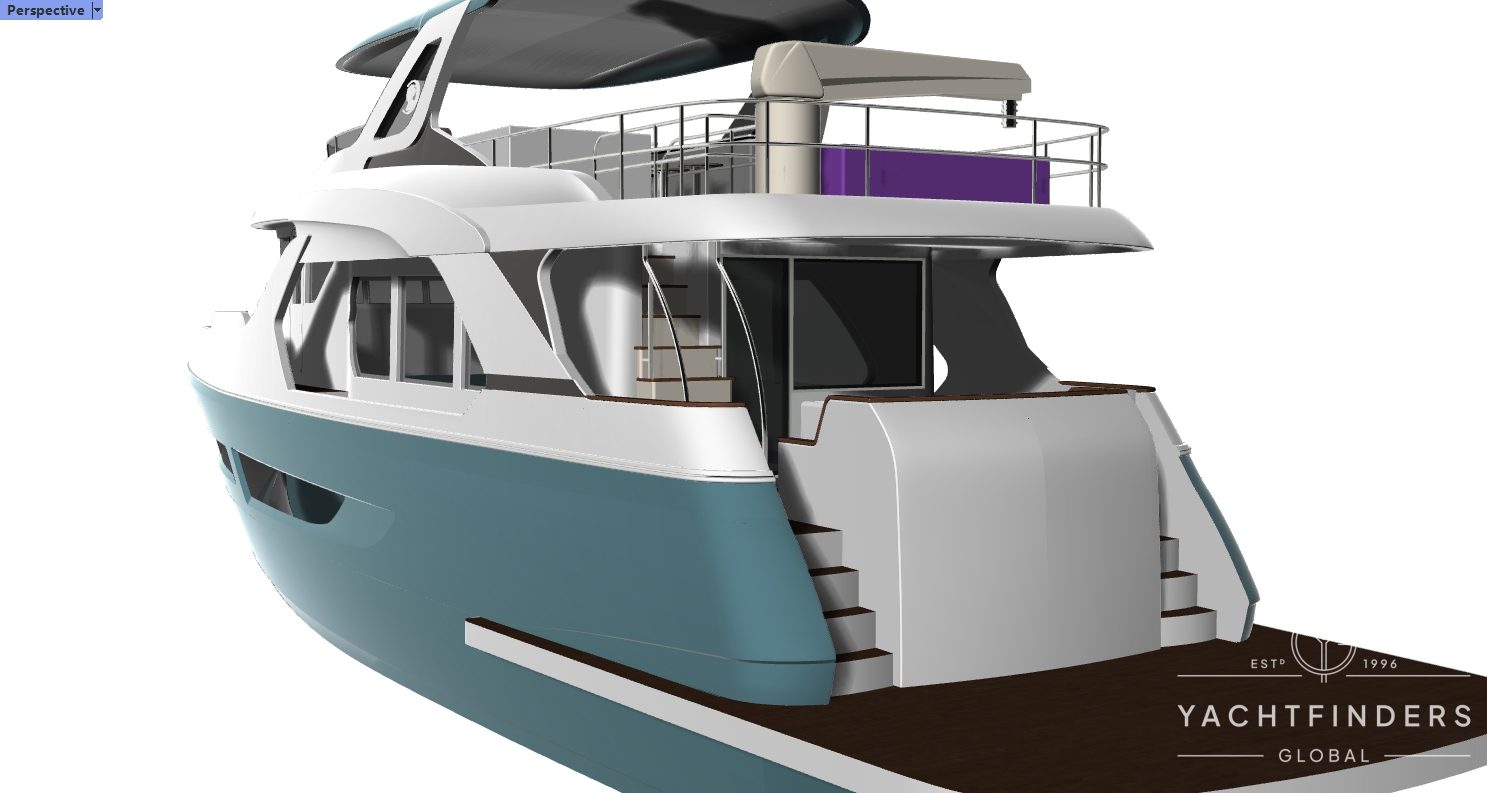

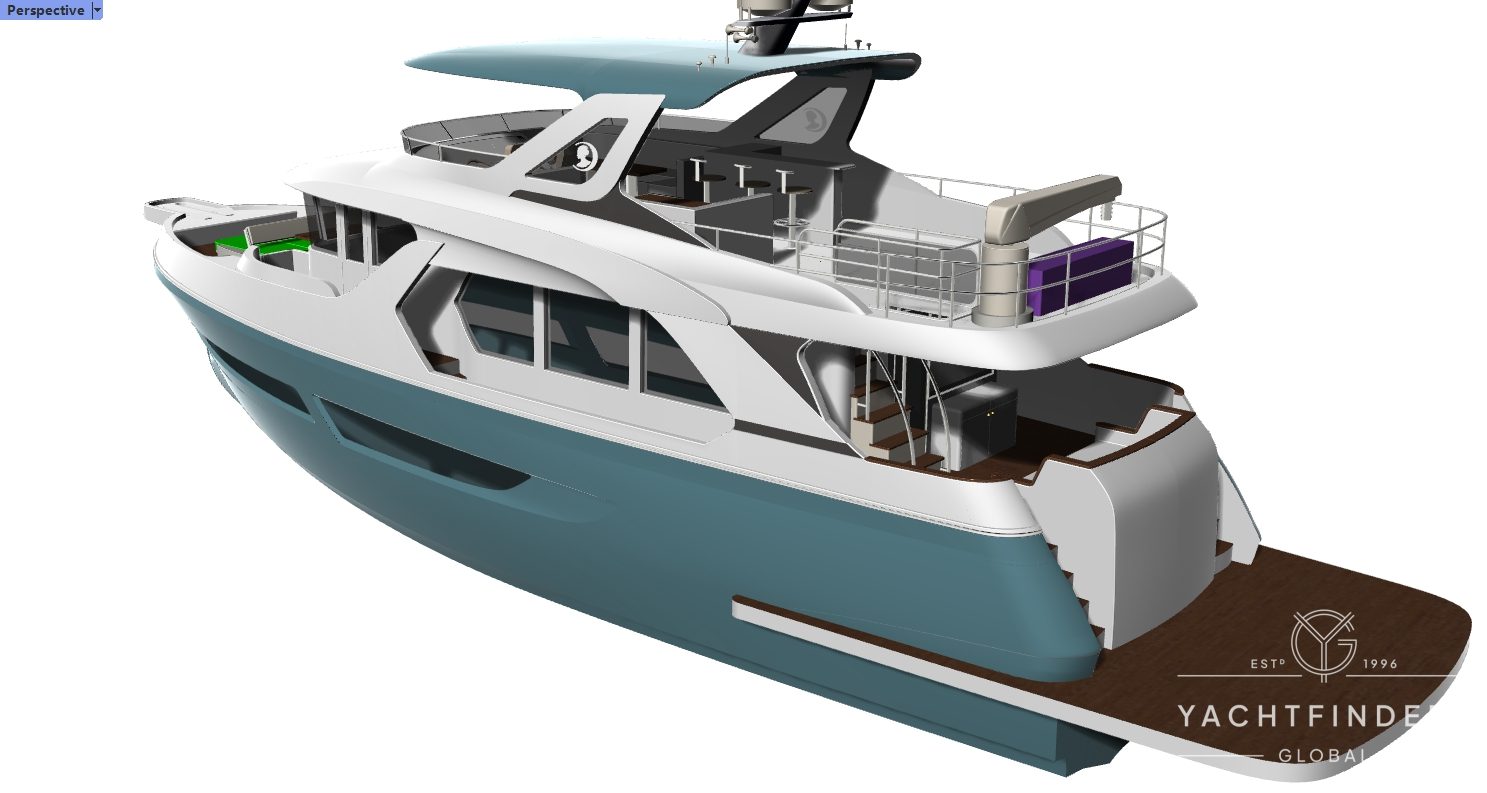

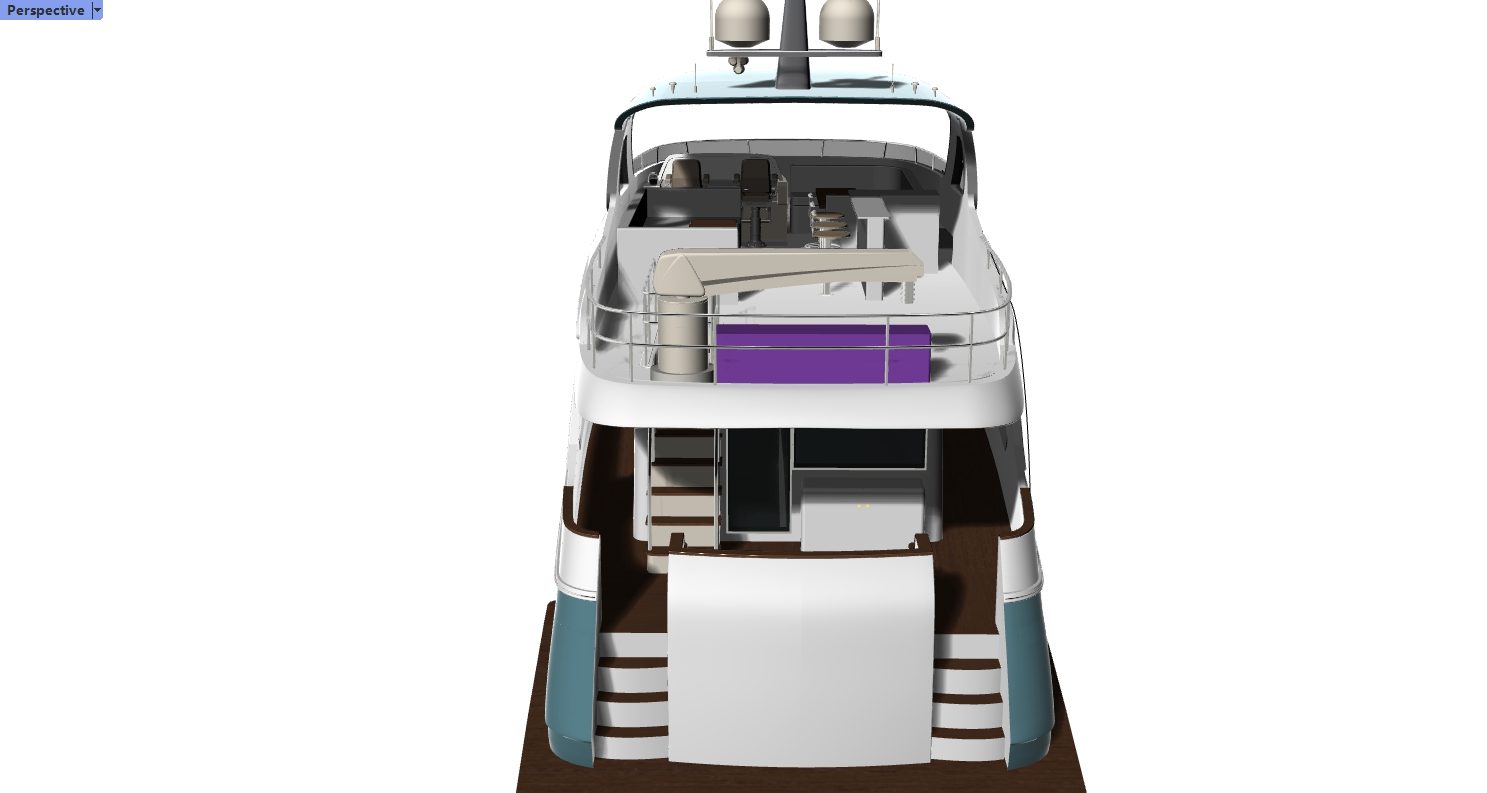

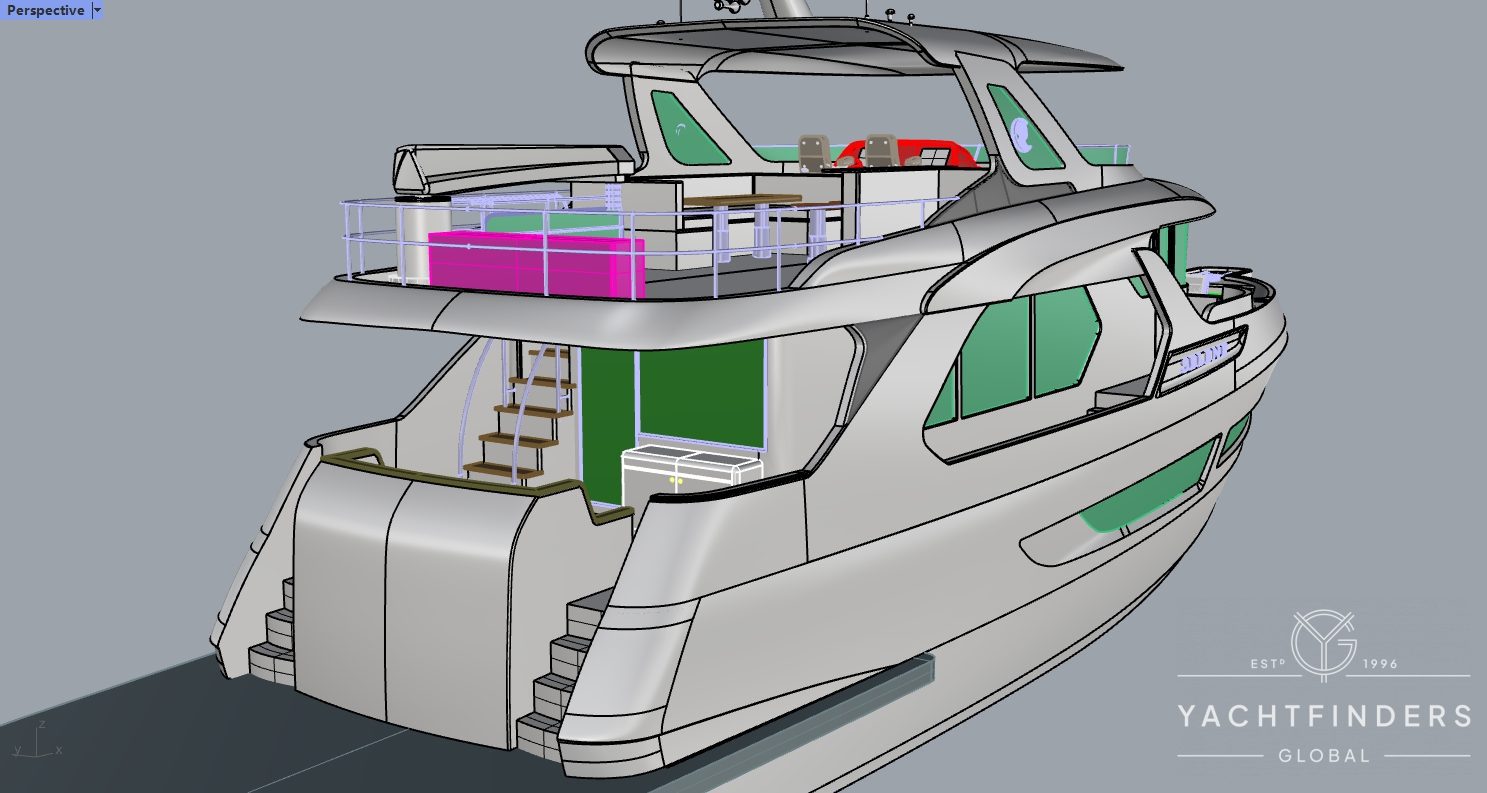

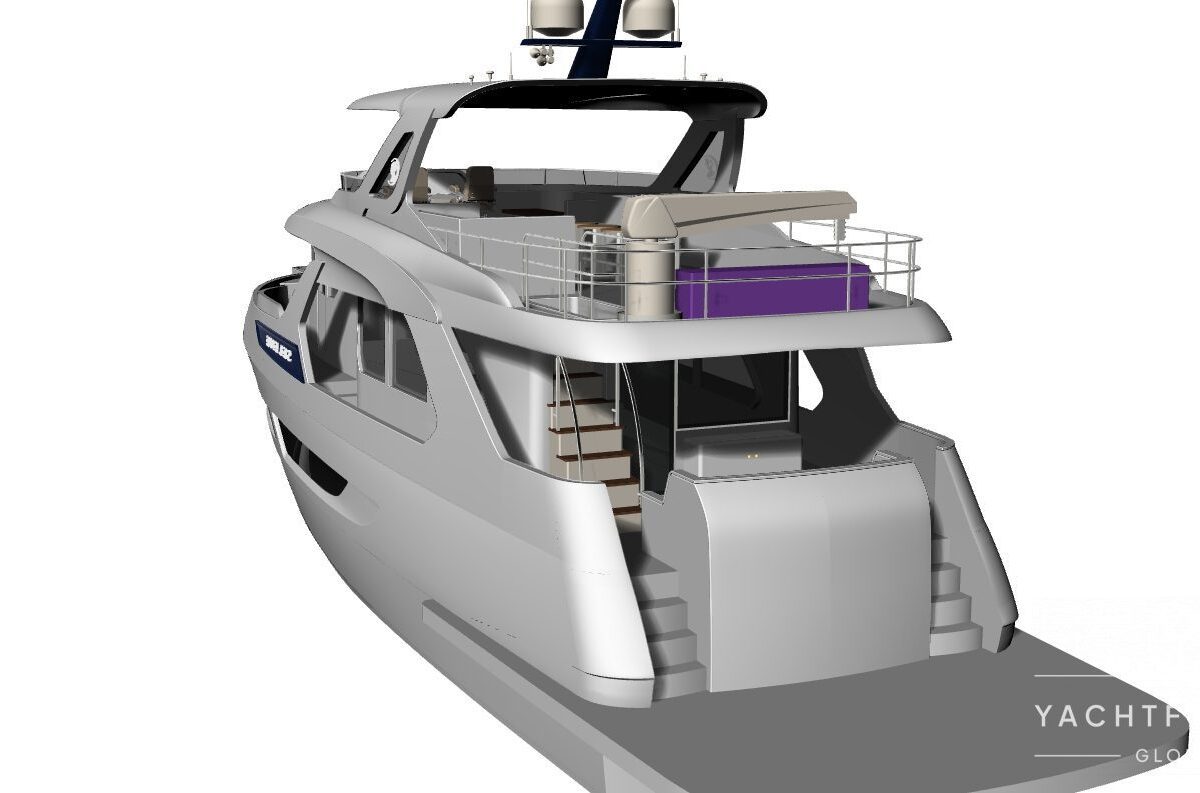

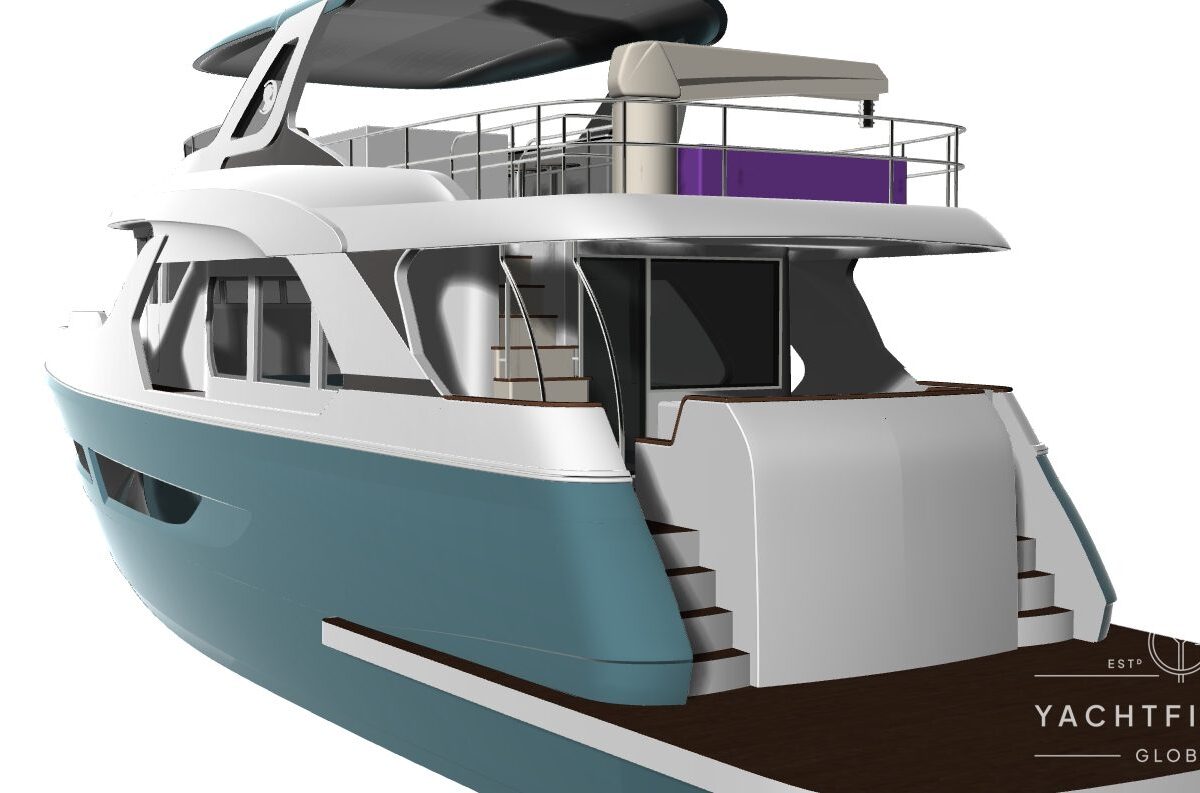

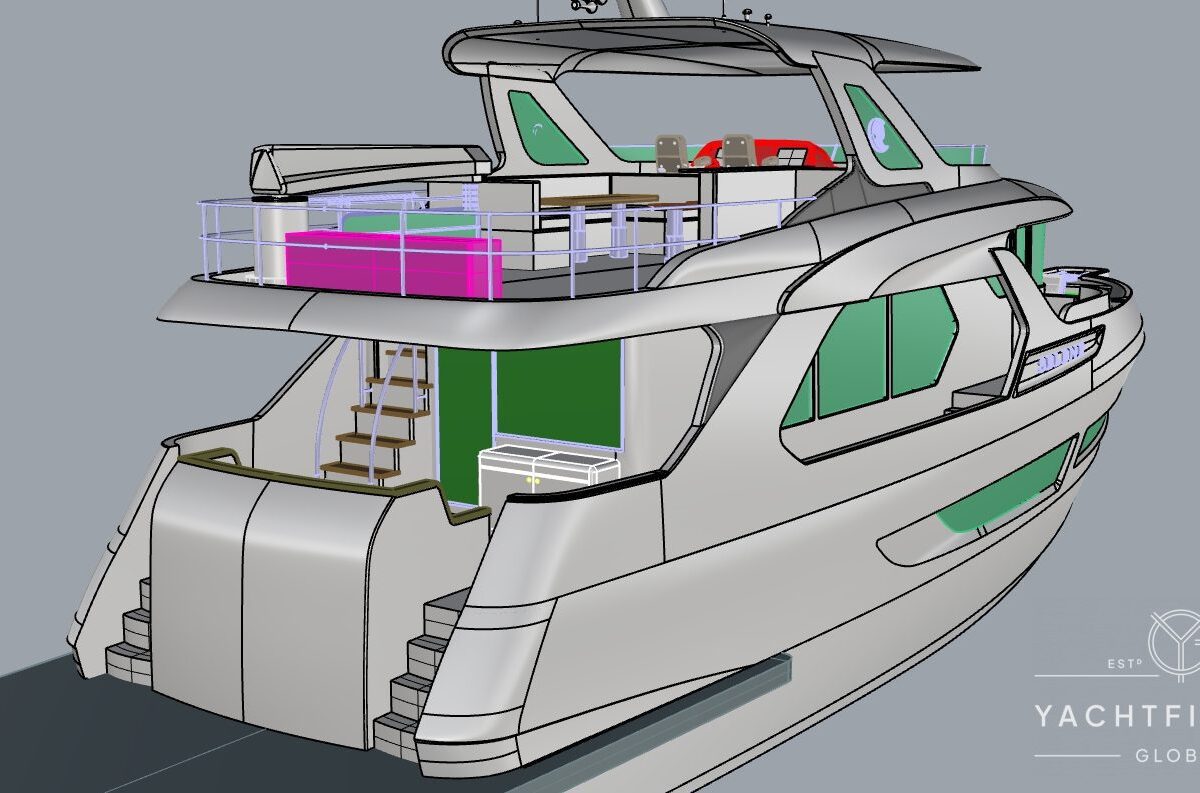

AFT DECK AREA

  • Entrance Bureau w/ hatch and stair to the engine room. (Option)
  • Integral FRP Swim step, moulded non-skid surface. Stainless steel rub rail
  • Storage locker in Step on Swim Step
  • Stainless steel telescopic swim ladder.

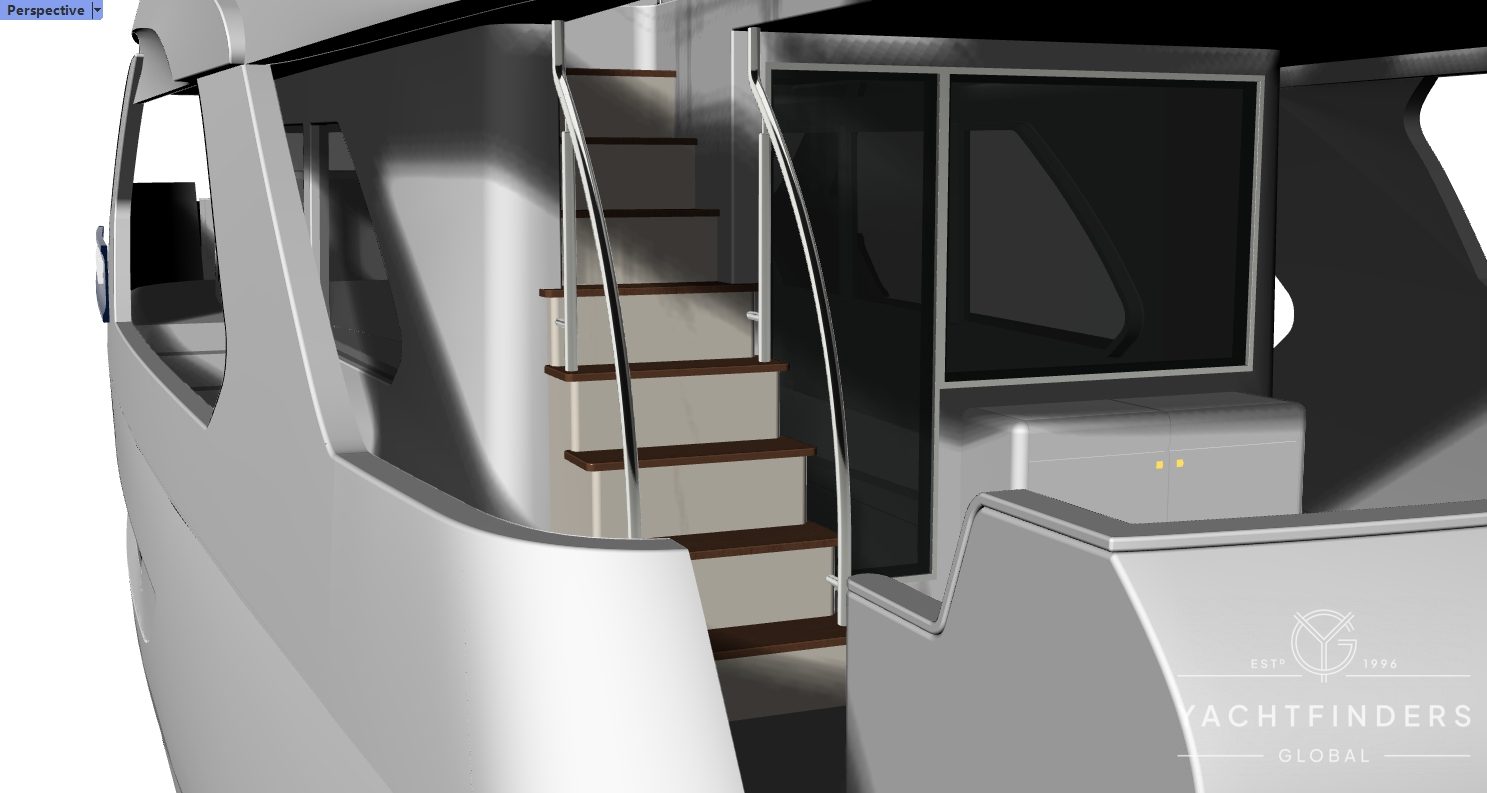

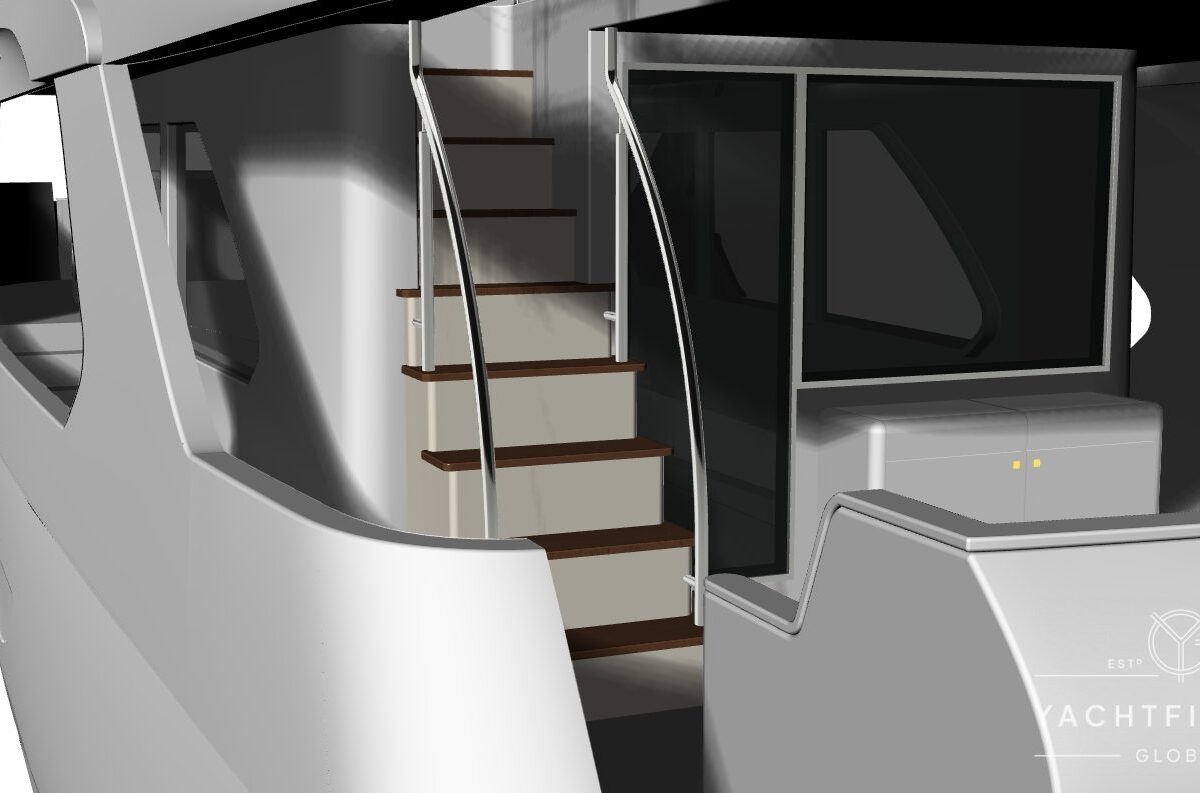

  • Stainless steel ladder to flybridge with FRP treads
  • Sliding doors to salon. FRP with glass windows & weatherstrips
  • Hot & cold shower fittings recessed on the transom, with quick release shower head and flex hose
  • Saltwater 316 Stainless steel faucet
  • Fresh Water 316 Stainless steel faucet
  • Shorepower inlets for 220v, 60Hz, 50A, (European model 230v, 50 Hz, 32A)
  • Overhead LED lights
  • Chocks at hull sides and transom.
  • Deck scuppers piped out at boot stripe
  • 316-grade stainless steel handrail across the transom
  • FRP settee
  • Fishing deck with fish well and bait tank (optional)
  • Stainless Steel Chocks on port and stbd sides
  • FRP hatch to lazarette w/ S/S 316 stair

SIDE-DECKS

  • 316-grade stainless steel handrails along bulwarks
  • Bulwark doors opening inboard with barrel bolts
  • Non-skid on the top side of the guard at boarding gates
  • Stainless steel overhead LED lights. Two per side.
  • Steps to Portuguese Bridge deck
  • House side fixed windows with tinted, tempered glass
  • Galley window sliding with tinted, tempered glass
  • Stainless steel cleats/chocks per side recessed into bulwarks
  • Fuel fill fittings for both fuel tanks in recessed boxes on Port & Stbd house side

.


Portuguese Bridge

  • Locker doors in aft face of Portuguese bridge, access to large vented storage
  • 316-grade stainless steel handrails at the side of pilothouse port & stbd
    Hinged doors through Portuguese bridge to foredeck – stbd
  • Individual Screenwash and heavy-duty self-parking wipers on the windshield
  • Clear, tempered 12 mm glass, in forward-facing windshields Pilothouse windows, are fixed.
  • Blackwater tank suck out deck fitting on port and stbd sides
  • Chain locker  Divider for port & stbd anchor chains
  • Watertight collision bulkhead
  • Fore-peak drains directly overboard.
  • Hatch scuppers
  • High gloss poly paint finish
  • Fwd Shore power ELCI circuit breaker

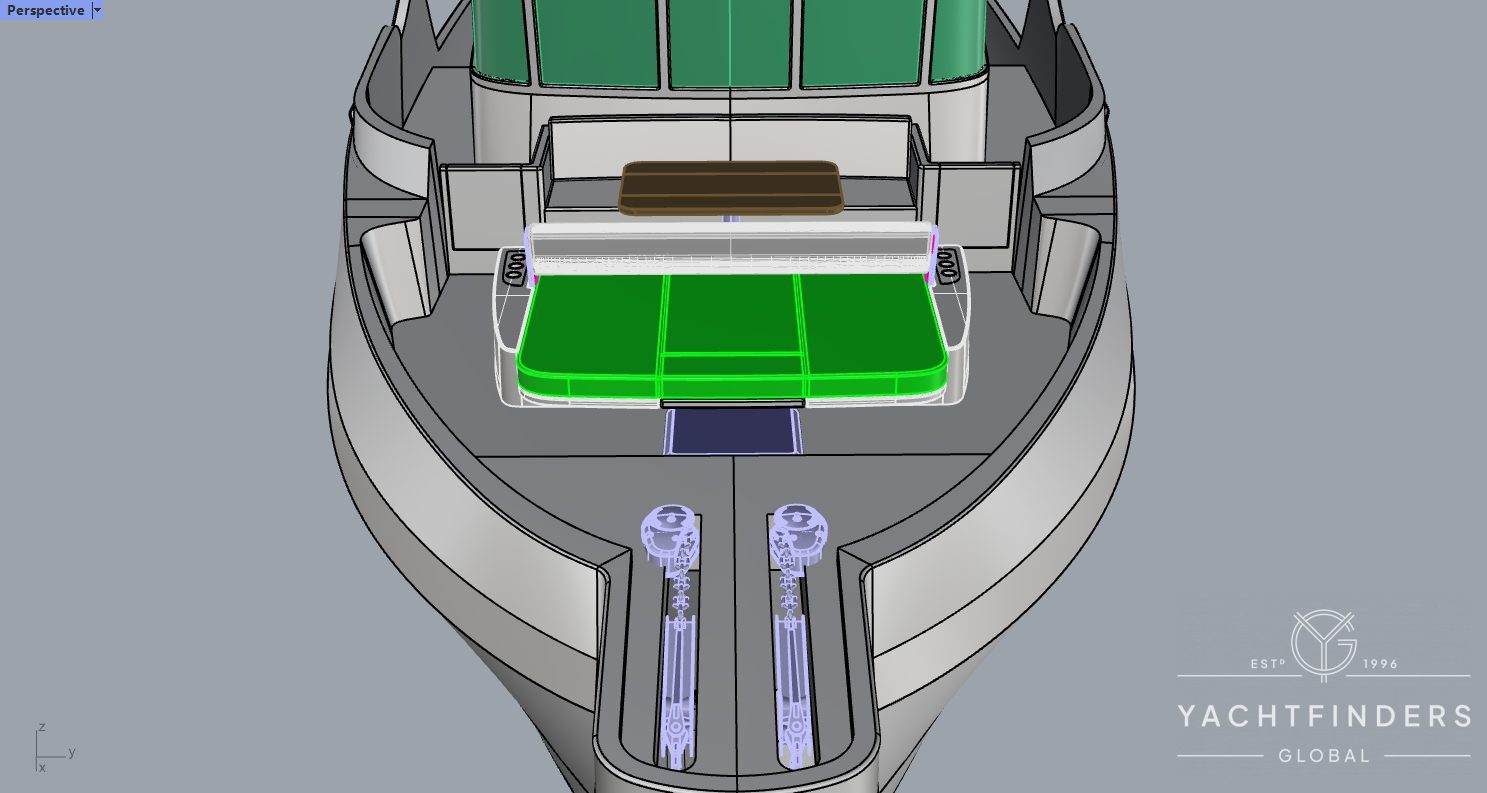

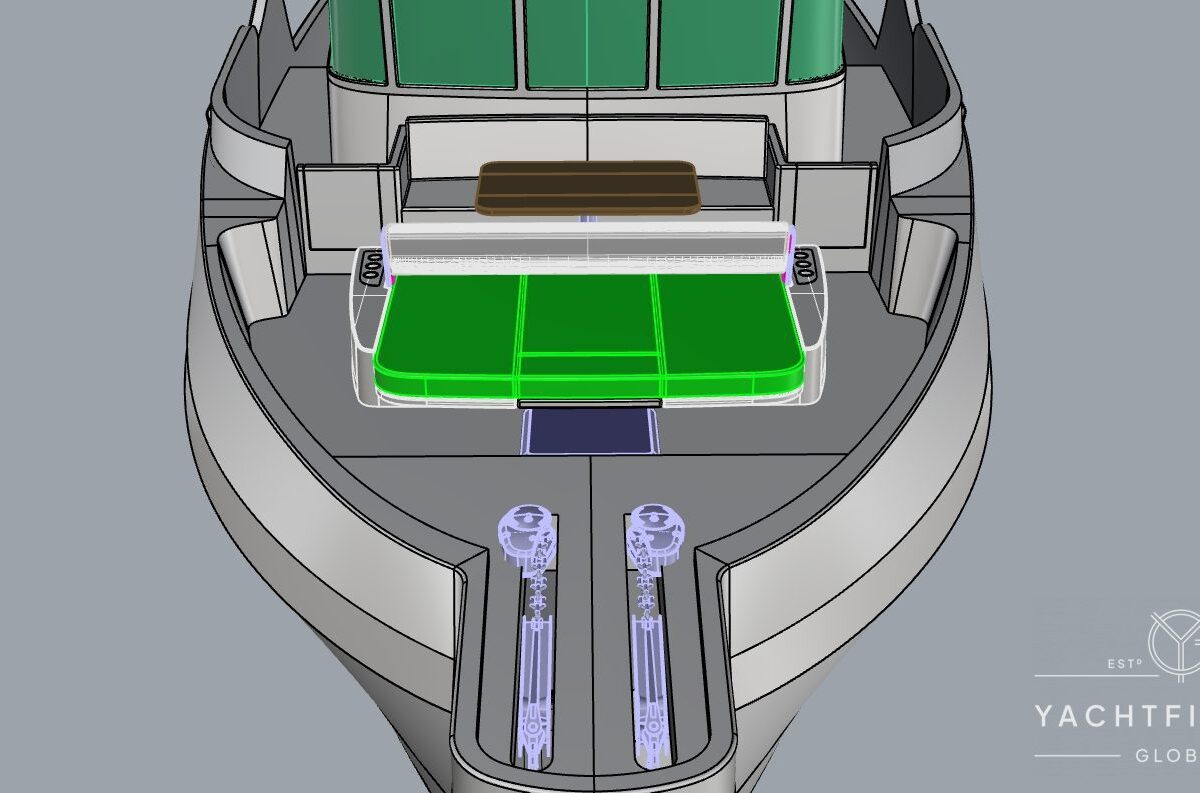

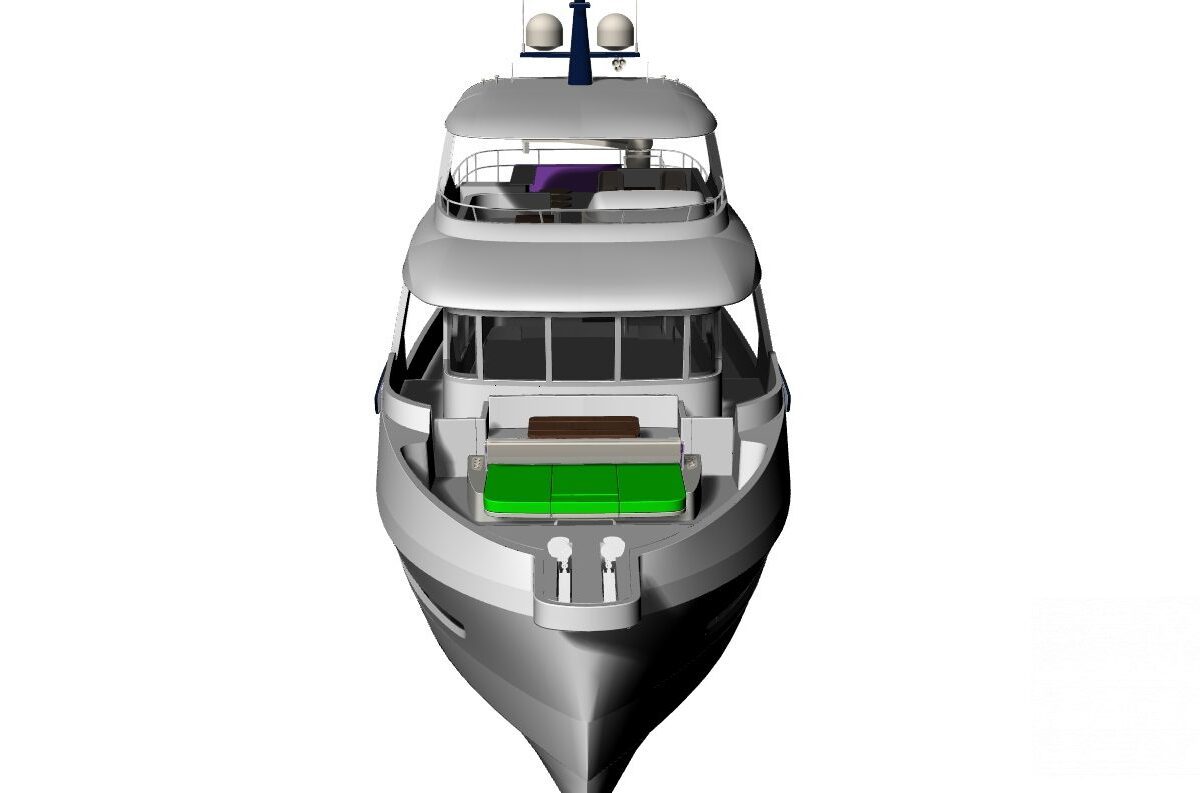

FWD DECK

  • CE approved stainless steel hatch/skylight for the forward cabin
  • Stainless steel stanchions to support stainless steel handrail
  • Stainless steel oval handrail
  • Deep deck lockers either side of anchor platform with the non-skid finish on lids
  • FRP anchor platform with the molded non-skid finish and two sets of rollers
  • 24v DC Maxwell windlasses with pendant control and remotes at both stations (P/H & F/B)
  • Two stainless steel chocks on port and stbd sides
  • 316-grade stainless steel pulpit. Welds ground and polished.
  • Shore-power inlet for 220v, 60Hz, 50A, (European model 230v, 50 Hz, 32A)
  • Saltwater 316 stainless steel faucet inside fore-deck lockers
  • Freshwater 316 stainless steel faucet inside fore-deck lockers
  • Deck drains plumbed to boot-stripe to prevent black streaks
  • Settee in FWD Deck

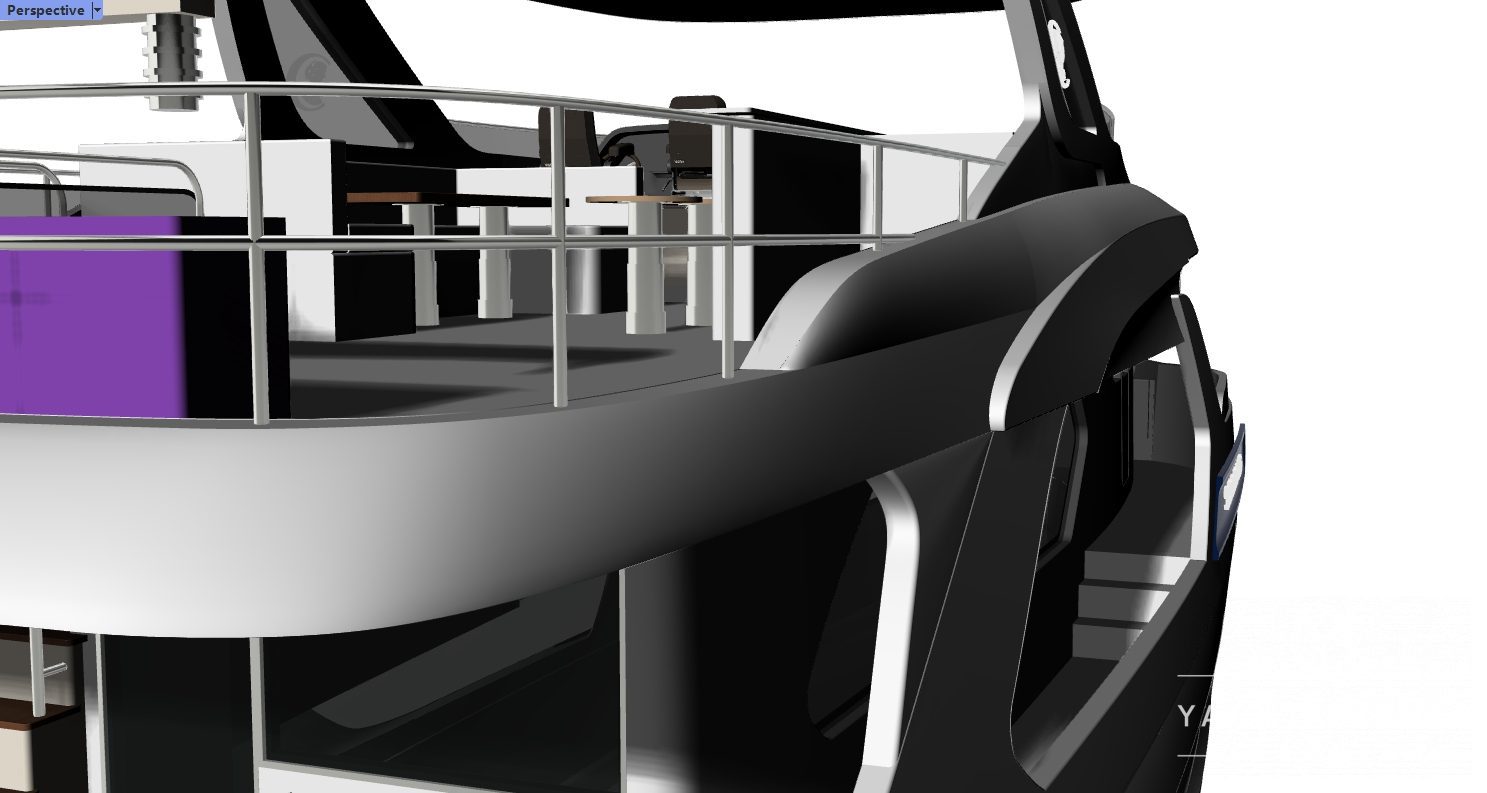

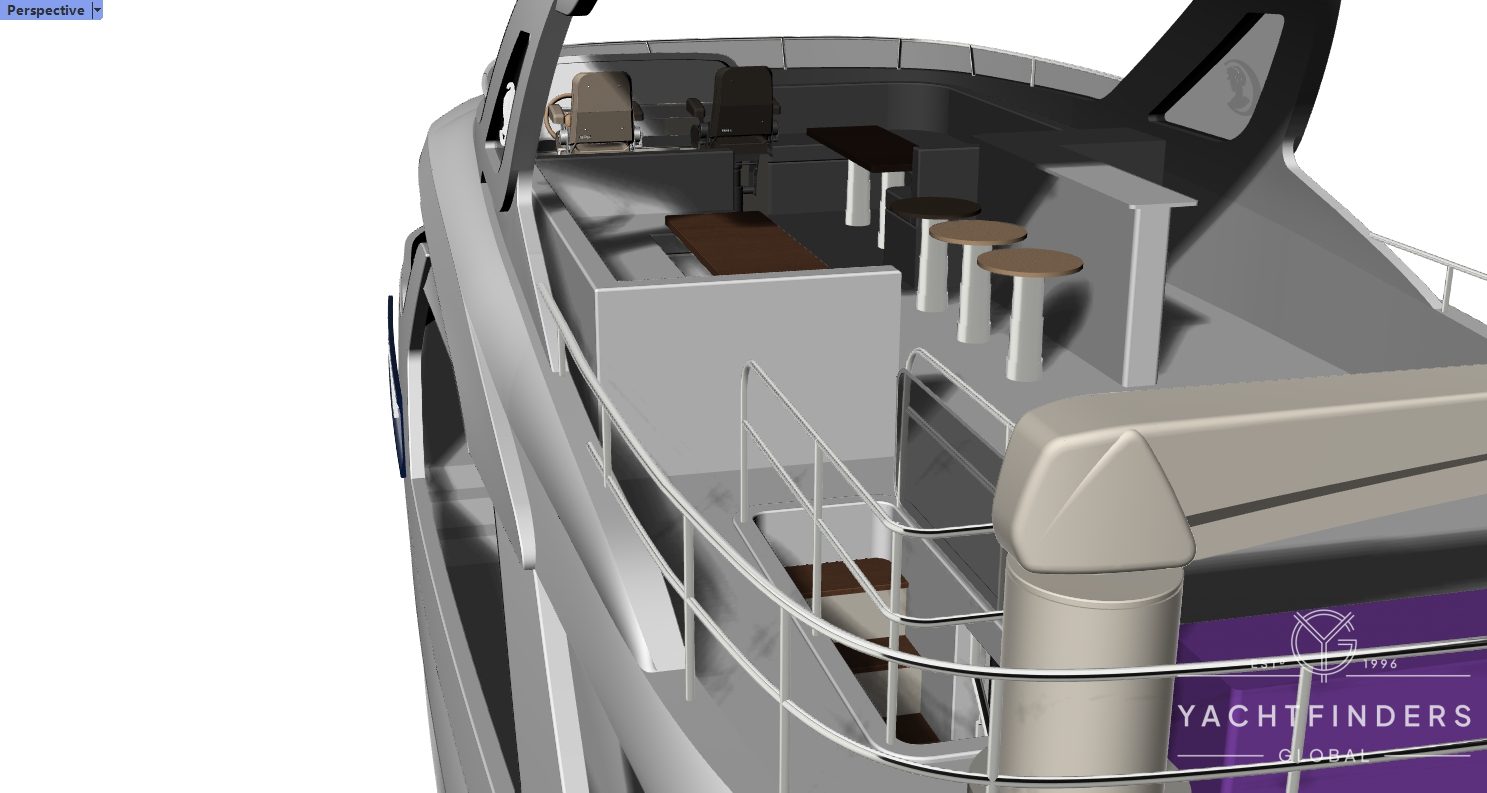

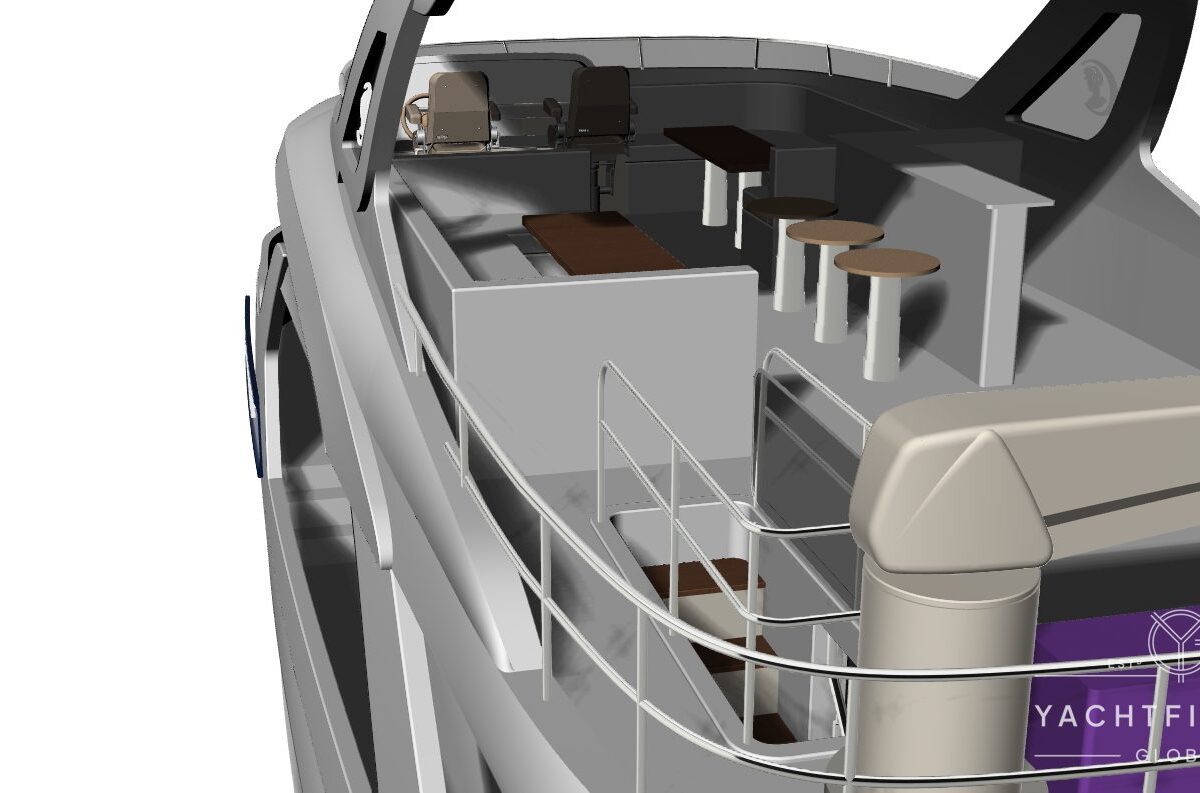

Flybridge


  • Helm station in centre w/ console box
  • S/S#316 destroyer type steering wheel
  • Vinyl and EVA foam panels for ceiling lining
  • Waterproof power socket 4
  • Epifanes one part varnish for interior
  • One Selene FRP helm seat (2nd one is an option)
  • Steering console with engine
  • Electronics console
  • Engine instrumentation
  • Ritchie Compass (Option)

.


  • Flybridge cushions on settees and helm-seat
  • using foam with Sunbrella upholstery and mesh
  • backs for drainage Ø Prefix snaps for attaching
  • cushions
  • L-Settee port side with high seatbacks
  • FRP fixed table
  • Kahlenberg D-0A Air horn with twin trumpets
  • FRP Radar arch with LED overhead lights
  • Stainless steel railings with mid safety rail
  • Steelhead Davit (Option)

Engine


  • Twin Cummins QSC8.3 500HP@2,300RPM diesel engines
  • ZF Electronic engine control system at each helm station
  • Deluxe engine panel w/ complete instrumentation and alarms
  • Engine overheat and low lid pressure alarm
  • Aqua Alloy #22 propeller shaft
  • PYI shaft seal
  • Shaft grounding scatters
  • Bronze V & intermediates struts
  • Faster Niaibr 4 blade propeller
  • Dometic 9” engine room blowers
  • FRP wet box muffler 

.


  • Bronze V & intermediates struts
  • Faster Niaibr 4 blade propeller
  • Dometic 9” engine room blowers
  • FRP wet box muffler
  • S/S #316 rudder with S/S #316 rudder shaft
  • Fluorescent light for E/R and lazarette
  • S/S #316L exhaust raisers, ”BUTTON” type insulation cover
  • Engine high-temperature alarm
  • Engine room high water level alarm
  • FRP drip pan under the main engine
  • Engine room fuel tank
  • Engine starting batteries with boxes
  • Trim tabs at the aft.

Electrical System


AC ELECTRICAL SYSTEM

  • 120V AC and 240V AC system
  • Whisper Power 12KW generator w/ sound shield, muffler and remote start switch panel located in P/H, including dedicated 120 Amp/hr starting battery in FRP box with lid 9
  • D80 Amp engine alternator
  • Victron 100amp battery charger for house bank, one 30amp battery charger for starting bank
  • 220V 50hz 63Amp shore power inlets
  • Zinc saver for shore power protection
  • Five-point select switches for A/C 220V panel
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters and breakers
  • Copper bonding strap w/ ground cable attachment for each fitting
  • Marvair air conditioning units 57,000BTU (Option)
  • Combo washer & dryer DC

.


  • 24V DC system
  • Kahlenberg horn
  • Exalto DC electric wipers for 3 front windshields including freshwater wash
  • Johnson automatic water pressure pump with accumulator tank
  • Johnson sump pumps w/ ultra float switches
  • Vision 800AMP 24V batteries for house service, 200AMP 24V engine and 150AMP 24V generator starting
  • Cantalupi LED accommodation dome lights
  • Step lights for interior and exterior
  • Cabin LED reading lights
  • Eight DC 24V exterior lights and nine exterior safety lights at foot level
  • Aqua signal navigation lights & searching lights
  • Monitor panel
  • Four DC 24V engine room lights
  • One bilge water alarm
  • Side power 13HP bow & stern thruster (Option)
  • Whisper 4KW inverter (Option)
  • TV and Tel shore inlets
  • Transom underwater light (Option)
  • Frigoboat built-in freezer.

Fuel System


  • Total capacity 900 gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection ports & plates
  • Racor 75/1000 Max dual fuel filter / water separator for main engines

.


  • Racor 500 Max single fuel filter/water separator for generator
  • ESI fuel polishing system
  • Reverso oil change system 10
  • CE certified fuel line

Optional Extras


  • Twin Cummins QSM11 715 HP
  • Hardtop
  • Lowered aft fishing cockpit
  • Teak on platform
  • Teak on aft cockpit and sidewalks
  • Sidepower electric 13hp bow and stern thrusters
  • Power steering  Third control station in aft cockpit
  • Second Whisper Power 12 KW generator
  • Steelhead ES 1000 crane on flybridge

.


  • Air conditioning
  • Kenyon barbecue on the flybridge
  • Vitrifrigo drawer refrigerator on the flybridge
  • Siemens electric cooktop and oven in the galley
  • Whisper Inverter 4 kw
  • Ritchie compasses *2
  • Fireboy automatic fire extinguisher
  • 2nd Selene flybridge chair
  • Preparation for water-maker
  • CE European certification
  • Trac 220/6, X Hydraulic stabilizers ZERO speed
