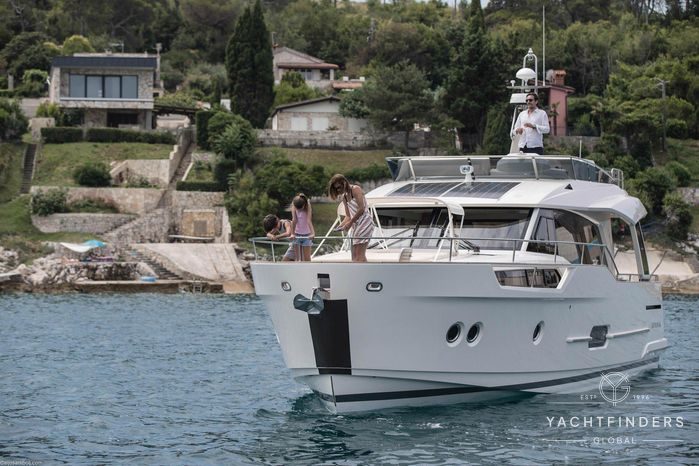

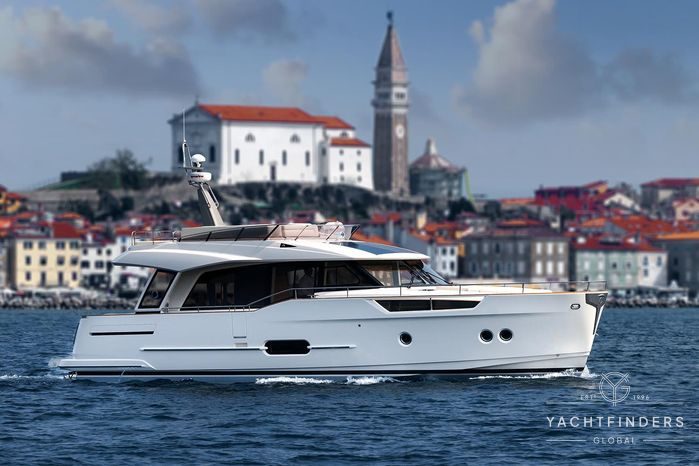

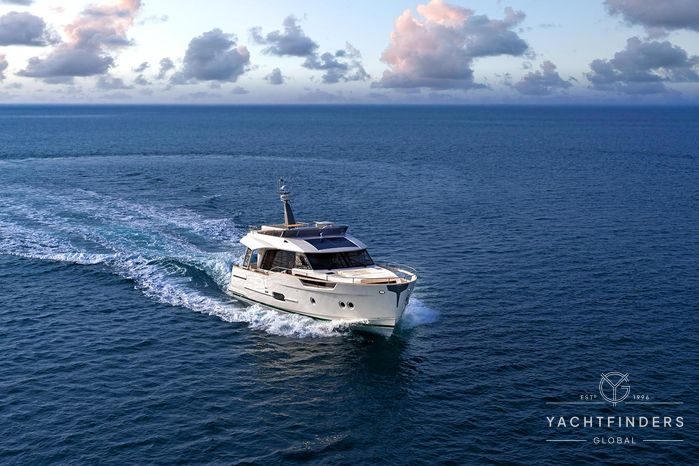

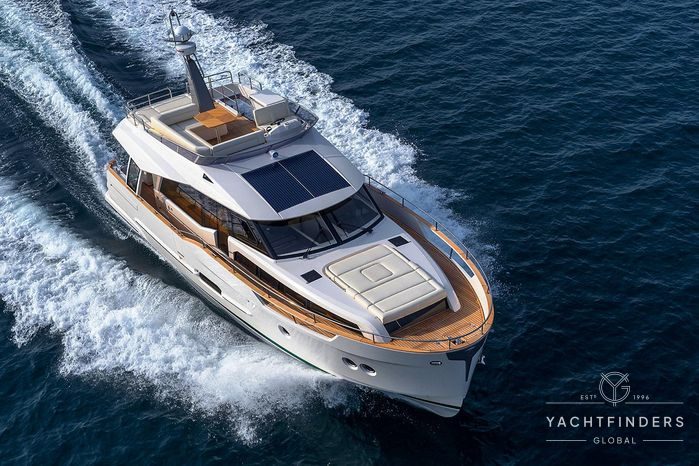

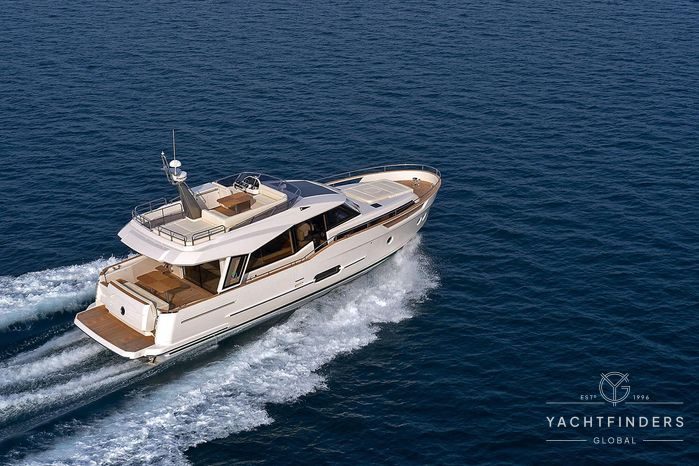

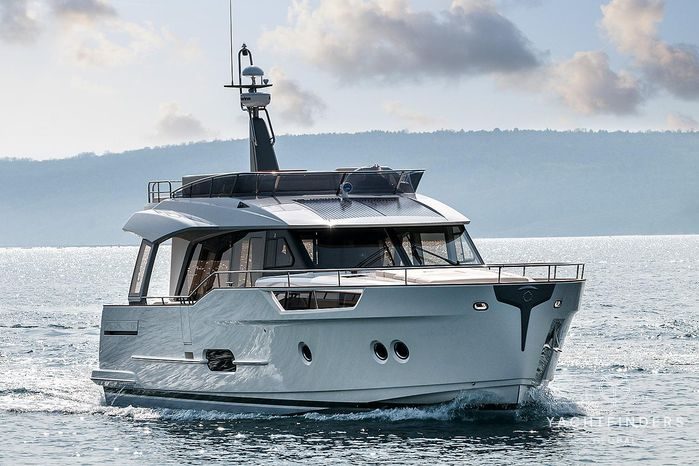

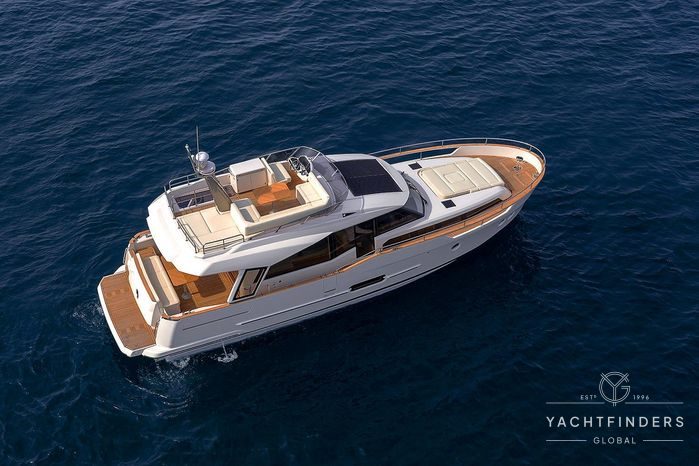

The flagship of the Greenline family is the next green innovation that complements the current range of Greenline 33, 39, and 40 while presenting exciting new features such as a new interior design, NextGen Hybrid system, comfortable flybridge, two en-suite guest cabins, hydraulic platform, utility compartment under the saloon, and much more.
The Greenline 48 Fly is powered by twin 2 x 370 hp Yanmar diesel and electric motors. The two motors also act as generators in diesel mode, charging three large Lithium polymer batteries. The batteries are also charged by solar and shore power – so the boat uses four energy sources. She doesn’t have a conventional generator because it is unnecessary.
This is a remarkably efficient cruiser and is the first production hybrid vessel of its type. Great for those who want to do coastal and near island long-distance displacement speed cruising in comfort with low operating expenses, she’s hard to beat.
Ask us a question and we will reply within 24 hours
General
| Year: |
2022 |
| Price: |
$2,095,995 |
| Additional Charges: |
None |
| Boat Type: |
Power |
| Hull Type: |
Semi Displacement |
| Location: |
New Zealand |
| Engine/Fuel: |
Diesel |
| Hull Material: |
GRP |
Dimensions
| Length: |
48 ft |
| LOA: |
14.99m |
| Beam: |
4.80m |
| Draft: |
.98m |
| Displacement: |
13.800 kgs |
Engines
| No. of Engines: |
2 |
| Engine Brand: |
4 Yanmar |
| Engine(s) HP: |
370 hp |
| Max Speed: |
23 Knots |
| Hours: |
4 |
| Other Specs: |
2 x 14 kW electric motor with integrated 2x10 kW generator |
Tankage
| Fuel: |
1500 l |
| Water: |
650 l |
| Holding: |
160 l |
Accommodation

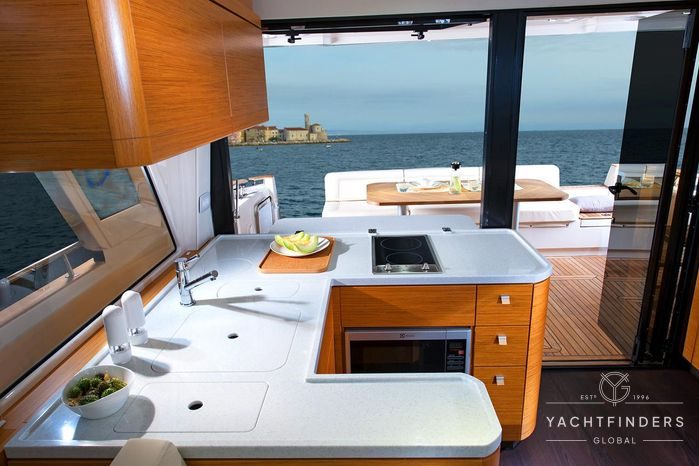

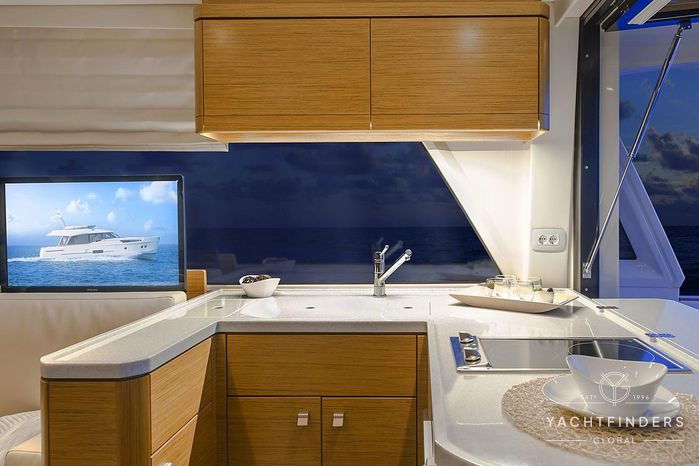

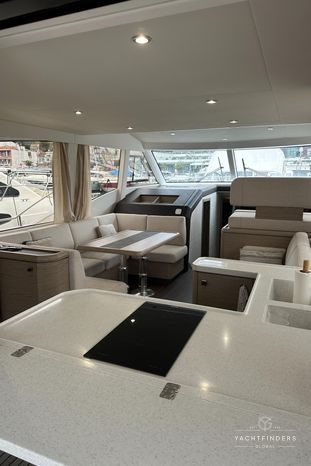

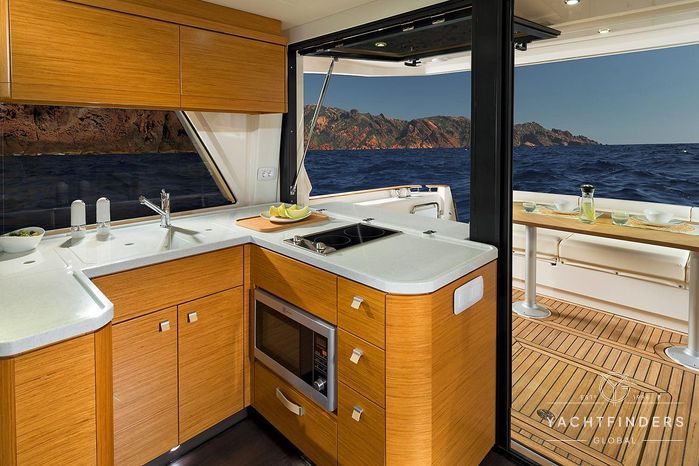

Galley
- The galley stb aft
- Worktop in Kerrock
- Extending worktop outwards to the cockpit
- Double Kerrock sink
- Pressurized water, hot and cold
- 4 hanging cupboards above the galley to the sidewall
- Lockers under the sink
- Cutlery drawer under the cooktop
- Waste disposal
- Storage space for cleaning items etc
- Gas cooker – 2 burners and 20L gas stove
- Gas piping with safety reduction valve
- Storage lockers and drawers
- To port a built-in refrigerator 214L with a freezer unit

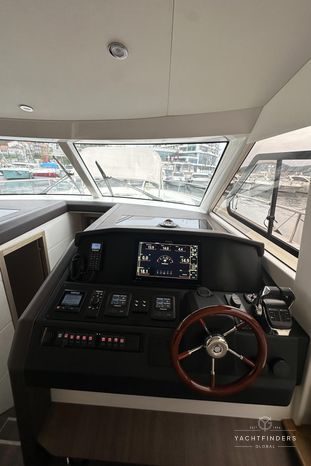

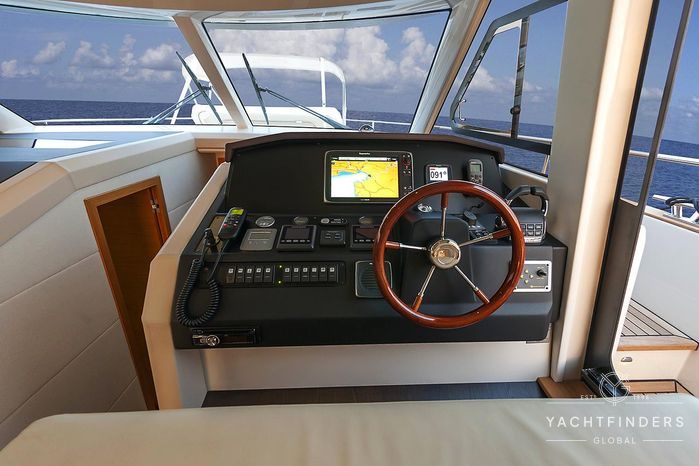

Steering console/ Navigation
- Under the front windscreen, the steering console extends to the whole beam of the cabin, with the companionway in the middle
- A stainless steel handrail to the midline, 25mm tube

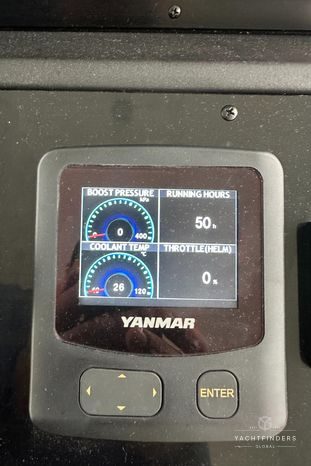

- The instrument panel, engine controls and instrumentation, electric panel, steering wheel, compass with light, rudder position instrument
- Navigation seat to stb, a sliding door to the walking deck with a lock
- To port on the dashboard a storage space
- In front of dashboard skylights to stb and port guest cabin
- 2 x windshield wipers with washing system

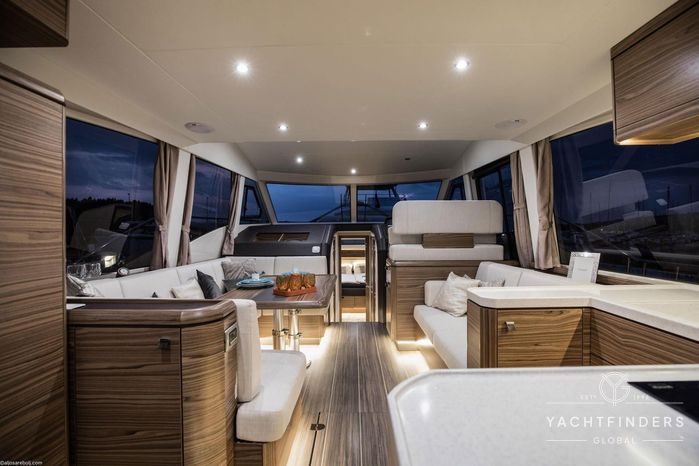

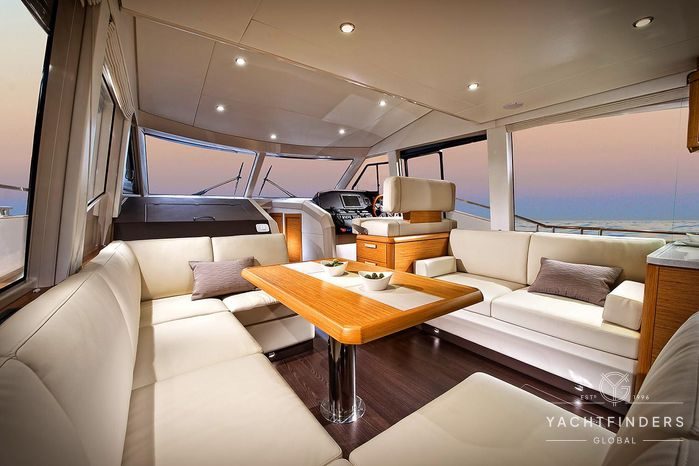

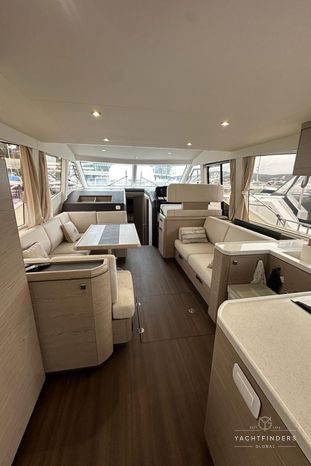

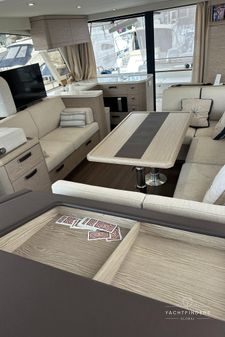

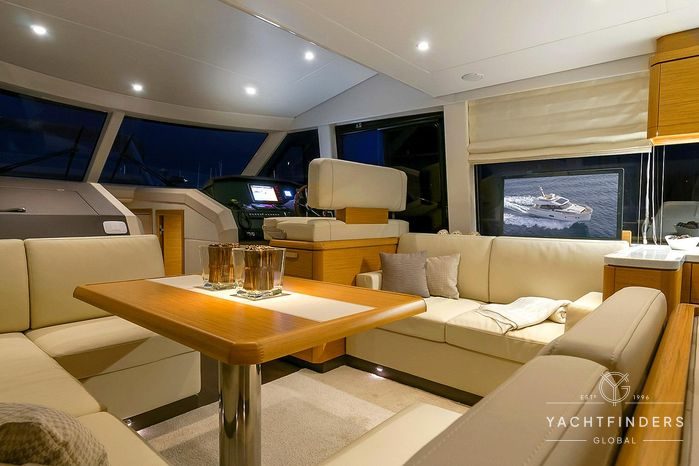

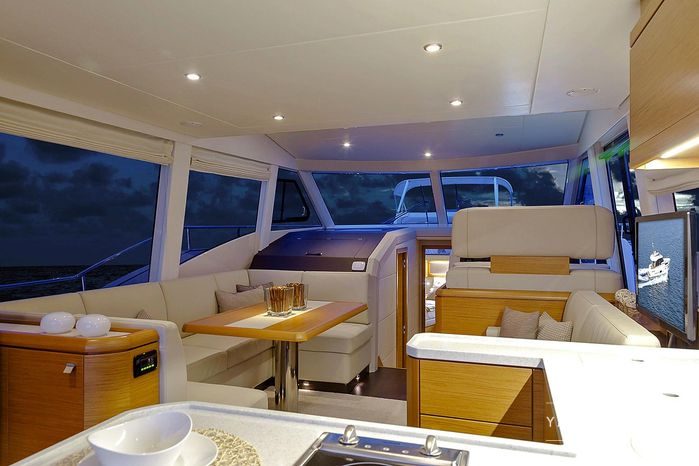

.Saloon
- To port a comfortable U-shaped sofa, storage under the seats
- To stb a lower locker
- Saloon table
- Curtains throughout
- Ceiling lights (LED)
- Laminate saloon floor
- Utility/ storage under the saloon accessible through the floor hatch, all ladder, LED light, storage shelves

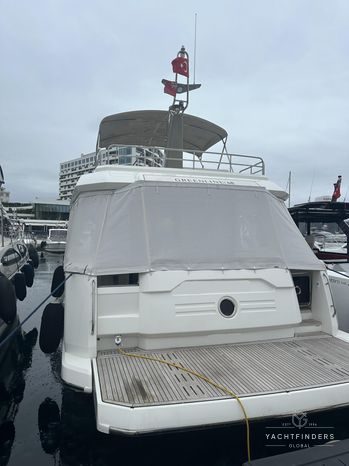

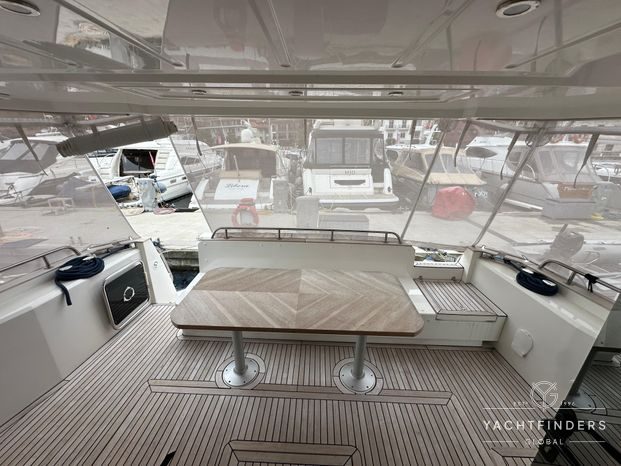

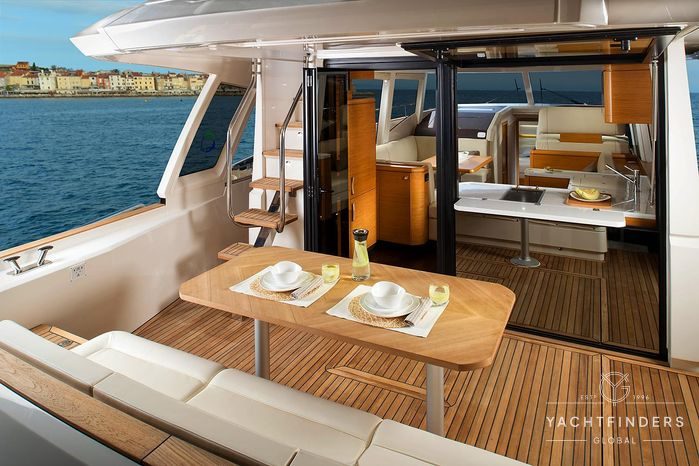

Cockpit
- Side door opening inwards in GRP on the stb midship side deck
- Sliding and lift-up door aft cockpit glass enclosure
- Sliding lateral door for the helmsman to the walkway to stb

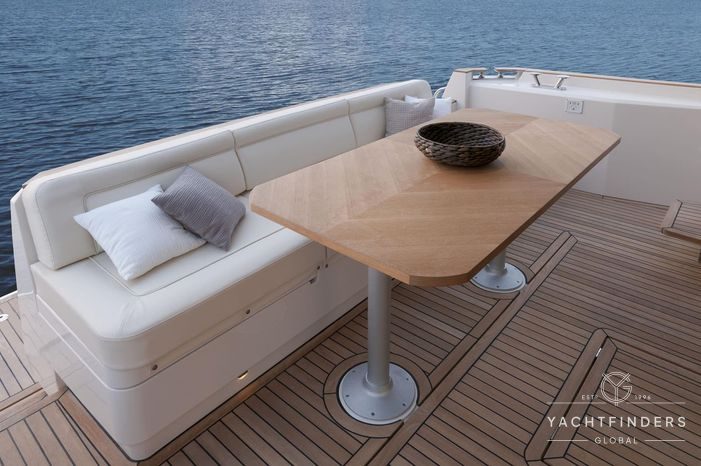

- Fixed cockpit table in the middle
- Cockpit bench
- Comfortable stairs to the flybridge

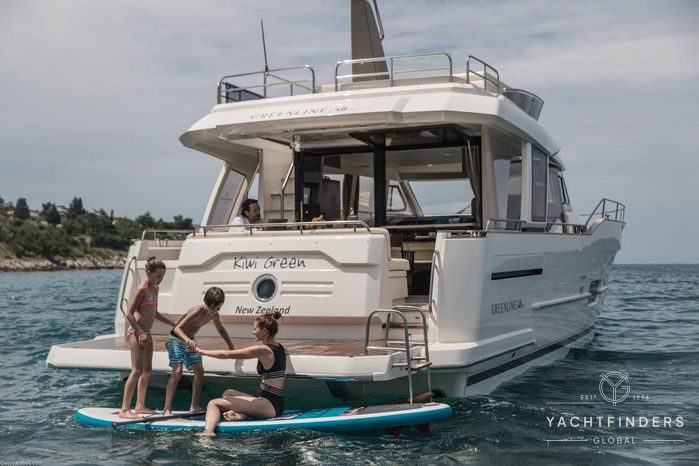

- Safety door to the stern platform
- Fixed stern platform
- Swimming ladder stainless steel on the stern platform to stb
- Large storage in aft cockpit bench

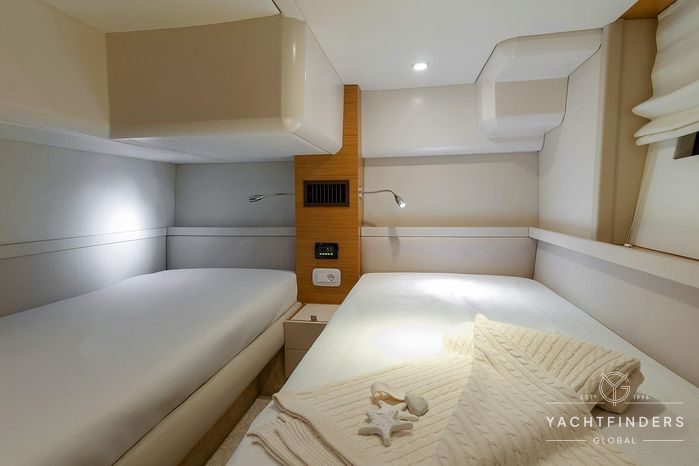

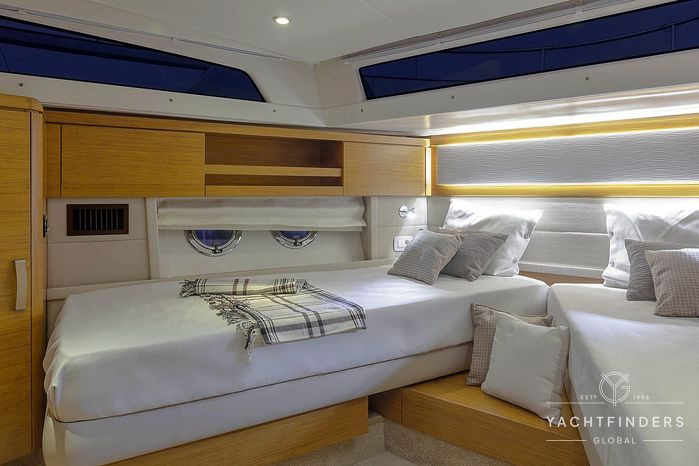

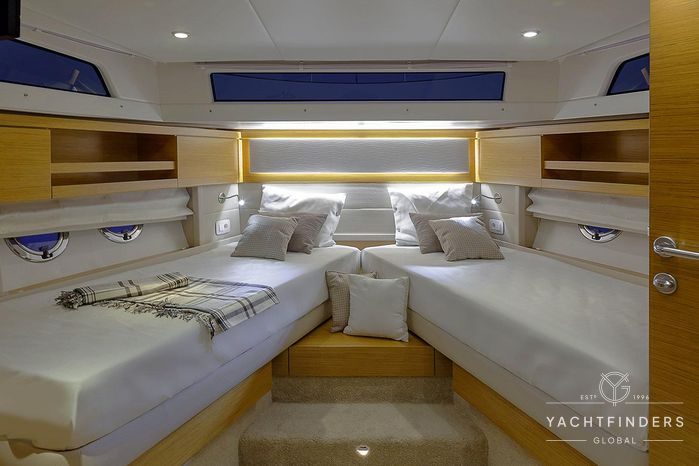

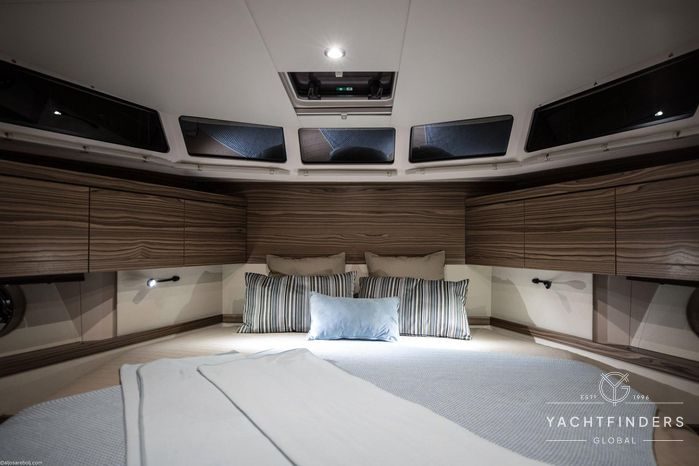

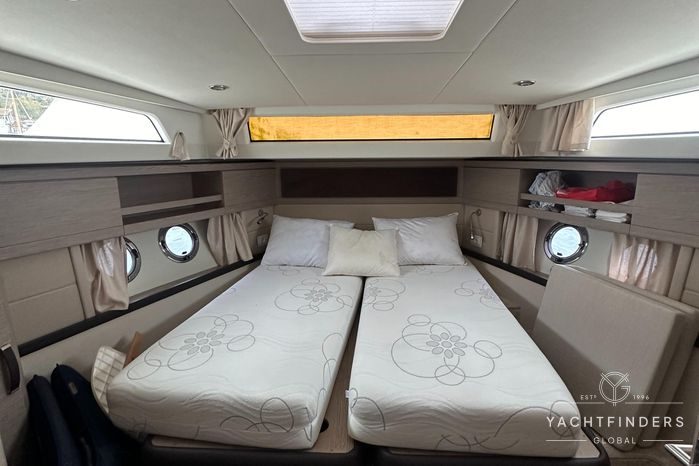

Owner's cabin forward
- Door to owner’s cabin from the corridor below
- Door to the toilet and shower
- Steps and the floor covered in the soft thick carpet
- In the cabin to stb and port a lower hanging locker, with a shelf above
- A bed to stb and port with a 200mm thick multiple-layer mattress 80 x 200 cm
- A system is provided allowing the port mattress and the stb bed to create a double bed in the middle
- Reading light over each bed, storage under the bed to the hull side
- Ceiling lights
- Soft fabric upholstery to the hull side above and under the bed
- Front bulkhead covered in wood and upholstery
- Bird-nest lockers above the bed under the walkway on each side
- A central opening hatch with shade/ mosquito net in the middle of the ceiling
- The ceiling in GRP covered with fabric/ foam upholstery
- Two hull opening portlights to each side
- Curtains throughout
- Storage under the floor

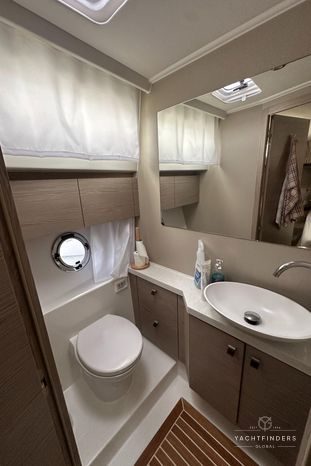

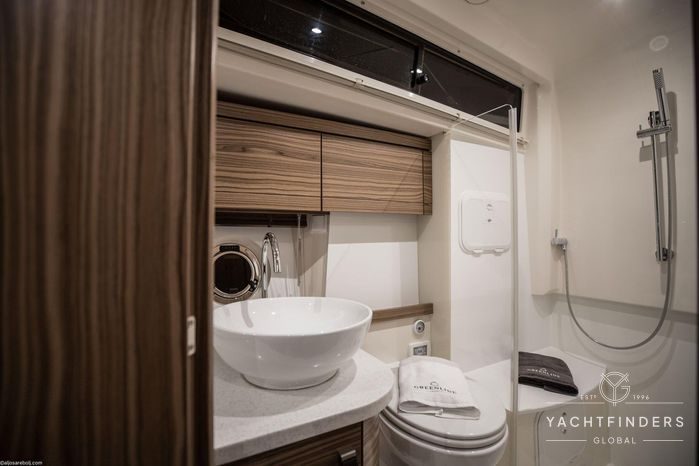

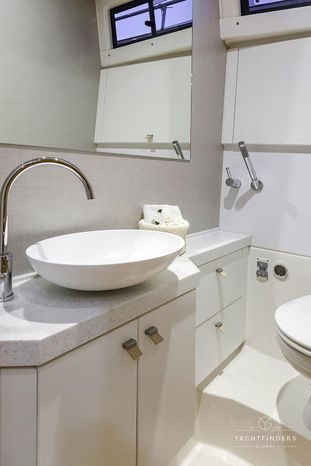

“En Suite” head compartment
- Access from the cabin through the door opening outwards
- Marine head
- Seacocks, located under the corridor
- Washbasin with pressurised water, hot and cold
- Workshop in Kerrock, mirror above the washbasin
- A locker below the washbasin, with the toilet compartment set
- An opening hatch on the ceiling
- A side window on the cabin side
- Teak grating

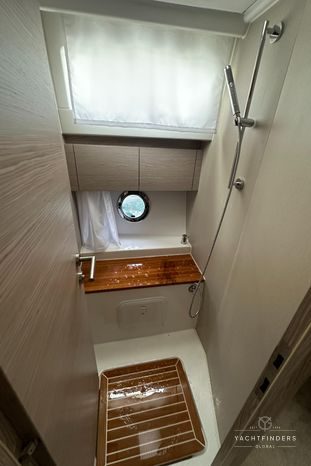

“En Suite” shower compartment
- Access from the cabin through the door opening inwards
- A standing shower with shower water drain
- An opening hatch on the ceiling
- An opening portlight
- A side window on the cabin side

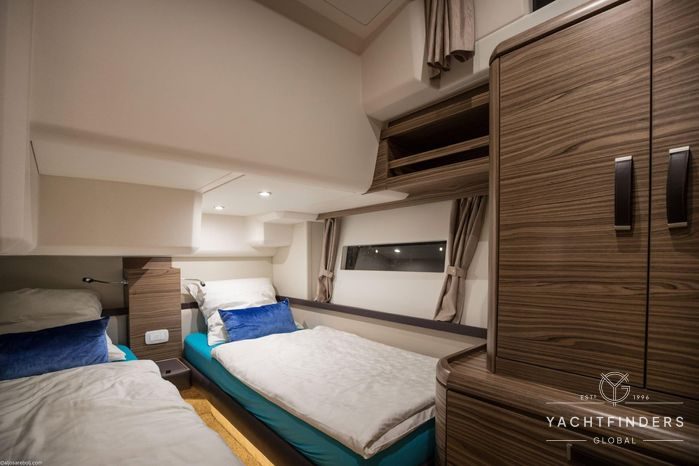

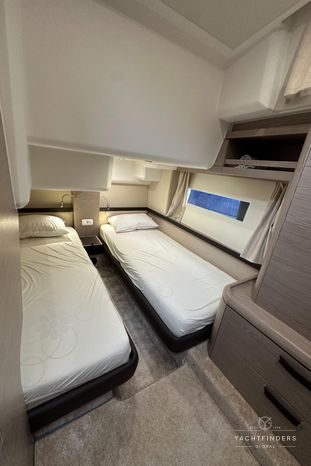

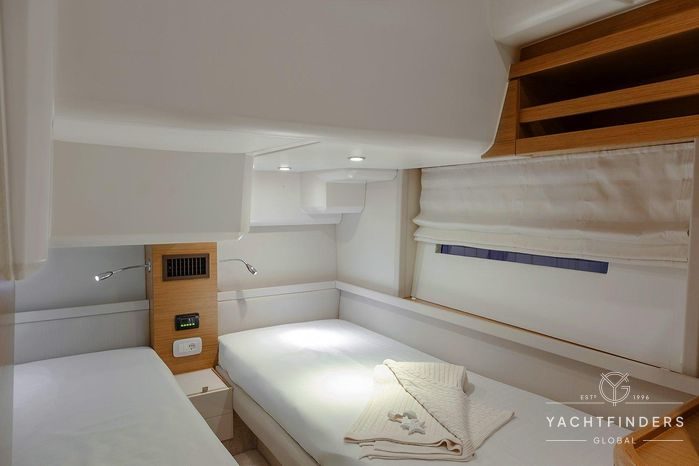

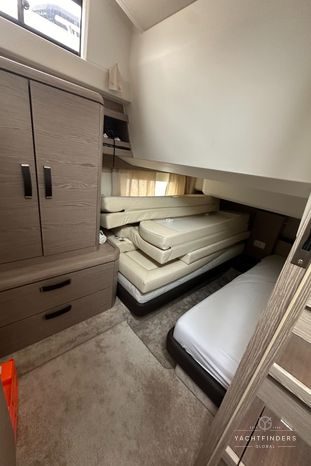

.Guest cabin to port
- Door to the guest cabin from the corridor below
- The floor covered in a soft thick carpet
- Ceiling lights (LED)
- Abed to stb and port with a 200mm thick multiple-layer mattress 80 x 200 cm
- Bedside locker
- A reading light (LED) over each bed at the aft side, storage under the beds
- Soft fabric (foam under) upholstery to the hull side above and under the bed
- Bird-nest lockers above the bed under the walkway on each side
- A lower hanging locker, with a shelf above, two drawers under
- A central hatch with shade in the middle of the ceiling looking into the saloon
- The ceiling in GRP covered with fabric/ foam upholstery
- Large hull portlight
- Curtains throughout

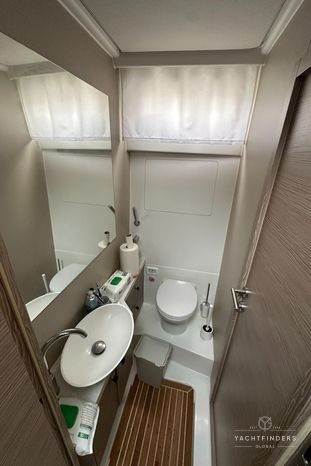

“Ensuite” head/ shower compartment
- Access from the cabin through the door opening outwards
- A standing shower with shower water drain
- Seacocks, located in the corridor
- Washbasin with pressurised water, hot and cold
- Kerrock worktop, worktop, mirror above the washbasin
- A locker below the washbasin, with the toilet compartment set
- A sliding window with a curtain on the cabin side
- Marine head
- Teak grating
Guest cabin to starboard
- Door to the guest cabin from the corridor below
- The floor covered in a soft thick carpet
- Ceiling lights (LED)
- A bed to stb and port with a 200mm thick multiple-layer mattress 80 x 200 cm
- Bedside locker
- A reading light (LED) over each bed at the aft side, storage under beds
- Soft fabric (foam under) upholstery to the hull side above and under the bed
- A bird- nest locker above the bed under the walkway on the port side
- A lower hanging locker, with a shelf above, two drawers under
- A central hatch with shade in the middle of the ceiling looking into the saloon
- The ceiling in GRP covered with fabric/ foam upholstery
- Large hull portlight
- Curtains throughout
“Ensuite” head/ shower compartment
- Access from the cabin through the door opening outwards and from the corridor below
- A standing shower with shower water drain
- Seacocks, located in the corridor
- Washbasin with pressurised water, hot and cold
- Kerrock workshop, mirror above the washbasin
- A locker below the washbasin, with the toilet compartment set
- A sliding window with a curtain on the cabin side
- Marine head
- Teak grating

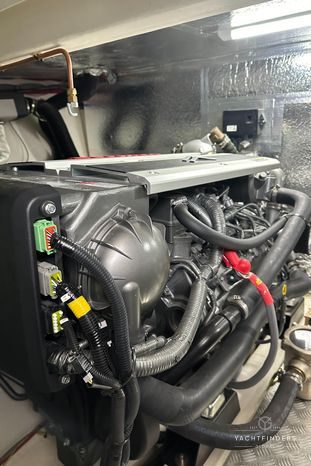

Engine, drive and steering
- Twin electronic throttle and gearbox controls: at the steering console and on the fly
- Alternator 12V on the engine
- Gearbox, V drive
- Hi-tensile stainless steel shaft, with an anode protector. Dripless shaft gland. Propeller shaft bracket
- Fixed 5 blade propeller, diameter approx. 500mm
- Exhaust system
- 12V engine room ventilation
- Flexible mounts
- Engine room light
- Engine room insulation
- Fuel filter: a pre-filter with a water separation unit
- Cooling water pre-filter
- 2 polyethylene diesel tanks with a calibrated gauge, 50mm inlet hose diameter. Fuel gauge meter at the main electric panel. 2 fuel tank venting systems
- Bow thruster, 2 x control joystick (helm and fly)
- Twin hydraulic steering mechanism
- Two rudders at stern
Electrical system
- Two voltage systems are on the boat: 12V and 230V 50Hz
- All systems are insulated with 3 main switches, positioned on the main switchboard
- AC 230V panel and fuses
- DC 12V panel and fuses
- Shore power pick-up
- Battery charger 60A/ 12V
- GFI safety interrupter
- AC 230V sockets in the galley, saloon, in the bow cabin, guest cabin and in the washroom
- Service batteries: 2 x 12V to service the 12V consumers
- Engines start batteries: 2 x 12V, charged by the main engine alternator through a diode
- Additional 2 x 100Ah battery
- Steering magnetic compass with light
- Navigation lights
- Anchor light
- The horn on radar mast

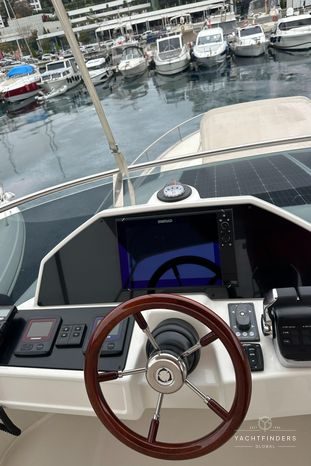

- second helm station (engine controls & instrument, gauges, hydraulic steering system)
- Comfortable navigation seat
- Large U-shaped lounge right beside the helm seat with storage under with convertible forward/ backward-looking seat

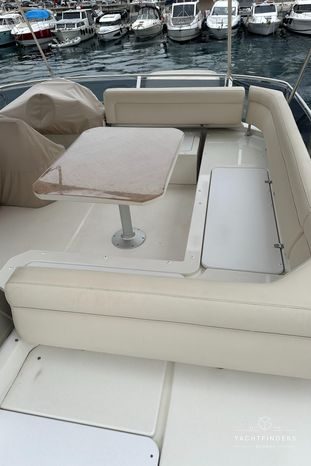

- Fixed fly table with cup holders in the middle
- GRP radar pole, navigation lights

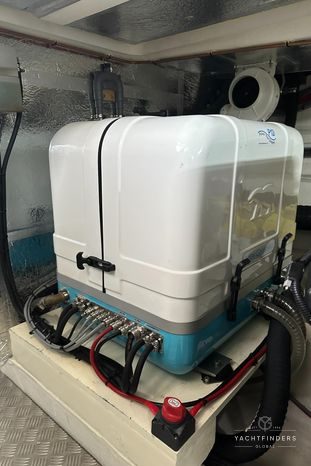

- 13 kw generator
- air-conditioning, reverse cycle, 56,000 btu + 24,000 btu cooling (Cruisair, MarineAir, Flagship from USA)
- Hydraulic lifting up/ down transom platform, 300kg capacity
- Increase lifting up/ down transom platform to 500kg capacity (400kg net)
- extended transom platform, app. 24 inches

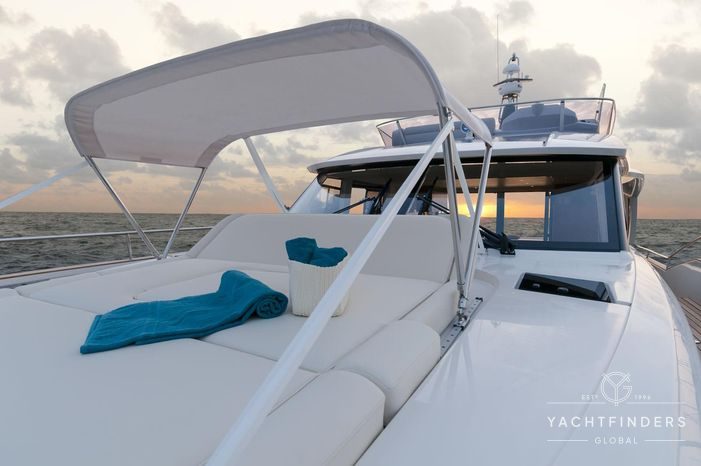

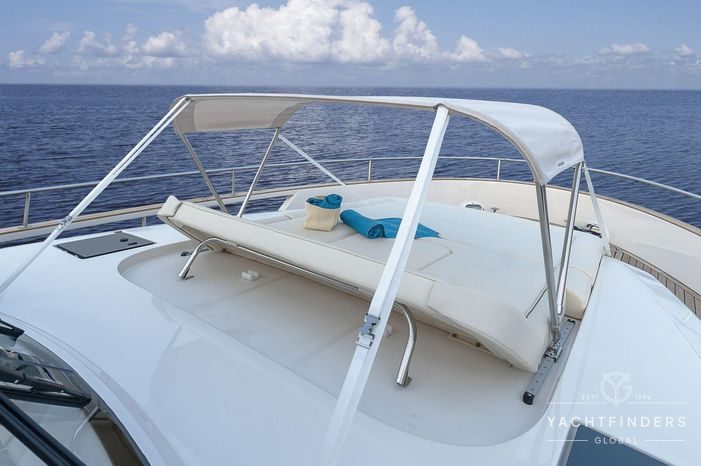

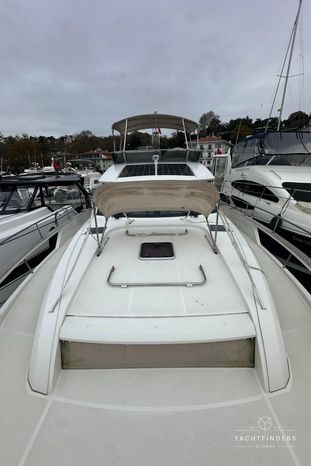

- exterior forward deck ‘Sunbathing area’ with sun mattress with lifting headrest, bimini above lifting headrest, forward-looking settee with retractable backrest and protective cover for the sunbathing area

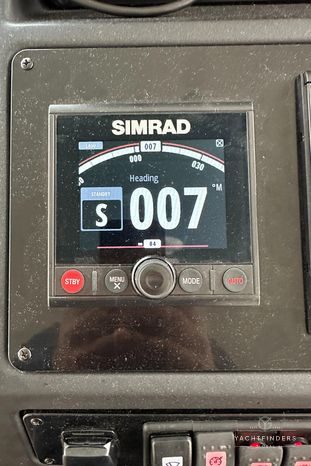

- Navigation package: Raymarine 2 x 12″ touch screen display, auto-pilot, P70R control unit and DST800 Smart Transducer, a Chinese display
- Raymarine 4 kw radar, Quantum Radome

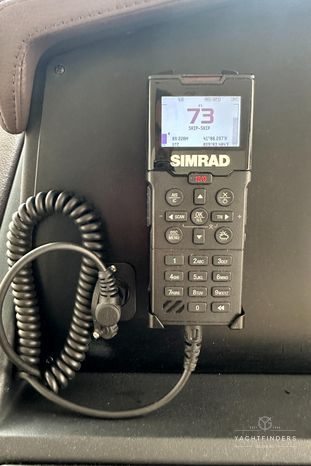

- Communication pack: Raymarine Ray 260 + Glomax VHF antenna
- Entertainment package: 55″ TV in the saloon, 36″ TV in owner’s cabin, Glomax TV antenna
- Audio pac 1: Saloon and cockpit installed with Fusion MS-AV750i Marine entertainment system, Fusion MS-BT200 Marine Bluetooth audio + USD mount
- Electric marine toilets, dual valve, with freshwater/ seawater flush
- Chain and anchor wash-down, 12V, including hose and nozzle
- Stern-thruster, 6.3 kw, with 2 x 100AH 12V battery
- Flybridge bimini, with LED lights

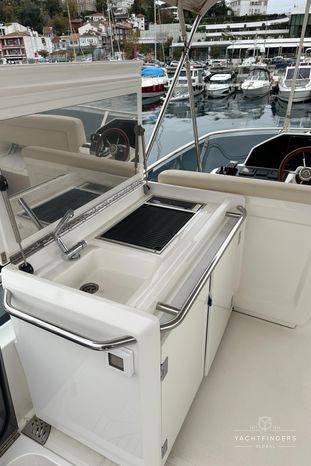

- Flybridge galley (fridge, electric grill and sink), with protective cover
- Floor level recessed low-level lights
- Trim tabs
- Retractable sun-shade in the cockpit
- Underwater lights, 3 sets of two
- 10 x fender + wraps
- Teak laid wood decking on aft cockpit, side-walks and stern platform
- Exterior canvas covers, including front window covers

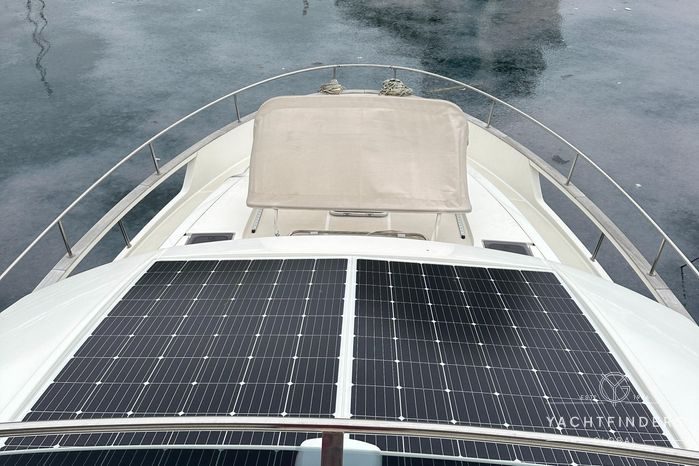

- two photovoltaic panels integrated in the coachroof, 600W, 12V. Solar battery charge management system
- Protective covers for flybridge sun cushions and cockpit bench cushions
