General


Year: 2009
Price: $1,600,000
Additional Charges: None
Boat Type: Sail
Hull Type: Pilothouse
Location: Offshore
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 56 ft
LOA: 17.51m / 57.42ft
LWL: 16.00m / 52.5ft
Beam: 5.05m / 16.58ft
Draft: 7'
Bridge Clearance: 22.60m / 74 ft
Displacement: 43,000kg / 95,000lbs

Engines


No. of Engines: 1
Engine Brand: John Deere
Engine(s) HP: 220hp
Cruising Speed: 6.5 knots
Max Speed: 9 knots
Hours: 2900 hours

Builder / Designer


Builder: Nordhavn
Designer: Jeff Leishman

Tankage


Fuel: 3,000L / 800gal across three tanks
Water: 1,750L / 450gal
Holding: 75 gal
Other Details: 285L / 75 gal

Layout


  • 3 Stateroom /2 head layout, comfortably sleeping 6

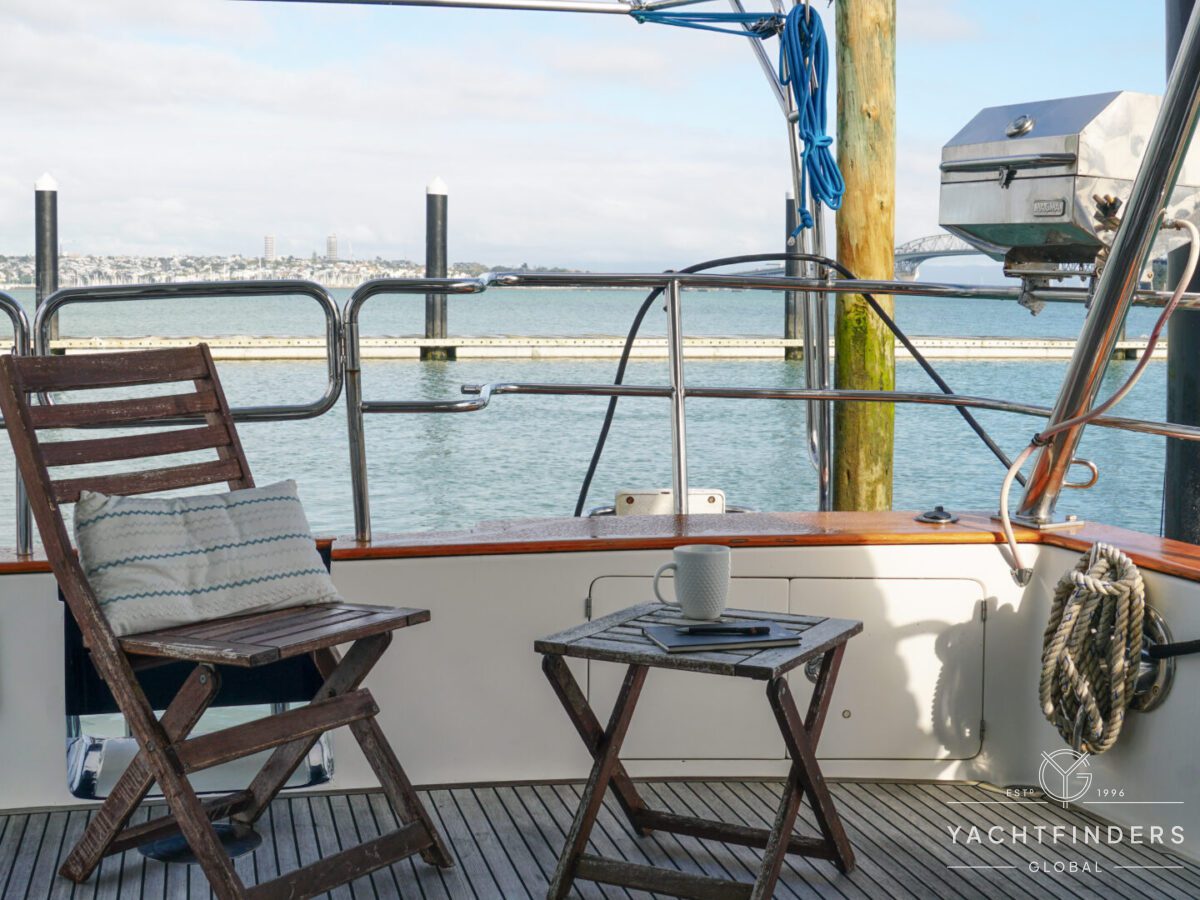

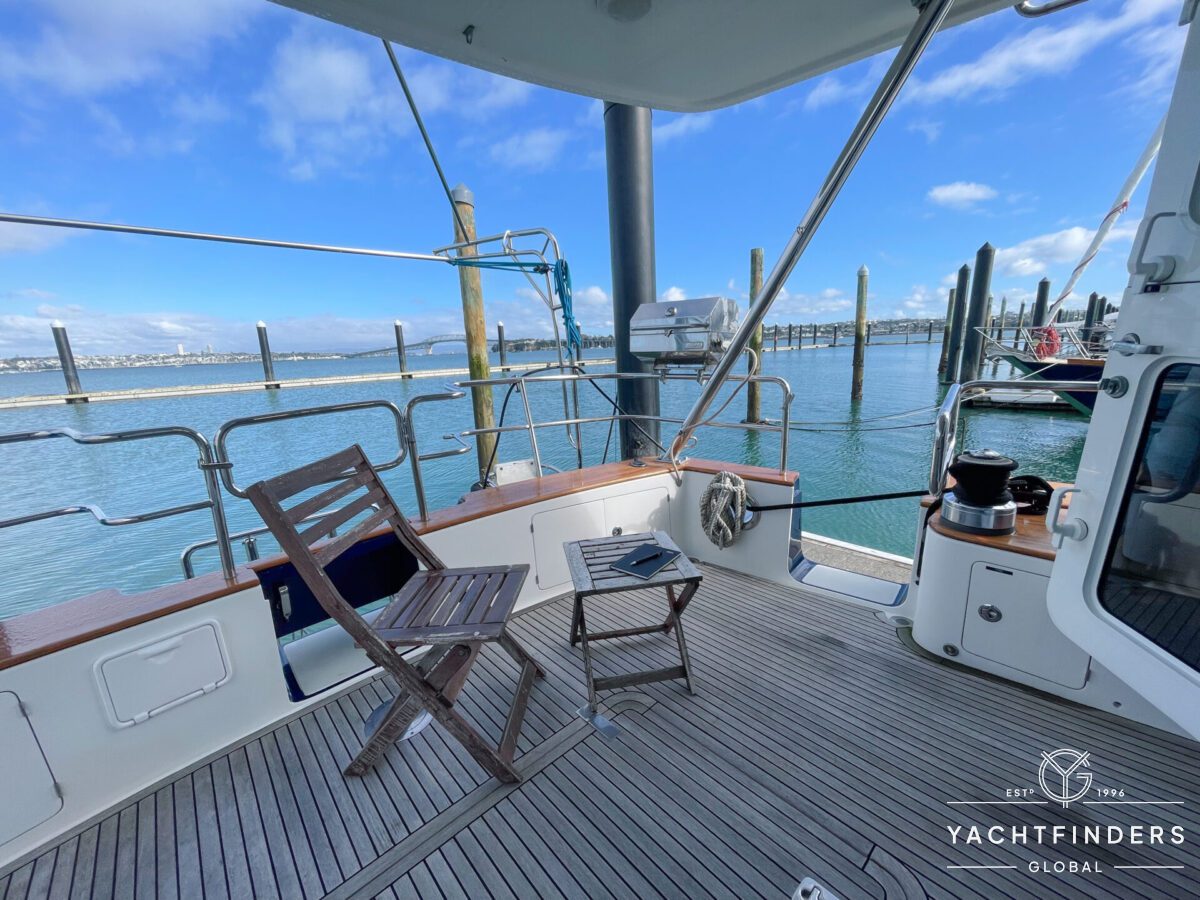

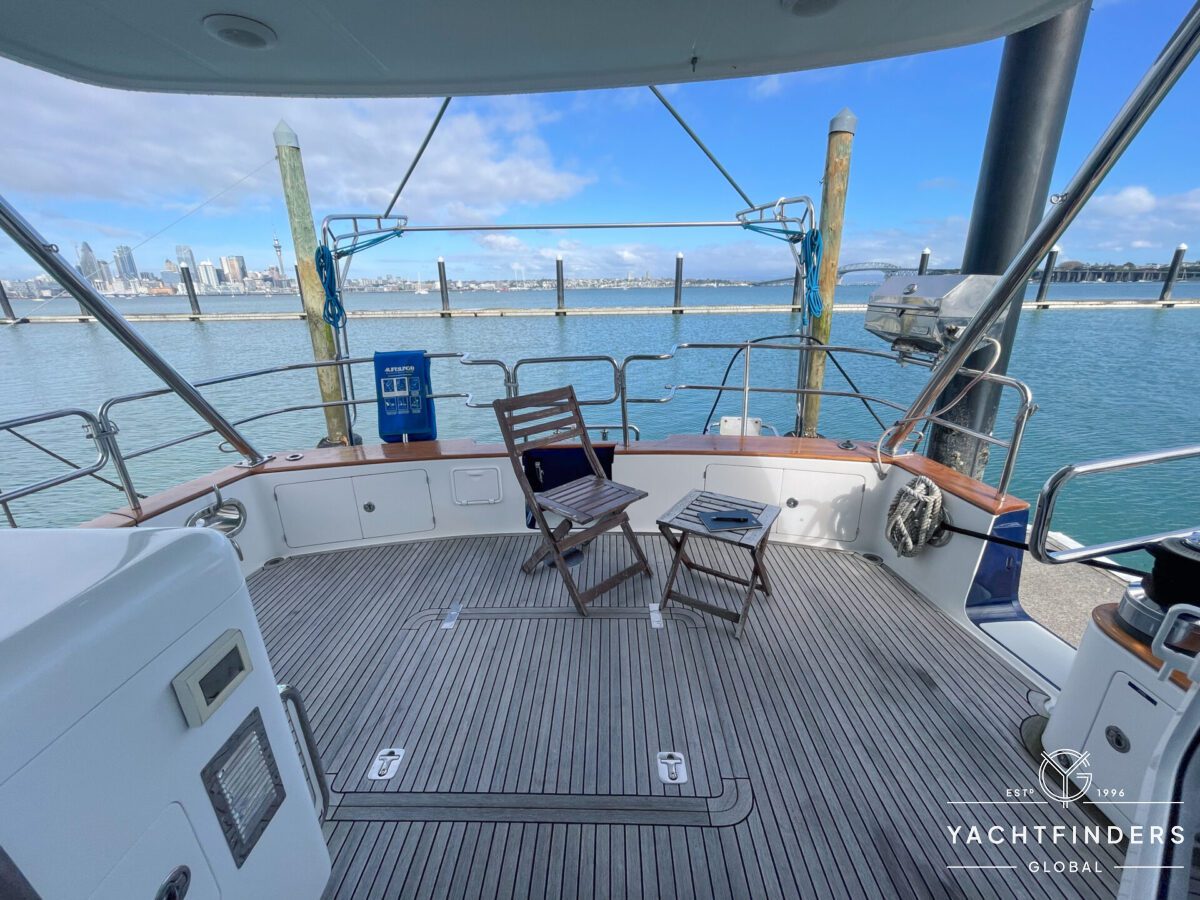

  • Cockpit console with sink, and outdoor range

Engine Room


  • Powerplant: John Deere 220hp – 1,382 hours
  • Transmission: Twin Disc MG5075SC
  • Bow Thruster: Electric Side Power 15hp, 24v SP240 (2019)
  • Air con: Cruisair 53,000 BTU System with SMX
  • Propeller: 90cm four-bladed Hundested variable pitch propeller and shaft

Systems/Other


  • Fuel transfer system with fuel polishing
  • Fire suppression system with engine shutdown and manual release
  • Fire suppression system in Lazarette
  • Racor Crankcase Venting system
  • Wet exhaust
  • Electric and manual bilge pumps
  • Exhaust fan in Lazarette
  • Besenzoni passerelle
  • Spur line cutters on the propeller shaft

.Electrical System


  • Northern Lights 12kw generator – 1,636 hours
  • Separate Genset (gas and water separator)
  • Mastervolt mass combi 24v inverter/charger
  • Inverter bypass switch
  • Two shore power outlets
  • Shore power cord
  • 6 x 8-D House Batteries
  • 2 x 6-D Starting batteries
  • Zinc binding system
  • Tri-colour mast lights
  • Stateroom fans
  • 3x Sony TVs
  • Upgraded Bose sound system

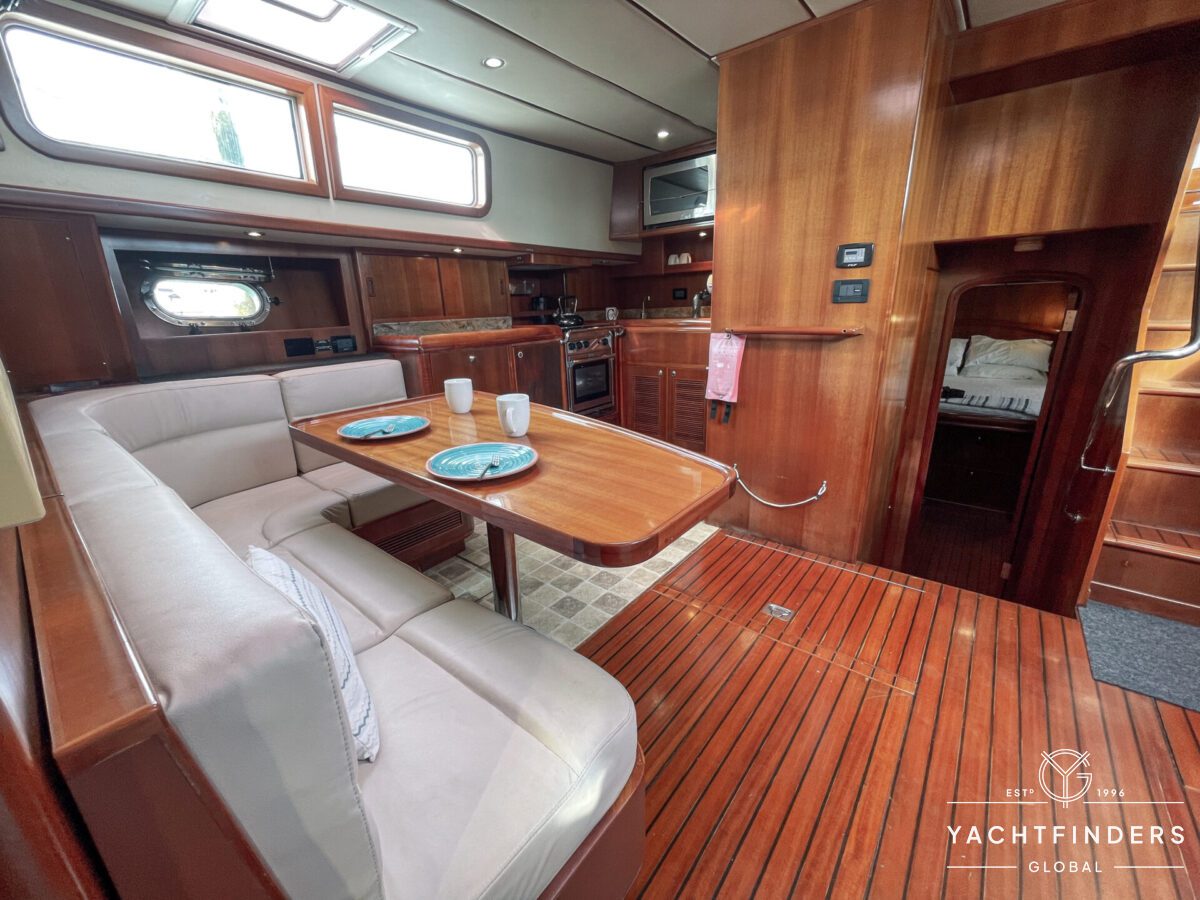

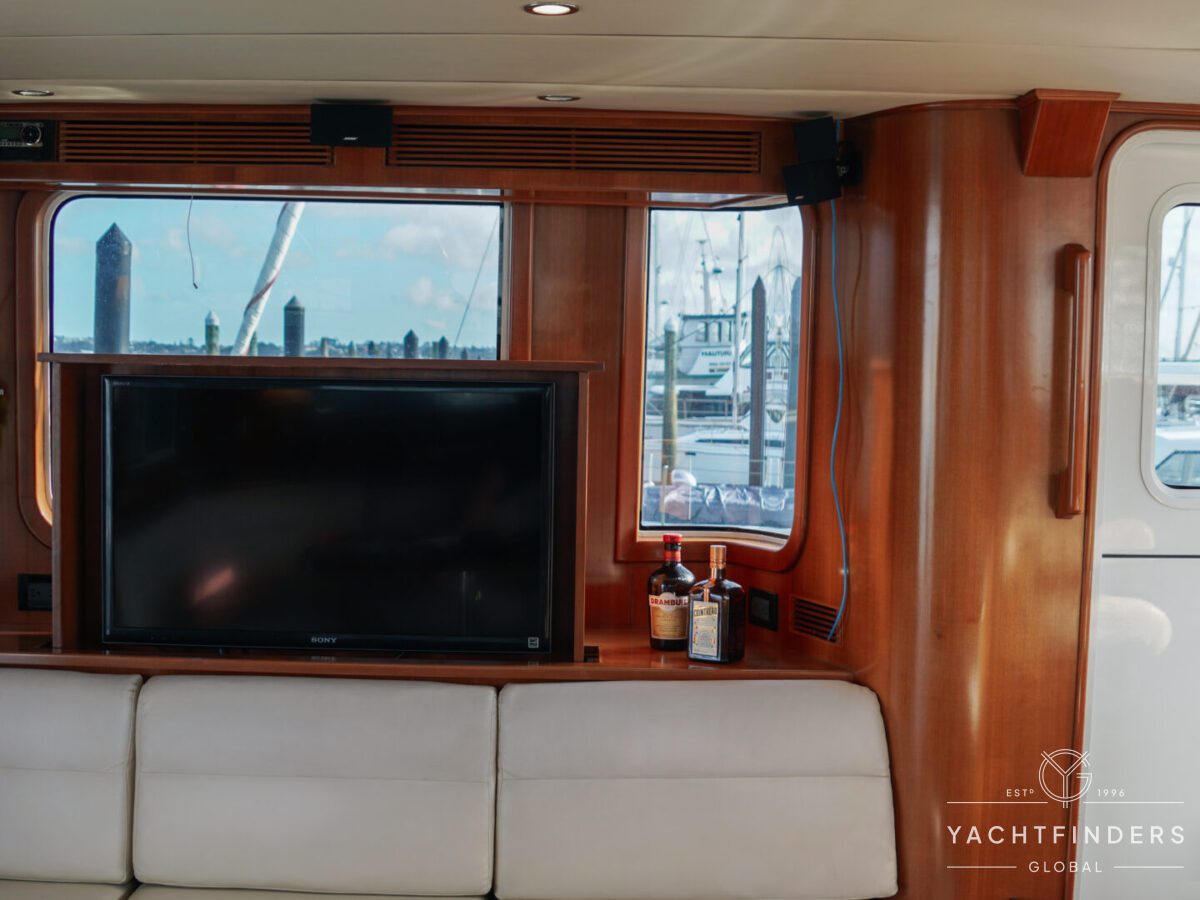

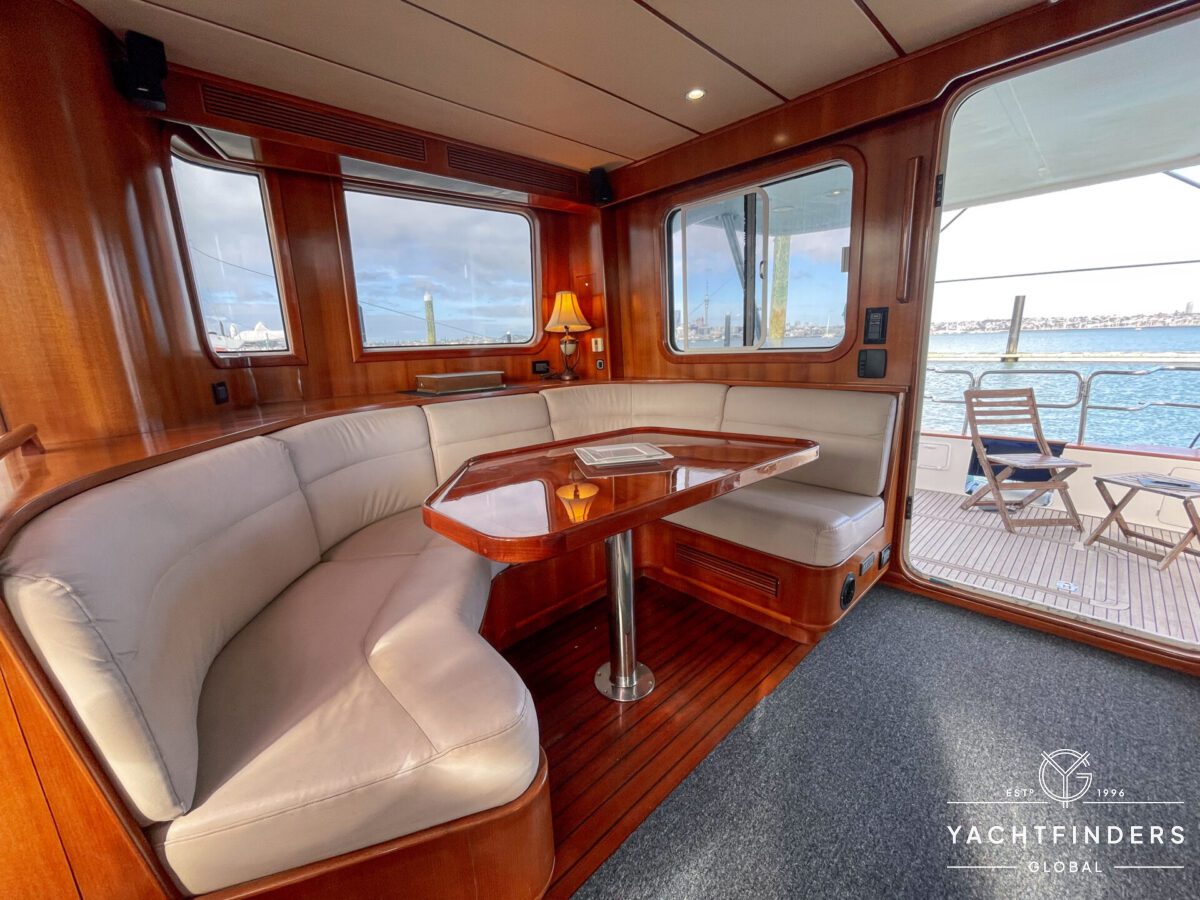

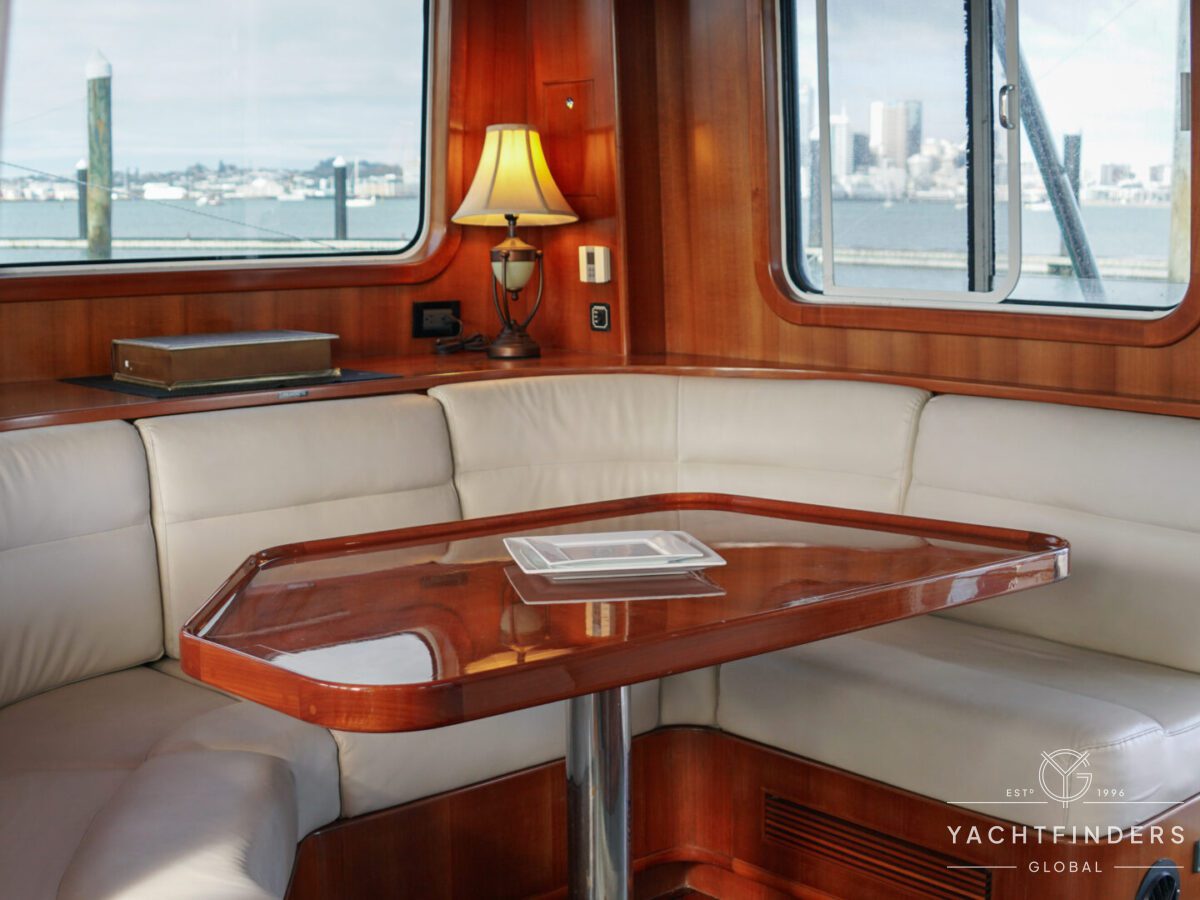

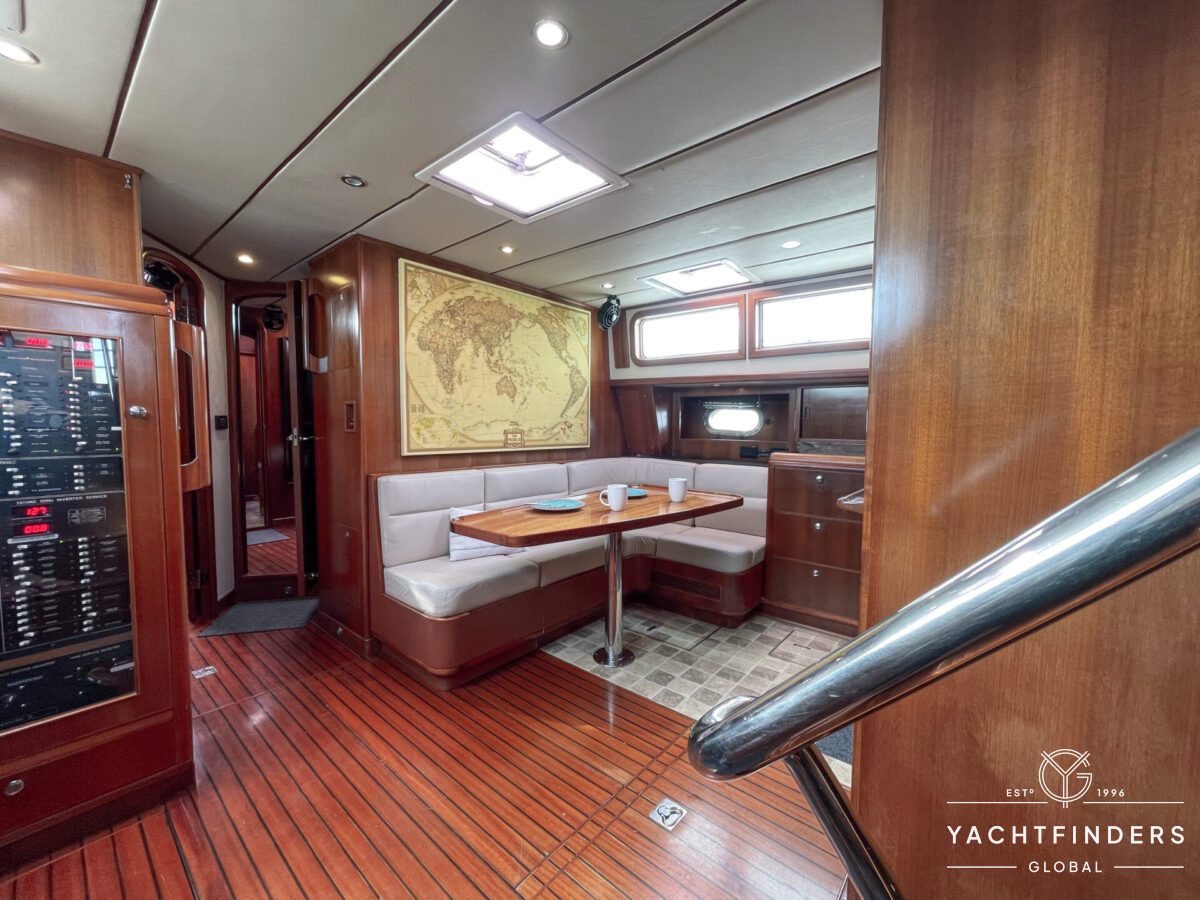

.Saloon


  • Settee and chair upholstery in Ultraleather
  • Flooring: Teak and African Mahogany with satin varnish
  • Cabinetry/panelling: Teak with 60% gloss varnish

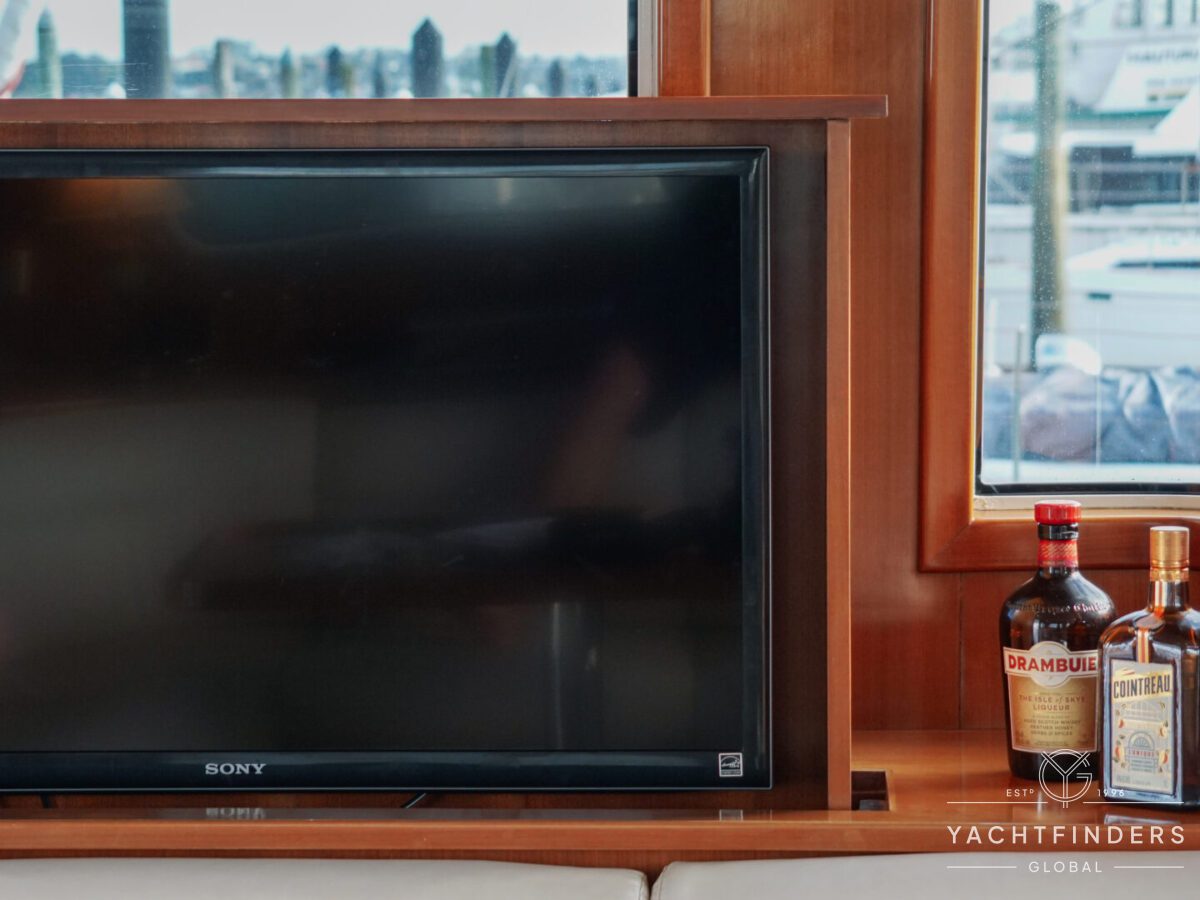

  • Aritox TV lift with cabinet – port side

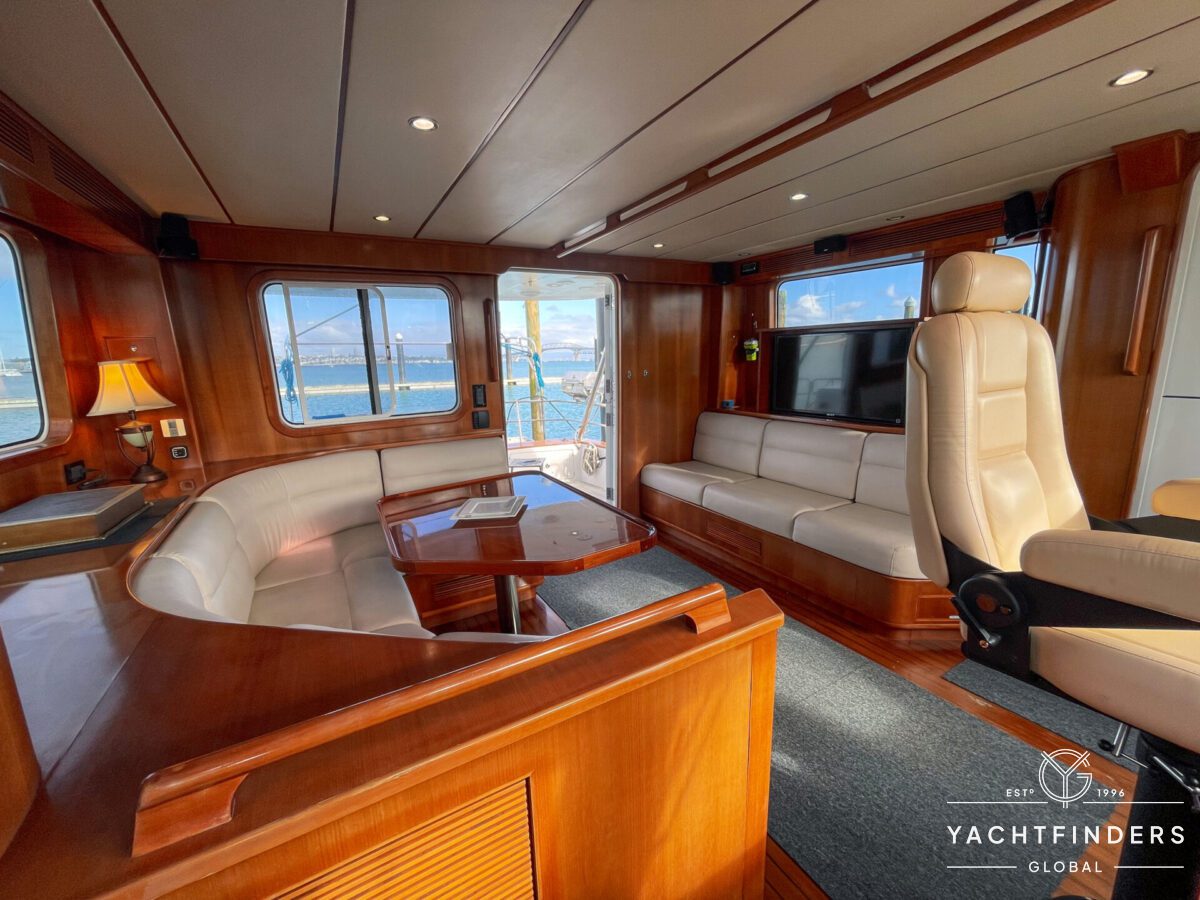

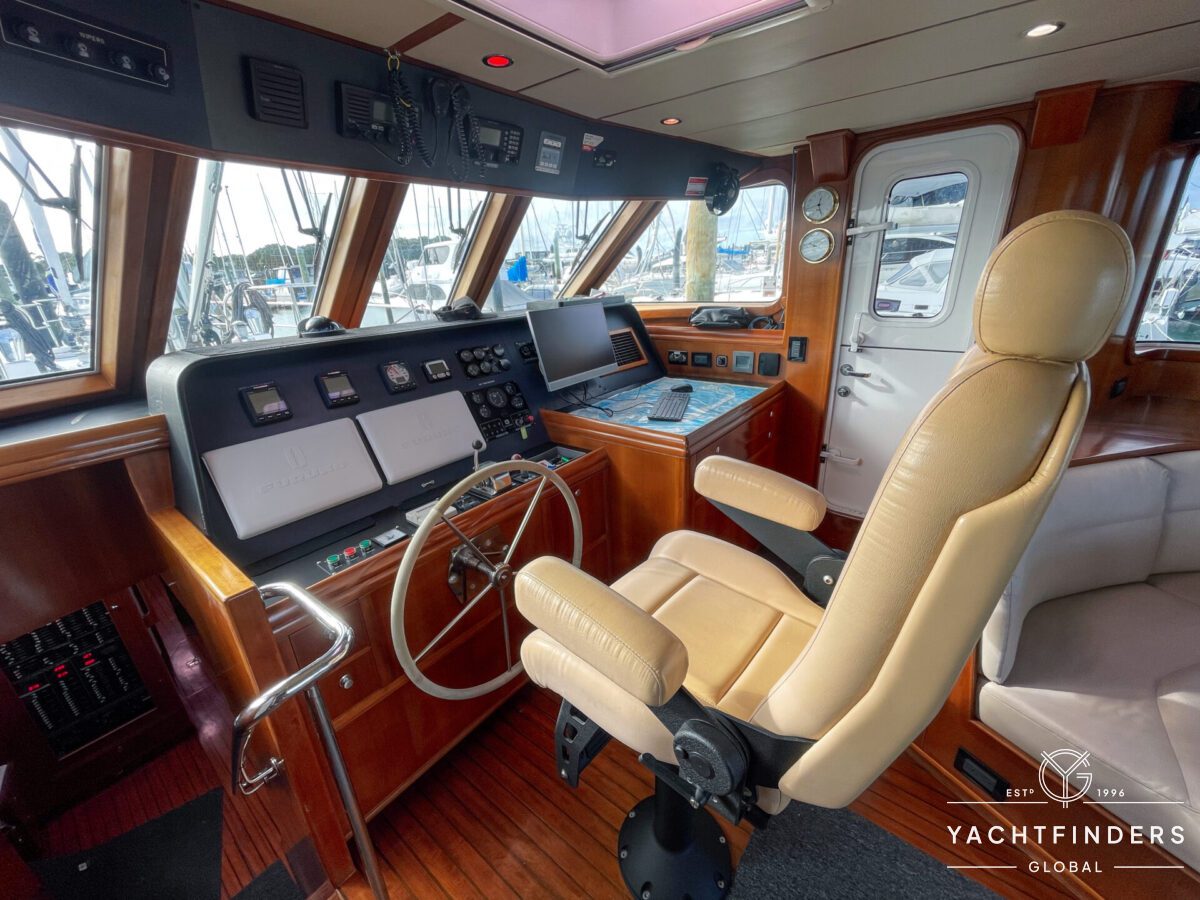

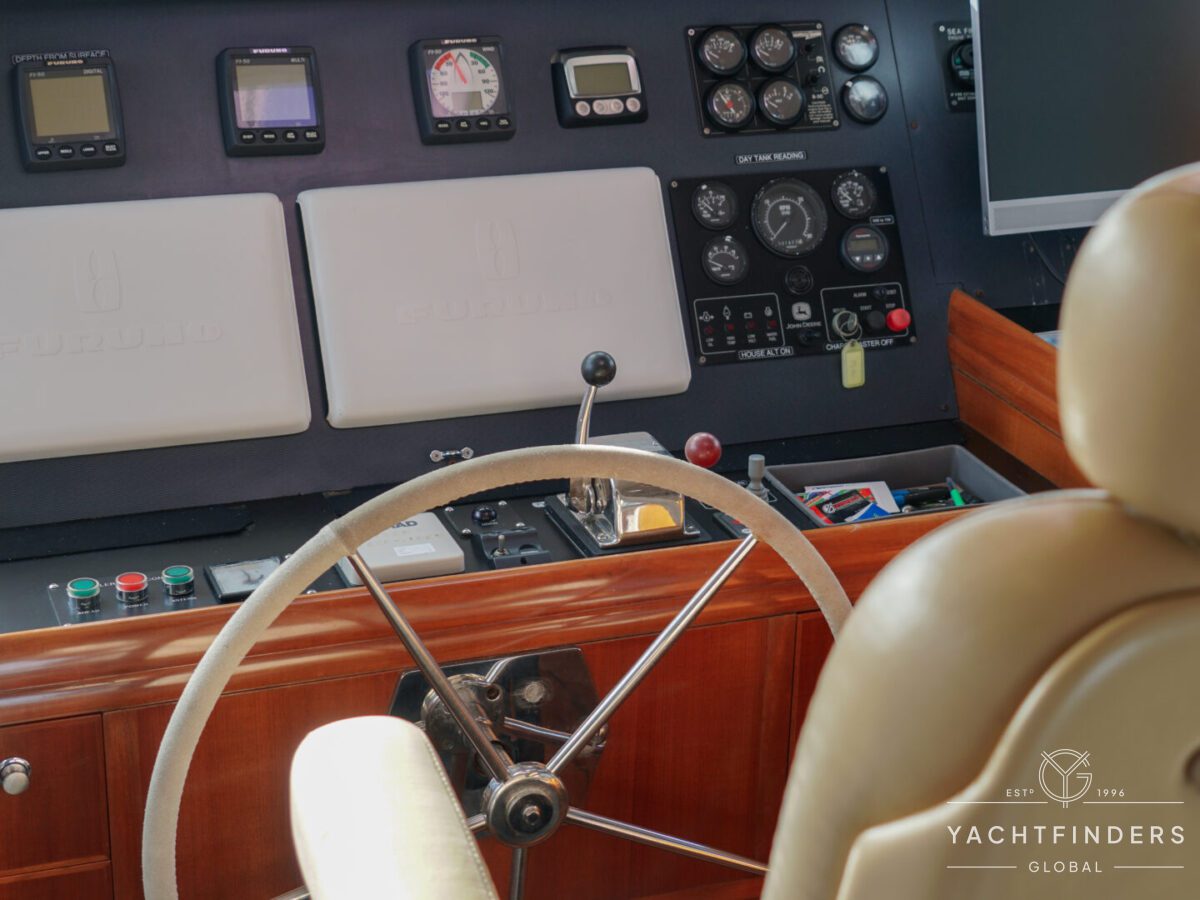

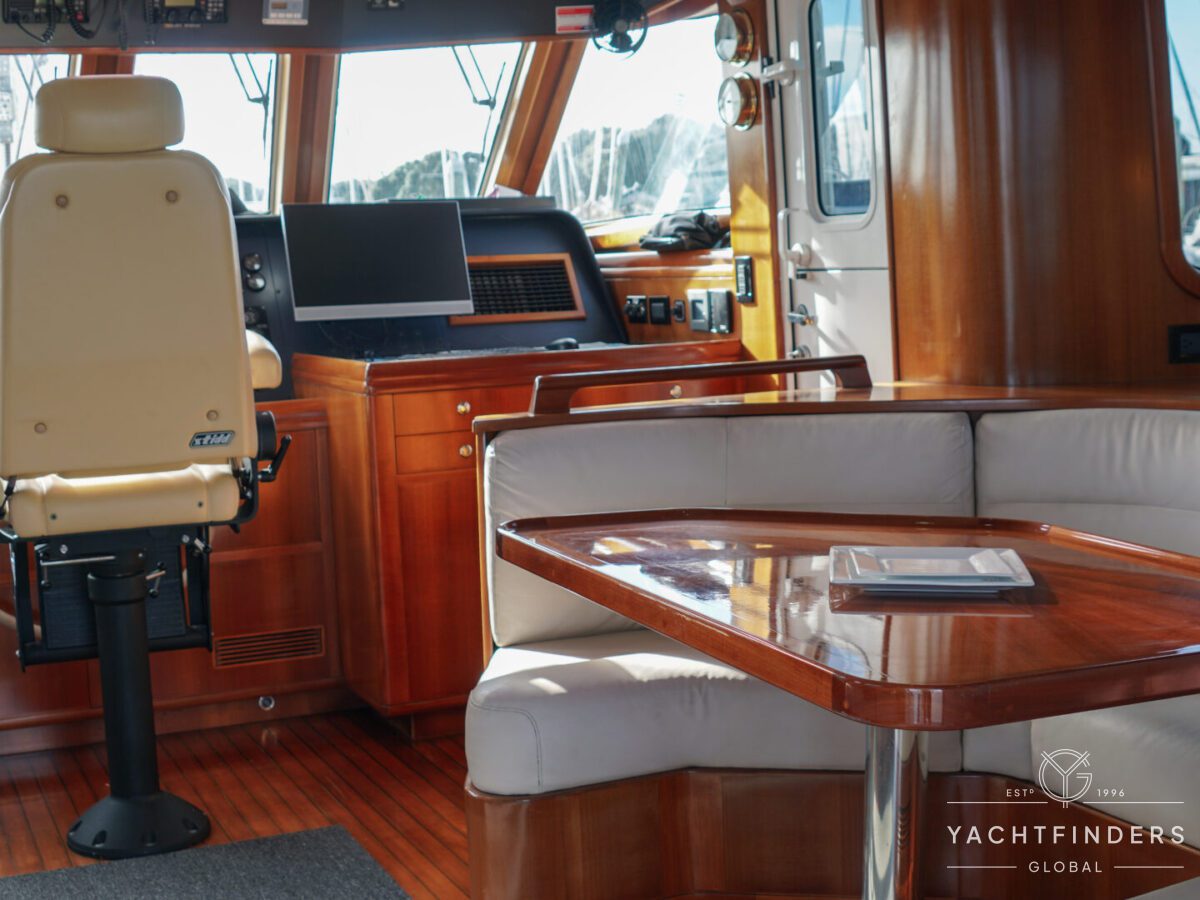

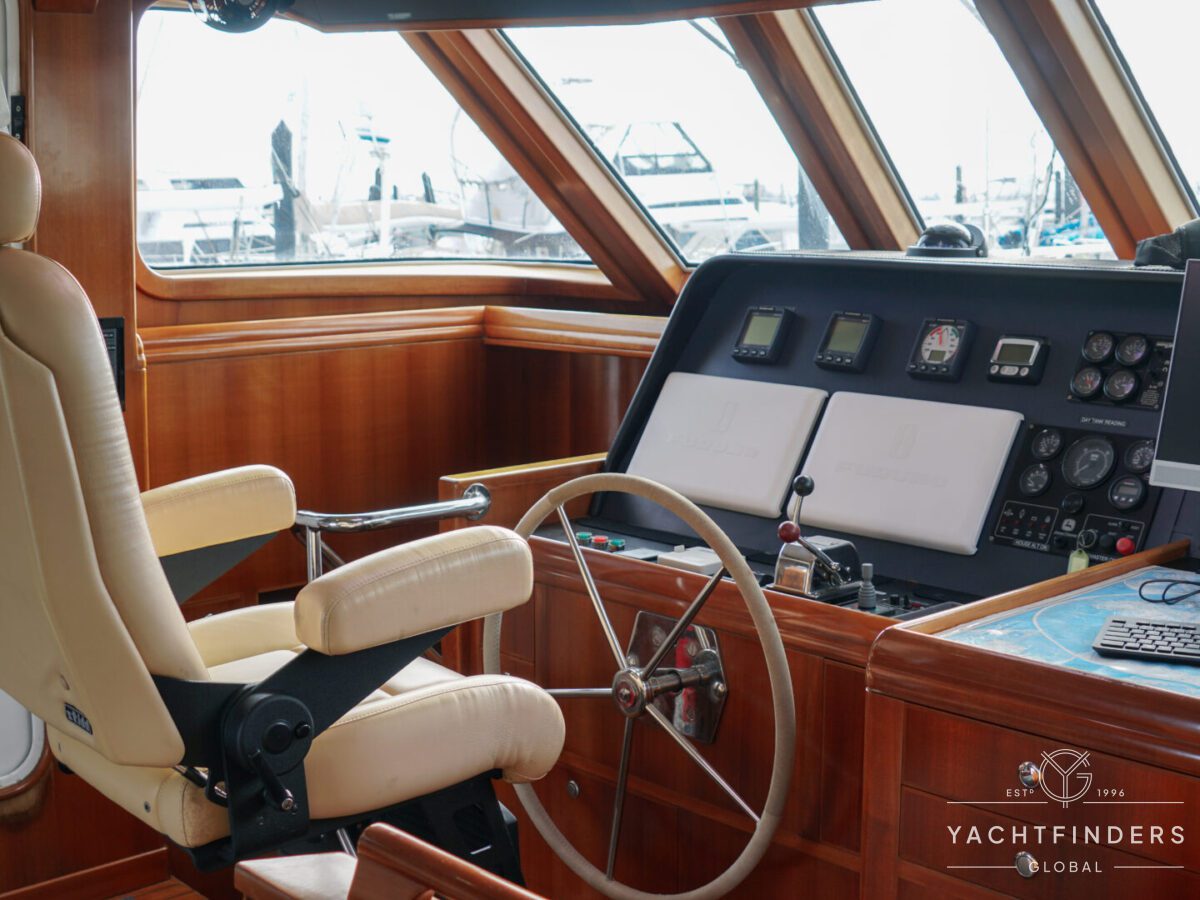

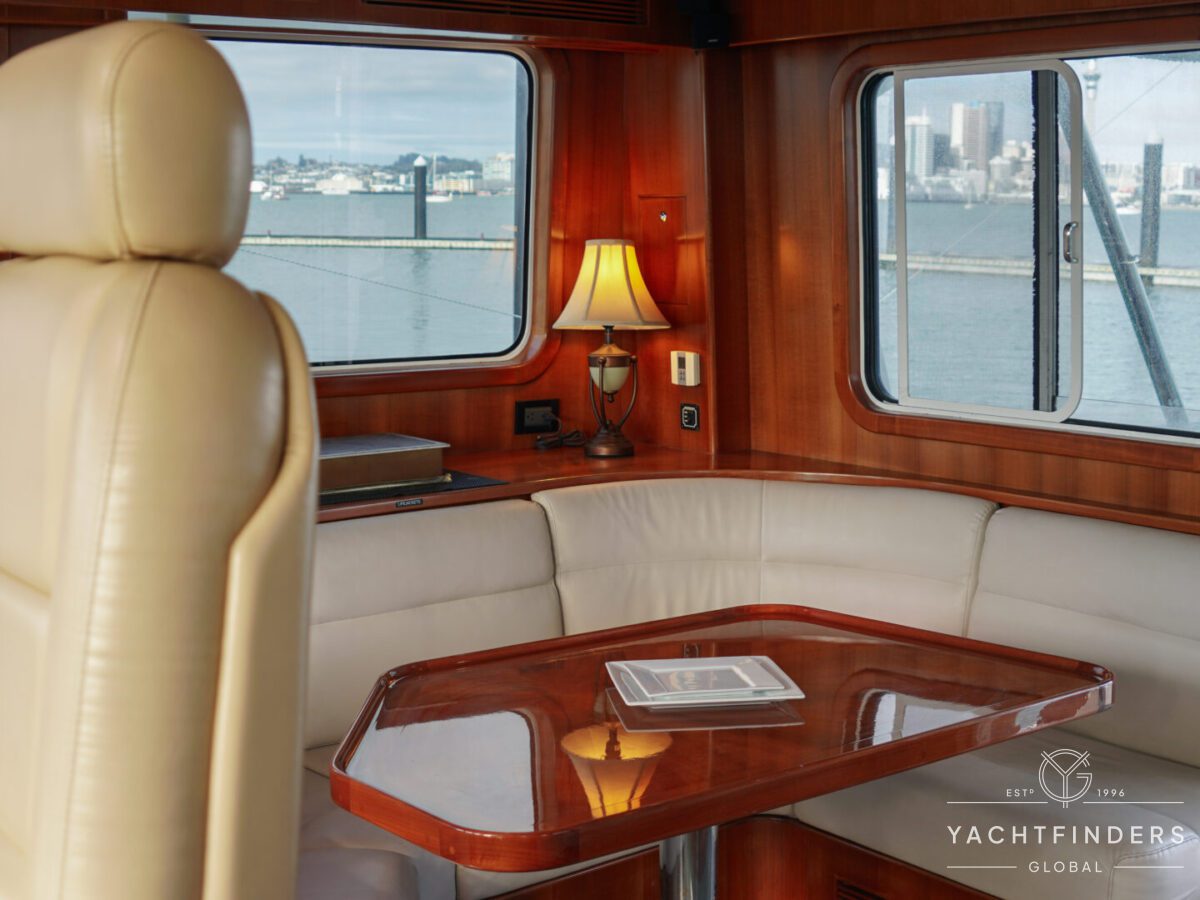

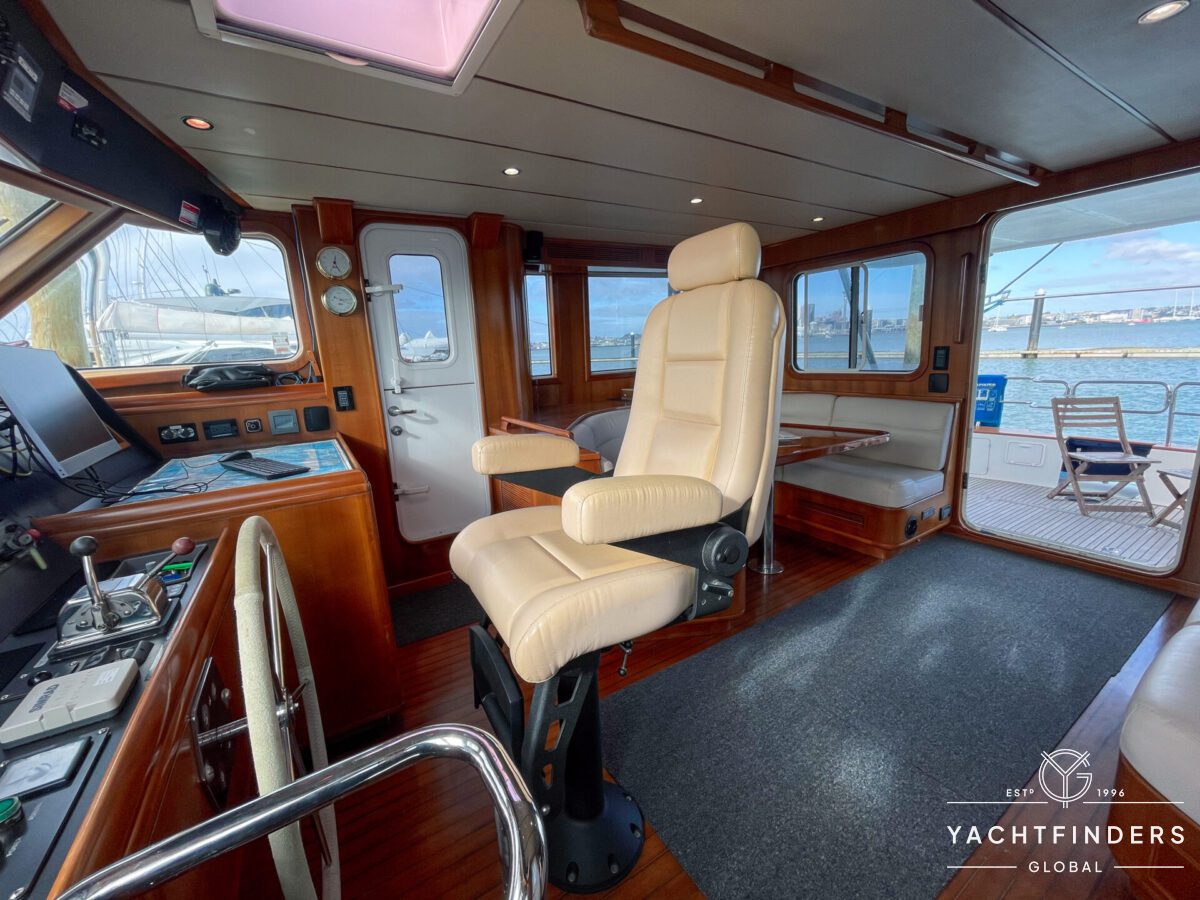

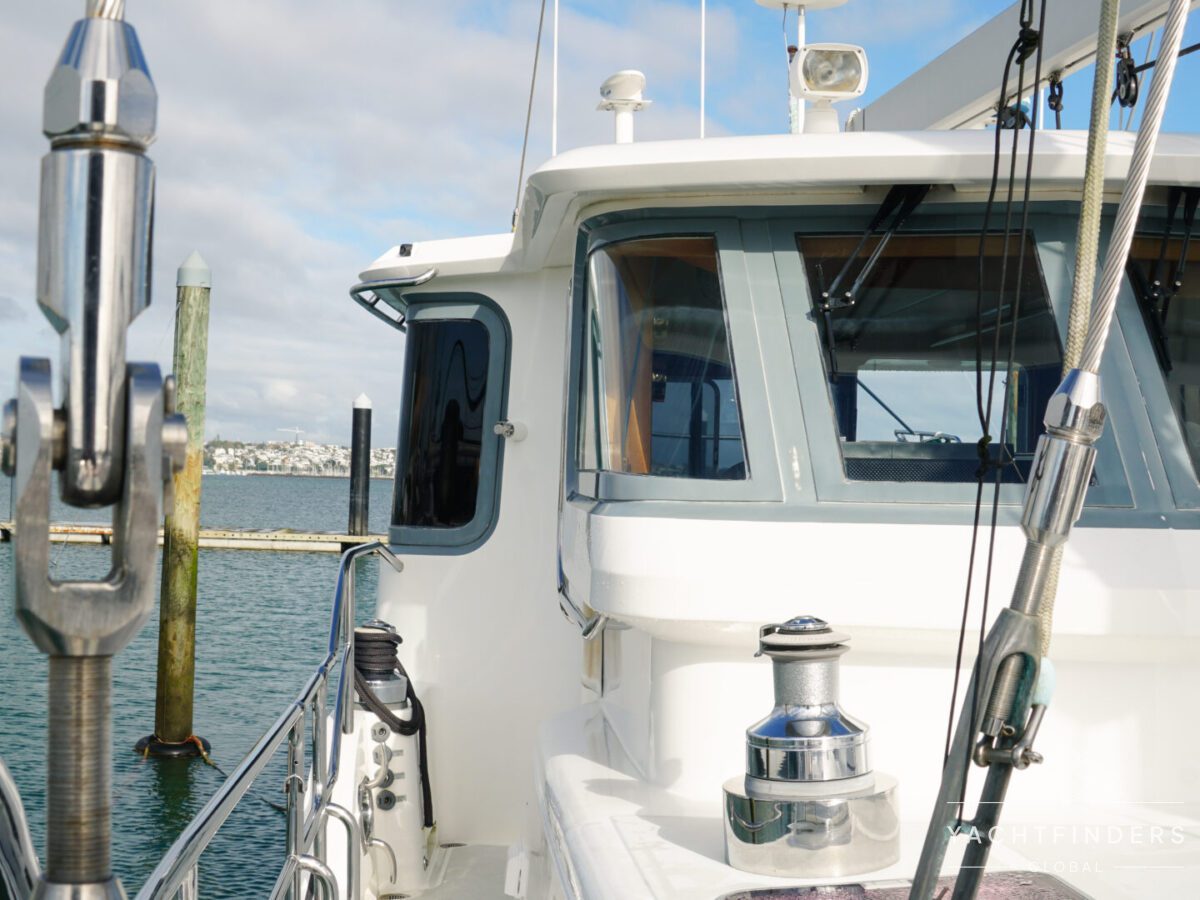

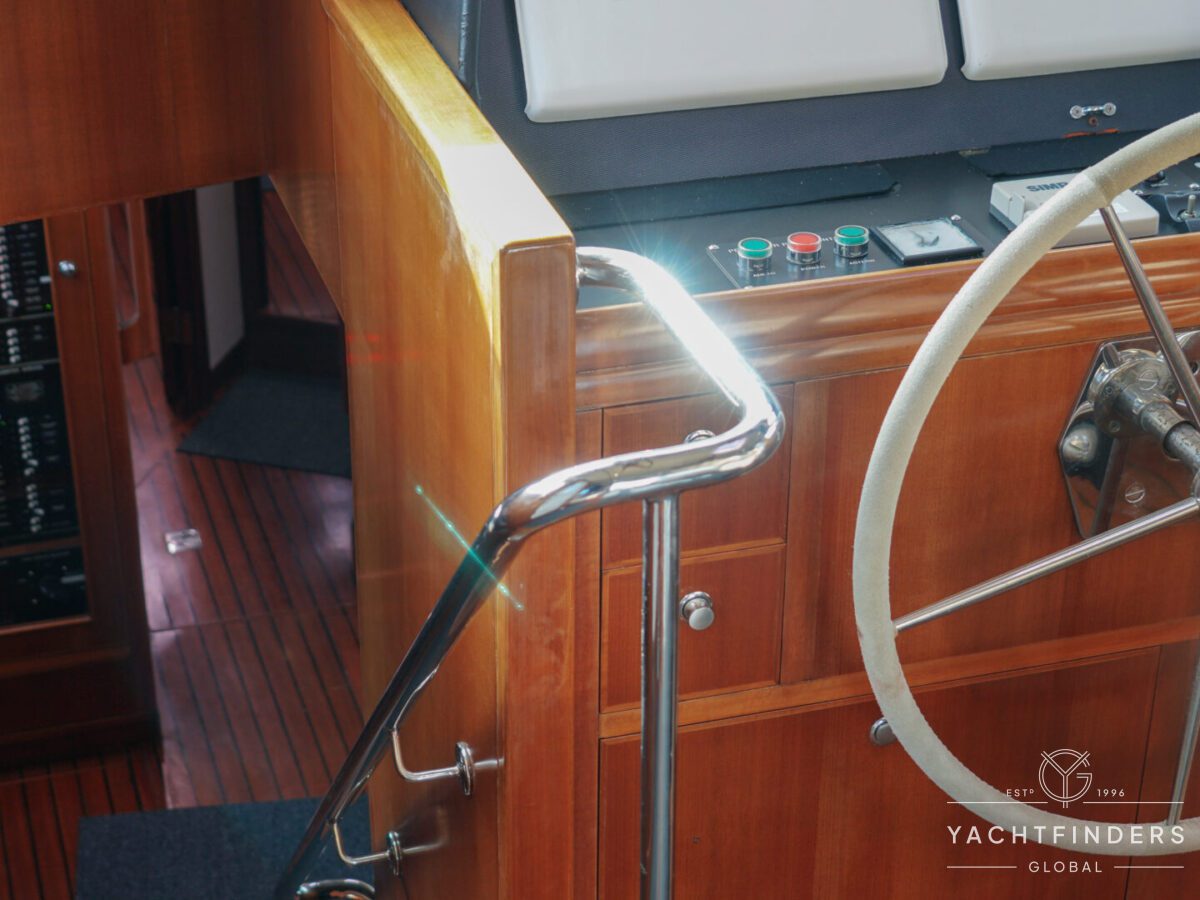

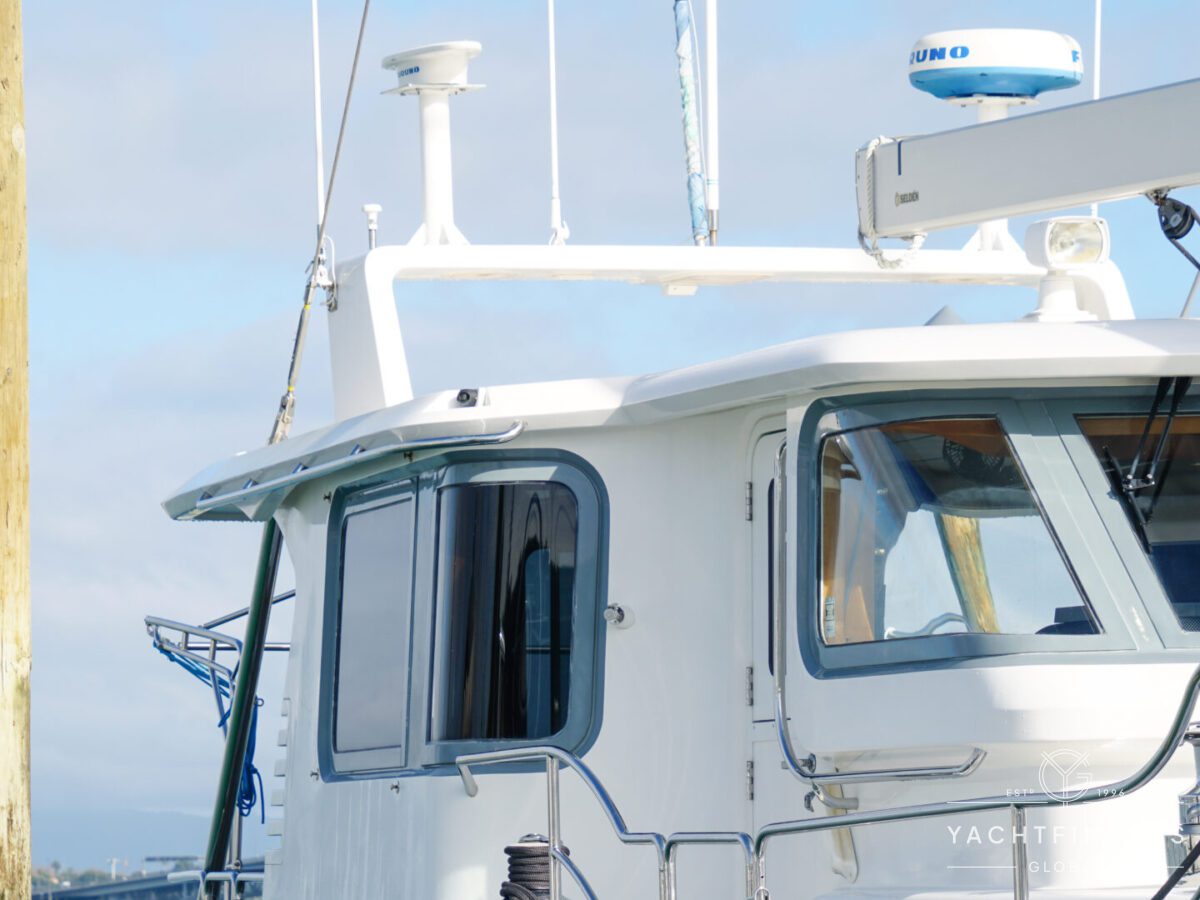

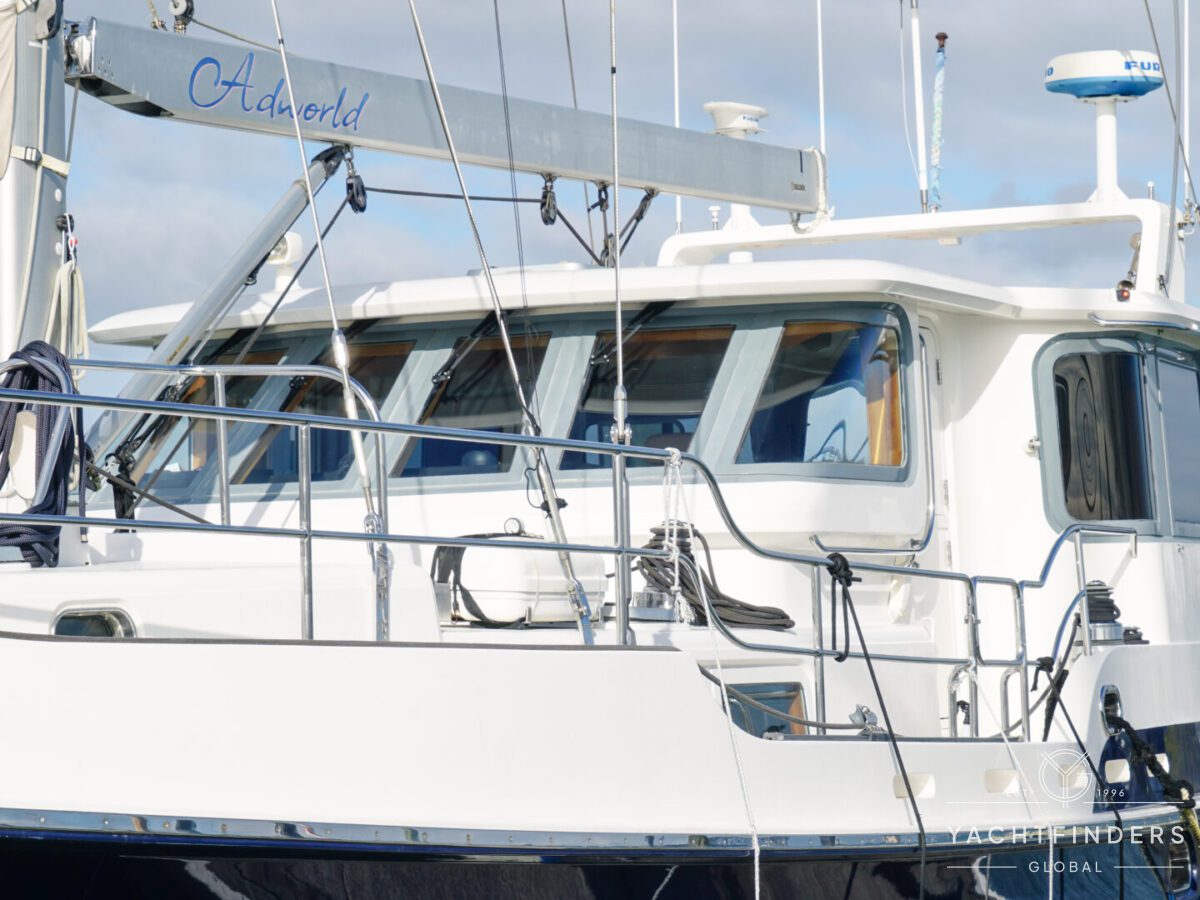

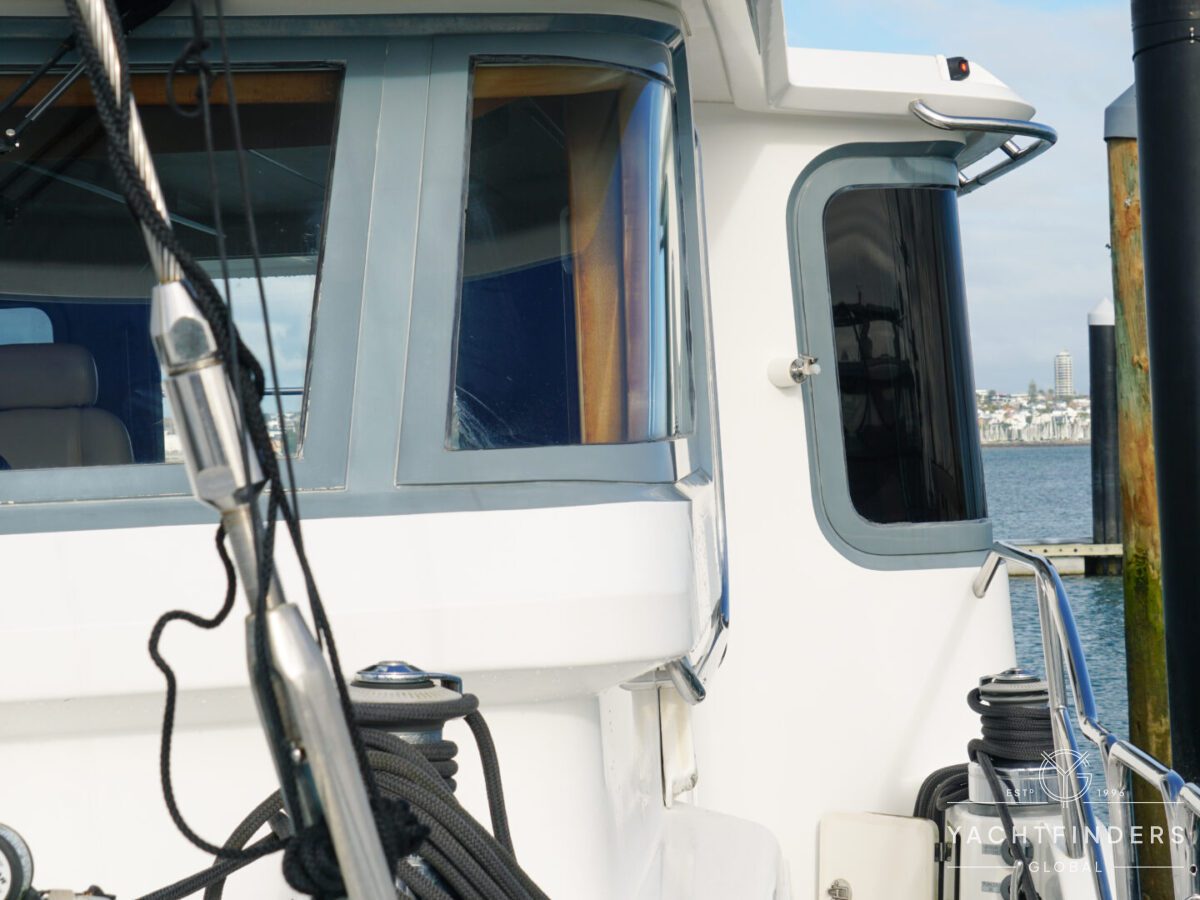

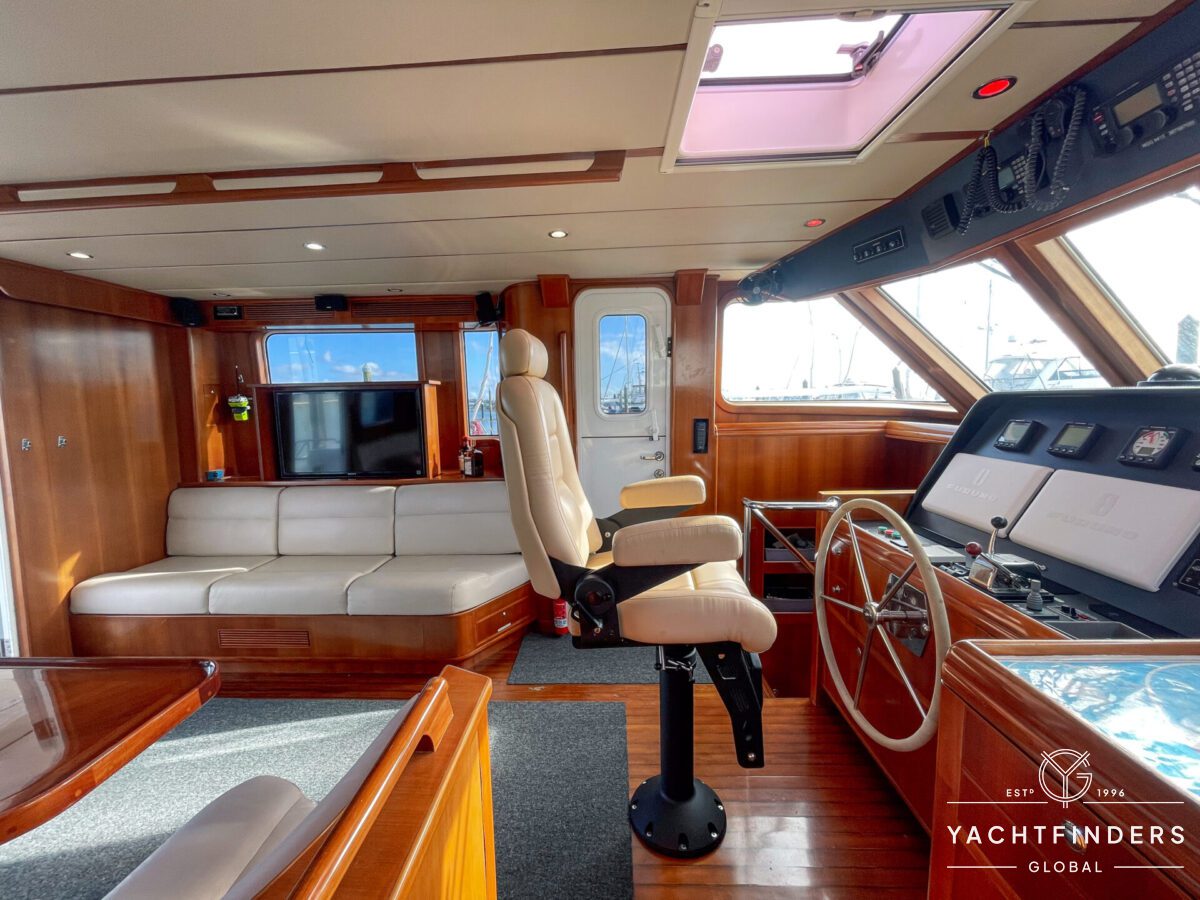

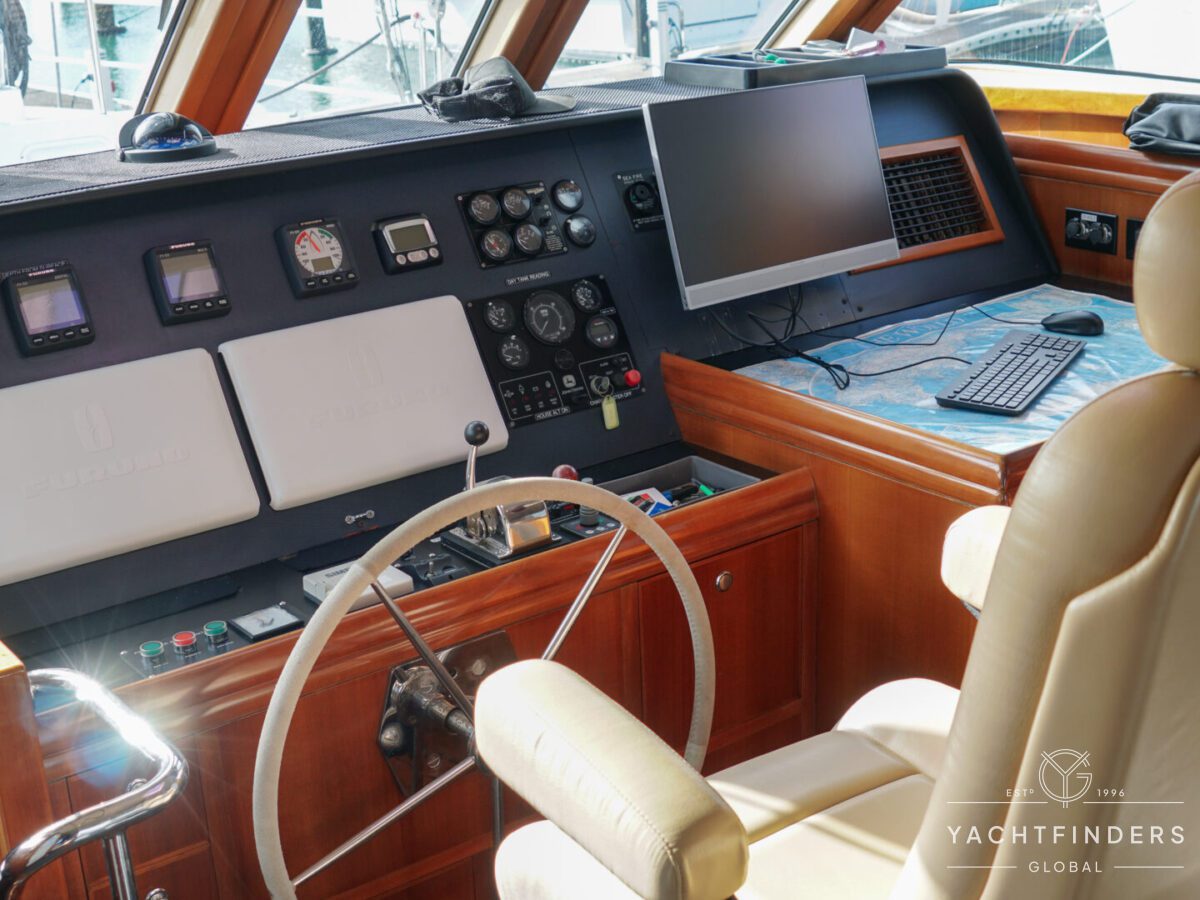

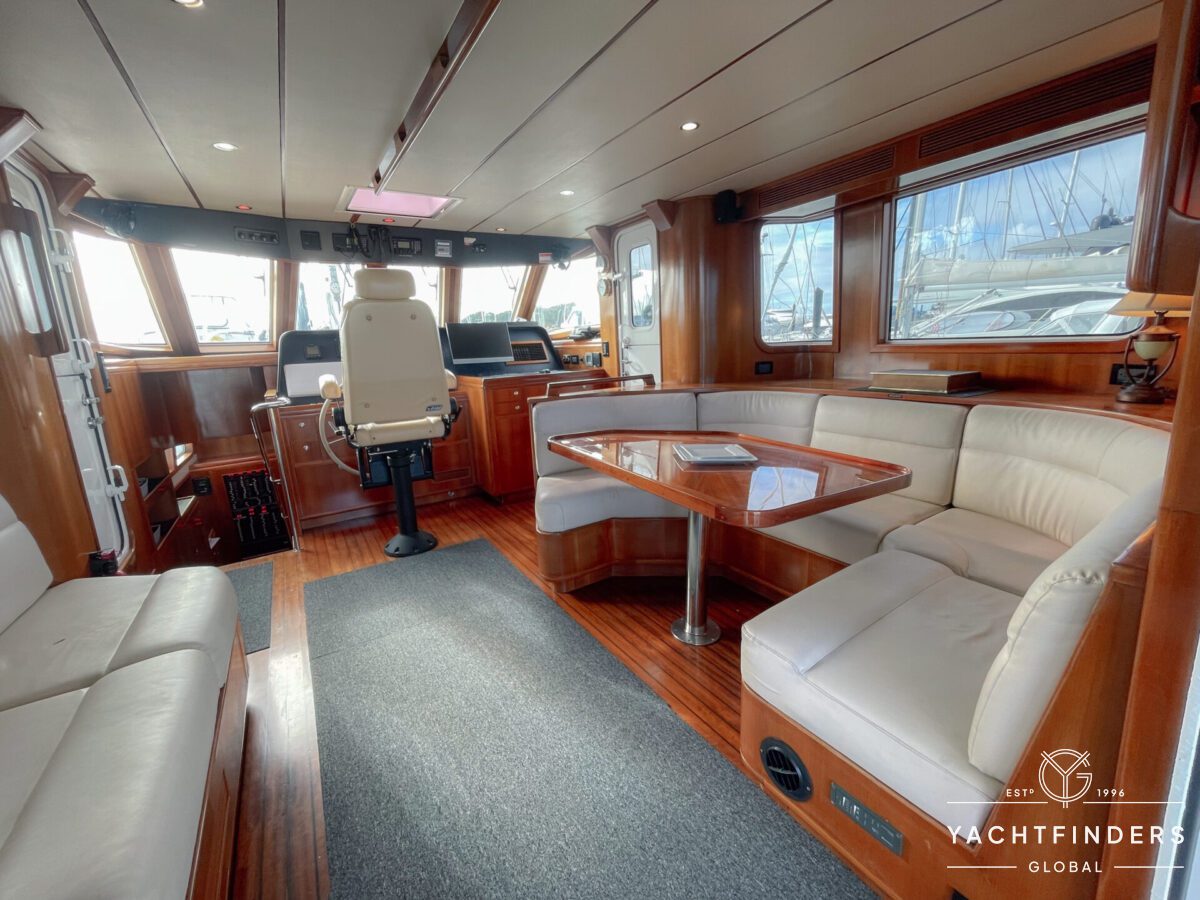

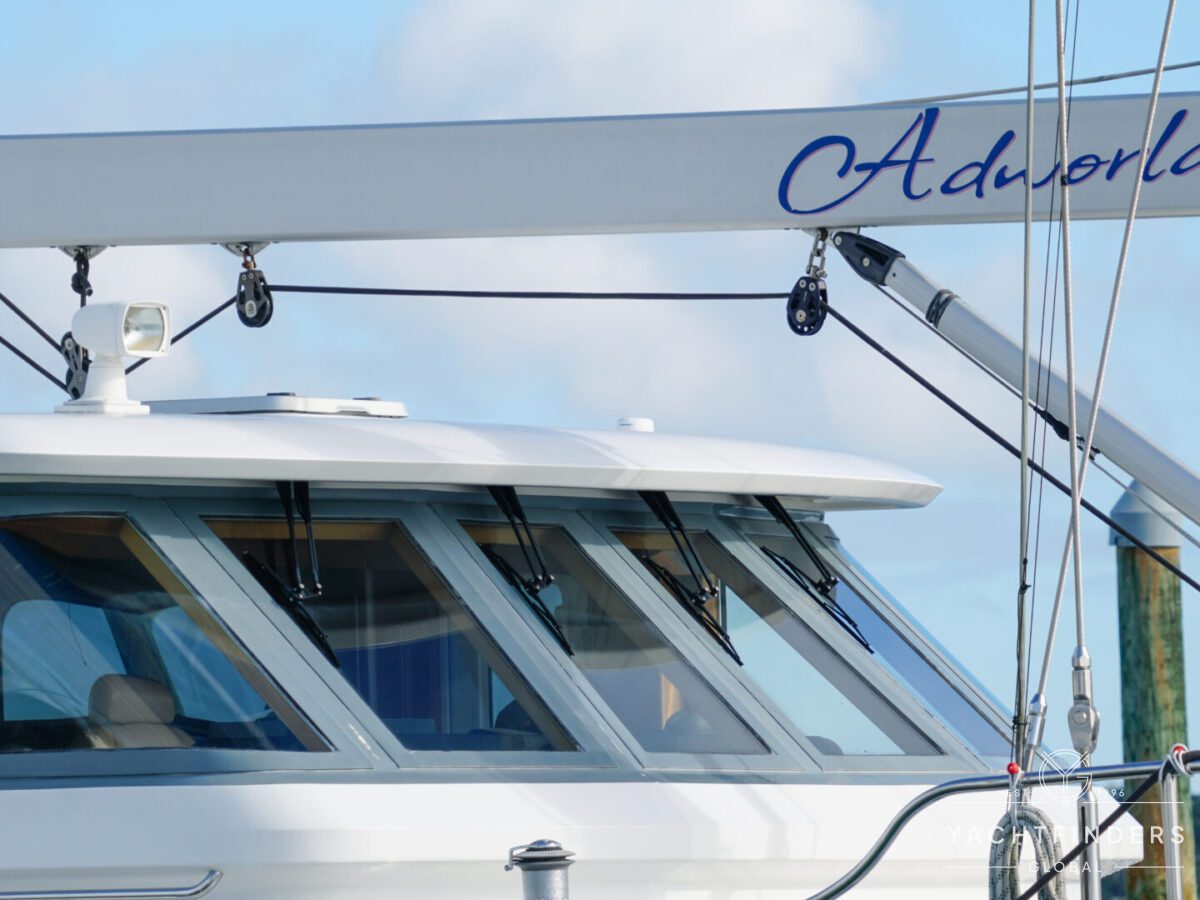

Pilothouse


  • Half inch tempered and tinted glass windows
  • Kobelt hydraulic steering system with 30″ Edson leather-wrapped wheel
  • Furuno Navnet system with 2 x 3D screens
  • Integrated sounders
  • AIS system fitted (2020)
  • New Desktop PC fitted to helm (2020)
  • 26-mile Radar
  • Simrad AP24 Autopilot
  • Stidd Admiral helm chair
  • Remote anchor control

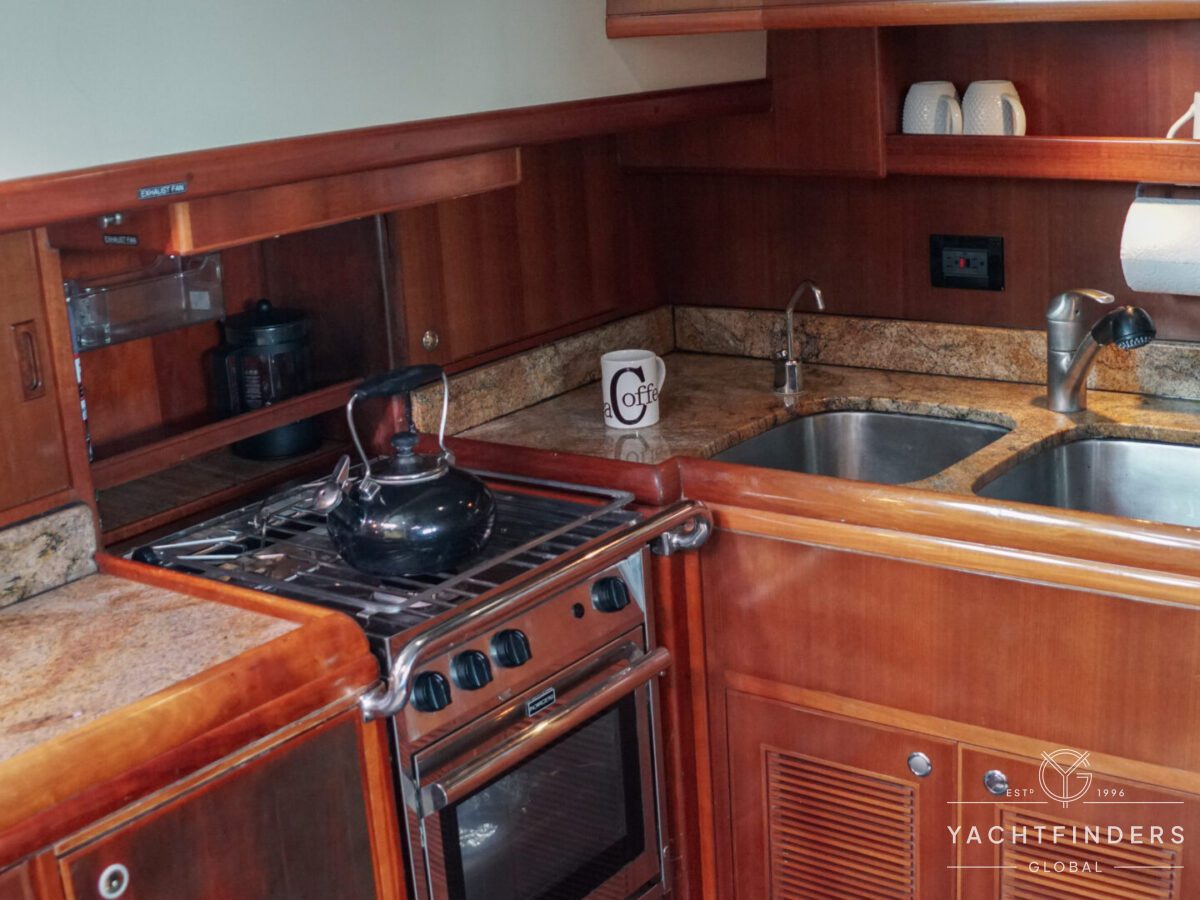

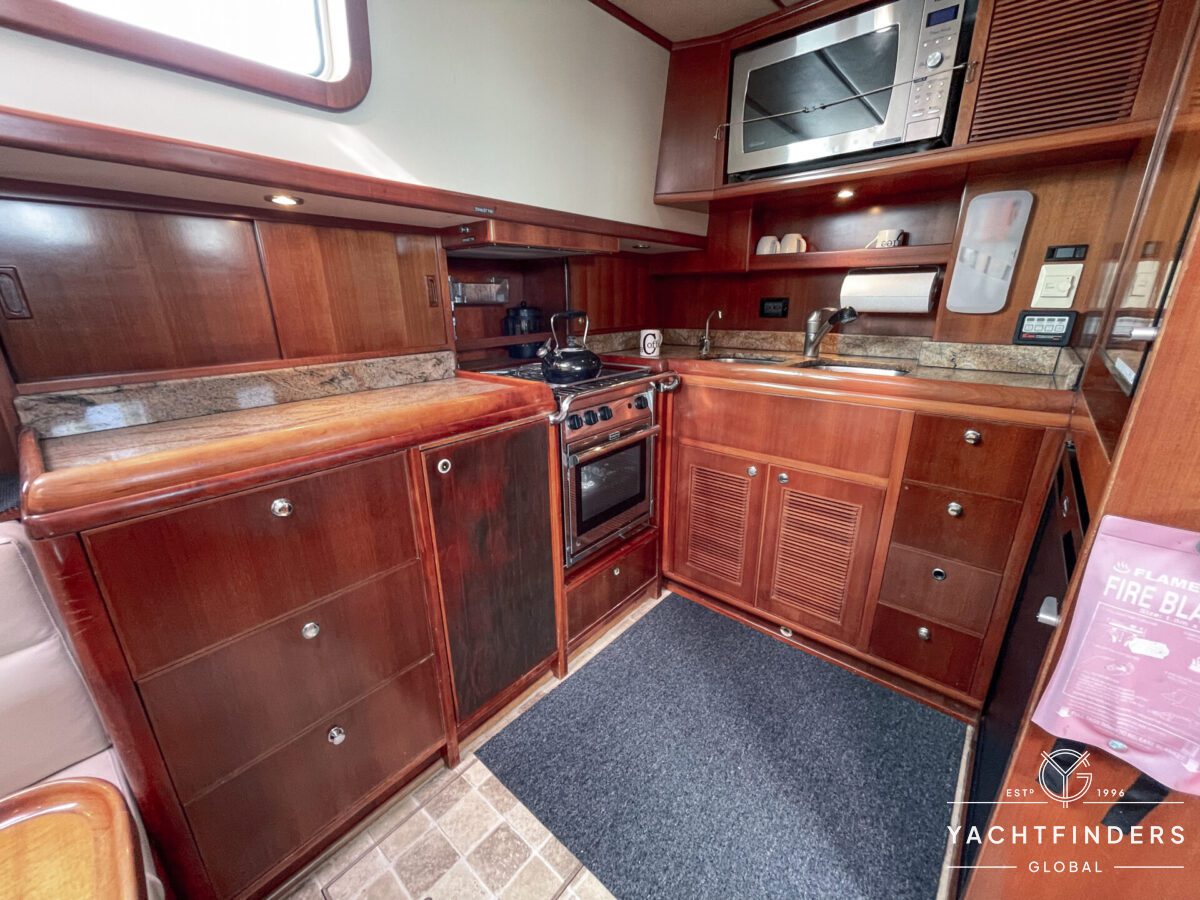

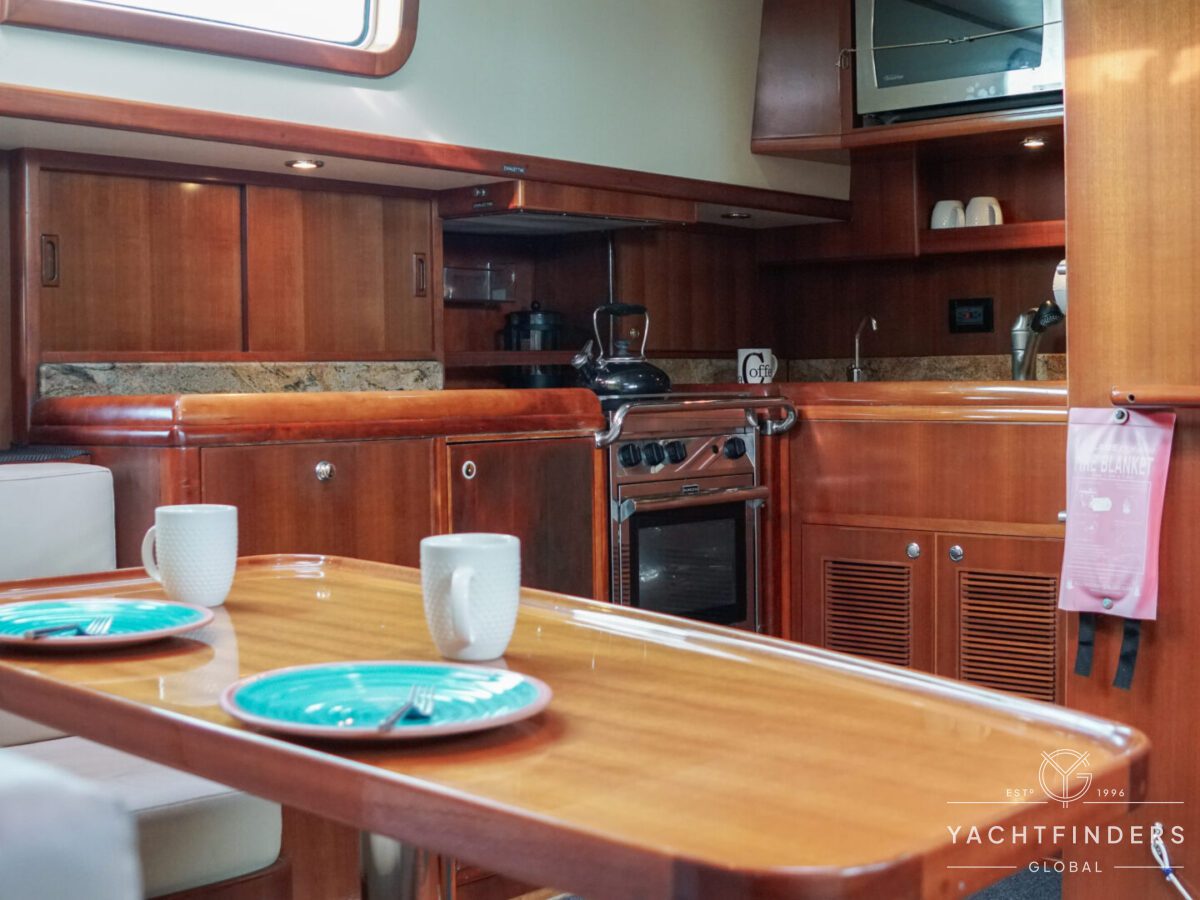

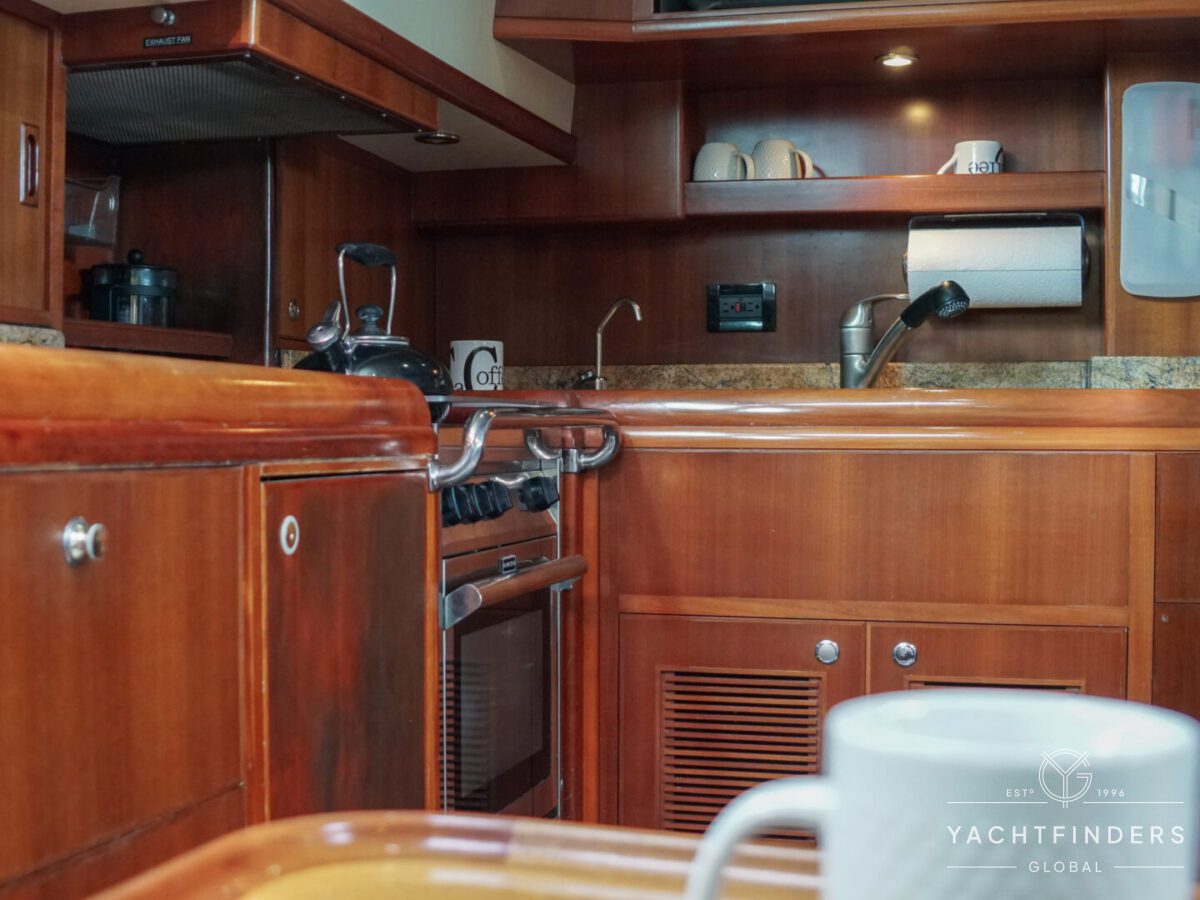

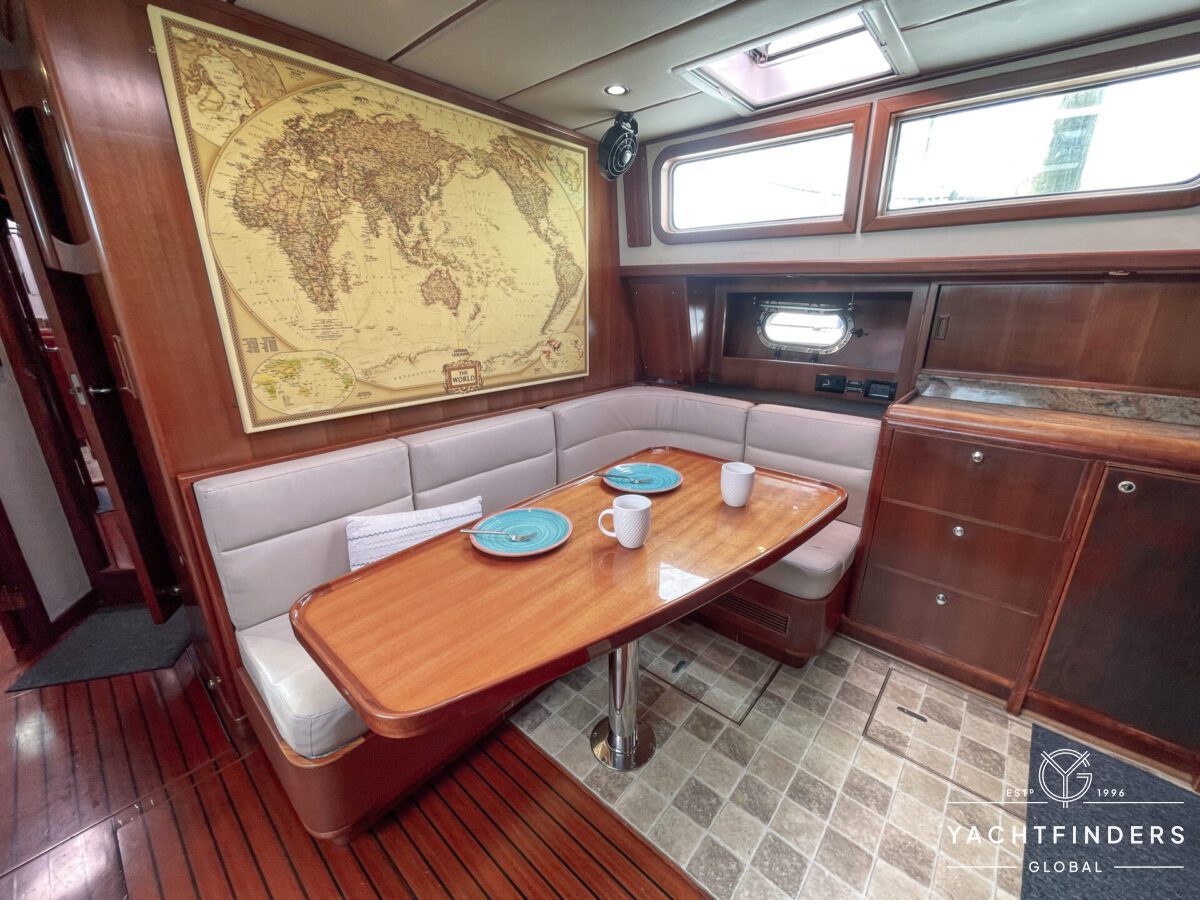

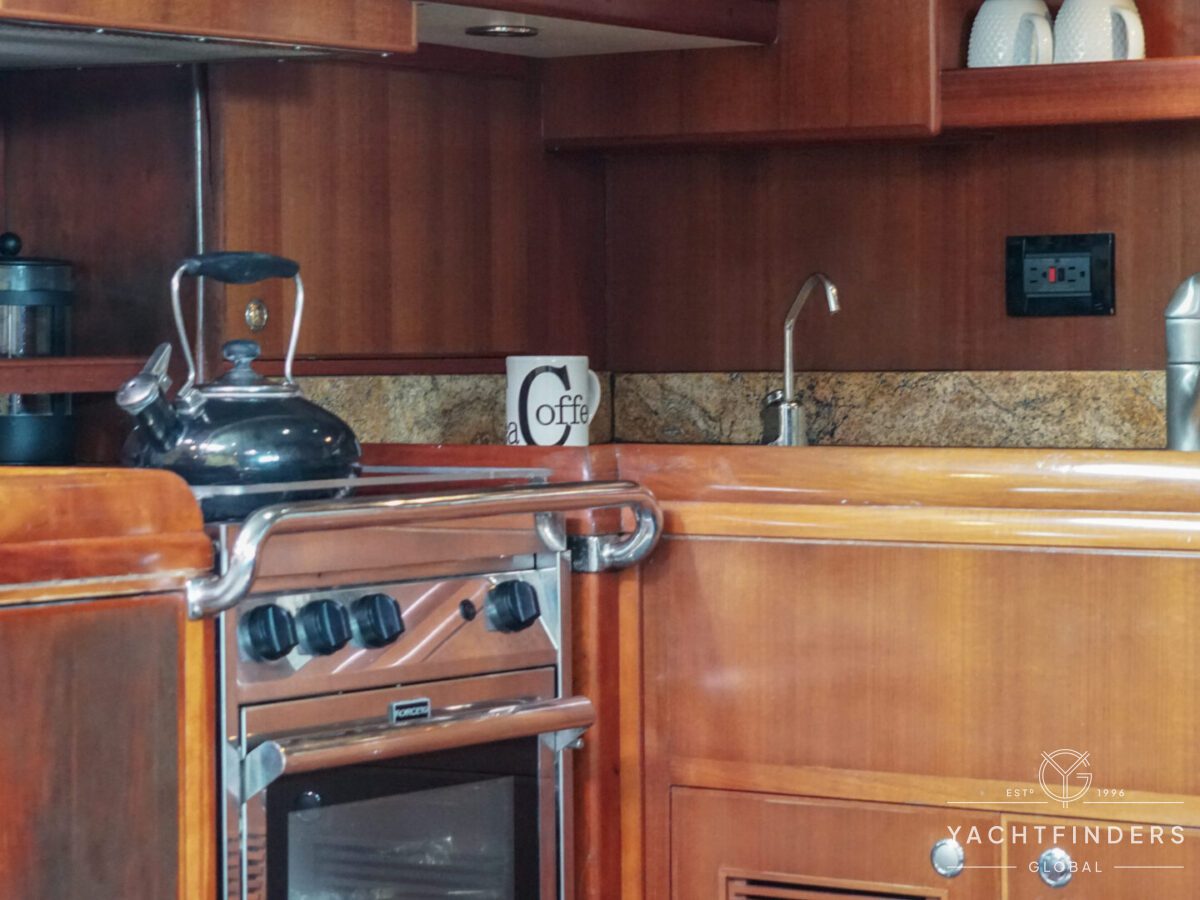

.Galley, Laundry & Plumbing


  • Upgraded Refrigerator & Freezer
  • Sharp Microwave oven 50 Hz – non-convection
  • GE Freezer in Lazarette
  • Sandstone Fleck Granite Countertops
  • Flooring: Teak and Spruce with satin varnish, Cabinetry/panelling: teak with 60% gloss varnish

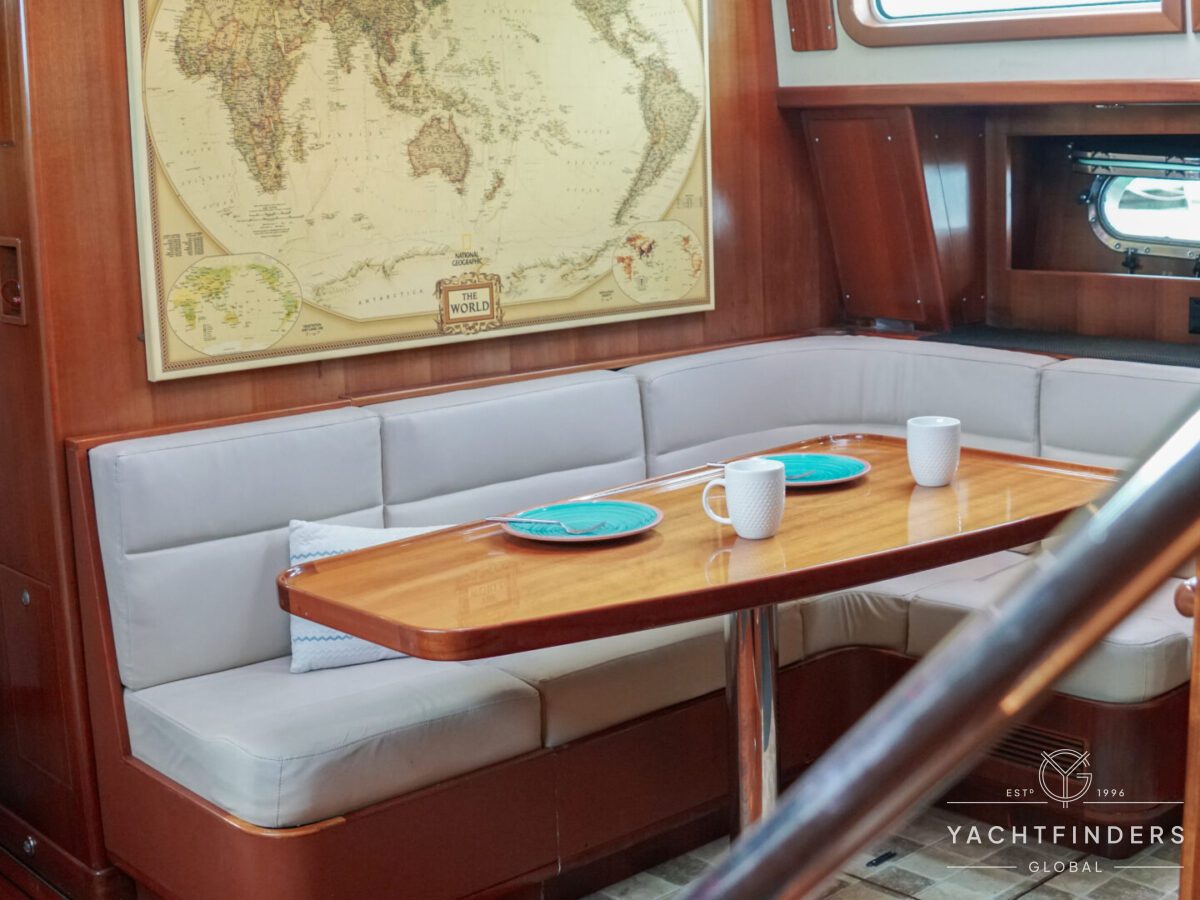

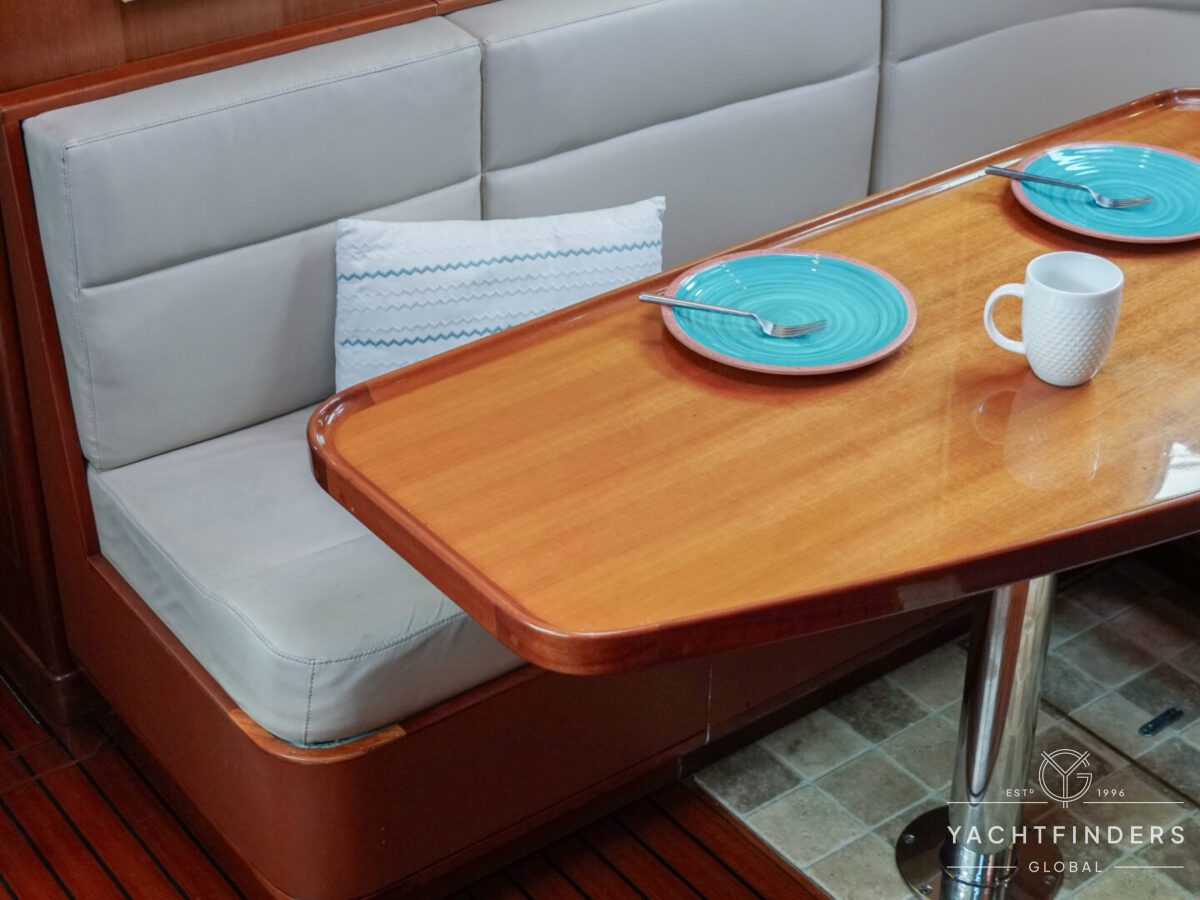

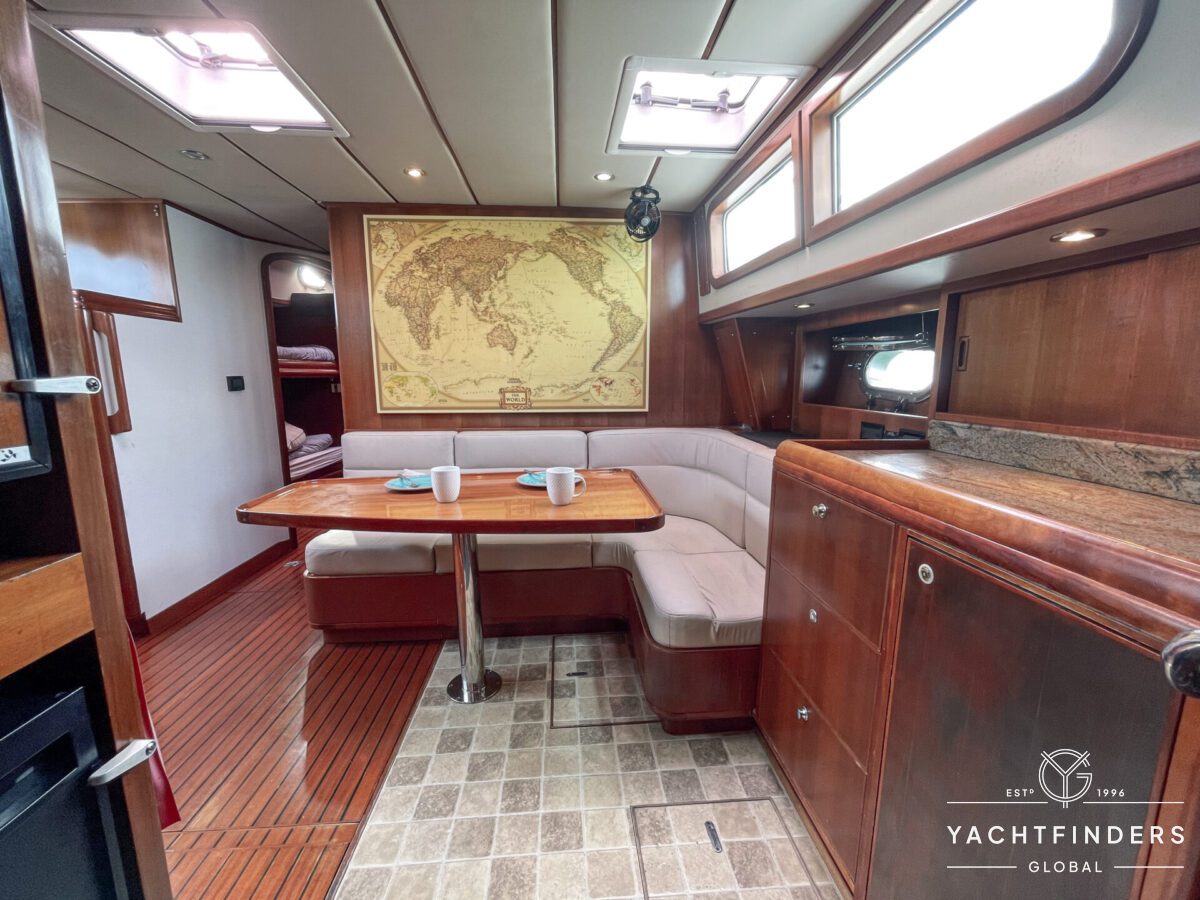

  • Galley dinette upholstery in Ultraleather “Buff”
  • Jabsco fresh water pump
  • 20-gallon water heater
  • Watermaker – 600 gallons per day
  • Diesel Hurricane heater lines installed

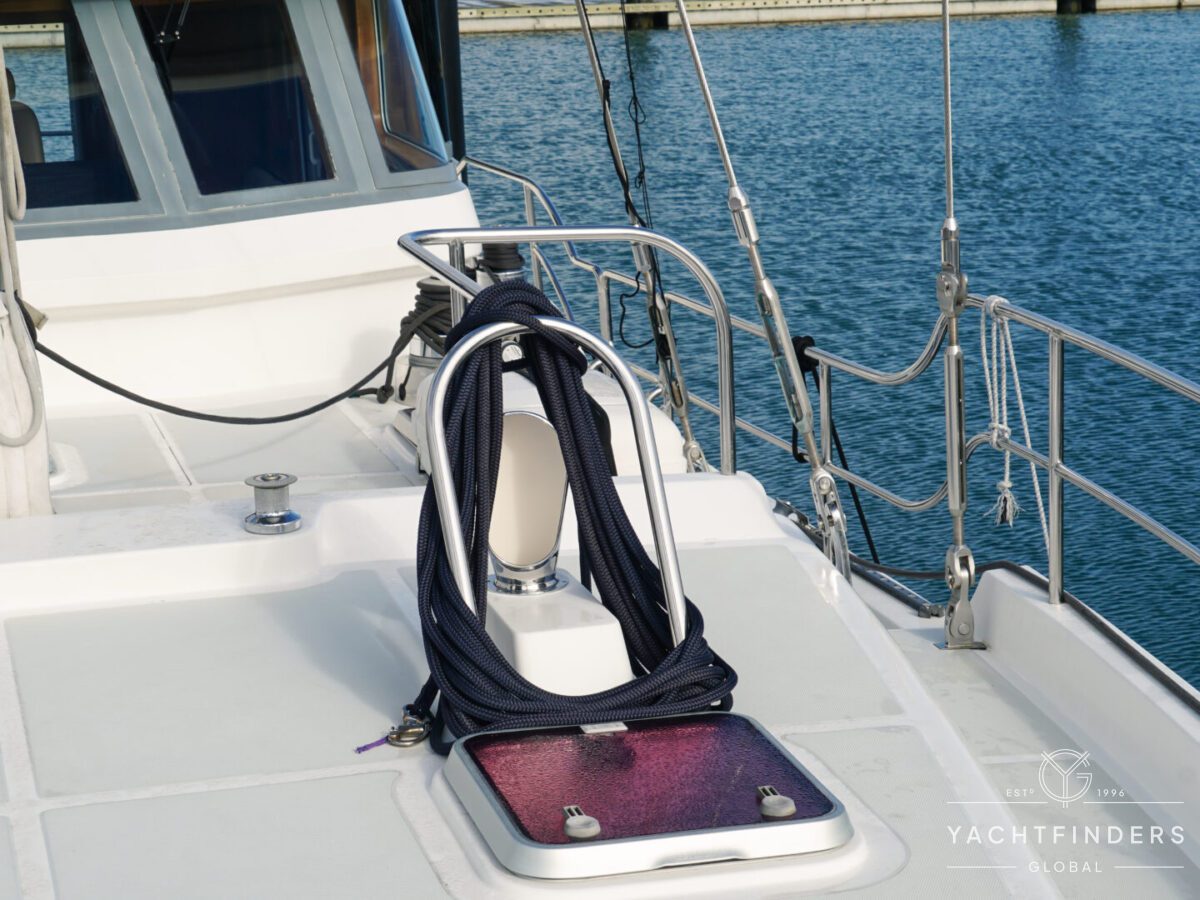

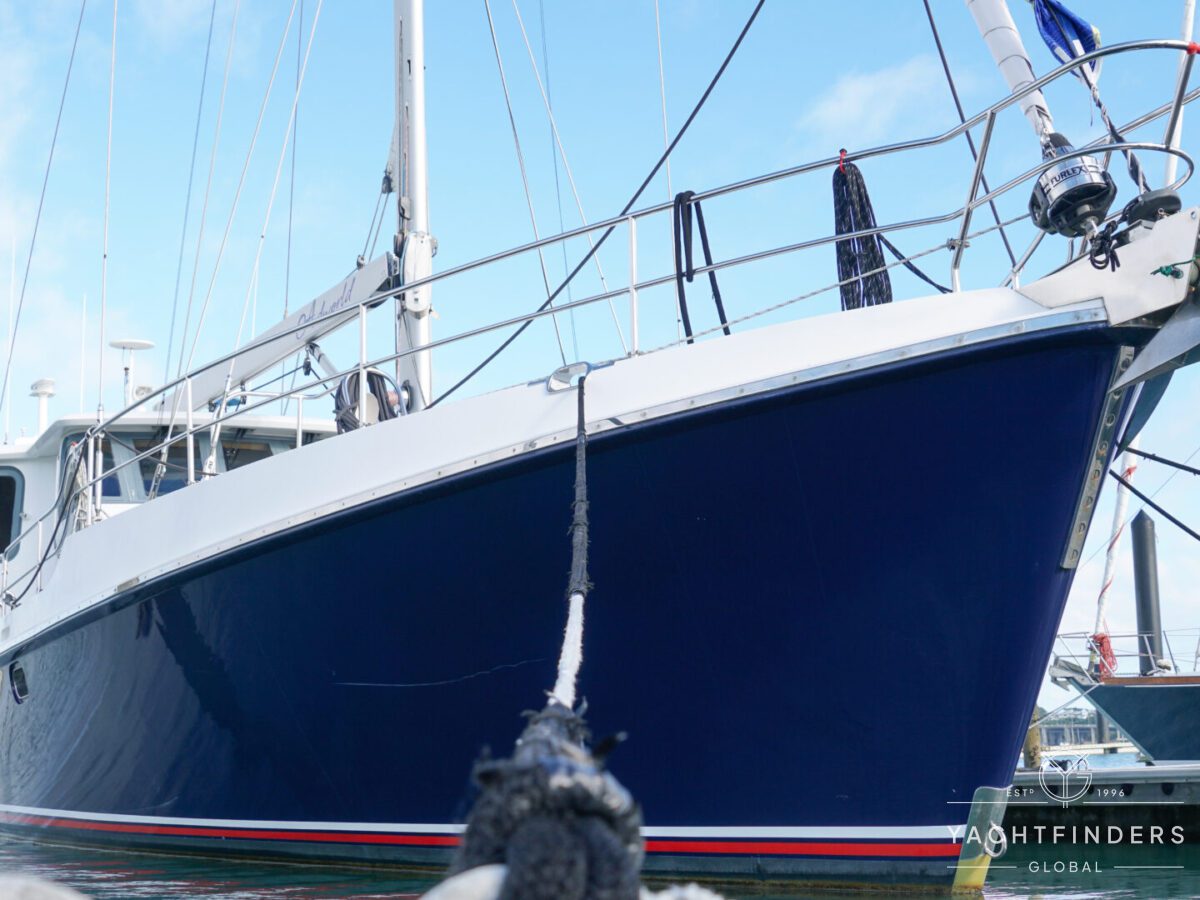

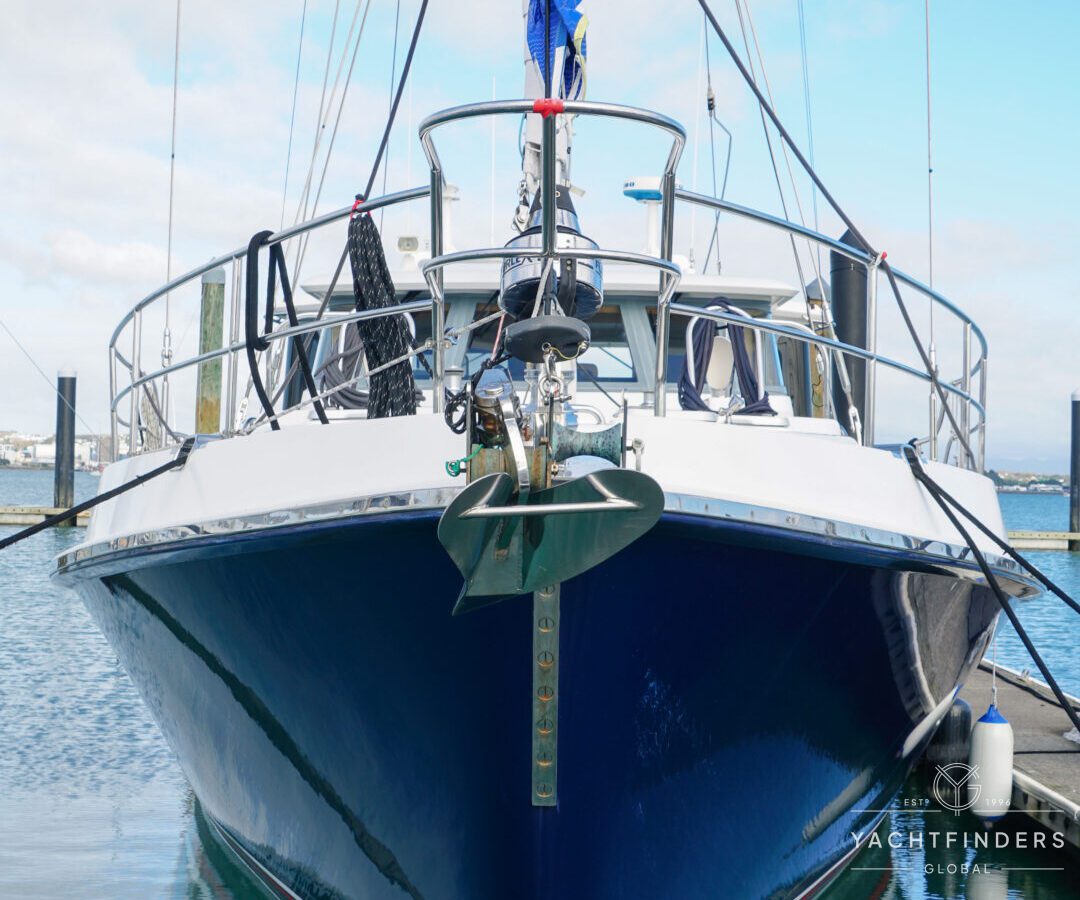

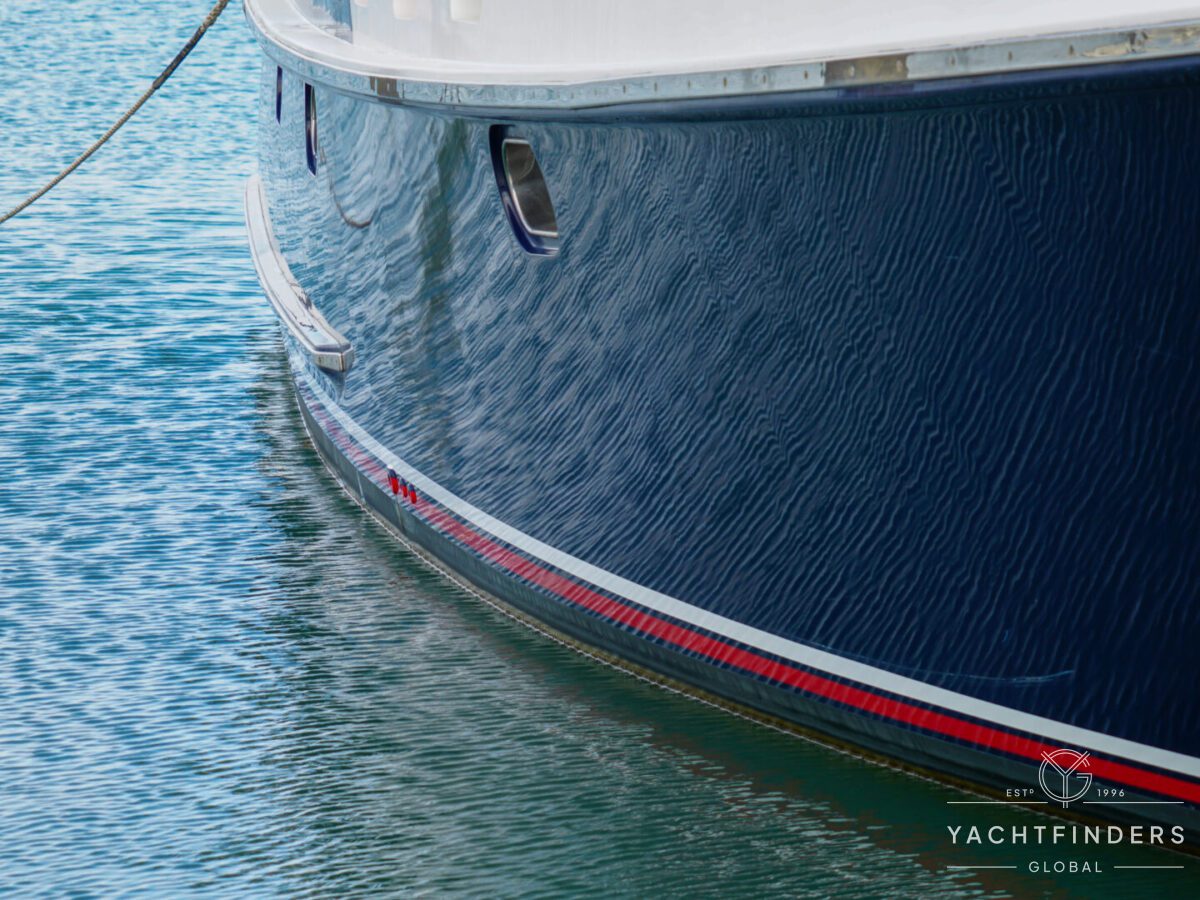

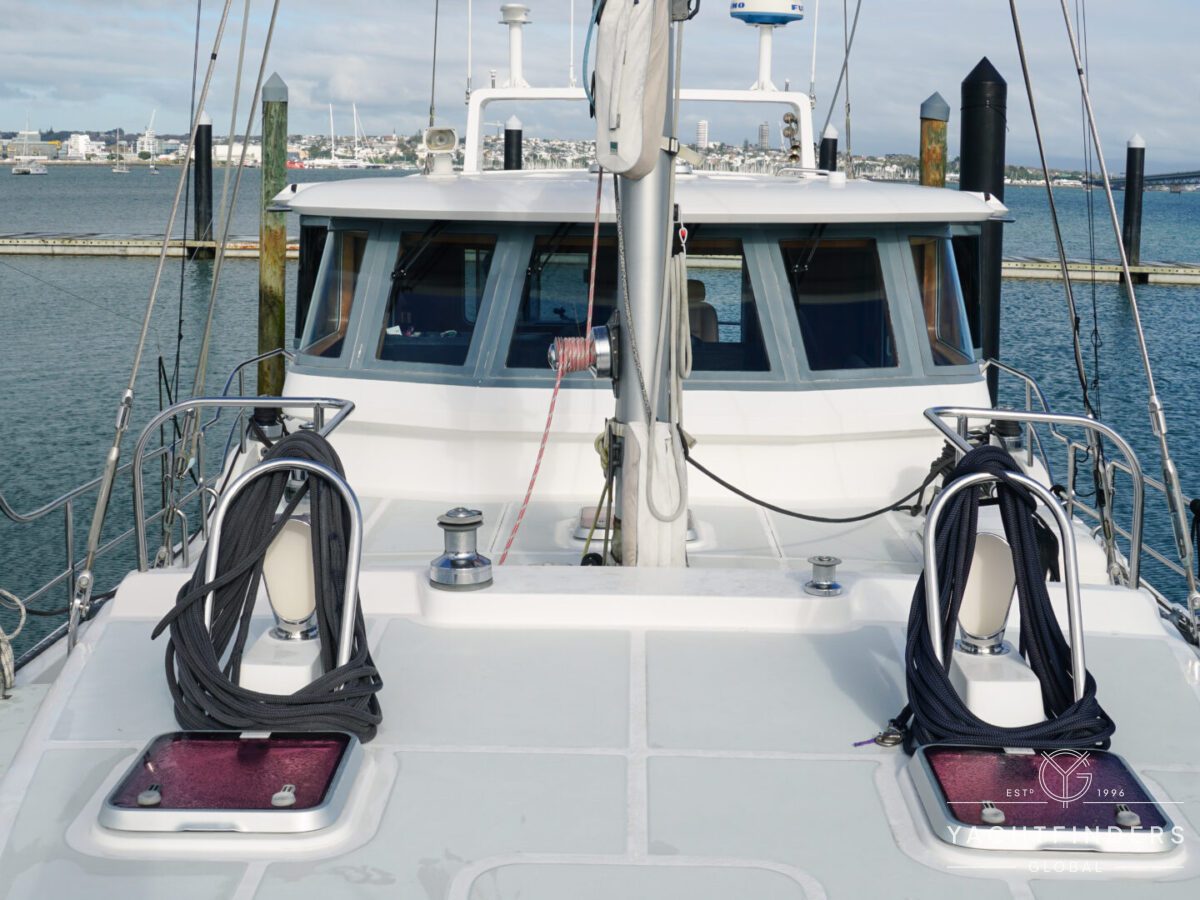

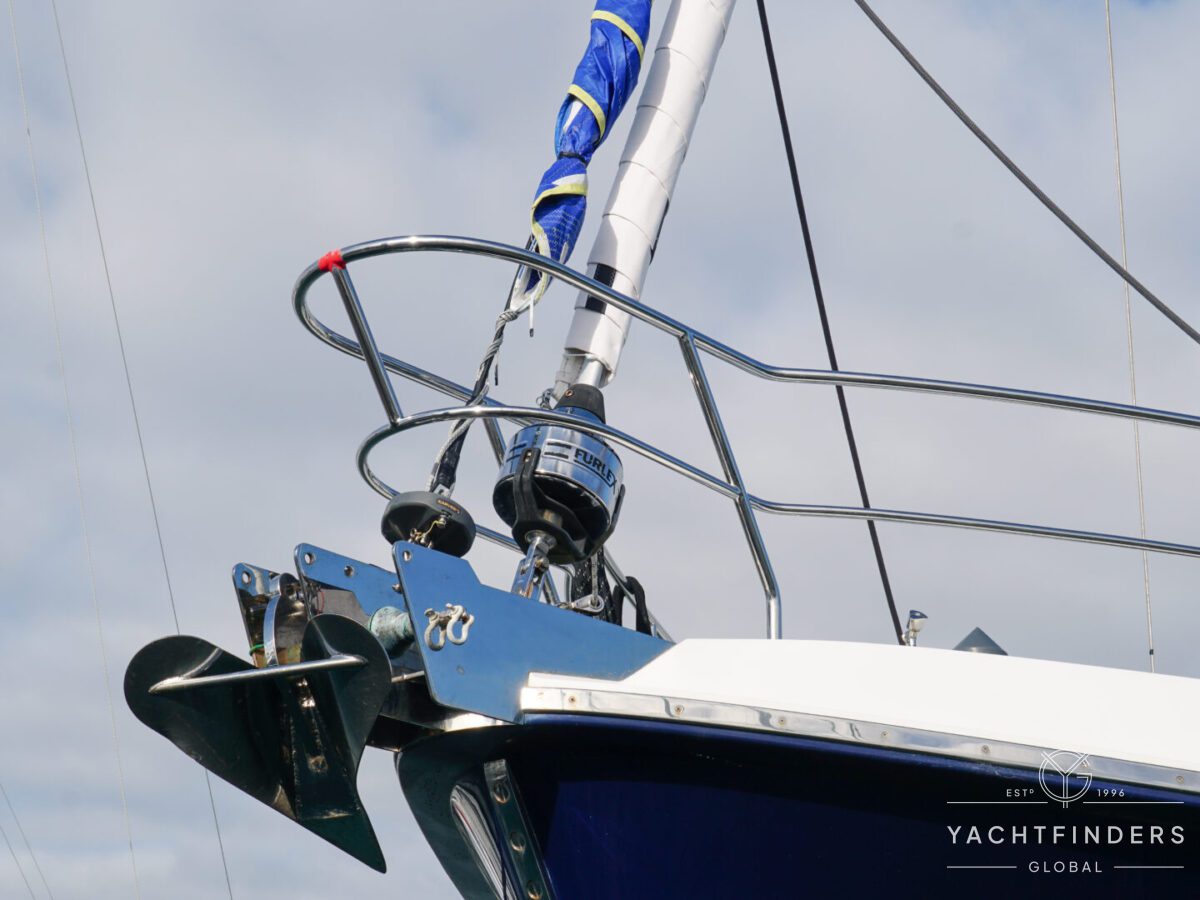

Deck and Hull


  • Maxwell 3500 windlass
  • Aritox 105lbs anchor
  • 400ft anchor 3/8” chain
  • Chain stopper
  • 11ft tender with Suzuki 15hp outboard (2020) + spare Honda outboard motor
  • Stainless steel Davits for tender

.Sailing Equipment


  • Working sail area 1,217sqft / 113m3

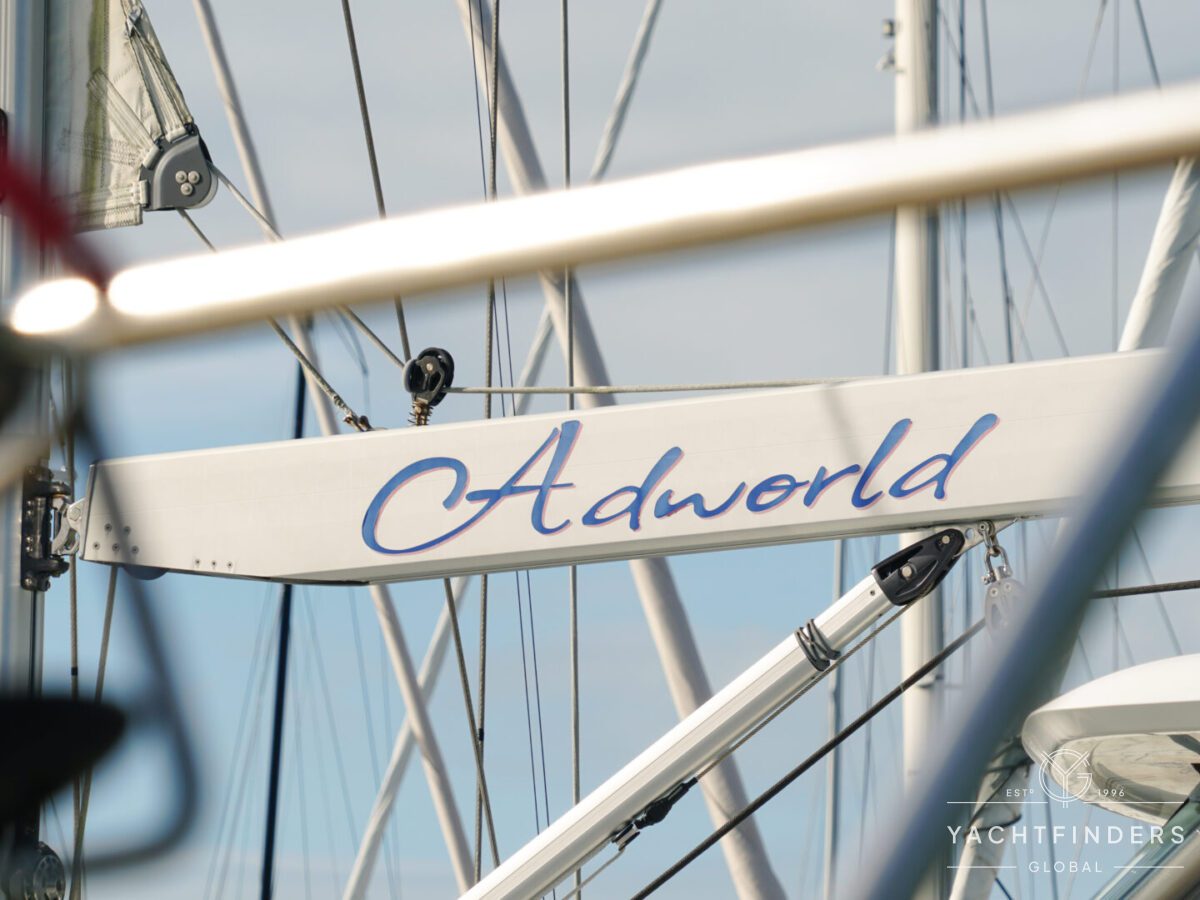

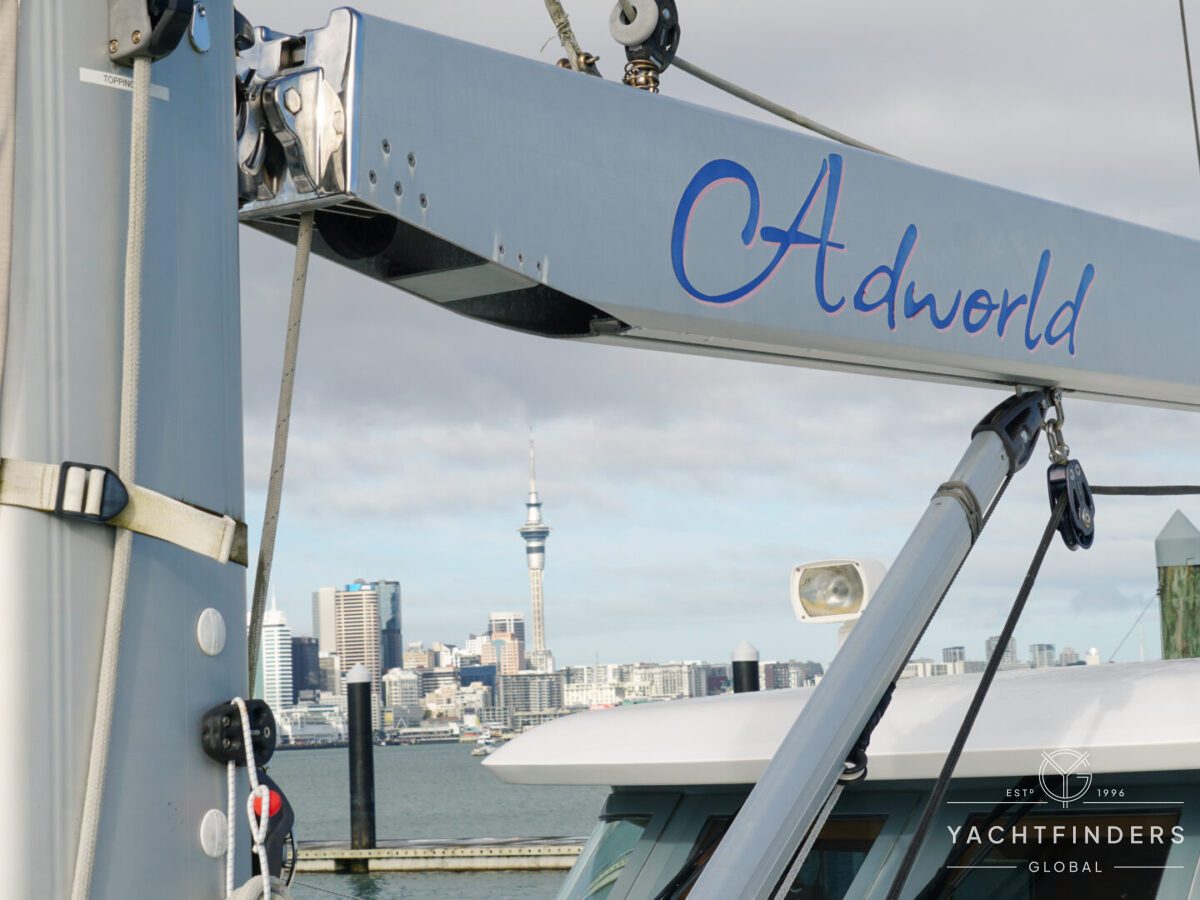

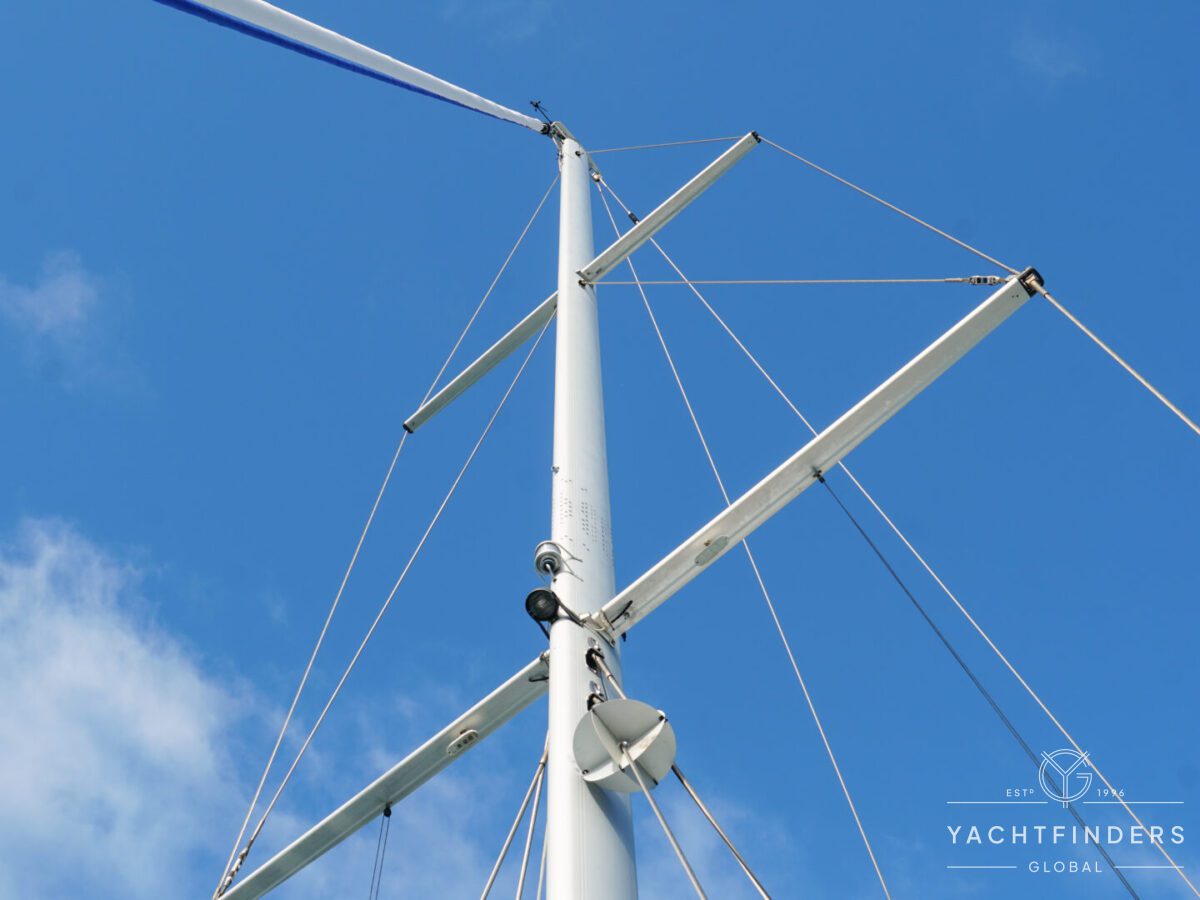

  • Selden mast and boom
  • Selden Super heavy-duty furling system for mainsail
  • Selden rod kicker system
  • Head Sail Roller Furlex 400S furling system
  • Sails by UK Sails / North Sails (NZ)
  • Keep stepping ultra-system
  • 120% cruising genoa – UV Leech and foot

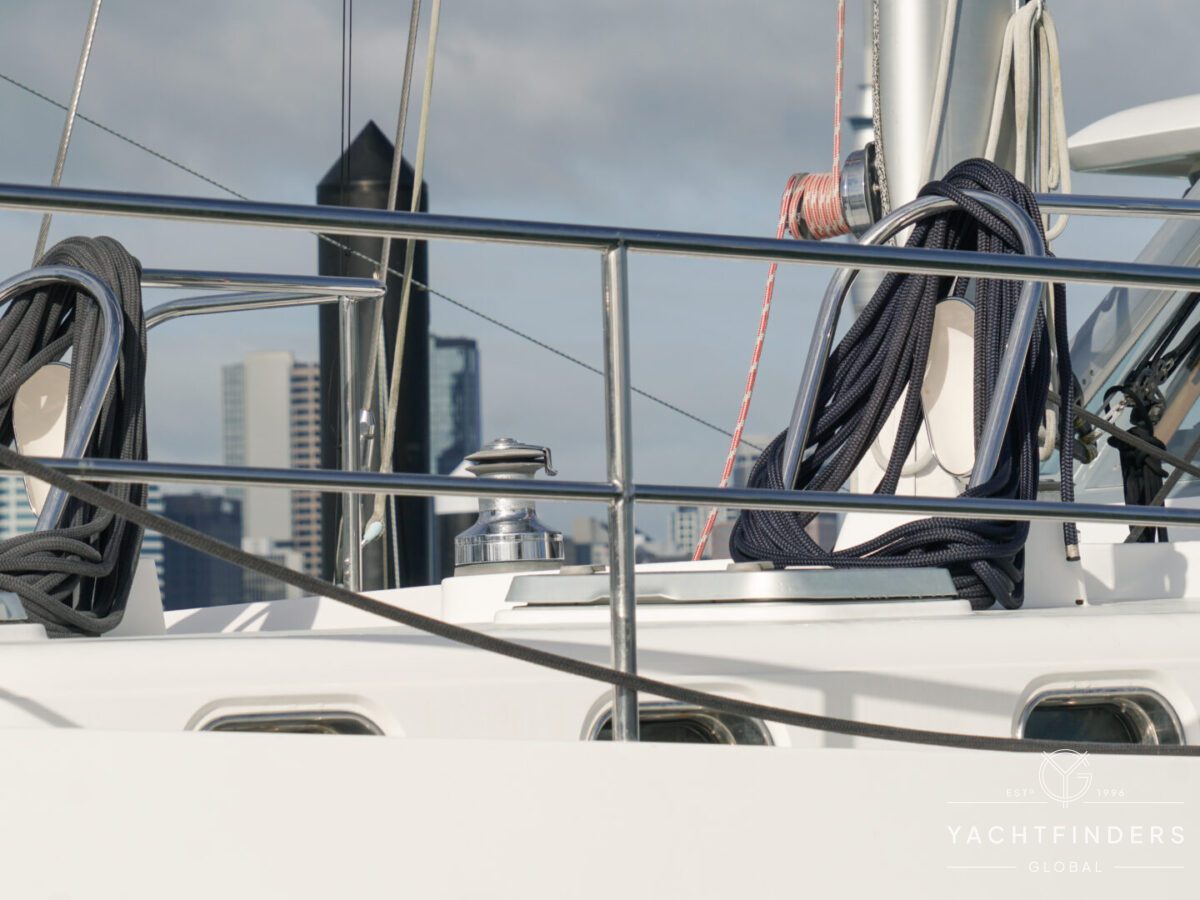

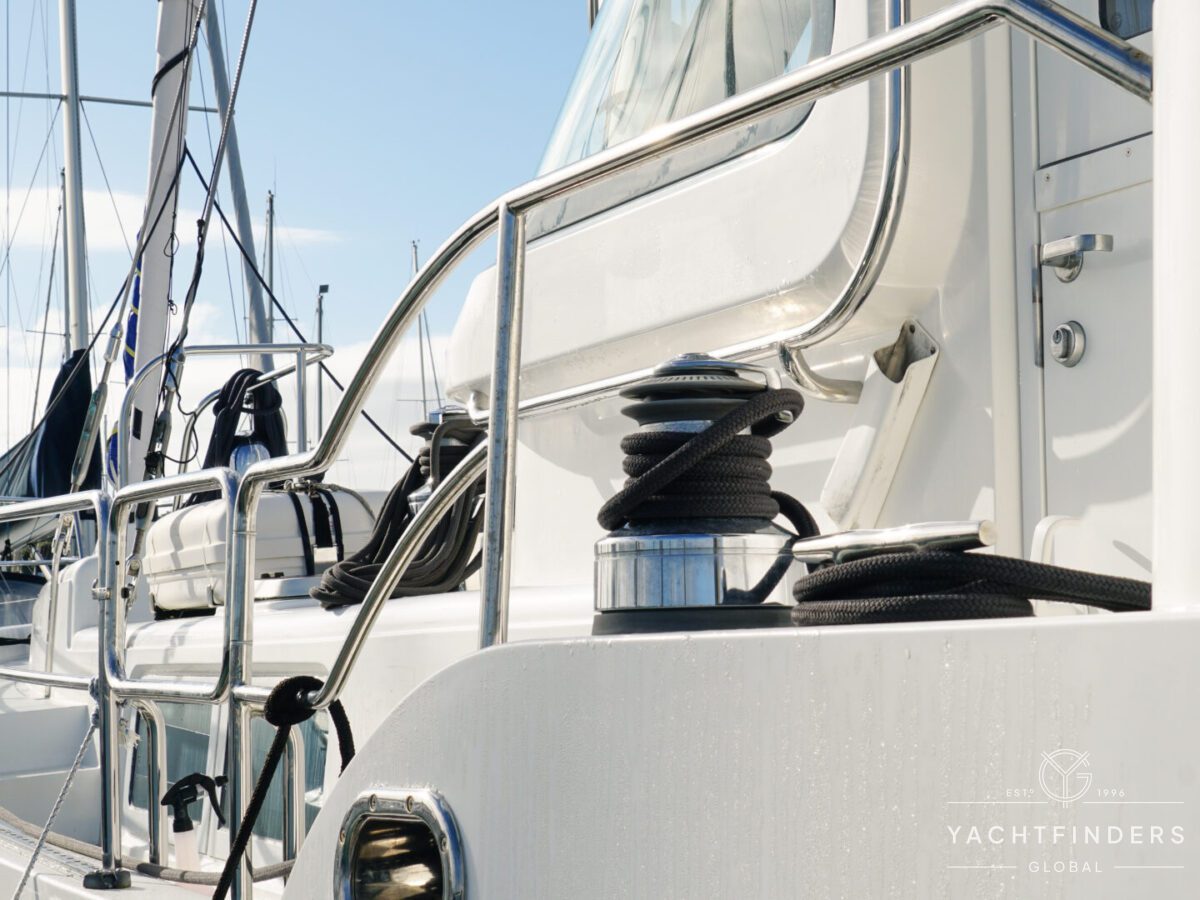

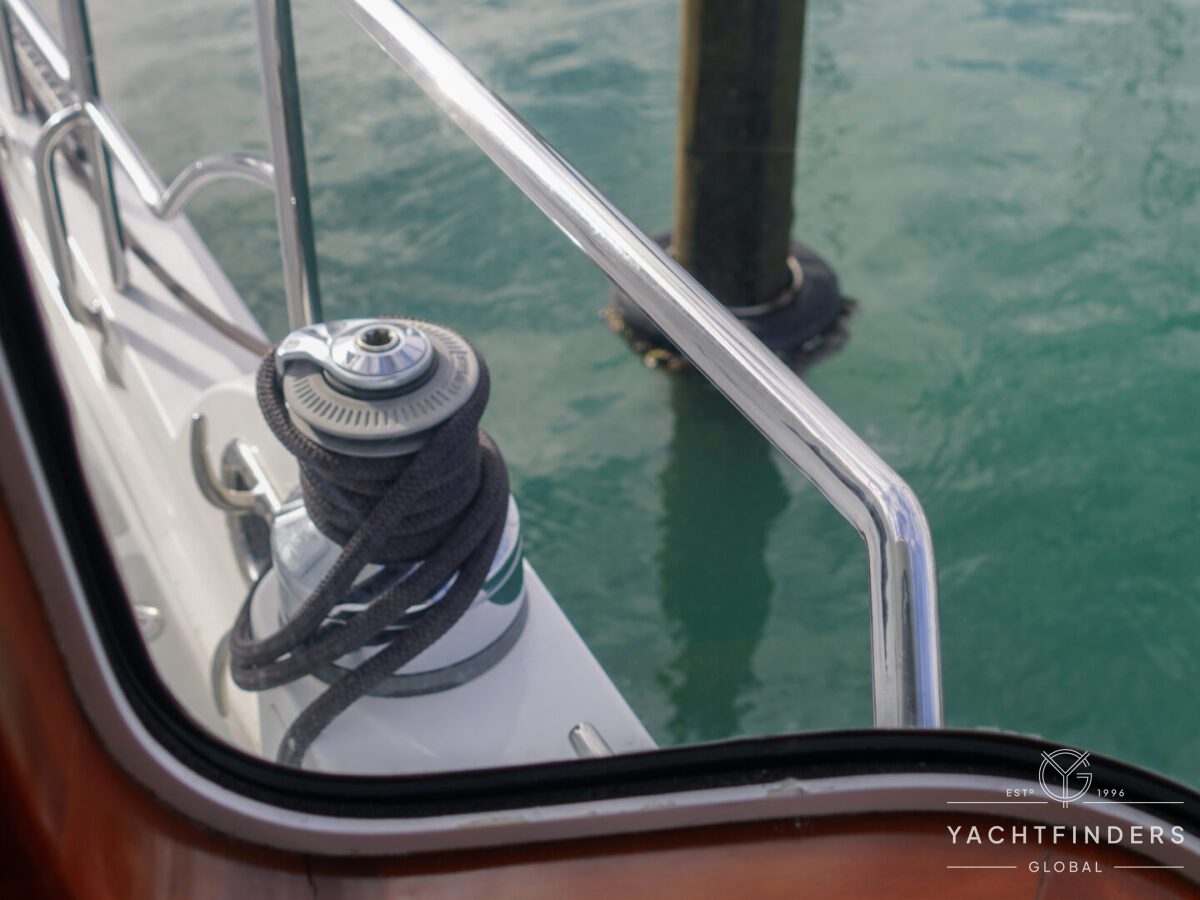

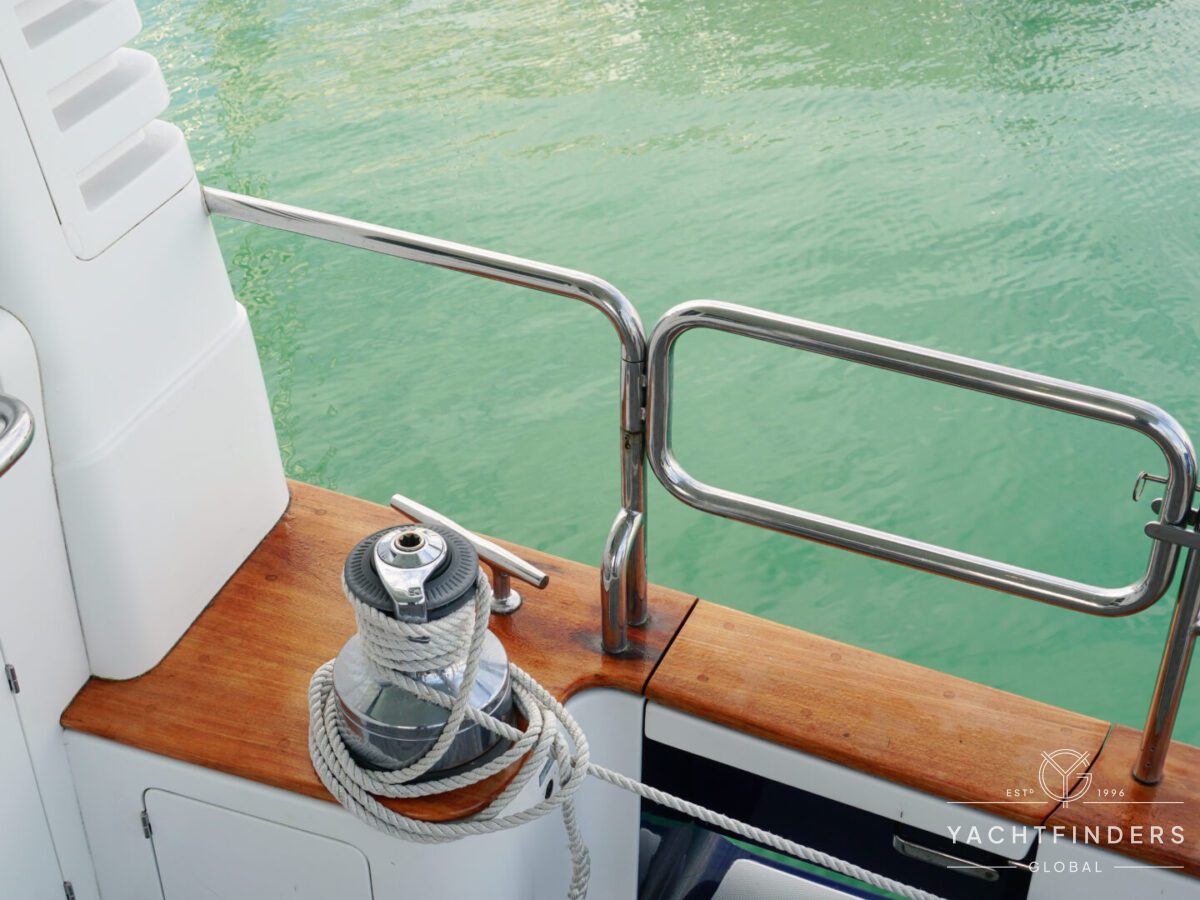

  • Lewmar 55 2 speed winches
  • Lewmar self-tailing genoa winches
  • Lewmar commander 400 hydraulic tanks with twin pumps (in situ but not commissioned)
  • 2 x Main sheet winches

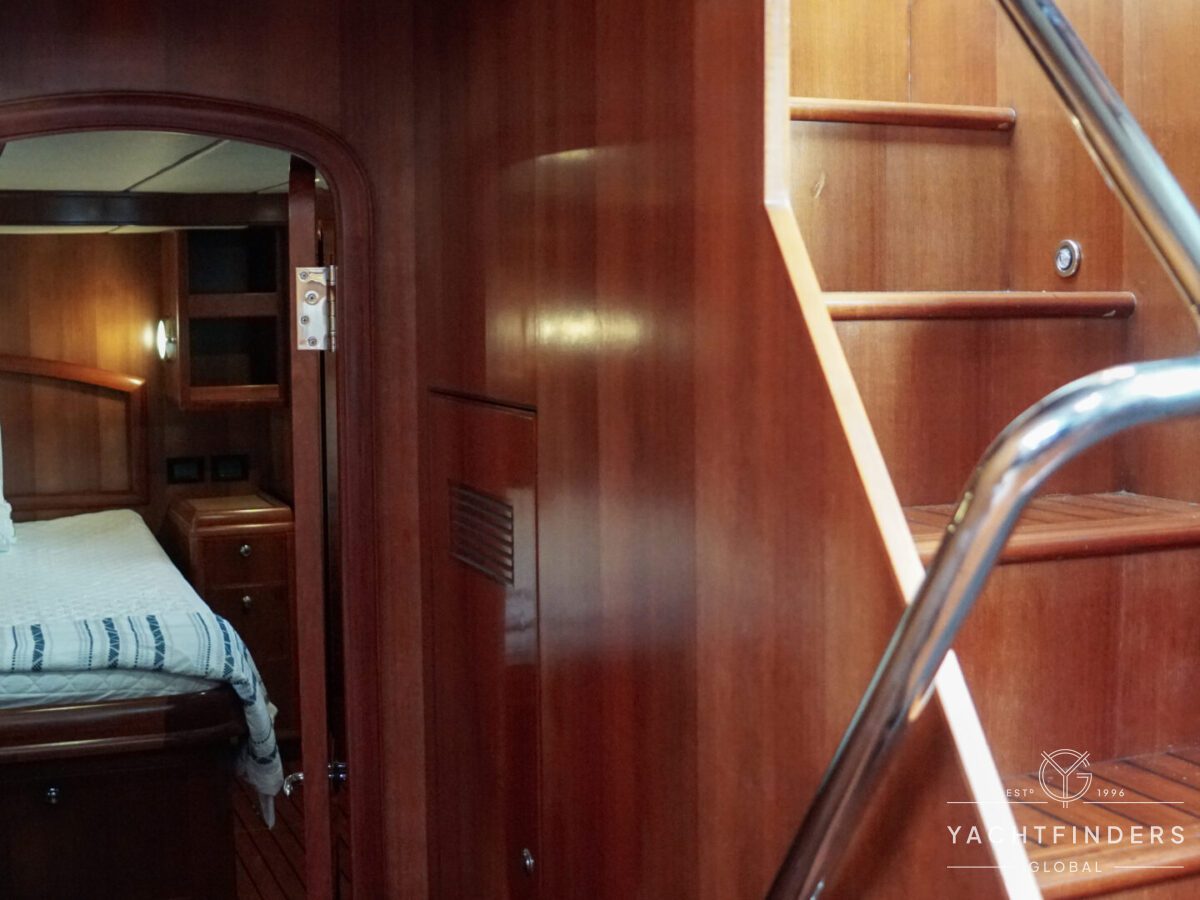

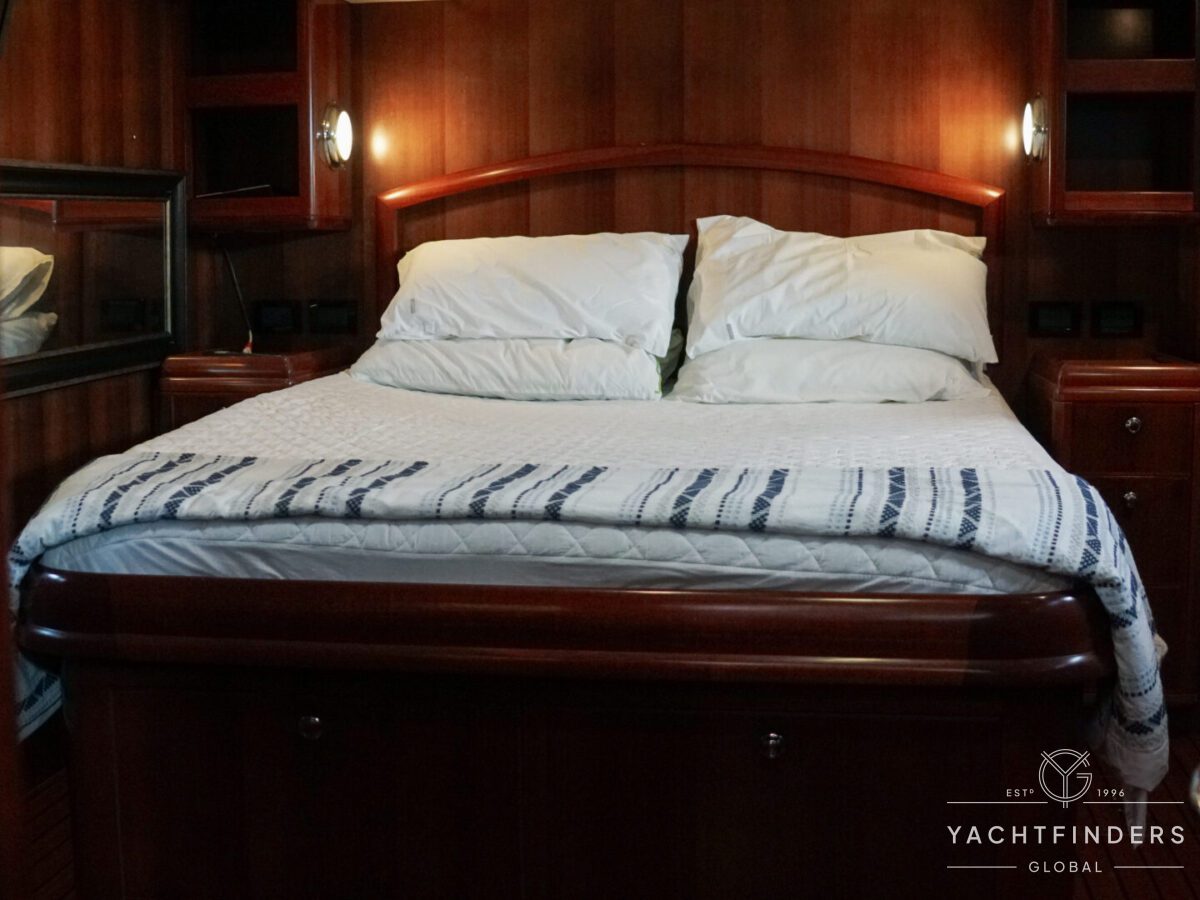

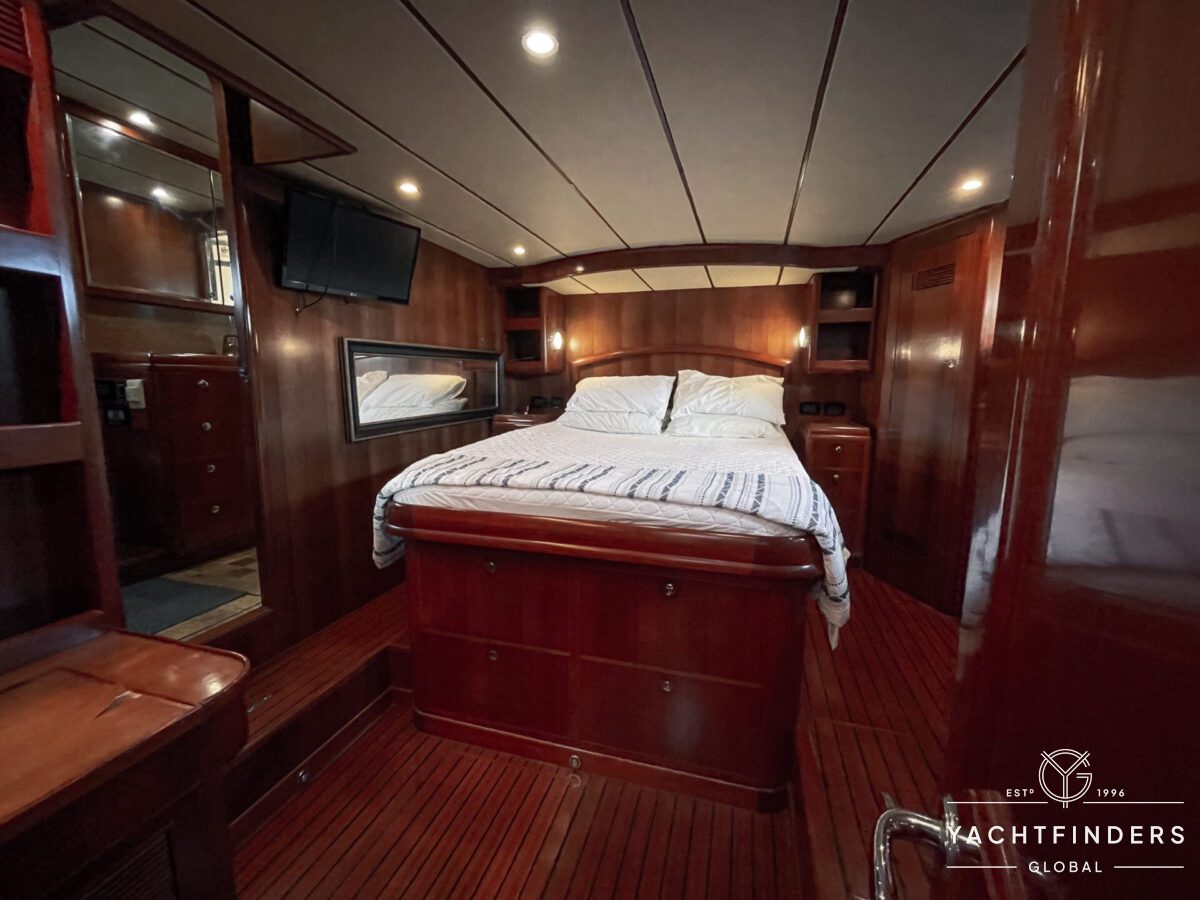

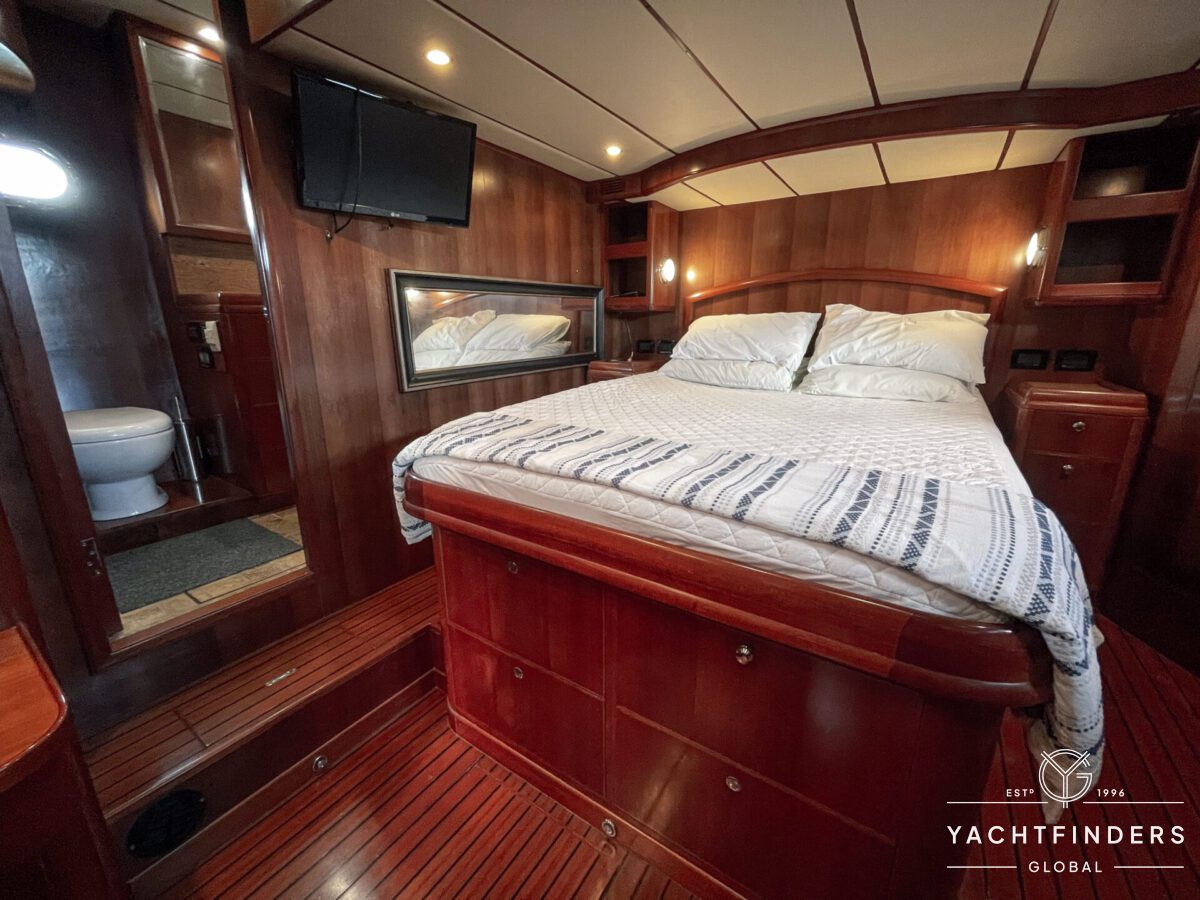

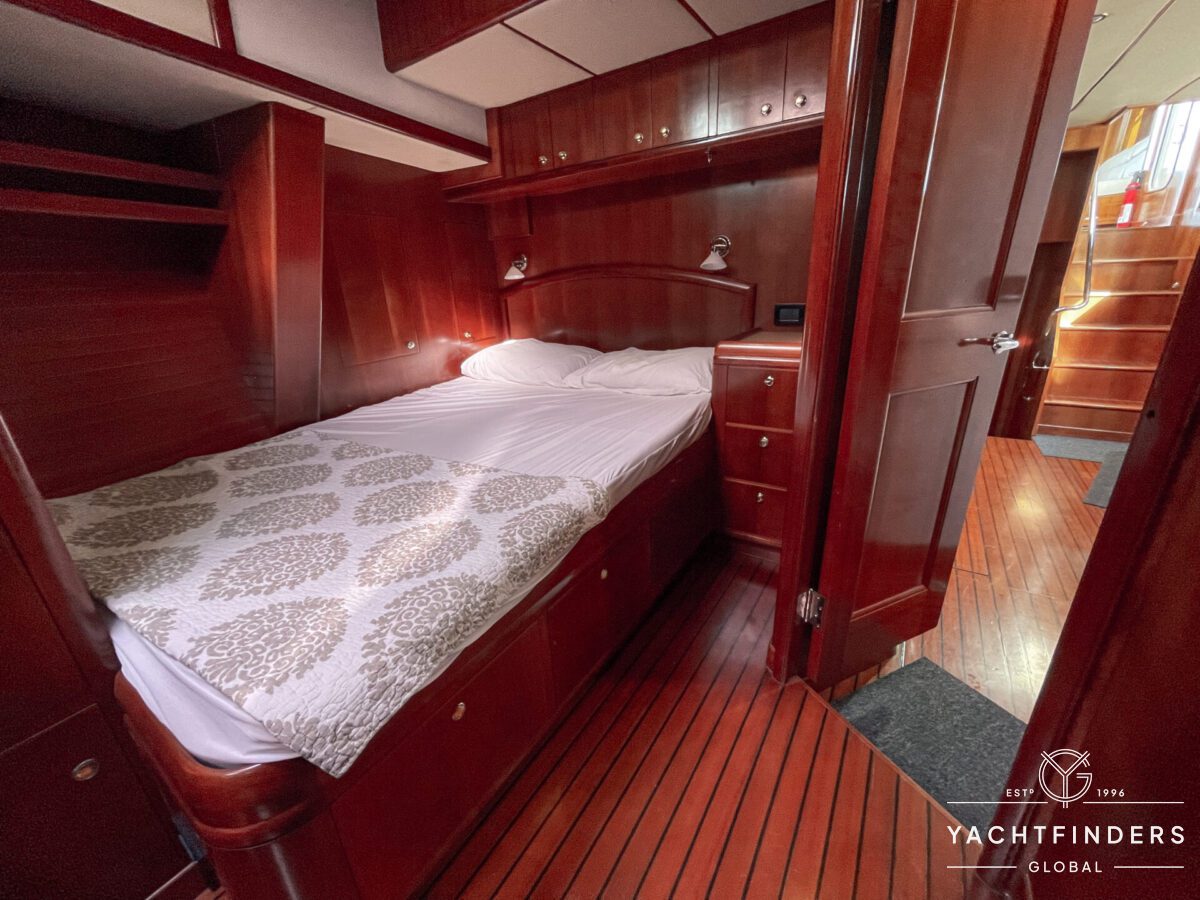

Master Cabin


  • Flooring: Teak and Spruce with satin varnish
  • Cabinetry: Teak with 60% gloss varnish
  • Bulkhead mounted mirror
  • Countertops teak veneer with solid teak fiddles
  • Hanging locker
  • Sony TV

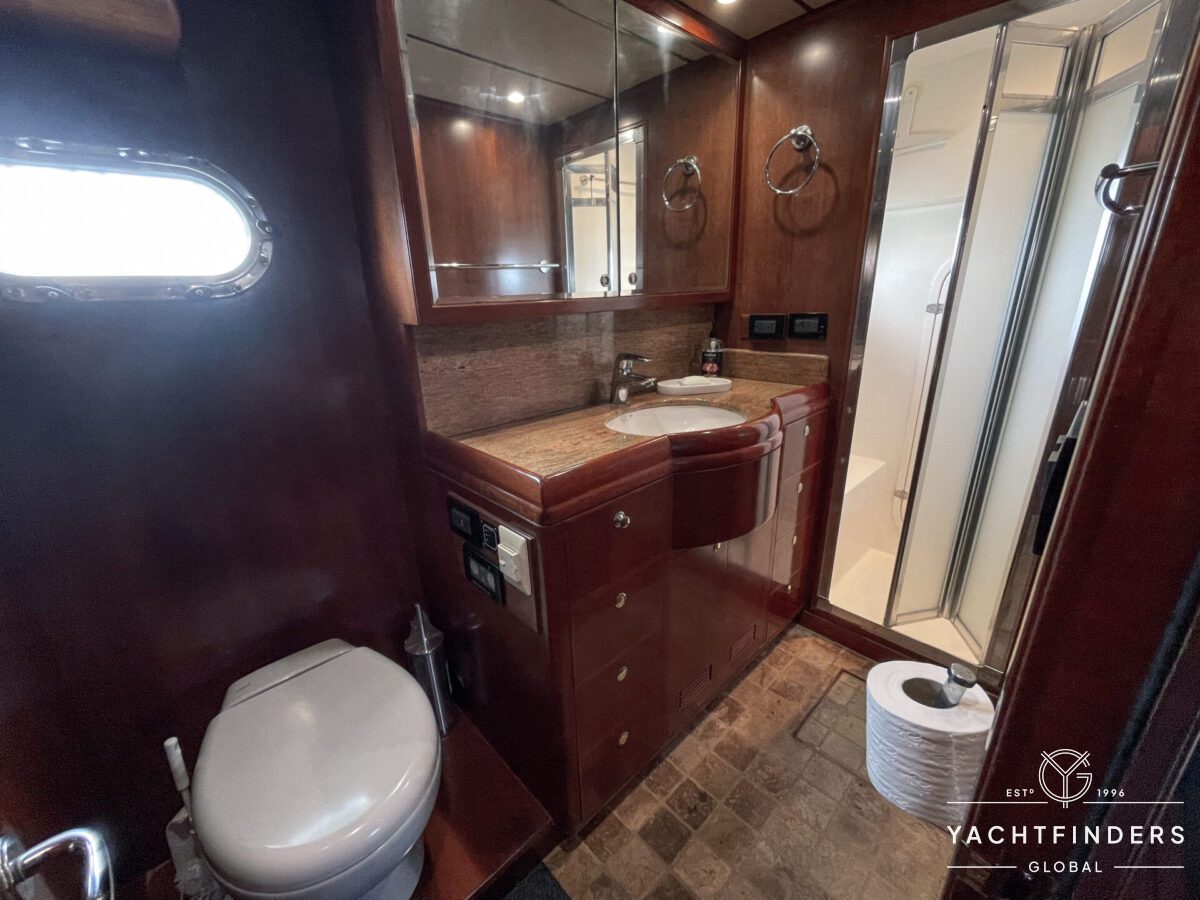

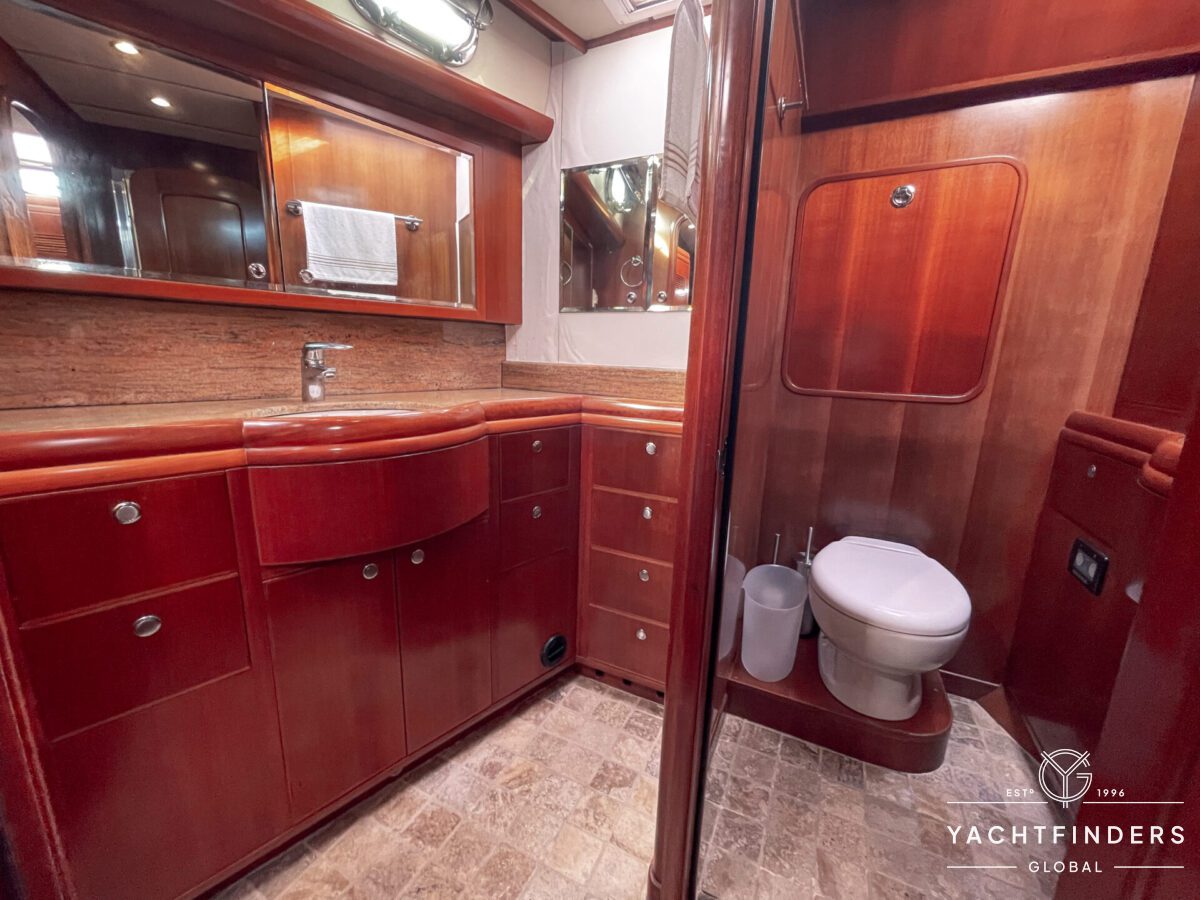

.Master and Guest Heads


  • Flooring: Teak and African Mahogany with satin varnish
  • Stone floors with provision for heating
  • Cabinetry/panelling: teak with 60% gloss varnish
  • 2 x Techma freshwater toilets
