General


Year: 2024
Price: $POA
Additional Charges: None
Boat Type: Power
Hull Type: Trawler
Location: Offshore
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 60 ft
LOA: 65'1"
Beam: 17'.10" feet
Draft: 5'.8" feet
Displacement: 308,560 lbs

Engines


No. of Engines: One or Two
Engine Brand: Cummins
Engine(s) HP: 610
Cruising Speed: 10 Knots
Max Speed: 13 Knots

Builder / Designer


Builder: Jet Tern Marine

Tankage


Fuel: 2000 Litres
Water: 1892 Litres
Holding: Yes

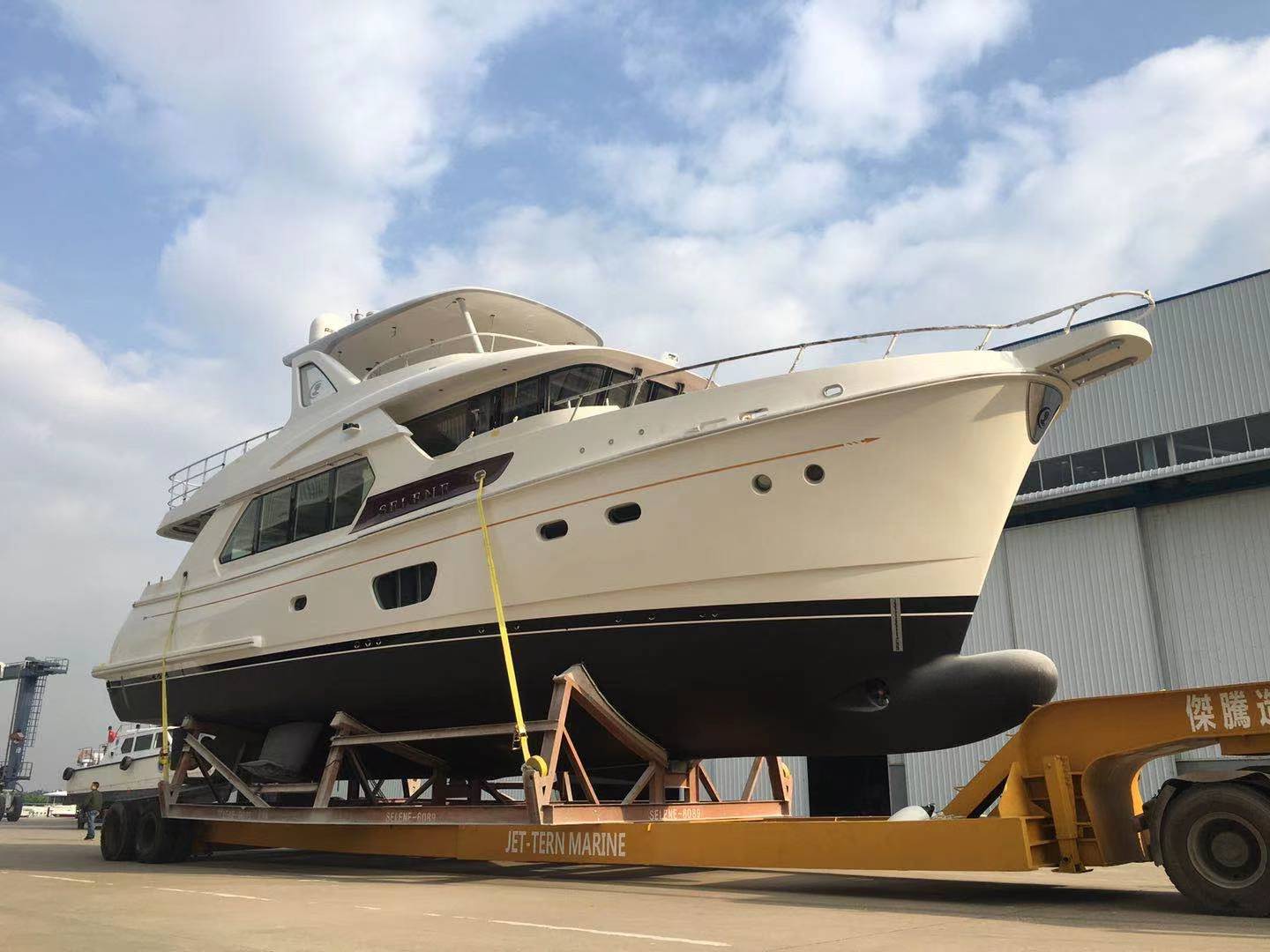

Construction


  • Cook gelcoat for hull, deck, superstructure & non-skid
  • Vinylester resin for the first five layers of lamination
  • Barrier coat
  • Cymax bi-axis uni-direction stitched roving/mat
  • Taiwan Glass mat
  • Core cell sandwich structure for side shell, deck & superstructure
  • Hand-laid FRP single-skin hull bottom
  • Longitudinal stringers & transverse frames system
  • Six watertight bulkheads ( chain locker, Collision locker, After stateroom Fwd. E/R, After
    E/R, lazarette )
  • Hull and deck joint sealed by glue bolted & laminated with mat and woven roving.
  • Integral swim platform with extended hull underneath (cruiser stern)
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • FRP Bulbous bow
  • FRP hard top & radar mast

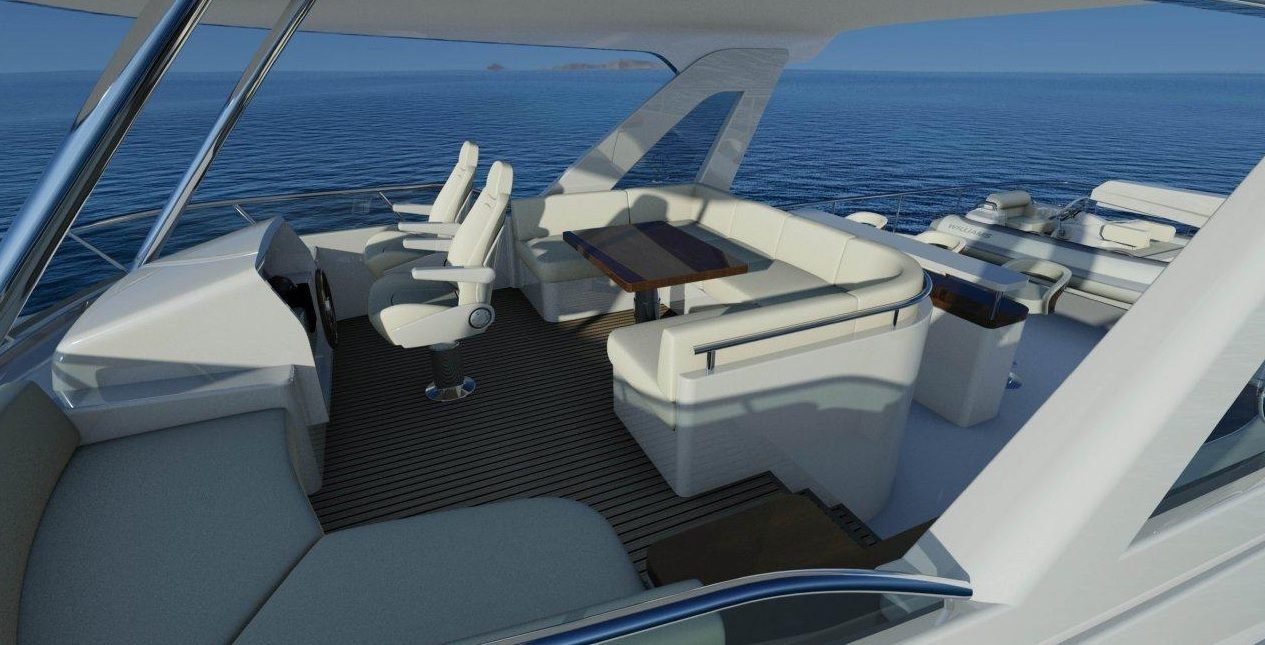

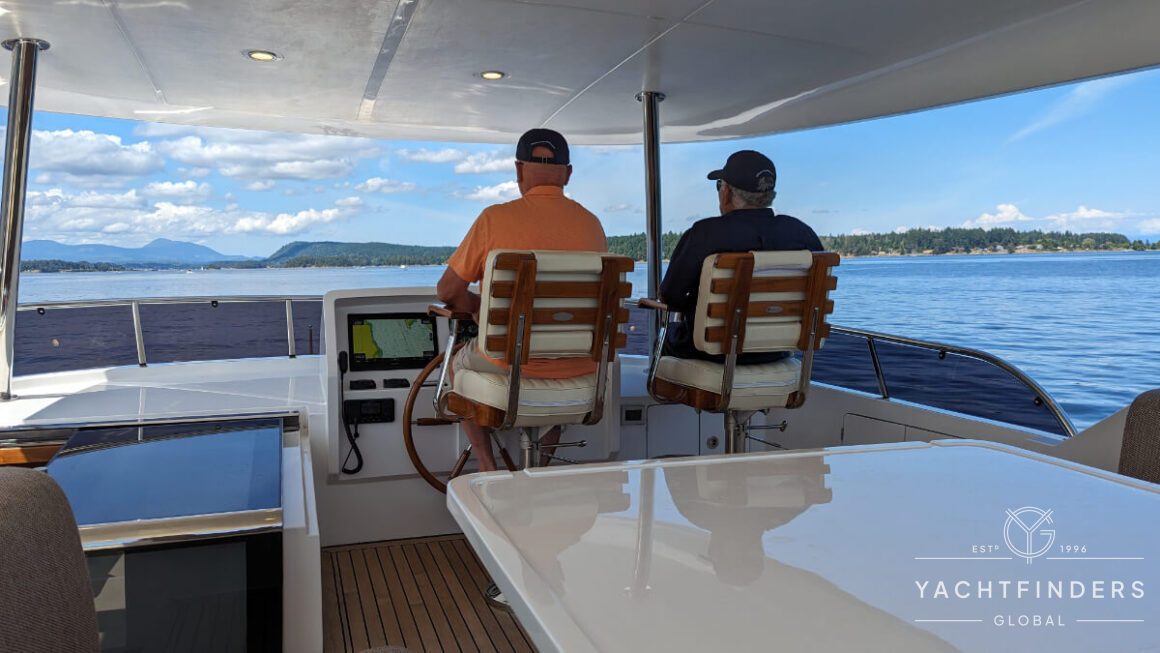

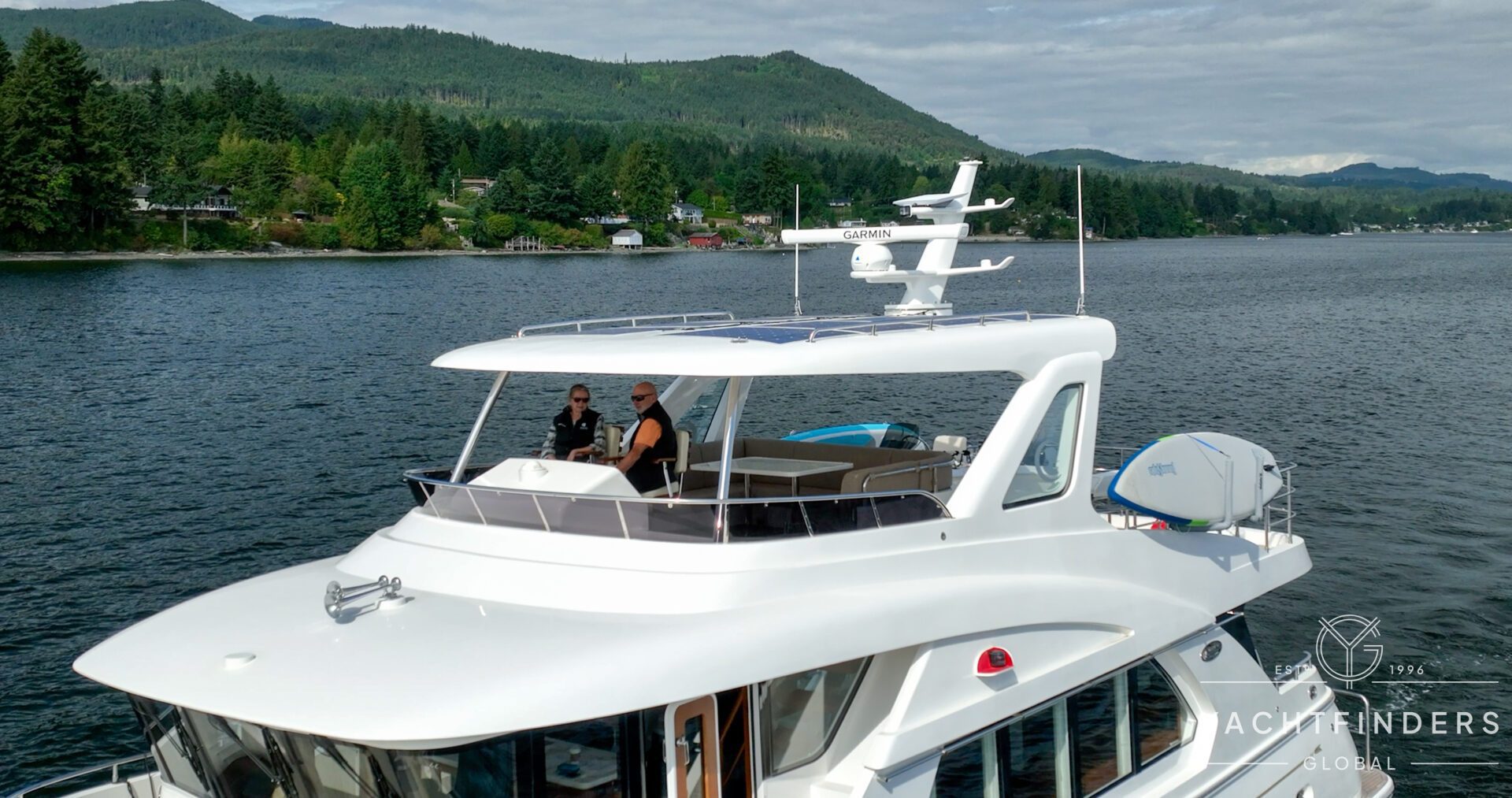

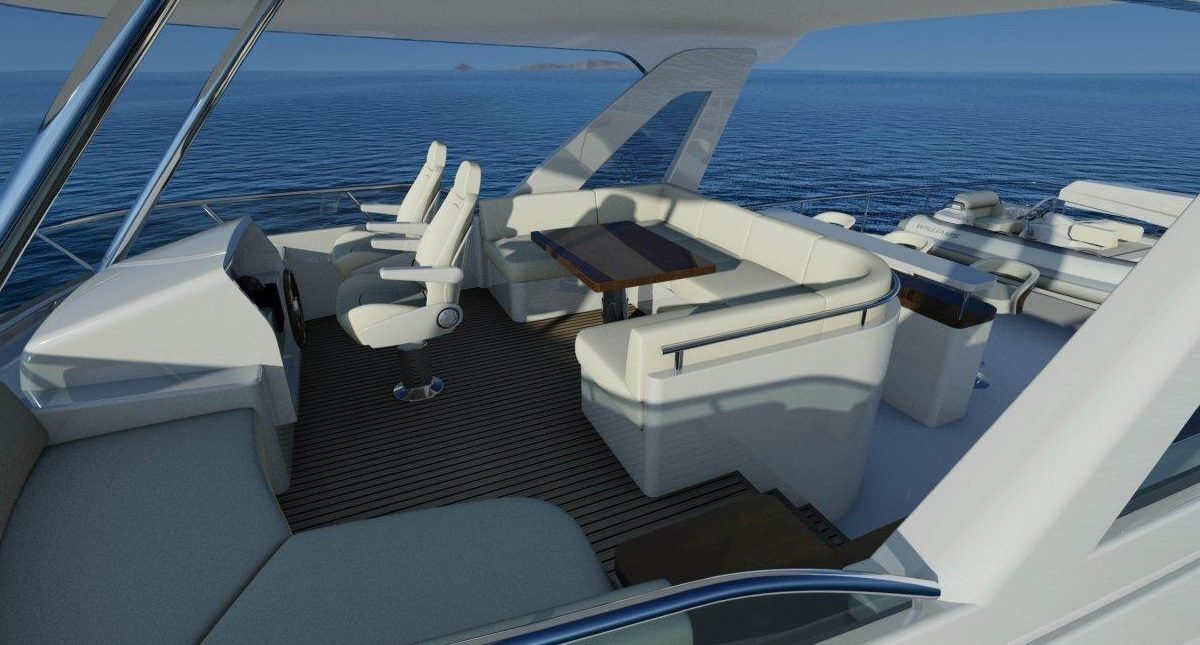

Fly Bridge


  • Helm station in centre w/ console box
  • S/S #316 dia.30″ destroyer type steering wheel
  • S/S #316 grab rail
  • S/S #316 sliding watertight door from F/B to pilothouse
  • FRP locker & BBQ
  • FRP hard top & radar mast
  • Corian integrated wash basin w/ Scandvik folded faucet
  • S/S Selene helm seat ( 2 )
  • Built‐in FRP locker P& S aft of the central station for optional remote controls.
  • AFI 24V DC outlet
  • Chart countertop
  • Tinted Plexiglas windscreen w/ S/S #316 bracket
  • Dinghy space on the F/B deck
  • FRP L‐shaped settee P&S w/ storage underneath, w/ Sunbrella cushion set.
  • Two FRP tables.
  • Raritan #85B505‐1 ice maker
  • Teak deck on F/B helm station

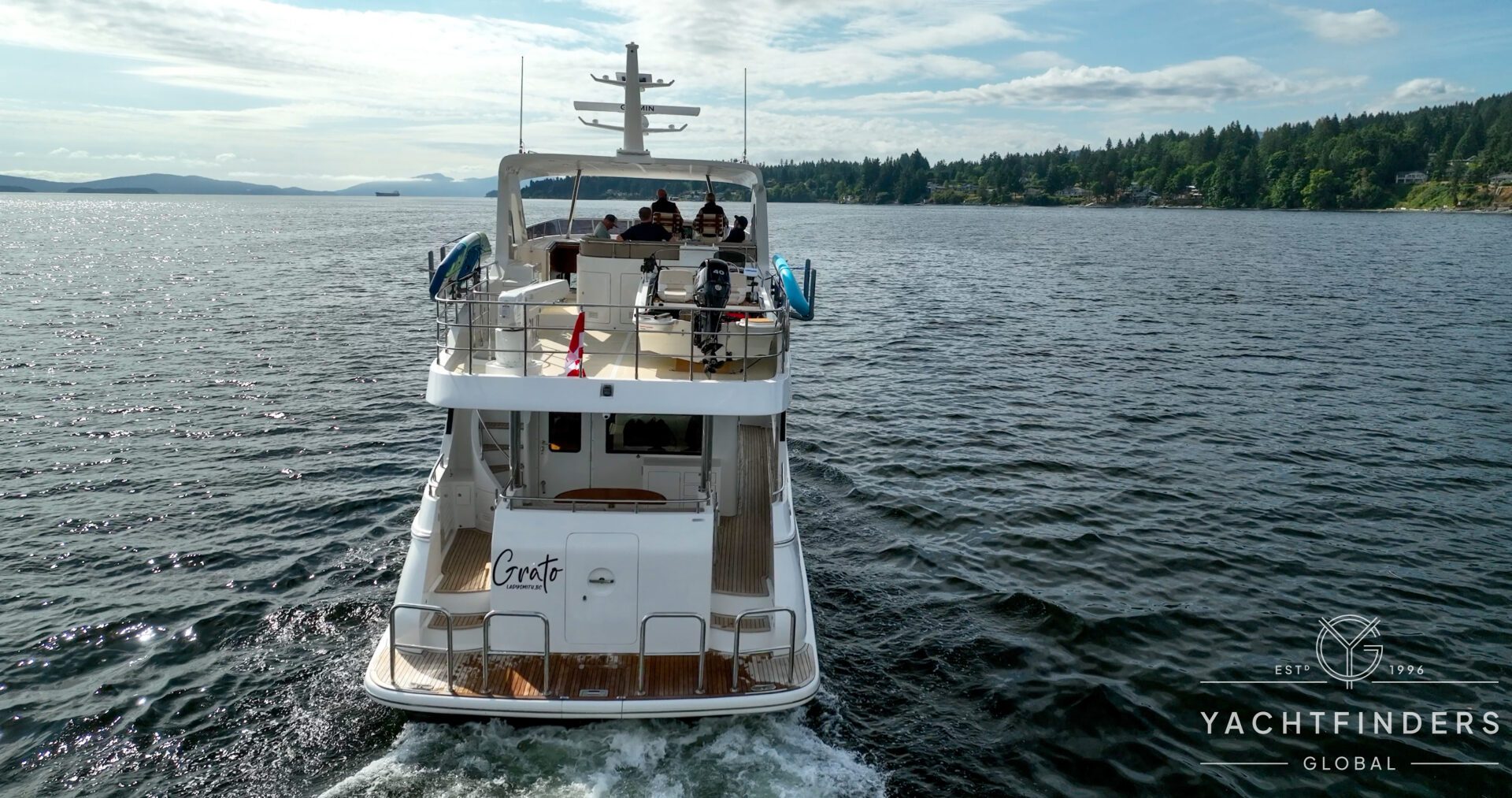

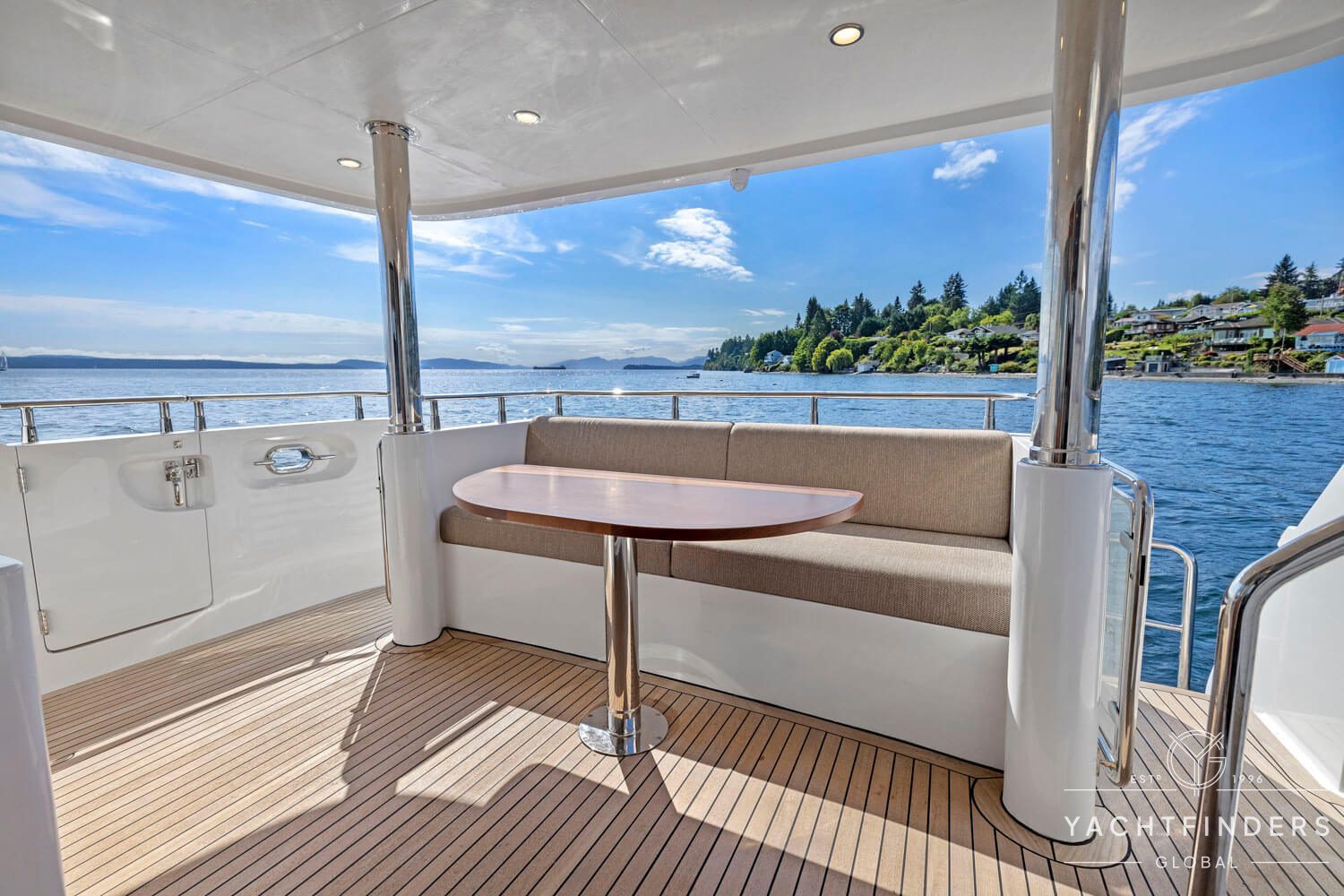

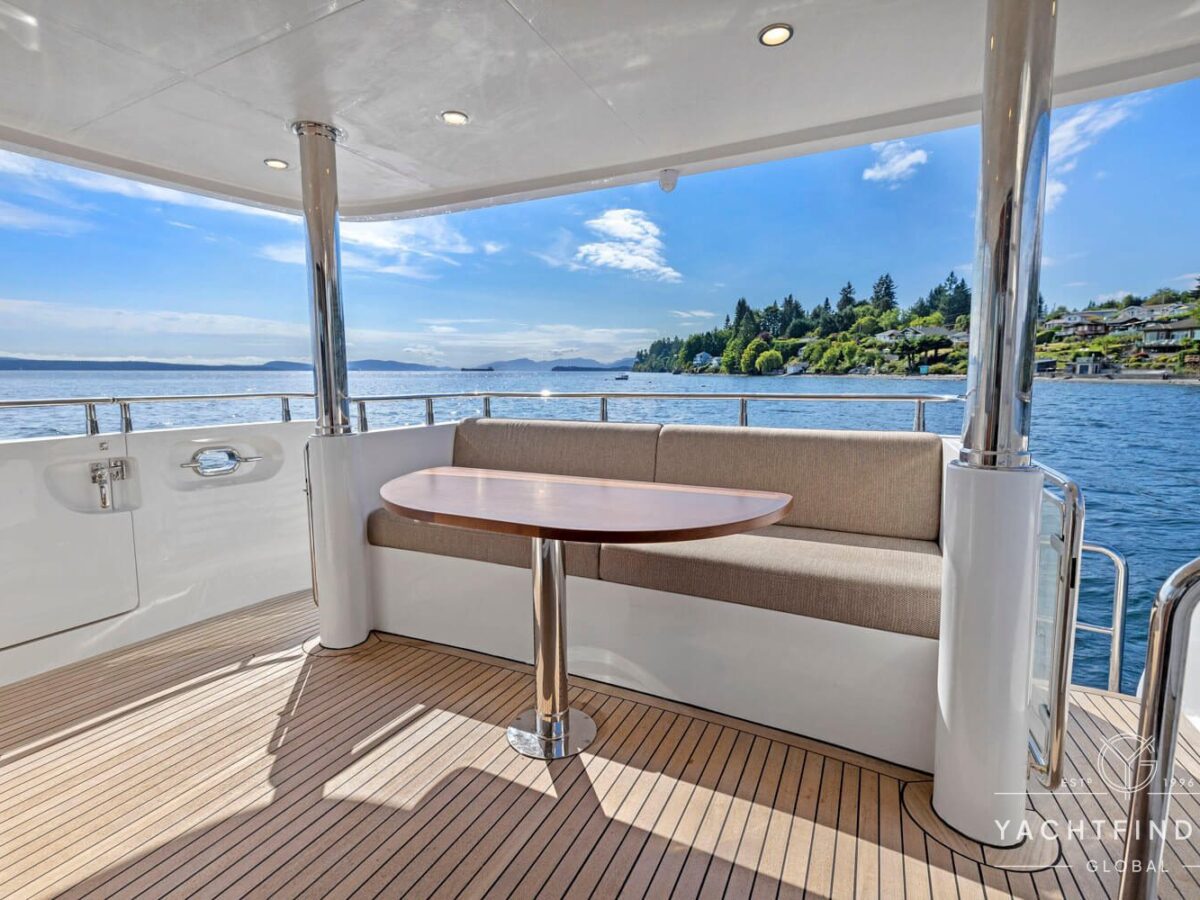

Cockpit


  • FRP settee w/ sunbrella cushion set.
  • Teak table w/ S/S #316 table pedestal
  • Fresh water deck wash
  • Flojet saltwater wash-down pump
  • Dedicated spiral stair to F/B
  • Steps to swimming platform integrated.
  • Scandvik transom shower hot/cold fresh water.
  • Teak deck on swim platform, cockpit and side deck, Portuguese bridge

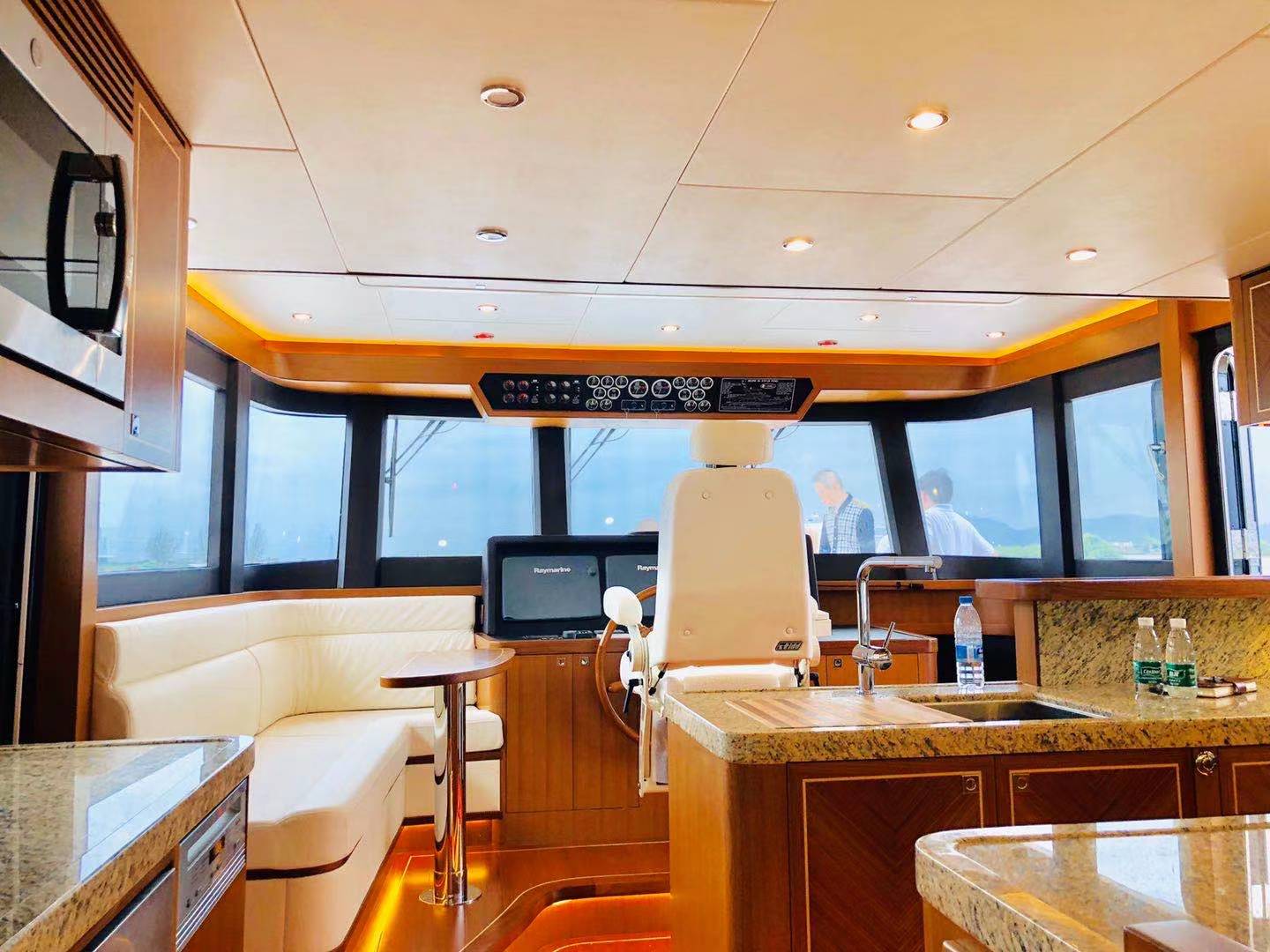

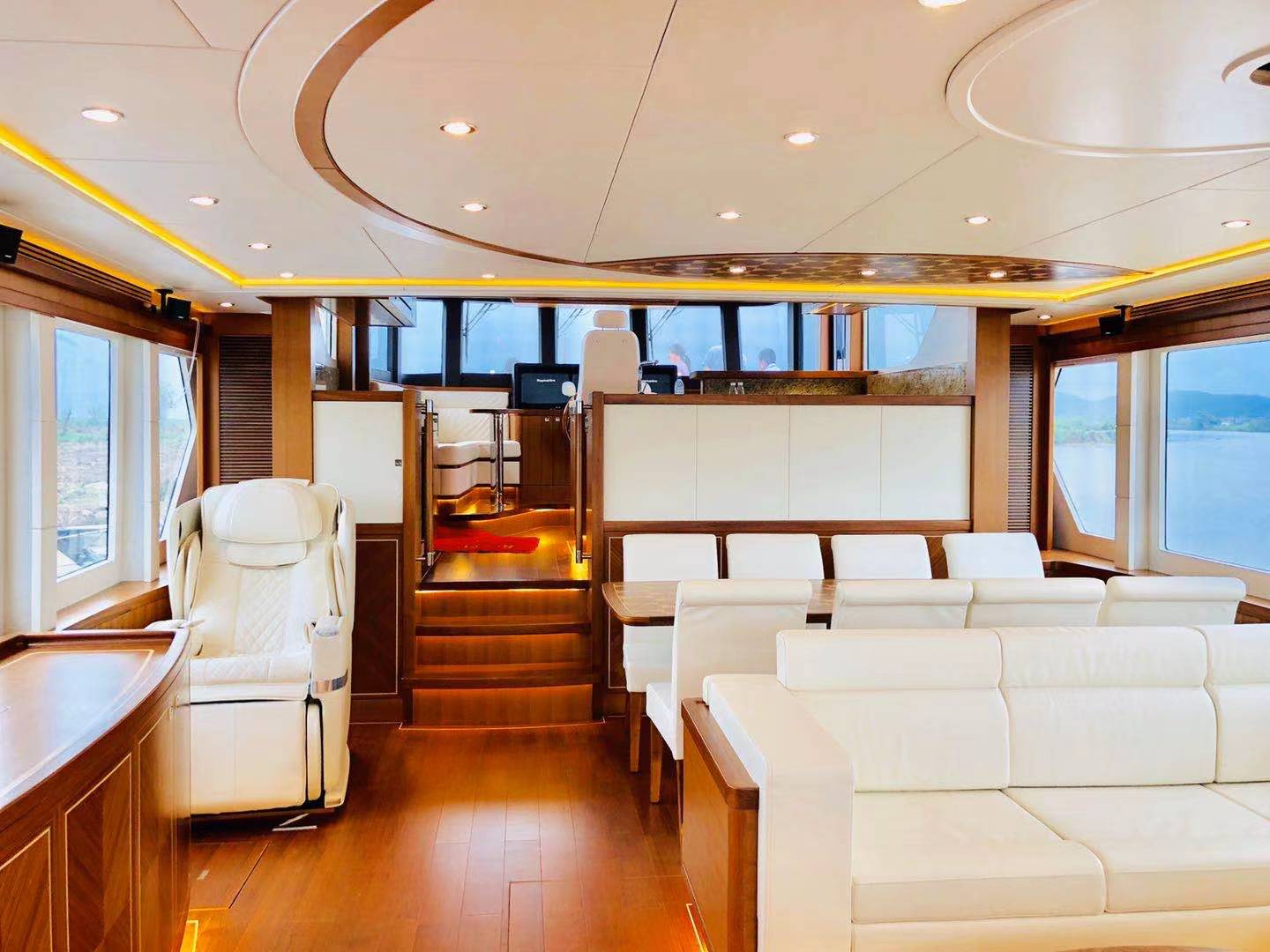

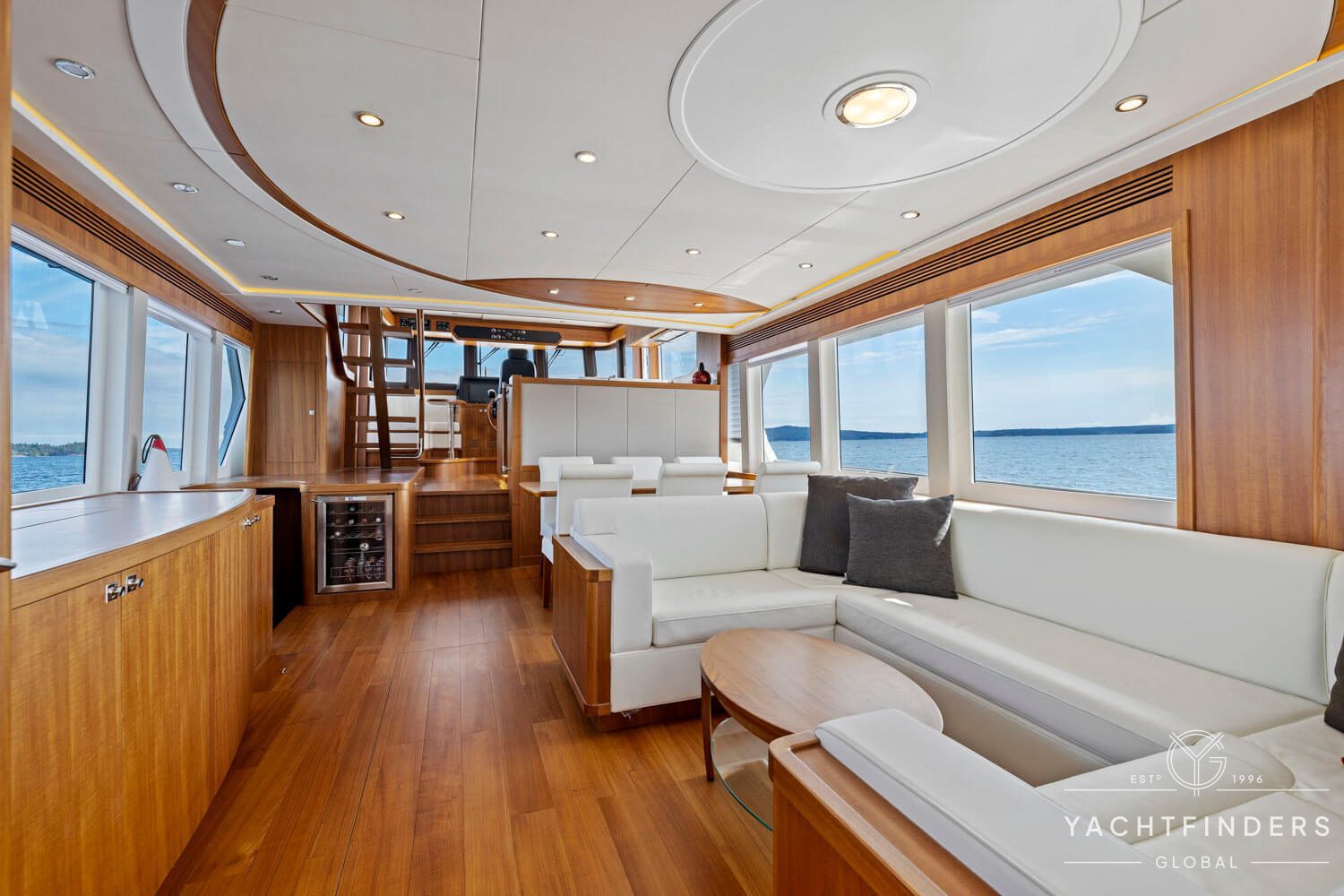

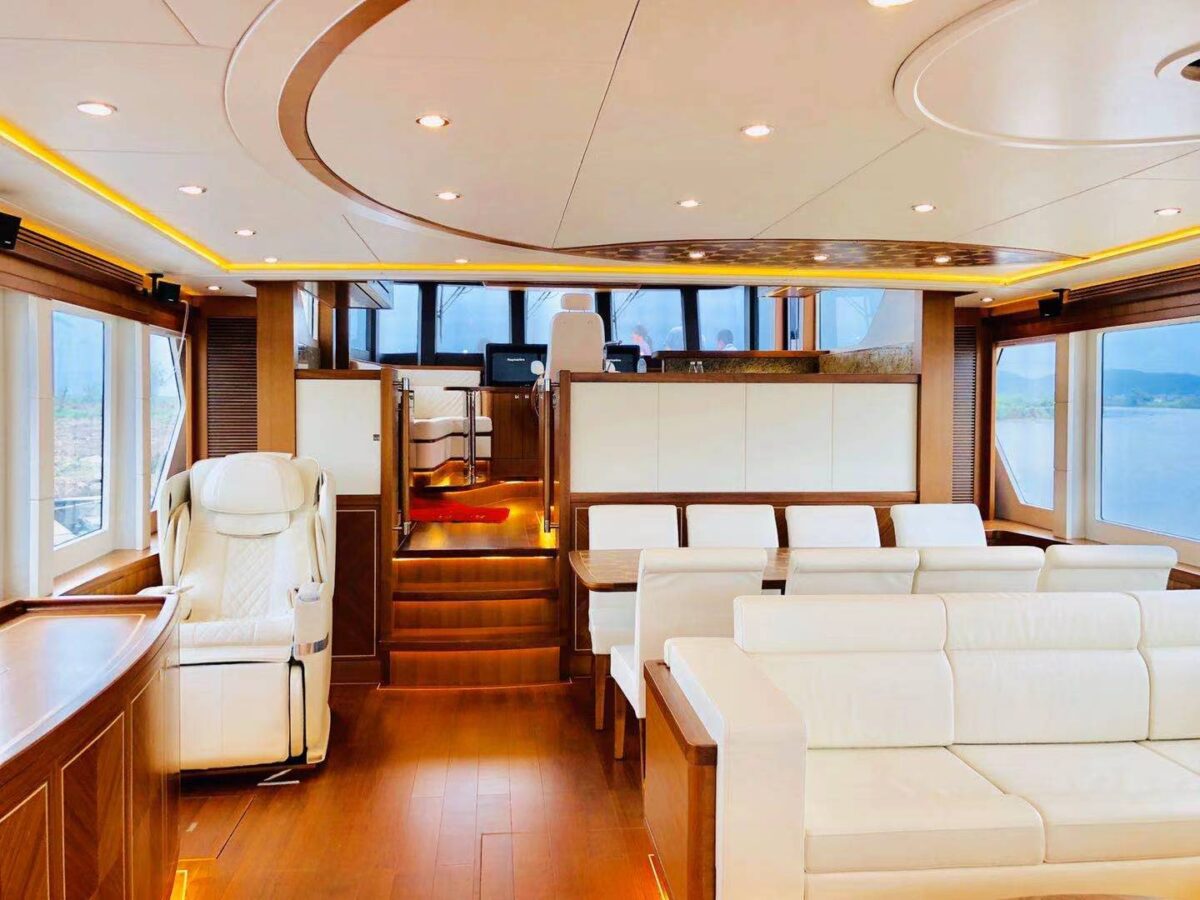

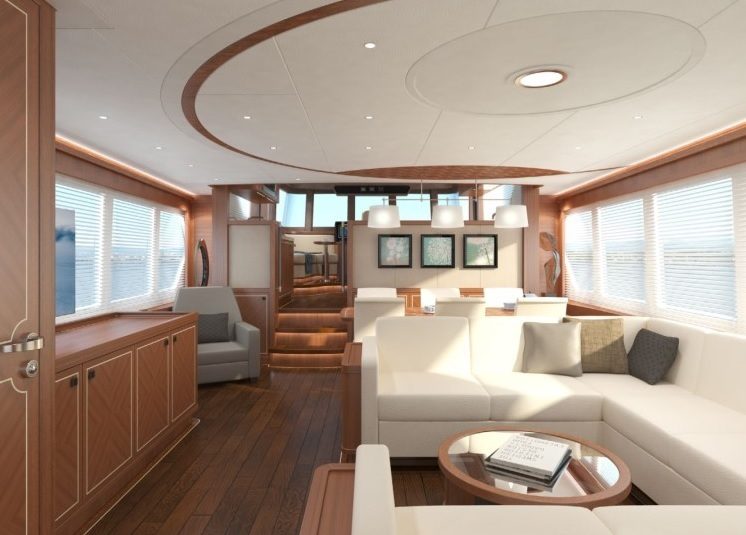

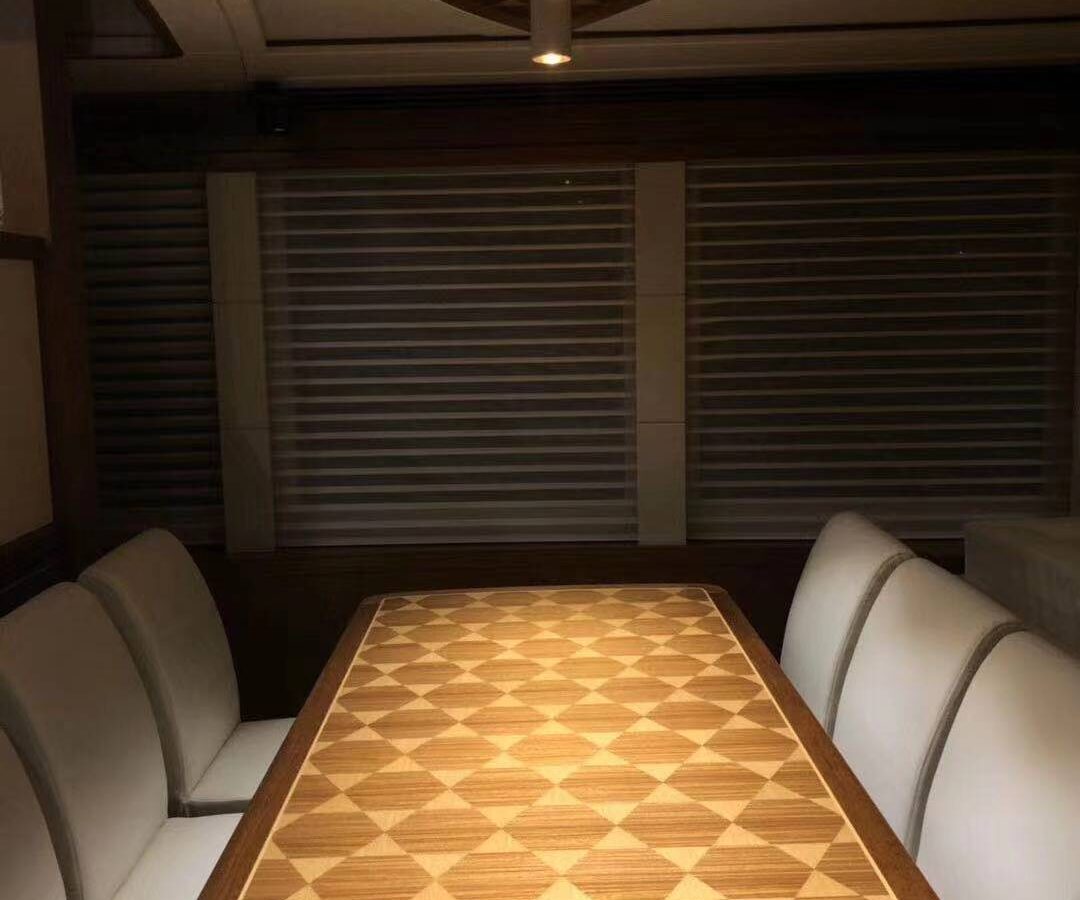

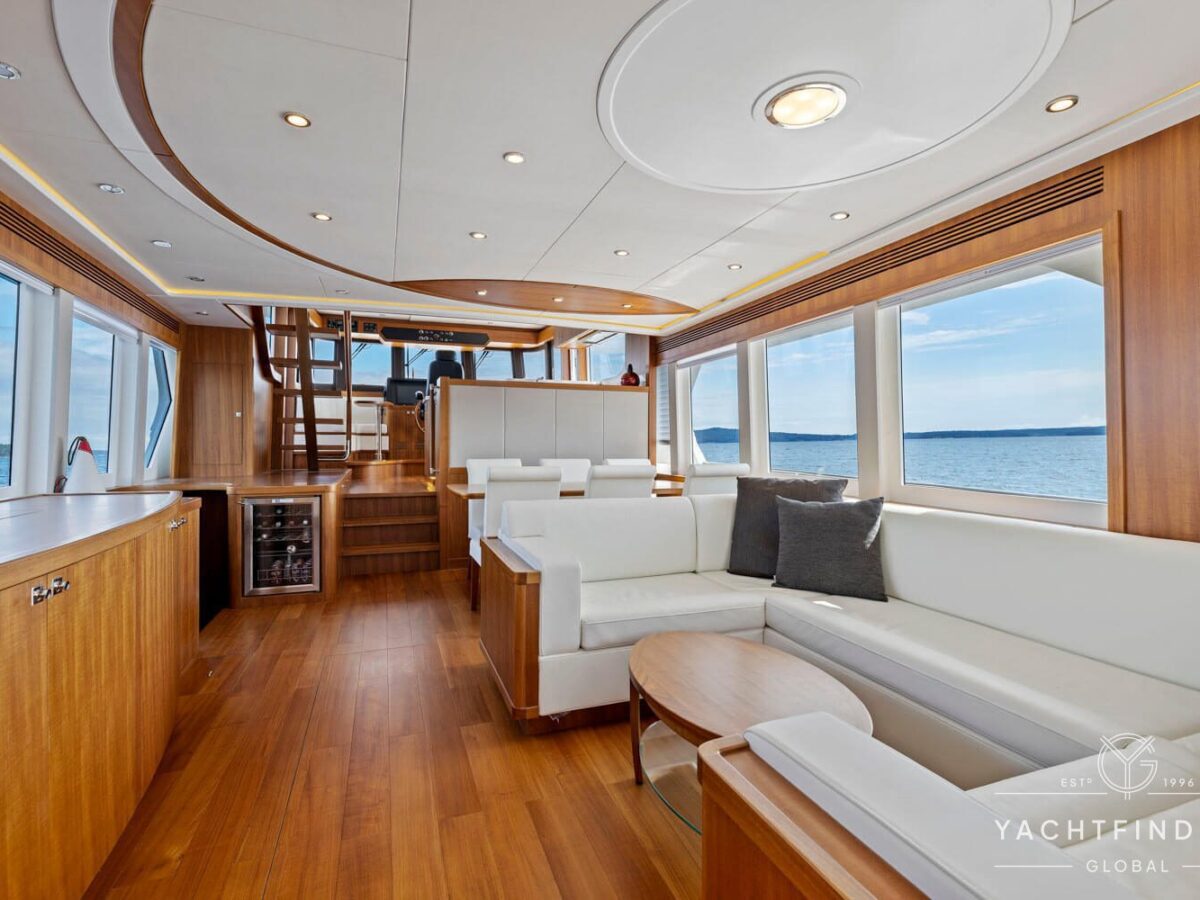

Saloon


  • L‐shaped sofa w/ 5″ foam cushion
  • Storage underneath the sofa
  • Table & corner tables
  • Entertainment centre w/ pop‐up TV cabinet
  • Cantalupi dome lights
  • Cabin reading light
  • S/S sliding door for saloon entrance
  • Emergency hatch to engine room
  • Corian or Granite bar countertop
  • Teak or cherry swivel chairs
  • Bamboo blinds w/ drapes
  • Self‐lock window stopper
  • Teak and holly sole on the floor
  • Tundra T‐18 small fridge

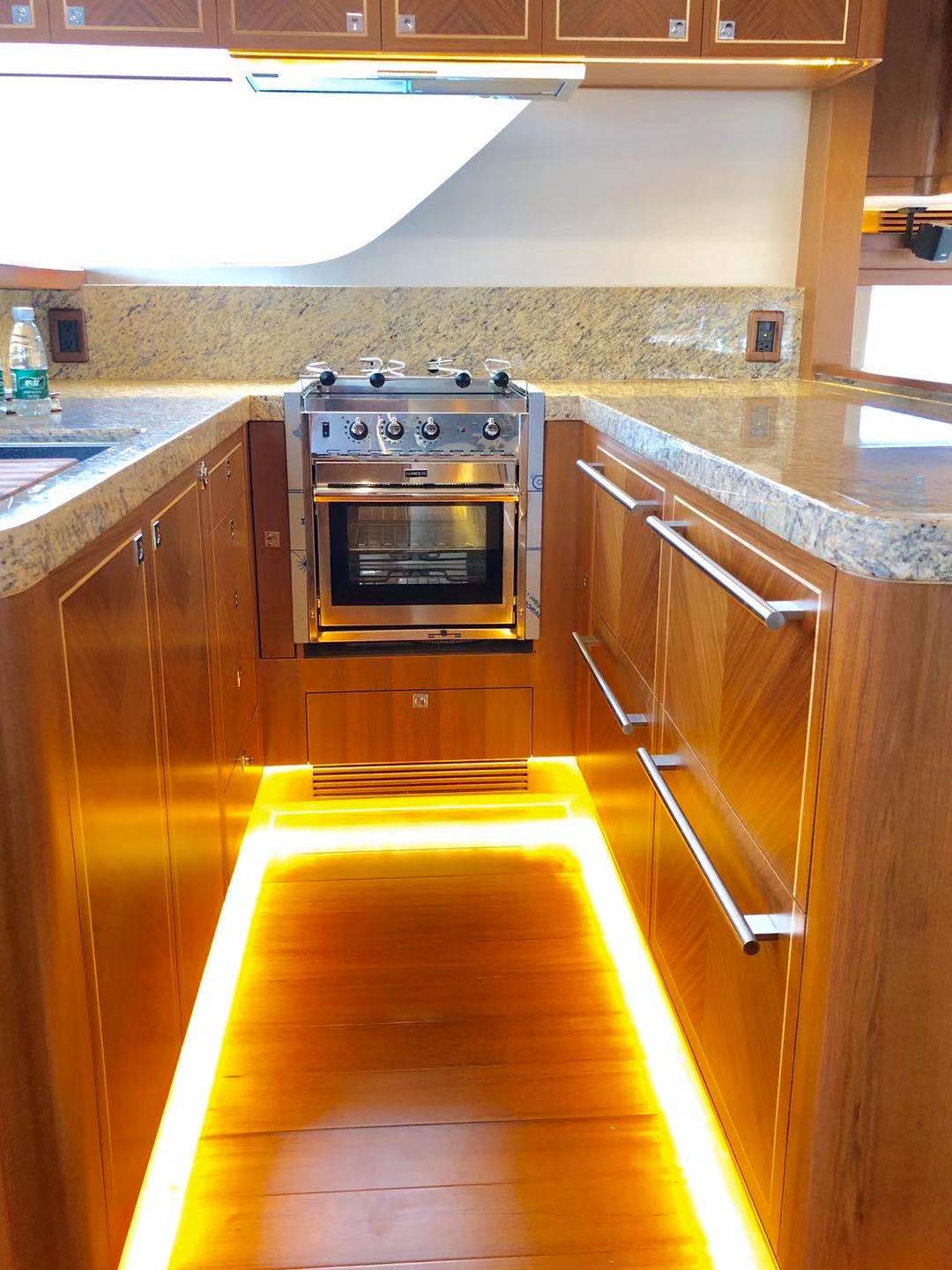

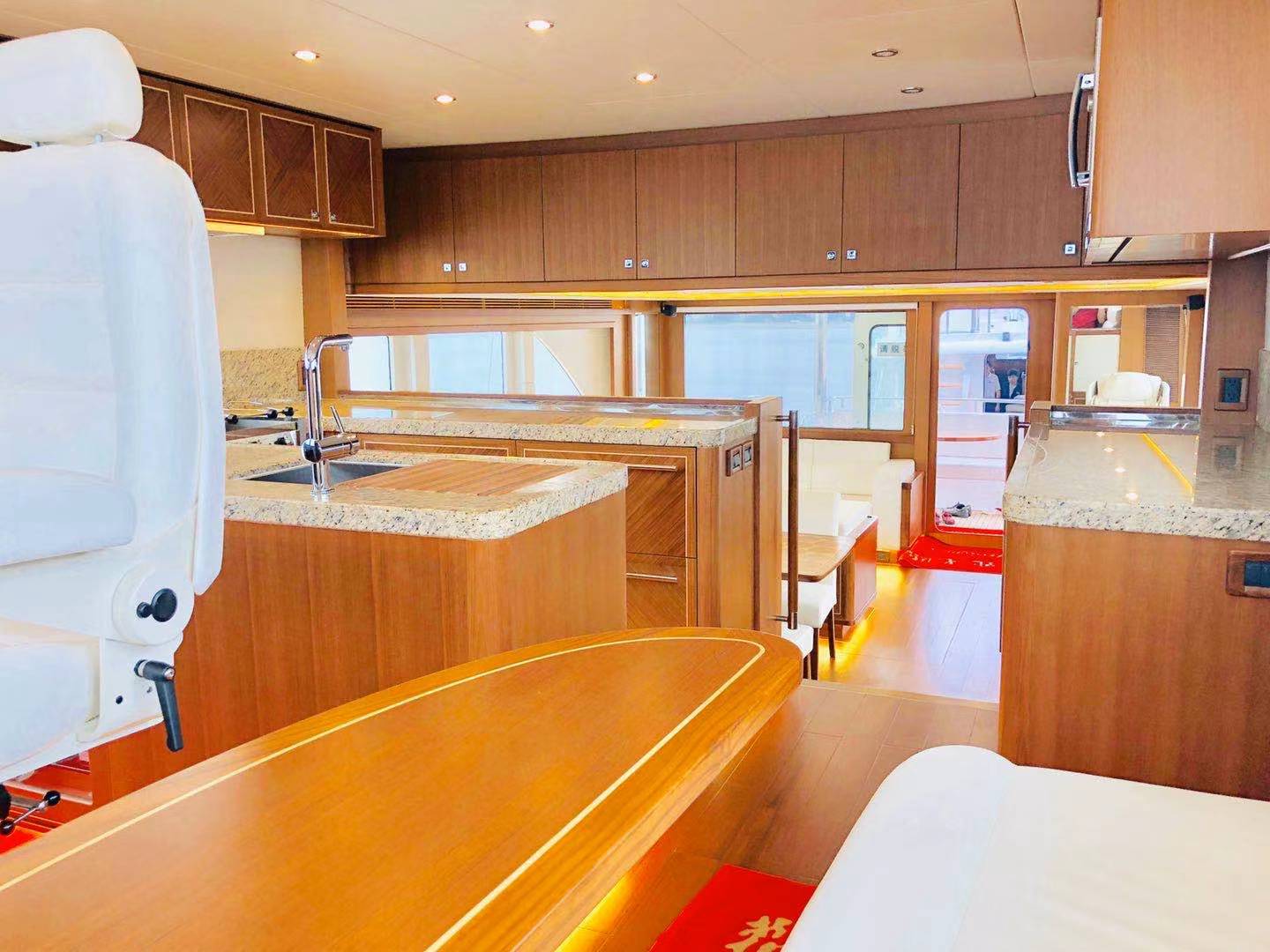

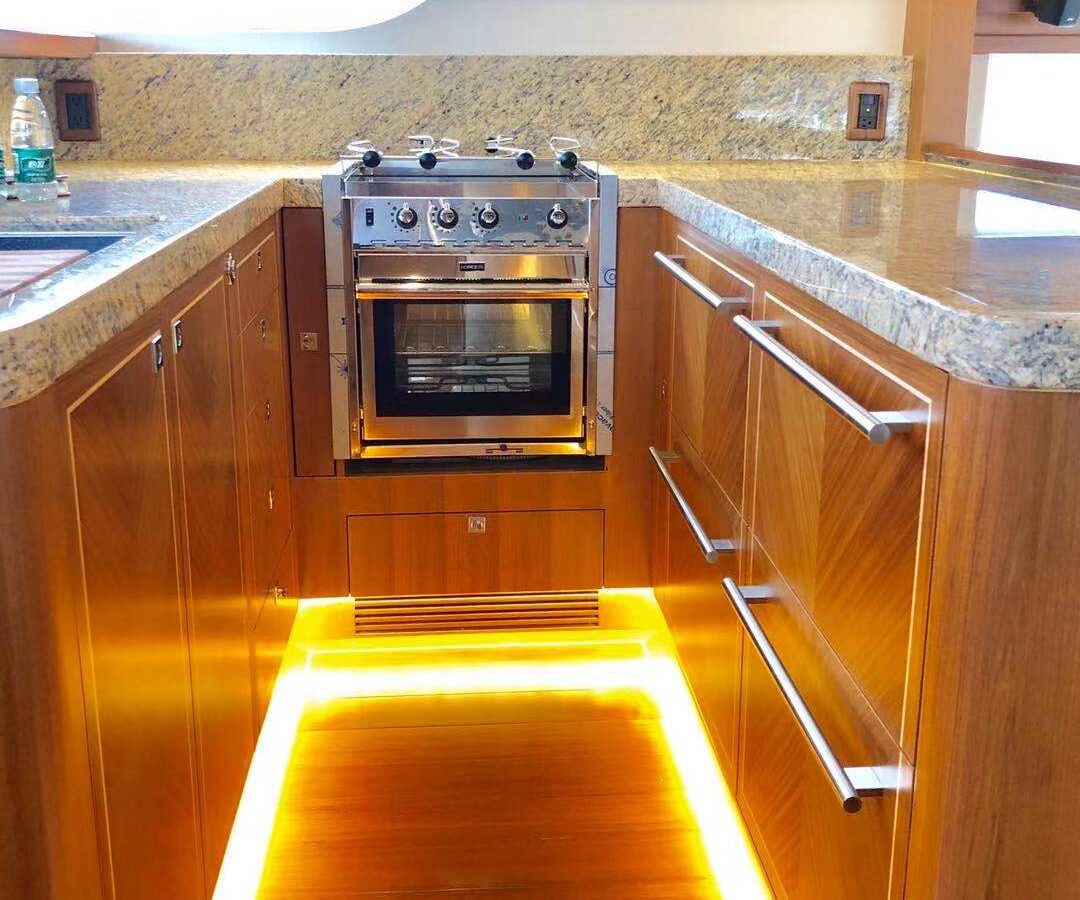

Gallery


  • Countertop w/ integral bar
  • Corian or Granite counter top & splashback
  • Franke S/S #316 double sink
  • Single lever swivel type retractable faucet
  • Overhead cabinets
  • Drawers & storage lockers with/ shelves under the counter
  • Trash bin w/ lid
  • Cold room compressor w/ temperature control
  • Teak & holly sole

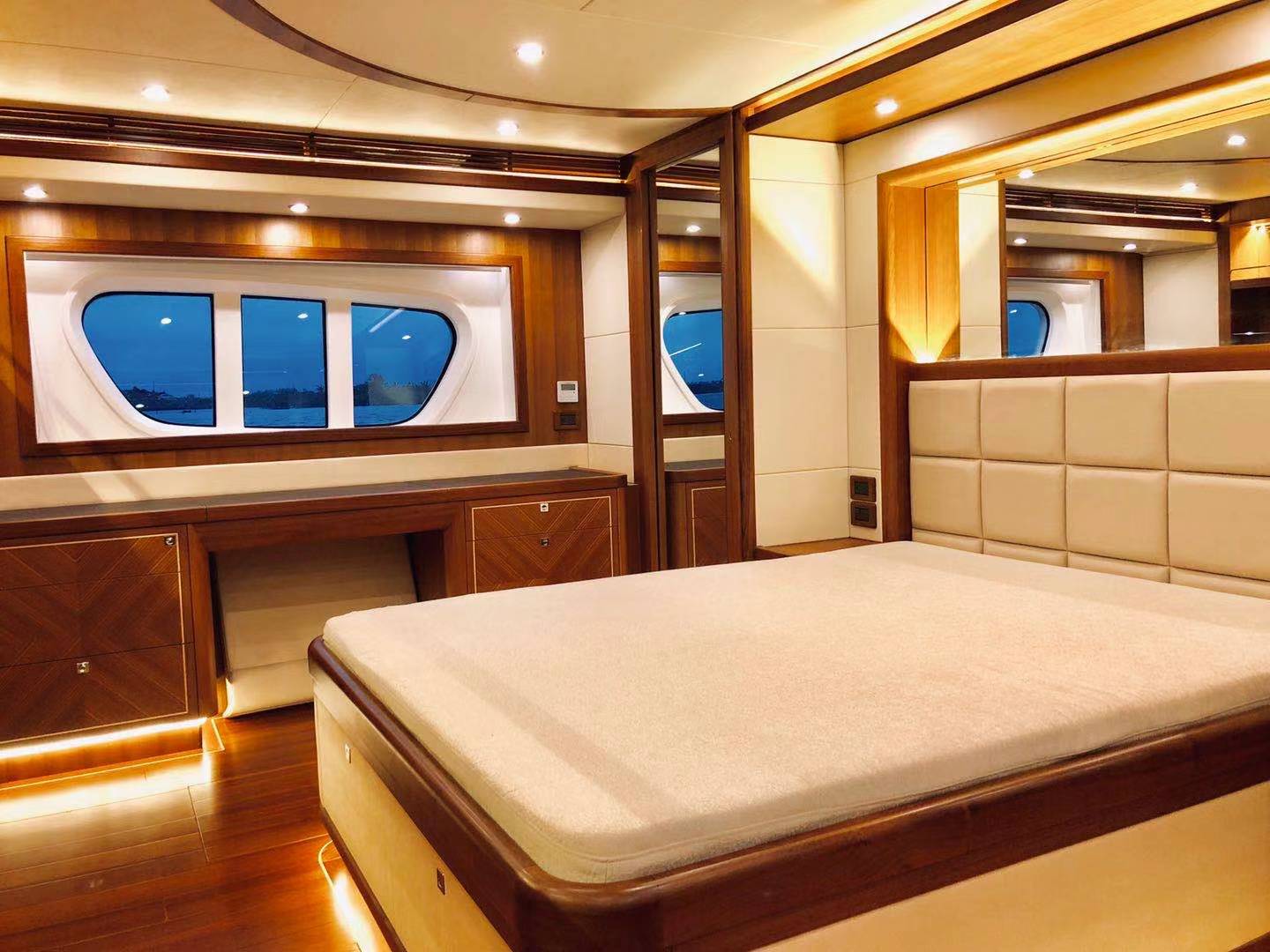

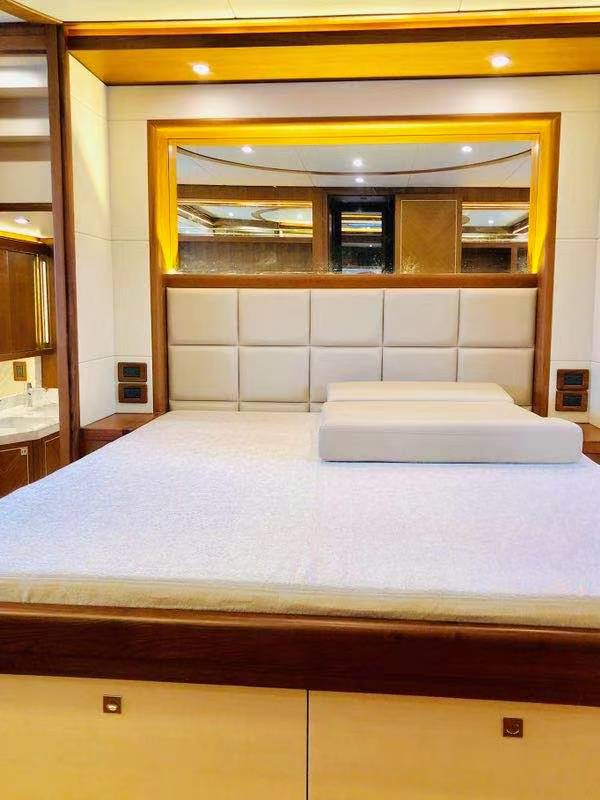

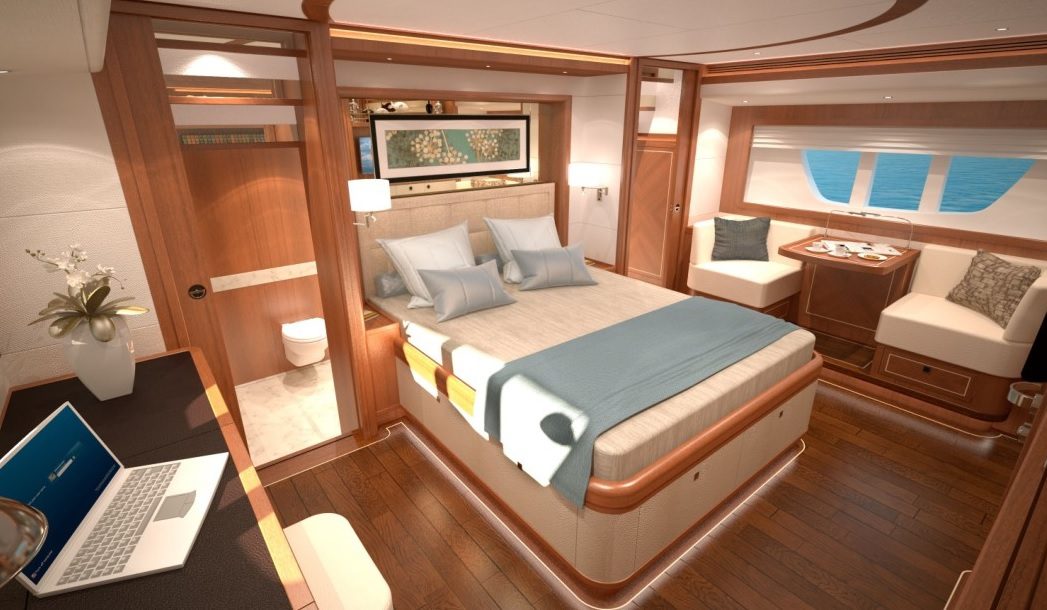

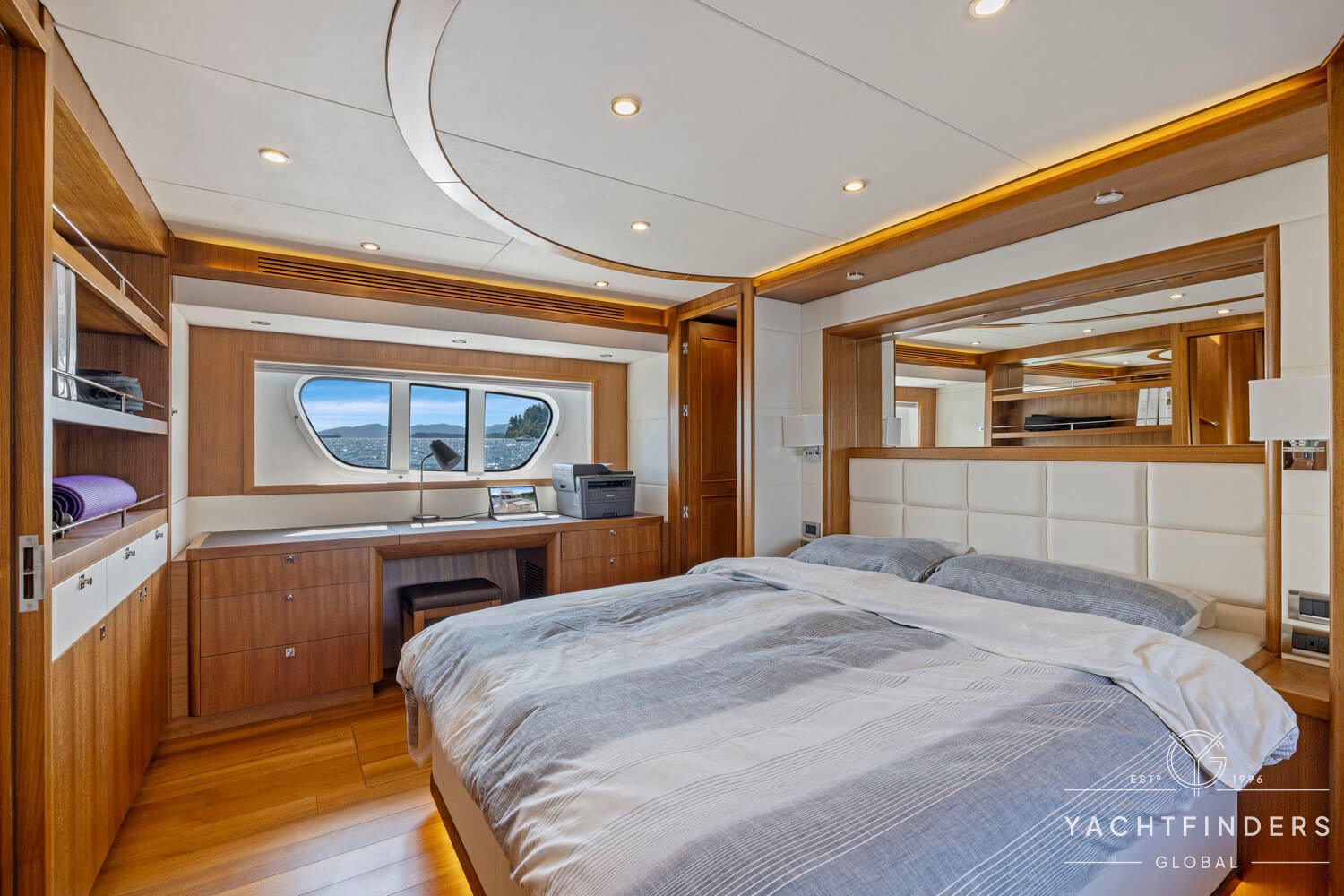

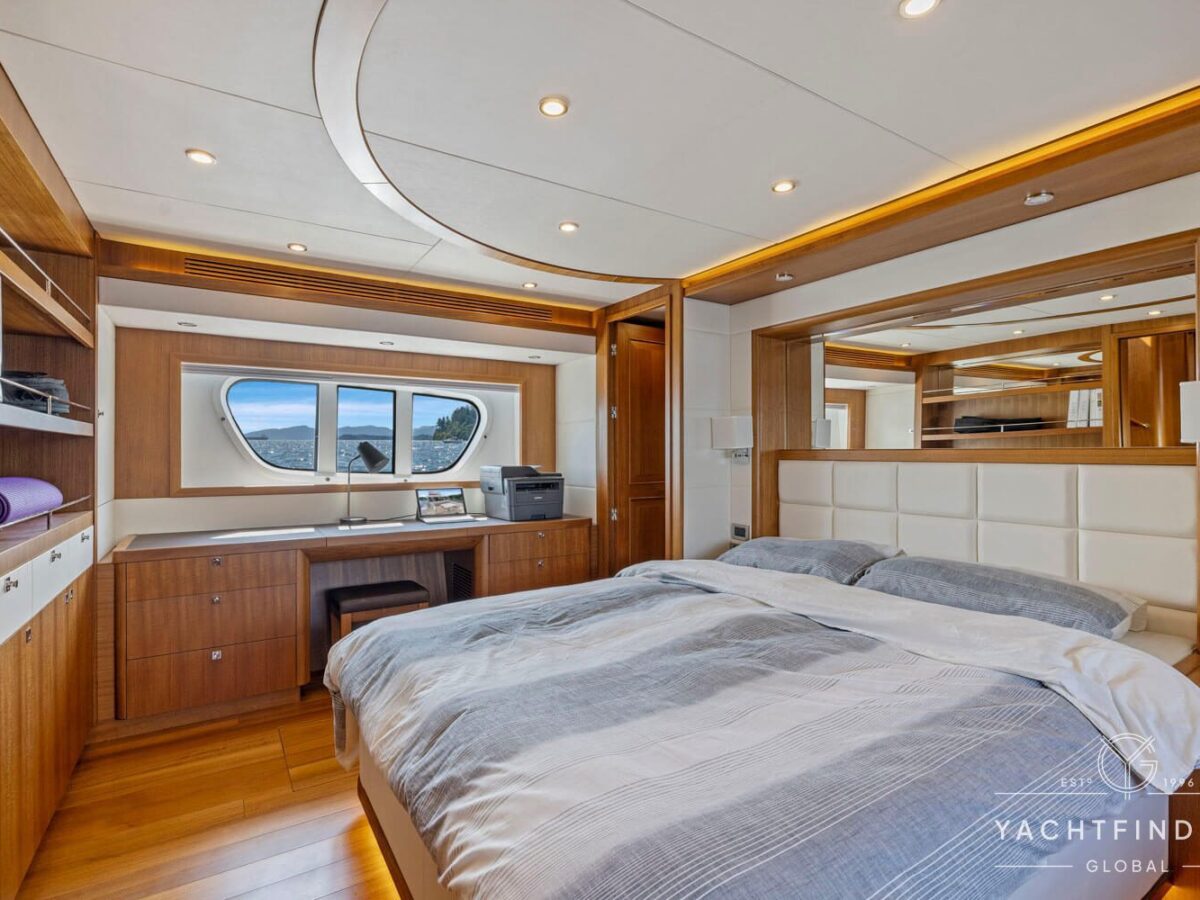

Accomodation


  • Queen‐size berth w/ 6″ foam mattress
  • Side cabinets & drawer bureaus
  • Full high dressing room
  • Safe located in the master stateroom dressing room
  • Sofa at Port master cabin
  • Wardrobe w/ automatic light & aromatic cedar liner
  • TV/video cabinet
  • Teak or Cherry veneer countertop
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Manship S/S #316 opening port lights

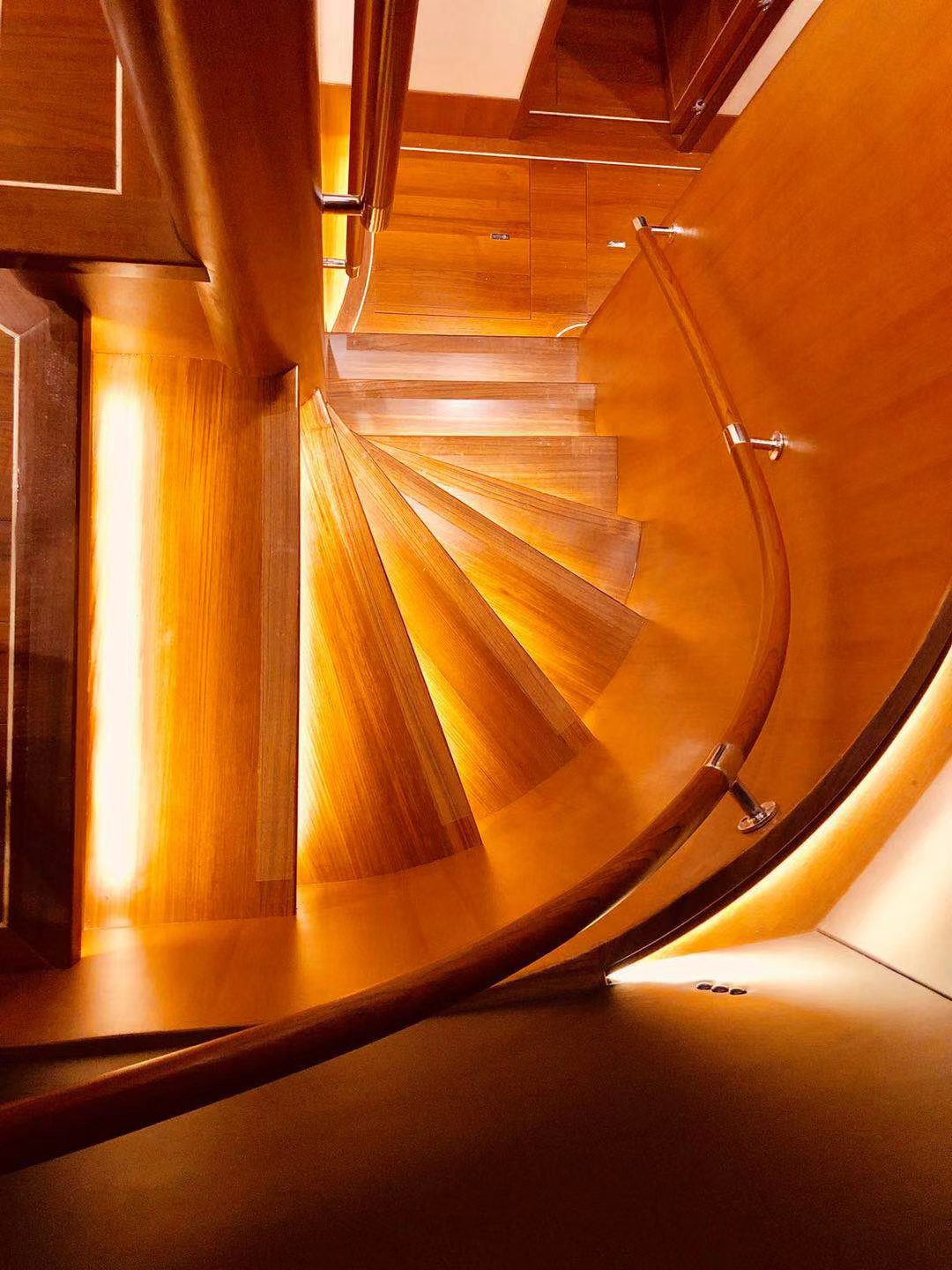

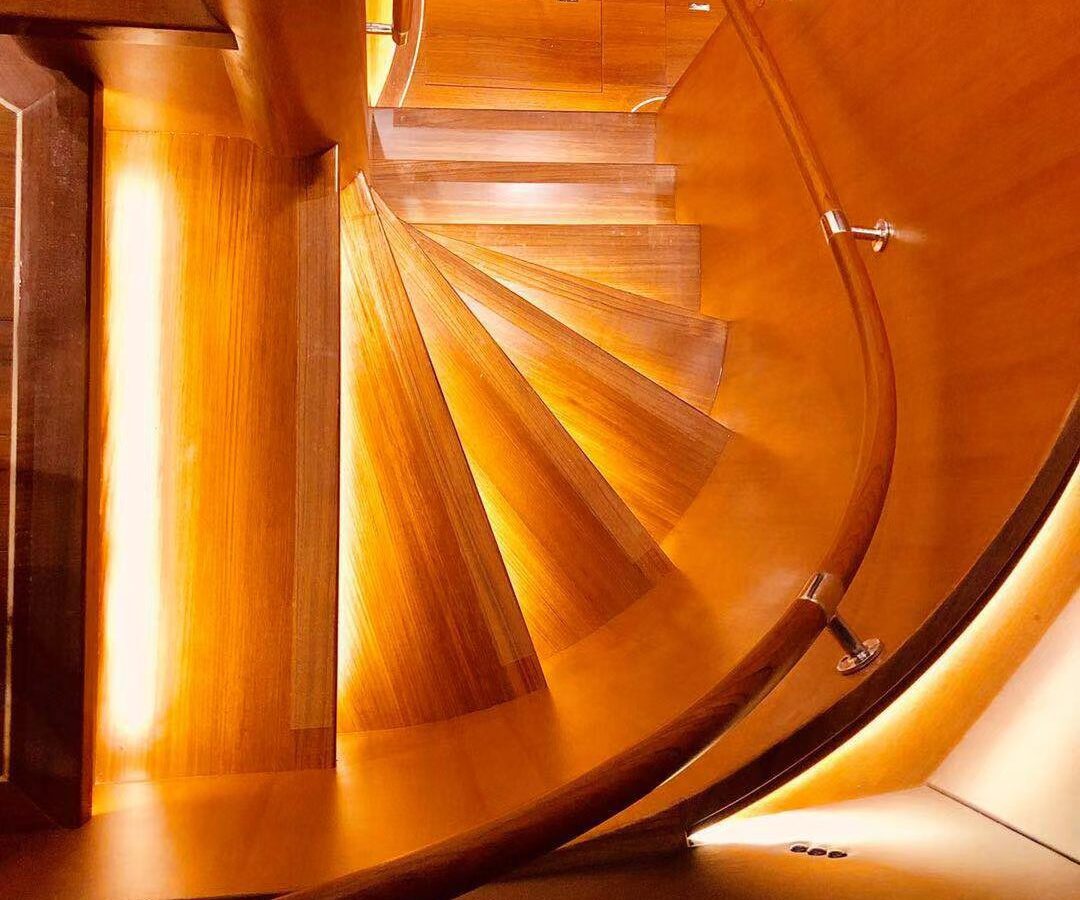

  • Dedicated teak stairway to the saloon

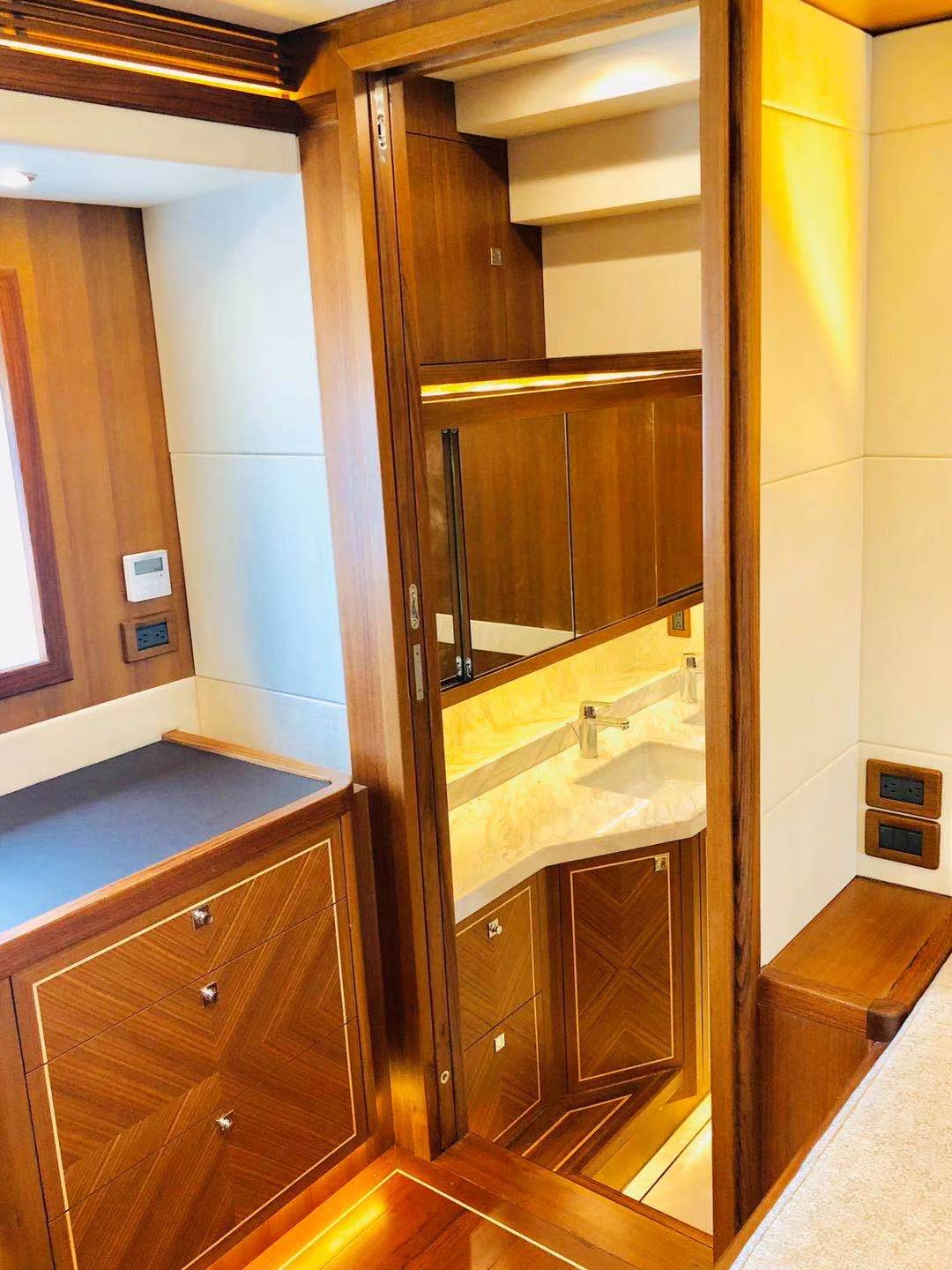

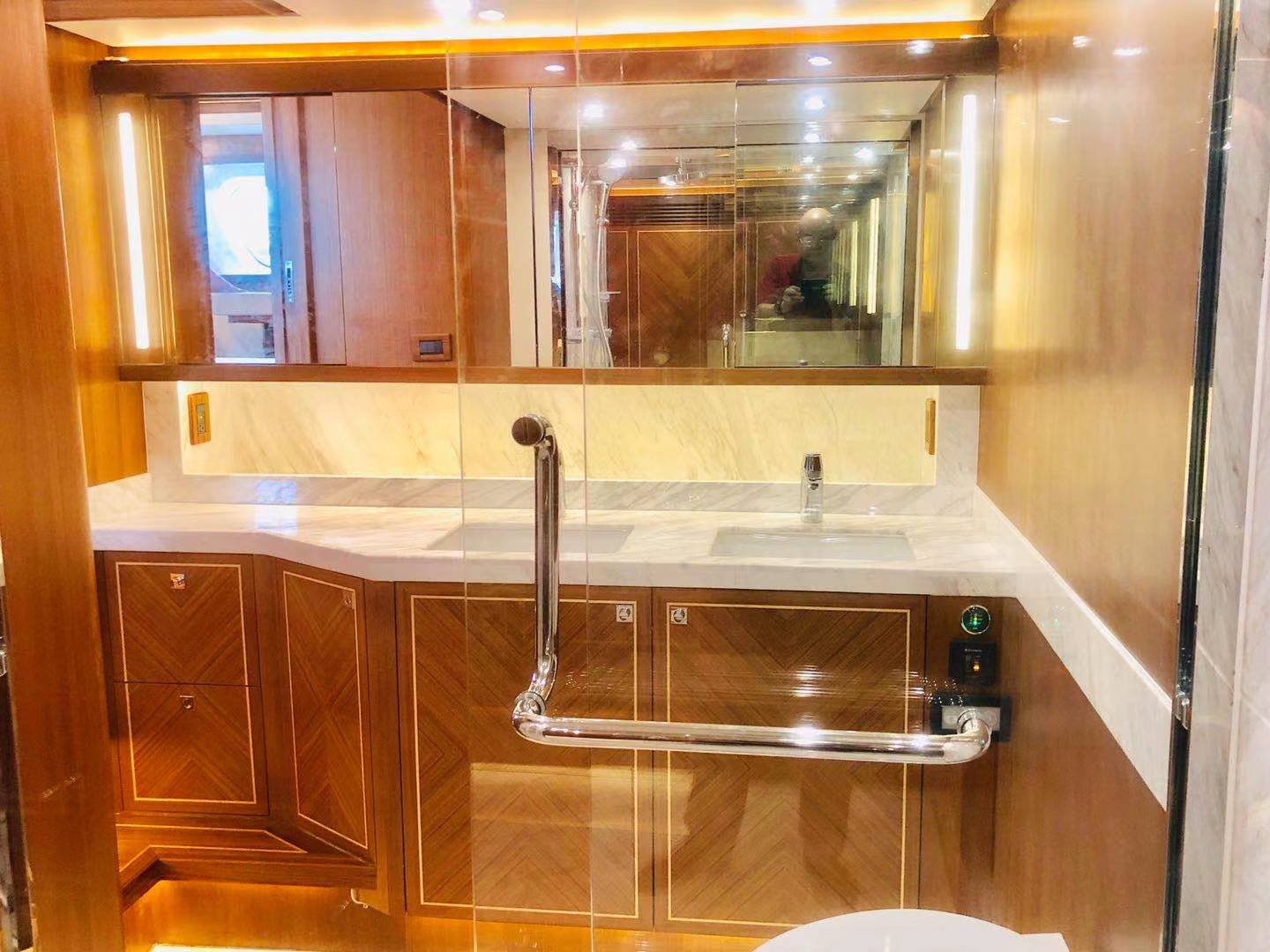

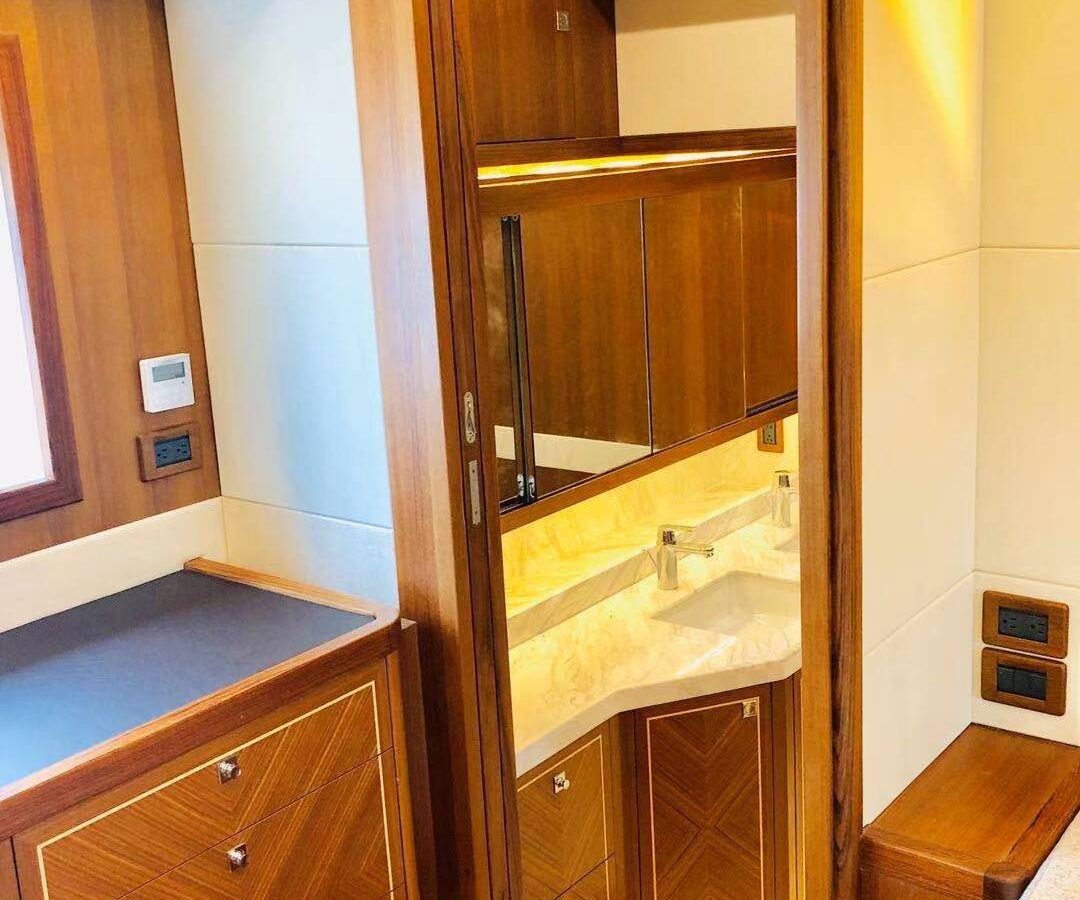

Master Head


  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish headlining & FRP bulkhead
  • Corian or Granite counter top & splashback
  • Manship S/S #316 opening port lights
  • Vanity unit w/ integral wash basin
  • One-piece swing shower door
  • Teak removable grating panel for shower room
  • Single lever hot/cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Vanity mirror w/ teak frame
  • Granite parquet feature on the floor
  • Teak or cherry wall

Guest Cabin


  • Twin berth w/ drawer underneath
  • 4″ foam mattress for each berth
  • Teak battens on the side ceiling
  • Hanging locker w/ automatic light
  • Overhead cabinet
  • Cabin reading lights
  • Vanity bureau
  • Vanity mirror w/ teak frame
  • Manship S/S #316 opening port lights
  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & splashback
  • Cantalupi dome lights

Crew Cabin


  • Dedicated access from the side deck to the captain’s quarters
  • Big Berth w/ 4″ foam mattress & drawer underneath
  • Hanging locker w/ automatic light & aromatic cedar liner
  • Cantalupi dome lights
  • Cabin reading lights
  • Laundry locker w/louvred door
  • Teak & holly sole
  • Safe in hanging locker

Bow/Foredeck


  • Anchor pocket
  • Maxwell VWC4000 hydraulic vertical windlass
  • (2 Units)
  • Maxwell chain stopper
  • S/S #316 self‐launching anchor roller
  • S/S #316 5″ diameter Samson post
  • S/S #316 hawse hole with cleat ( 8 units )
  • Freshwater chain wash down
  • Pilothouse & fore deck windlass control switch

Engine


  • Twin Cummins QSM11 610 hp @ 2300rpm marine diesel engines
  • Deluxe engine panel w/ complete instrumentation & alarms at each station.
  • Engine overheat & low oil pressure alarm
  • ZF electronic engine control system at each helm station
  • Amartech stern tube system
  • Amartech rope cutter
  • Amartech rudder
  • Centa marine coupling system
  • Faster NiAlBr 4‐blade propeller
  • Reverso gear-driven oil change pump
  • FRP drip pan under engine
  • Hydra lift FRP wet box muffler
  • Engine room blowers, dia. 5″ 120/230 V AC ( 4 )
  • Full protected FRP rudder w/ S/S #316 dia. 3″ shaft
  • S/S #316 pillars in the engine room
  • Fluorescent light for E/R, commissary & lazarette (120V / 230 V)
  • Watertight door to engine room

Electrical System


  • 240V AC system
  • Onan marine QD 50 Hz 40 kw MDDCF‐‐‐Cruising gen set
  • Onan marine QD 50 Hz 13.5 kw MDKBP ‐‐‐‐Day gen set
  • The switch panel located in P/H includes a dedicated 120 Amp/hr starting battery
  • 200 Amp engine alternator
  • Blue Sea emergency parallel switch
  • Marinco shore power inlets fore & aft
  • Marinco TV & Tel inlet fore & aft
  • AC outlets throughout the boat
  • Newmar integrated galvanic isolator
  • Asko or Bosch separate washer/dryer located adjacent to Master cabin
  • Torrid S/S 30 gallons 120V/ 240V AC dual heating source water heater two sets
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters & breakers
  • GFCI outlet in head & F/B
  • Copper bonding strap w/ ground cable attachment for each fitting
  • Mastervolt or equivalent 3 x 24 v/100 amp battery charger system
  • Mastervolt or equivalent 3 x 24 v/50 amp battery charger system for engine & gen-set start battery
  • Mastervolt or equivalent 1 x 24 v/5000 inverter unit
  • Spare circuit breaker for optional Autopilot system
  • Raritan ice maker
  • Frigoboat freezer system

Fuel System


  • Two FRP fuel tanks total 4000 US gal, w/ internal baffles, sumps, balancing lines, inspection plates
  • Racor 75/1000Max dual fuel filter/water separator for the main engine
  • Racor 900MA fuel filter/water separator for generator
  • Racor USCG & CE certified fuel line hose
  • ESI CFS 100RE fuel polishing system
  • Parker ball valve for fuel system
  • Electric fuel gauge
  • Magnetic sight gauge for each fuel tank
  • Fuel management system
  • Reverso OP700Oil change pump
