General


Year: 2024
Price: $POA
Additional Charges: Plus GST, Duty & Freight
Boat Type: Power
Hull Type: Trawler
Location: Auckland
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 92 ft
LOA: 27.93 m
Draft: 2.29 m
Displacement: 158 ton

Engines


No. of Engines: Two
Cruising Speed: 9 knots
Max Speed: 11 knots

Builder / Designer


Builder: Jet Tern Marine

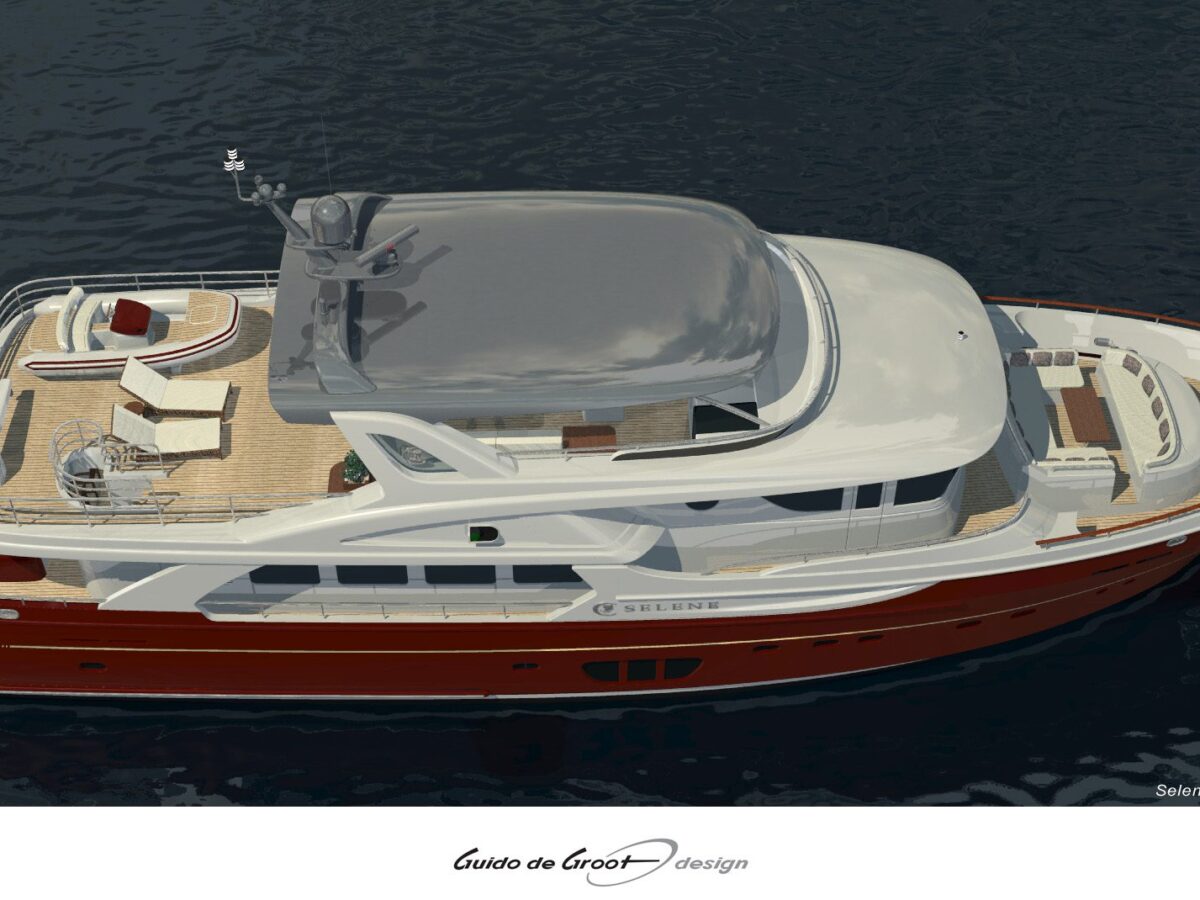

Designer: Guido de Groot

Tankage


Fuel: 23000 litres
Water: 800 gals

1


  • Cook gelcoat for hull, deck, superstructure & non-skid
  • Vinylester resin for the first 5 layers lamination
  • Barrier coat
  • Cymax bi-axis uni-direction stitched roving / mat
  • Taiwan Glass mat
  • Core cell sandwich structure for side shell, deck & superstructure
  • Hand laid FRP single skin hull bottom
  • Longitudinal stringers & transverse frames system
  • 6 watertight bulkheads ( chain locker, Collision locker, After stateroom Fwd. E/R, After
    E/R, lazarette )
  • Hull and deck joint sealed by glue, bolted & laminated with mat and woven roving
  • Integral swim platform with extended hull underneath (cruiser stern)
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • FRP Bulbous bow
  • FRP hard top & radar mast

2




  • Manship S/S #316 opening port lights w/ detachable storm cover to all port lights.
  • Manship S/S #316 hatches for pilothouse & fwd. stateroom
  • Oceanair hatch shade w/ insert screens privacy blinds.
  • Diamond/Sea‐Glaze Dutch doors for pilot house ( P&S ),
  • S/S sliding door for salon E/R entrance
  • Taco S/S #316 1‐1/2″ solid upper & lower dual fender rails
  • S/S #316 oval shaped hand rail for fore deck & dinghy deck
  • S/S #316 telescopic swim ladder 3 step.
  • S/S #316 dia 2‐1/2″ aft. deck overhang support posts
  • Stainless steel window frames
  • Teak cap rail for Portuguese bridge, side deck & aft. deck
  • S/S #316 bow & stern flag pole socket
  • Teak burgee & flag staffs
  • Freeing port for fore, side & aft. deck
  • Portuguese side gate, swing out, Starboard side.
  • Storage locker w/ teak removable grating panel inside Portuguese bridge
  • S/S #316 self‐lock type exterior gate handles
  • Cantalupi exterior dome lights
  • Cantalupi exterior courtesy lights

Fuel System

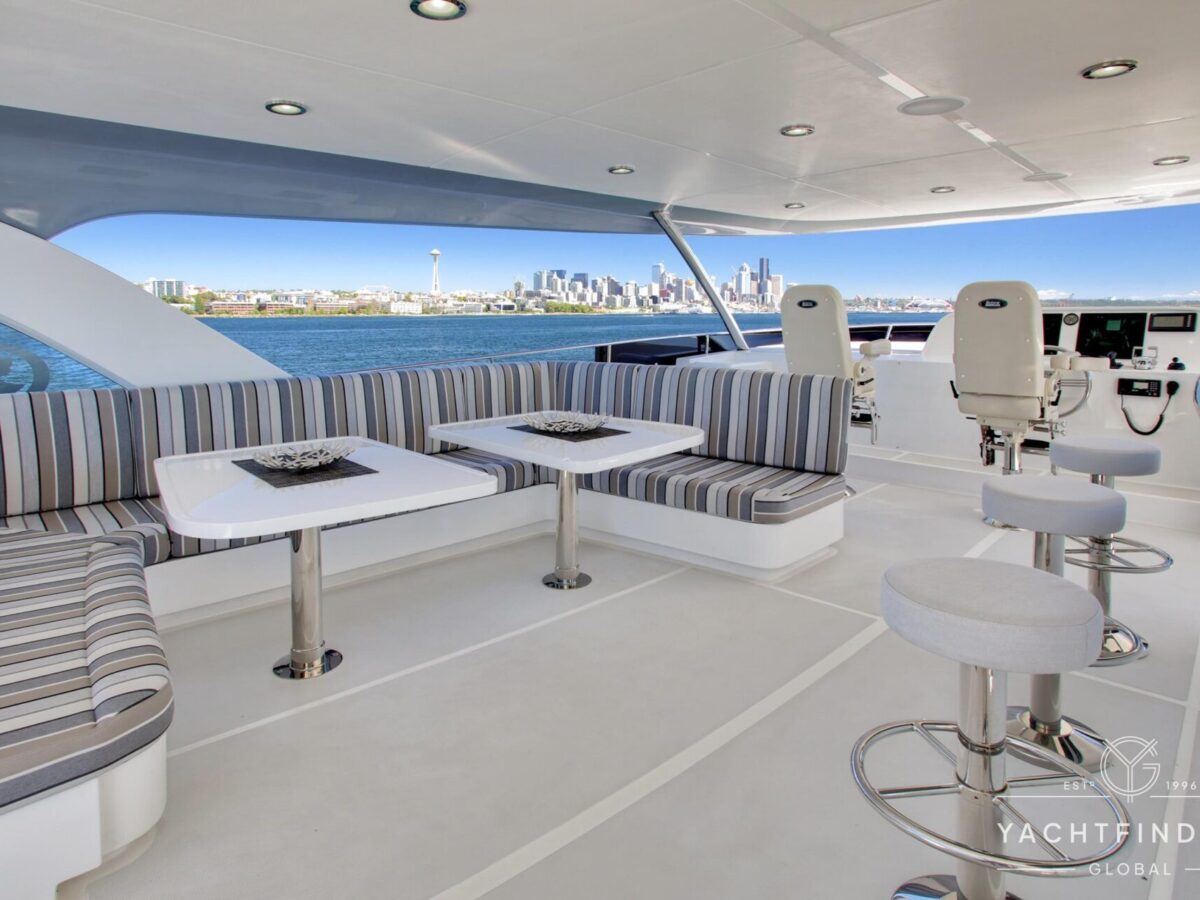

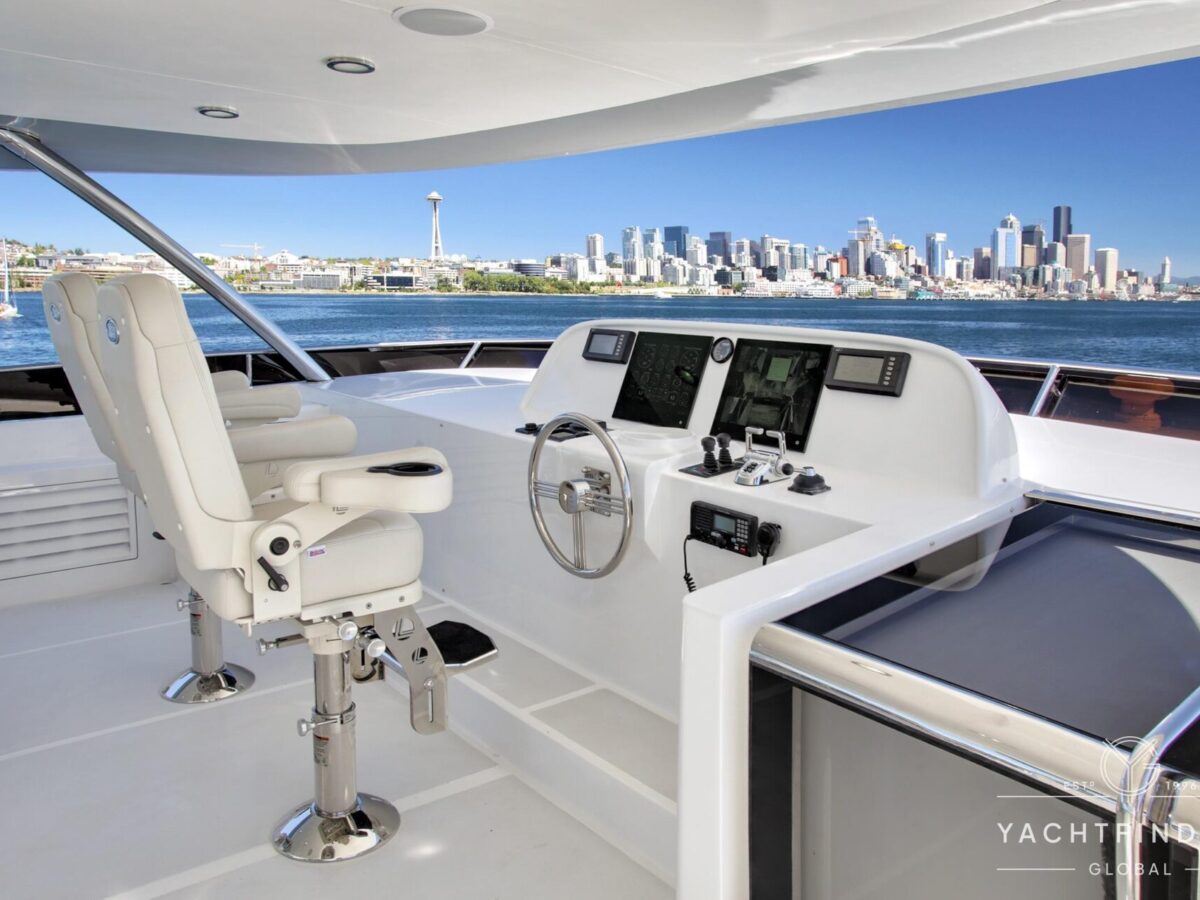

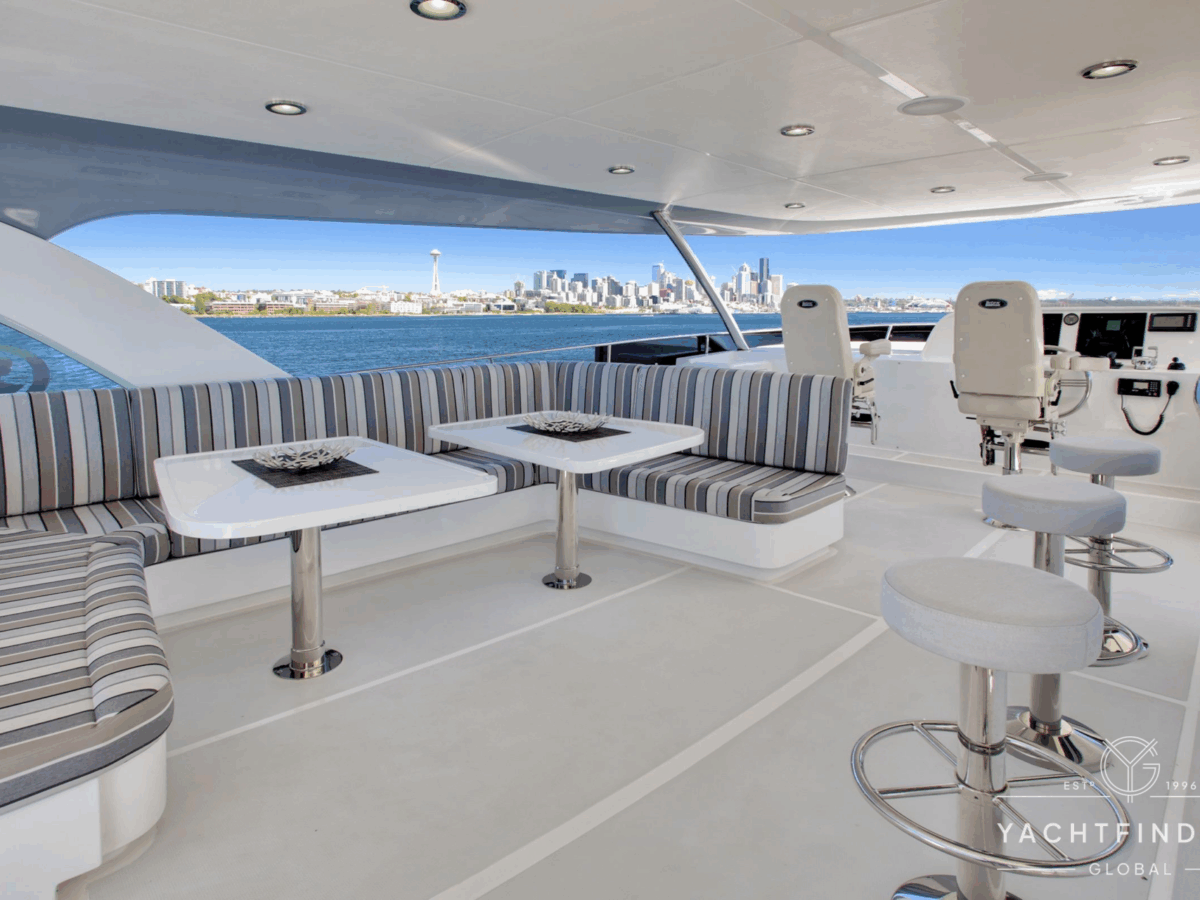

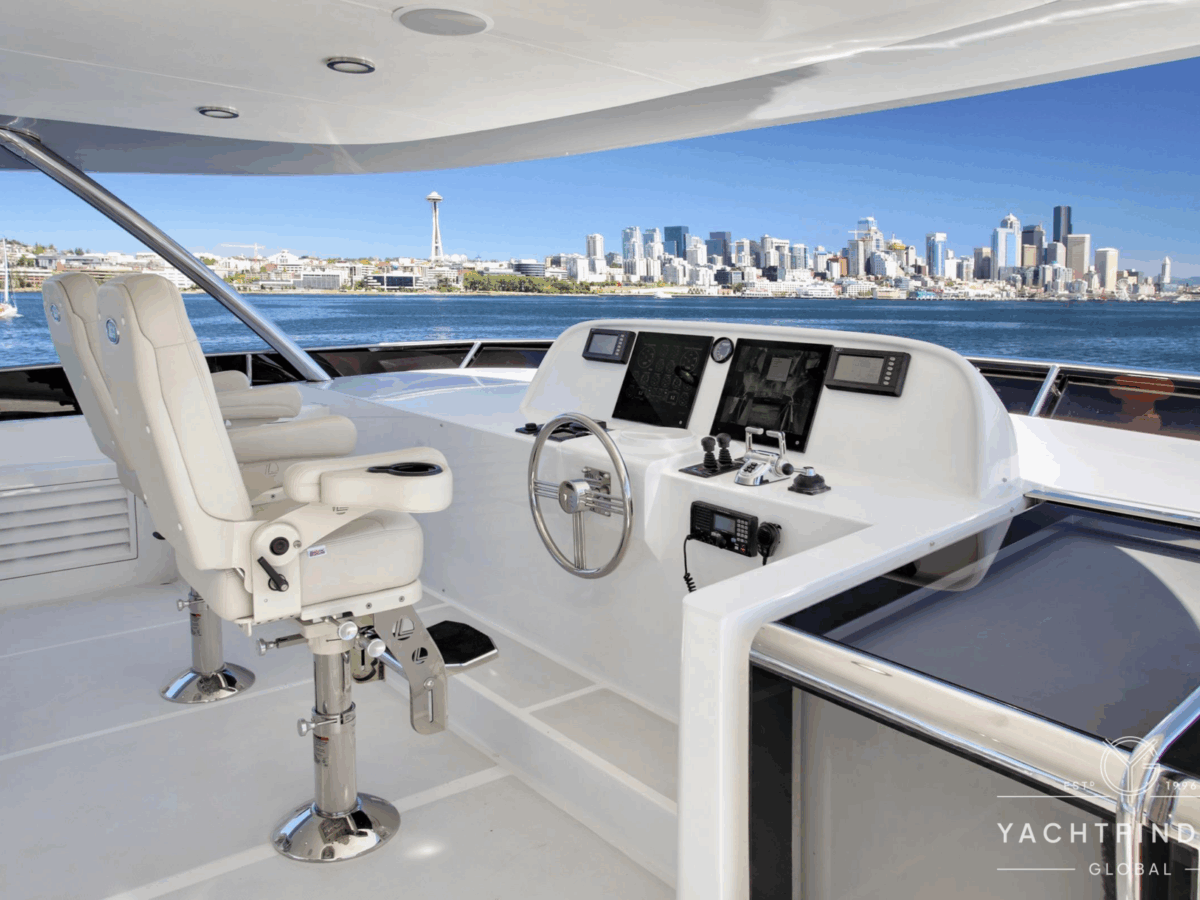

  • Helm station in center w/ console box
  • S/S #316 dia.30″ destroyer type steering wheel
  • S/S #316 grab rail
  • S/S #316 sliding watertight door from F/B to pilothouse
  • FRP locker & BBQ
  • FRP hard top & radar mast
  • Corian integrated wash basin w/ Scandvik folded faucet
  • S/S Selene helm seat ( 2 )
  • Built‐in FRP locker P& S aft of main station for optional remote controls.
  • AFI 24V DC outlet
  • Chart counter top
  • Tinted Plexiglas windscreen w/ S/S #316 bracket
  • Dinghy space on F/B deck
  • FRP L‐shaped settee P&S w/ storage underneath, w/ Sunbrella cushion set.
  • Two FRP tables.
  • Raritan #85B505‐1 ice maker
  • Teak deck on F/B helm station

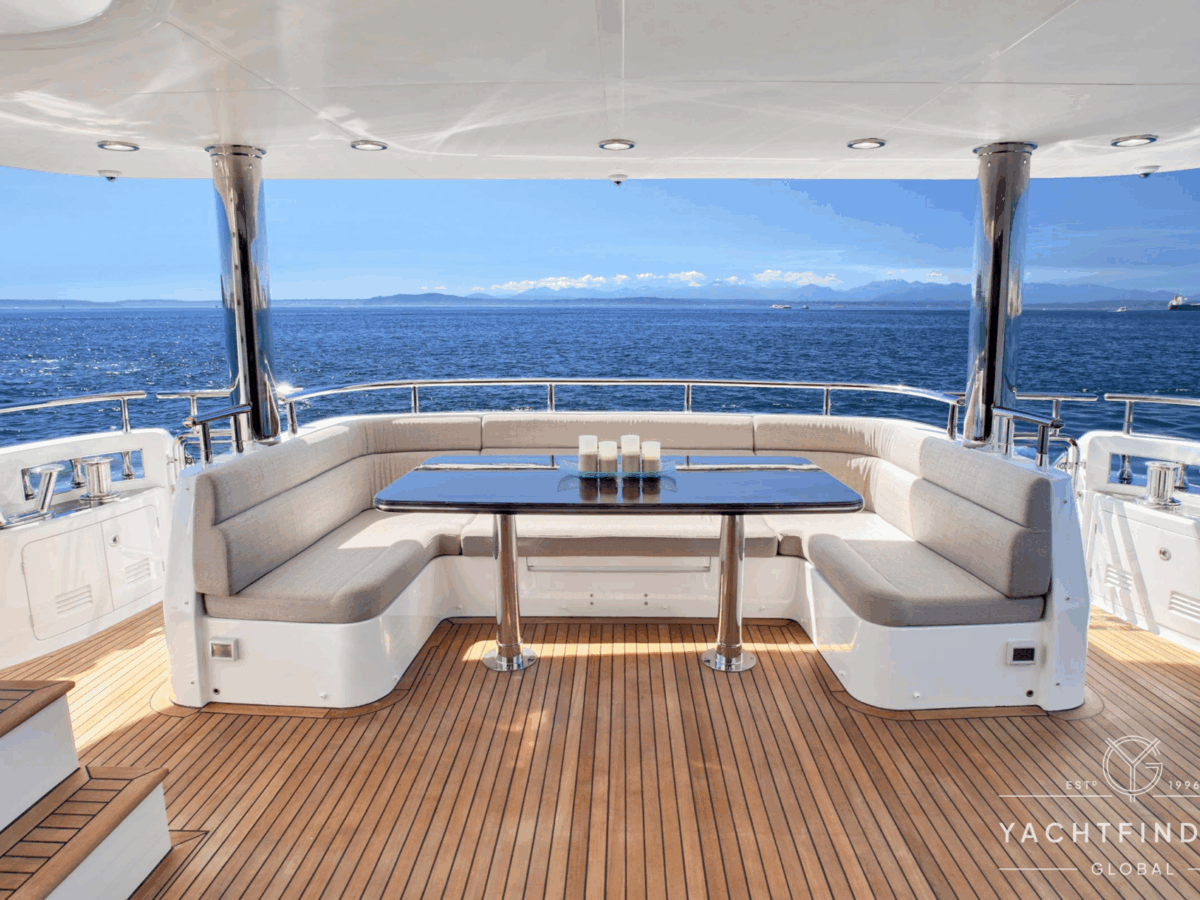

Cockpit




  • FRP settee w/ Sunbrella cushion set.
  • Teak table w/ S/S #316 table pedestal
  • Fresh water deck wash
  • Flojet saltwater wash down pump
  • Dedicated spiral stair to F/B
  • Steps to swim platform integrated.
  • Scandvik transom shower hot / cold fresh water.
  • Teak deck on swim platform, cockpit and side deck, Portuguese bridge

5




  • 316 stainless steel stanchions
  • 316 stainless steel rails around aft stairway to lower deck.
  • FRP bar unit.
  • Scuppers and drainage system for water to lower deck.
  • Storage locker under built‐in settee P & S.

6




  • Light teak or cherry veneer ( straight grain or mountain grain )
  • Schwepper door locks & handles for interior doors
  • Lamp push bottom for all lockers doors & drawers
  • Cantalupi lights system
  • Vimar switch & dimmer
  • Cabin reading lights
  • Solid teak & holly sole w/ teak border
  • Fiberglass ” H ” shaped floor beam
  • Vinyl & EVA foam panels for ceiling lining
  • Drapery for saloon & each stateroom
  • Selected sliding windows w/ tinted tempered glass
  • 2″ latex foam laminates w/ PU foam for all cushion of sofa & berth
  • Granite parquet feature in bathroom

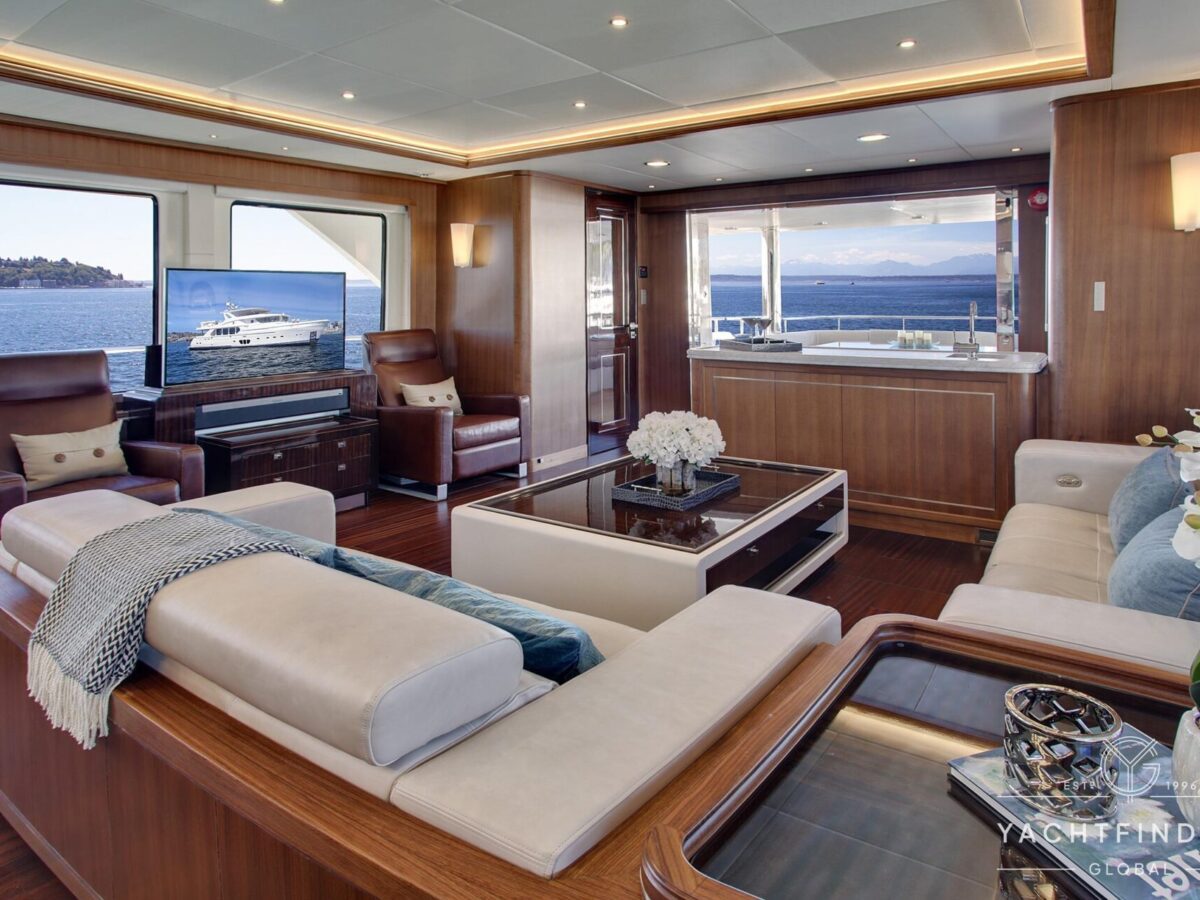

Saloon




  • L‐shaped sofa w/ 5″ foam cushion
  • Storage underneath the sofa
  • Table & corner tables
  • Entertainment center w/ pop‐up TV cabinet
  • Cantalupi dome lights
  • Cabin reading light
  • S/S sliding door for saloon entrance
  • Emergency hatch to engine room
  • Corian or Granite bar counter top
  • Teak or cherry swivel chairs
  • Bamboo blinds w/ drapes
  • Self‐lock window stopper
  • Teak and holly sole on the floor
  • Tundra T‐18 small fridge

Gallery




  • Counter top w/ integral bar
  • Corian or Granite counter top & splash back
  • Franke S/S #316 double sink
  • Single lever swivel type retractable faucet
  • Overhead cabinets
  • Drawers & storage lockers w/ shelves under counter
  • Trash bin w/ lid
  • Cold room compressor w/ temperature control
  • Teak & holy sole

9




  • Liebherr 5056 refrigerator
  • Dishwasher ( Siemens compact) 240VAC
  • Microwave (Siemens 44 litre) 240VAC
  • Stove / LPG commercial galley
  • Franke S/S double sink

10




  • Day head with Tecma 24V DC freshwater toilet
  • Teak and holly sole.
  • Vimar outlet w/ dimmer switch

11




  • Helm station w/ instrument panel
  • Upper console box above steering station
  • Twin Disc electronic engine control
  • Diamond/Sea‐Glaze Dutch doors for P&S side
  • “U” shape seat with a step underneath
  • Sliding chart table w/ drawer
  • S/S #316 or teak stair from pilothouse to F/B
  • Manship S/S #316 hatch‐2
  • Oceanair hatch shade with insert screen privacy blind.
  • Teak overhead grab rail
  • Cantalupi red lights ( 2 )
  • Cantalupi step lights
  • Cantalupi dome lights
  • Daniel Smith chart light
  • Cabin reading lights
  • Teak & holly sole
  • Two Stidd helm chairs

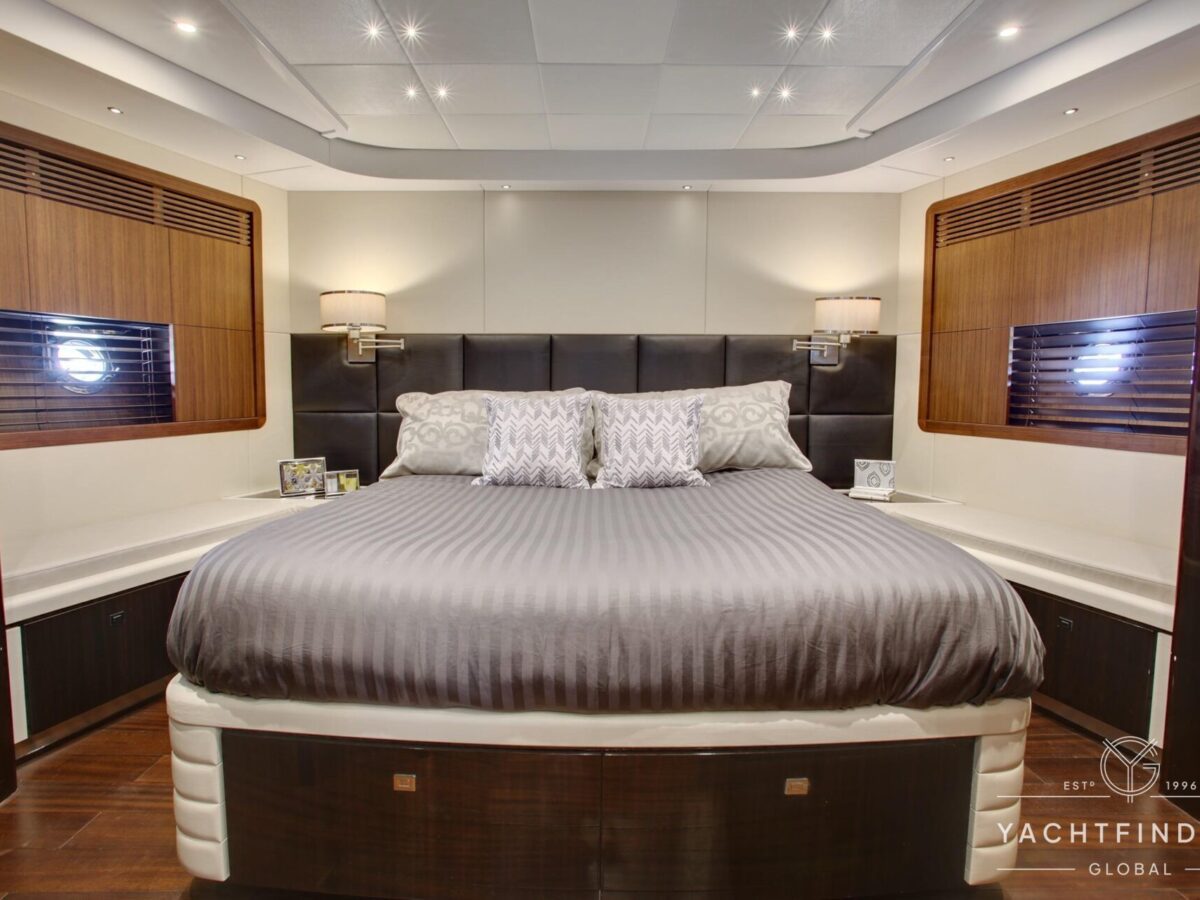

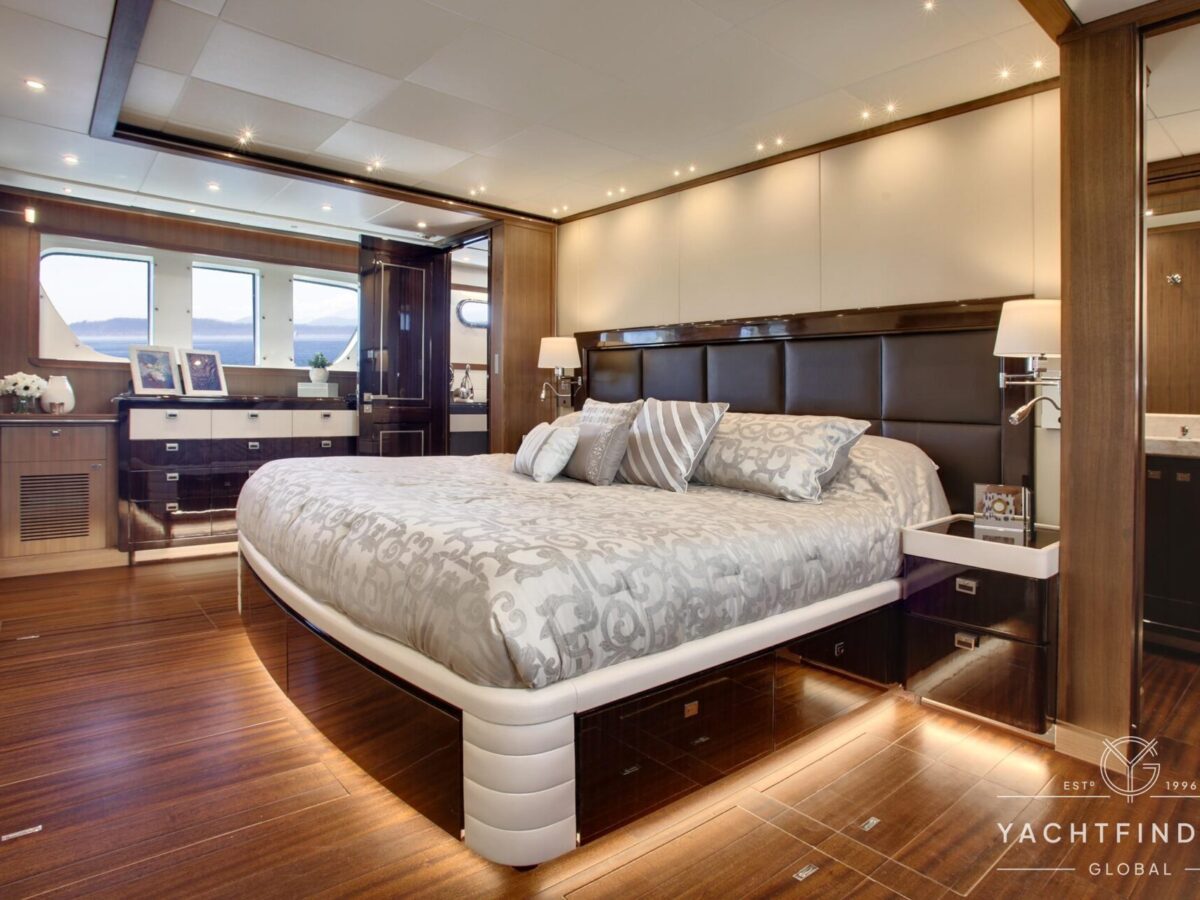

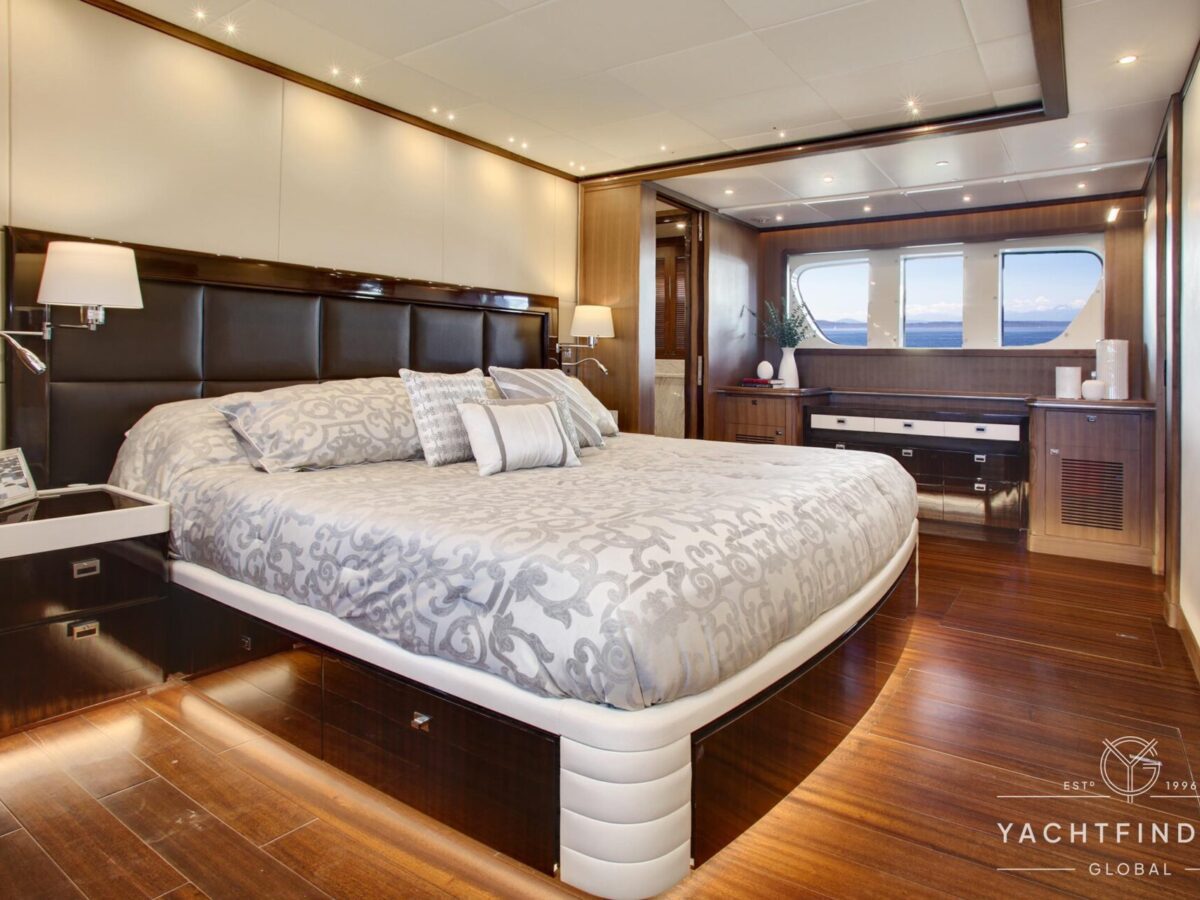

Master Cabin




  • Queen‐size berth w/ 6″ foam mattress
  • Side cabinets & drawer bureaus
  • Full high dressing room
  • Safe located at master stateroom dressing room
  • Sofa at Port master cabin
  • Wardrobe w/ automatic light & aromatic cedar liner
  • TV / video cabinet
  • Teak or Cherry veneer counter top
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Manship S/S #316 opening port lights

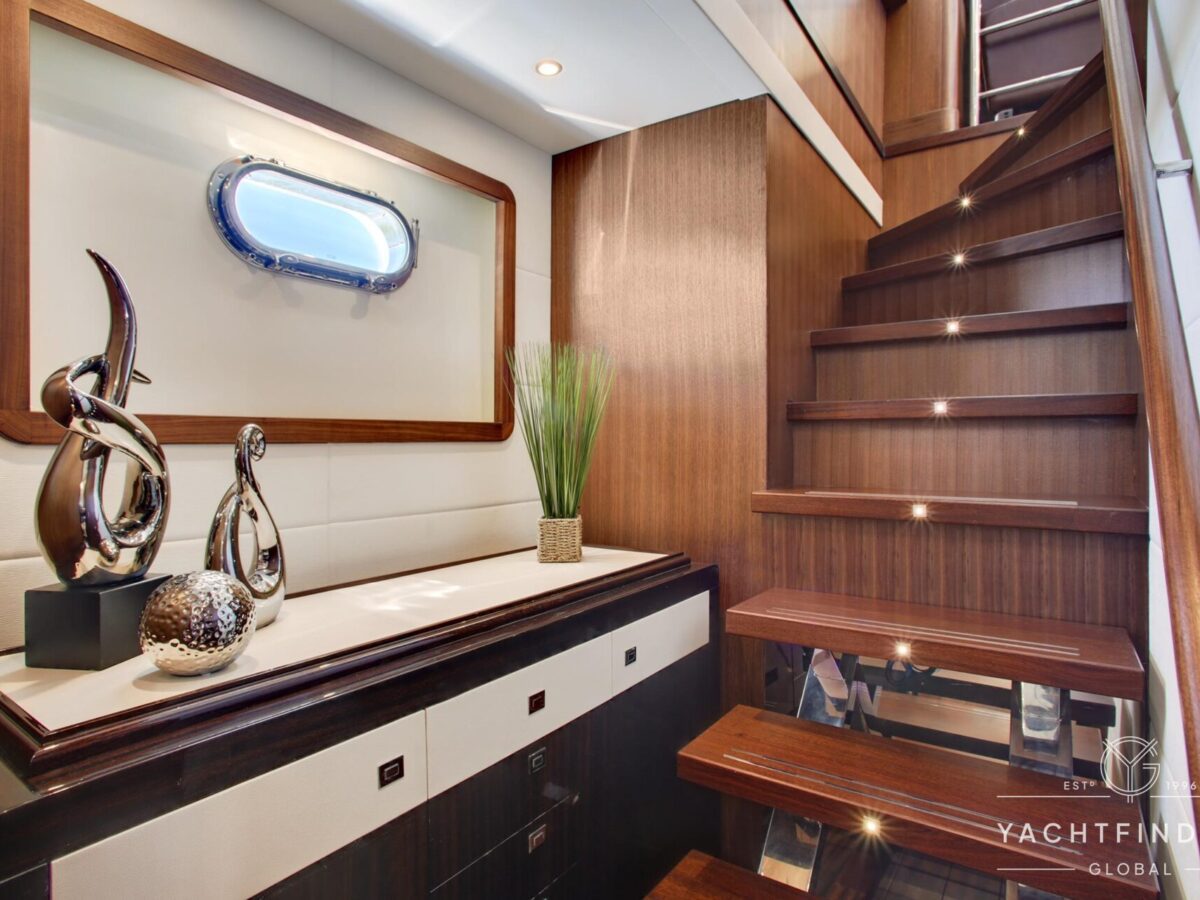

  • Dedicated teak stairway to saloon

13

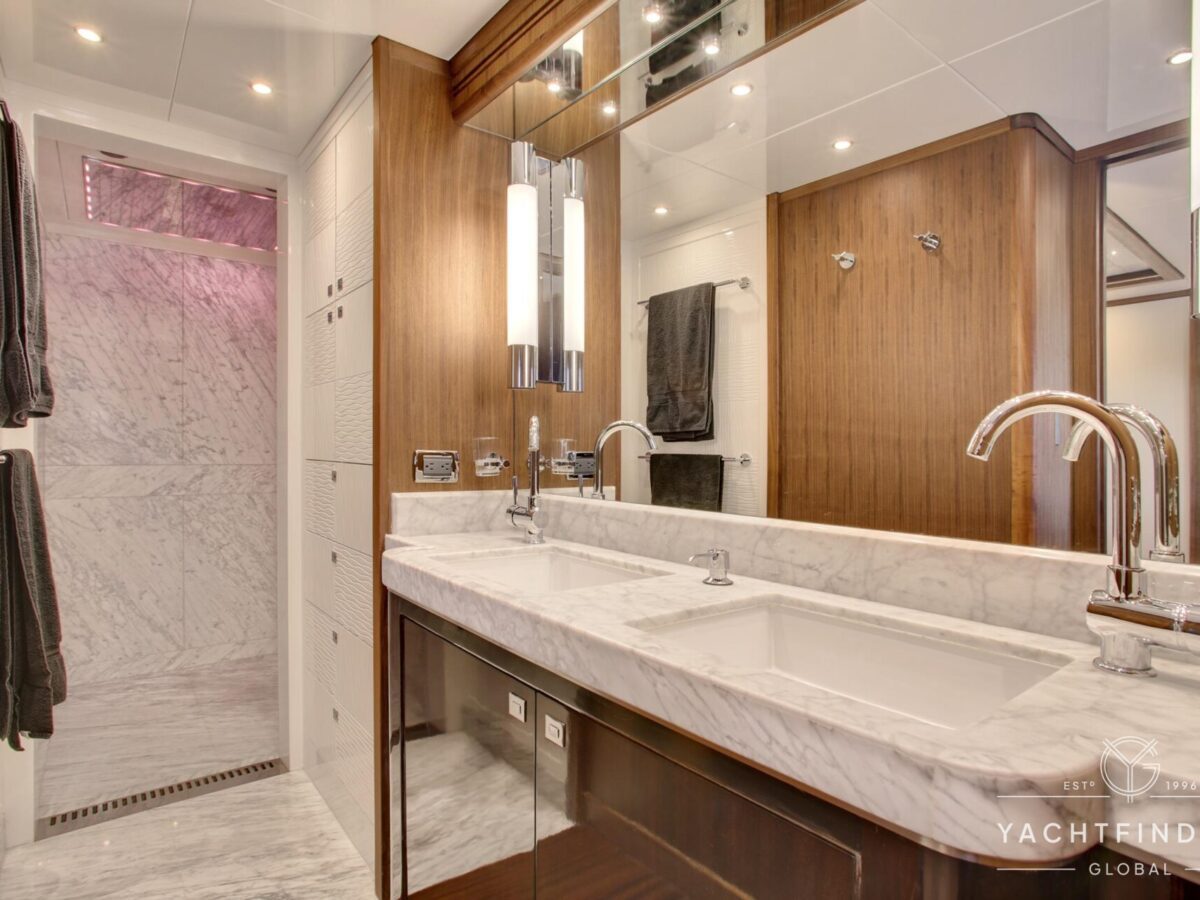

  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish head lining & FRP bulkhead
  • Corian or Granite counter top & splash back
  • Manship S/S #316 opening port lights
  • Vanity unit w/ integral wash basin
  • One piece swing shower door
  • Teak removable grating panel for shower room
  • Single lever hot / cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Vanity mirror w/ teak frame
  • Granite parquet feature on floor
  • Teak or cherry wall

14




  • Queen‐size berth w/ 6″ foam mattress
  • Side cabinets & drawer bureaus
  • Wardrobe w/ automatic light & aromatic cedar liner
  • TV / video recess locker
  • Teak or Cherry veneer counter top
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Manship S/S #316 opening port lights
  • Windline telescopic escape ladder
  • Safe in hanging locker

15


  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish head lining & FRP bulkhead
  • Corian or Granite counter top & splash back
  • Manship S/S #316 opening port lights
  • Vanity unit w/ integral wash basin
  • One piece swing shower door
  • Teak removable grating panel for shower room
  • Single lever hot/cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Vanity mirror w/ teak frame
  • Granite parquet feature on floor
  • Teak grating for shower room
  • Teak or cherry wall

16




  • Twin berth w/ drawer underneath
  • 4″ foam mattress for each berth
  • Teak battens on side ceiling
  • Hanging locker w/ automatic light
  • Overhead cabinet
  • Cabin reading lights
  • Vanity bureau
  • Vanity mirror w/ teak frame
  • Manship S/S #316 opening port lights
  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & splash back
  • Cantalupi dome lights

17




  • Twin berth w/ drawer underneath
  • 4″ foam mattress for each berth
  • Side & front cabinets
  • Wardrobe w/ automatic light & aromatic cedar for the liner
  • Teak or Cherry veneer counter tops
  • Cabin reading lights
  • Cantalupi dome lights
  • Manship S/S #316 opening port lights
  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & splash back
  • Vanity unit w/ integral wash basin
  • One piece swing shower door
  • Teak removable grating panel for shower room
  • Single lever hot / cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Granite parquet feature on floor

18




  • Dedicated access from side deck to captain quarters
  • Big Berth w/ 4″ foam mattress & drawer underneath
  • Hanging locker w/ automatic light & aromatic cedar liner
  • Cantalupi dome lights
  • Cabin reading lights
  • Laundry locker w/ louvered door
  • Teak & holly sole
  • Safe in hanging locker

19




  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Cantalupi dome lights
  • Vanity unit w/ integral wash basin
  • Single lever hot / cold water shower faucet
  • Teak removable grating panel for shower room
  • Granite parquet in bathroom
  • Teak grating for shower room

20




  • Leaf style dining table seats 8 persons
  • Loose chairs‐8
  • Cabinet storage below windows port and starboard
  • Wood/mirror overhead lighting over the dining table area

21




  • Twin Cummins QSM11 610 hp @ 2300rpm marine diesel engines
  • Deluxe engine panel w/ complete instrumentation & alarms at each station.
  • Engine overheat & low oil pressure alarm
  • ZF electronic engine control system at each helm station
  • Amartech stern tube system
  • Amartech rope cutter
  • Amartech rudder
  • Centa marine coupling system
  • Faster NiAlBr 4‐blade propeller
  • Reverso gear driven oil change pump
  • FRP drip pan under engine
  • Hydralift FRP wet box muffler
  • Engine room blowers, dia. 5″ 120/230V AC ( 4 )
  • Full protected FRP rudder w/ S/S #316 dia. 3″ shaft
  • S/S #316 pillars in engine room
  • Fluorescent light for E/R, commissary & lazarette (120V / 230V)
  • Watertight door to engine room

22




  • Teleflex power steering system for two stations
  • Handcrafted teak wheel in pilot house and S/S #316 wheel on F/B
  • Emergency tiller
  • Full protected FRP rudder
  • Central hydraulic reservoir unit

23




  • 240V AC system
  • Onan marine QD 50Hz 40kw MDDCF‐‐‐Cruising genset
  • Onan marine QD 50Hz 13.5kw MDKBP ‐‐‐‐Day genset
  • Switch panel located in P/H, includes dedicated 120 Amp / hr starting battery
  • 200 Amp engine alternator
  • Blue Sea emergency parallel switch
  • Marinco shore power inlets fore & aft
  • Marinco TV & Tel inlet fore & aft
  • AC outlets throughout the boat
  • Newmar integrated galvanic isolator
  • Asko or Bosch separate washer / dryer located adjacent to Master cabin
  • Torrid S/S 30 gallons 120V/ 240V AC dual heating source water heater 2 sets
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters & breakers
  • GFCI outlet in head & F/B
  • Copper bonding strap w/ ground cable attachment for each fitting
  • Mastervolt or equivalent 3 x 24v/100 amp battery charger system
  • Mastervolt or equivalent 3 x 24v/50 amp battery charger system for engine & genset start battery
  • Mastervolt or equivalent 1 x 24v/5000 inverter unit
  • Spare circuit breaker for optional Auto pilot system
  • Raritan icemaker
  • Frigoboat freezer system

24




  • 24V DC system
  • Aqua Signal navigation lights
  • Kahlenberg D‐01A air horn
  • Johnson dual pump 24V DC automatic water pressure system X 2
  • Exalto 24V DC electric wipers for 3 front windshields w/ fresh water wash
  • Rule sump pumps w/ automatic float switches
  • Vision AGM deep cycle batteries for house service‐2400 AMP capacity. engine & generator starting
  • Cantalupi accommodation dome lights
  • Cantalupi step lights for interior & exterior
  • Stereo speakers in master stateroom saloon, flybridge and aft deck area.

Fuel System




  • Two FRP fuel tanks total 4000 US gal, w/ internal baffles, sumps, balancing lines, inspection plates
  • Racor 75/1000Max dual fuel filter / water separator for main engine
  • Racor 900MA fuel filter / water separator for generator
  • Racor USCG & CE certified fuel line hose
  • ESI CFS 100RE fuel polishing system
  • Parker ball valve for fuel system
  • Electric fuel gauge
  • Magnetic sight gauge for each fuel tank
  • Fuel management system
  • Reverso OP700Oil change pump

26




  • Two FRP water tanks, total 700 US gallons
  • One FRP holding tank w/ Y‐valve & Johnson or similar macerator pump, deck discharge outlet & remote full display panel in master bathroom, total capacity 30 US gallons
  • Electric water gauge
  • Water piping system
  • Sea cocks on all through hull fittings with double hose clamps
  • Bronze basket type internal sea water strainer for main engine
  • Rule electric bilge pumps w/ automatic float switch
  • Whale manual bilge pump
  • Status panel w/ warning signal in helm station to warn of bilge pump operation

27




  • Anchor pocket
  • Maxwell VWC4000 hydraulic vertical windlass
  • (2 Units)
  • Maxwell chain stopper
  • S/S #316 self‐launching anchor roller
  • S/S #316 5″ diameter Samson post
  • S/S #316 hawse hole with cleat ( 8 units )
  • Fresh water chain wash down
  • Pilot house & fore deck windlass control switch

28


  • “Marine Fire” fire suppression & air damper system
  • Soundown E/R sound insulation system including damping tile, 3″ sound insulation foam & Aluminum perforated plate
  • Soundown Sylomer strip floating floor
  • International Gel shield primer coating
  • International anti‐foul paint bottom paint
  • International boot top line choice of colors
  • Epifanes interior varnish
  • Engine room FRP flooring
  • Vimar outlet w/dimmer switch
  • Compass
