General


Year: 2024
Price: $POA
Additional Charges: None
Boat Type: Power
Hull Type: Trawler
Location: Auckland
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 66 ft
LOA: 22.1m
Beam: 5.69m
Draft: 1.93m
Displacement: 151,200 lbs

Engines


No. of Engines: 1
Engine Brand: Cummins
Engine(s) HP: 610
Cruising Speed: 9 Knots
Max Speed: 11 Knots

Builder / Designer


Builder: Jet Tern Marine
Designer: Howard Chen

Tankage


Fuel: 12115 Litres
Water: 2005 Litres
Holding: Yes


  • Cook gelcoat for hull, deck, superstructure & non-skid
  • Vinylester resin for the first 5 layers lamination
  • Cymax bi-axis uni-direction stitched roving / mat
  • Taiwan Glass mat
  • Divinycell core sandwich structure for hull side shell, bottom, deck & superstructure
  • Longitudinal stringers & transverse frames system
  • 4 watertight bulkheads ( chain locker, Fwd. E/R, Aft. E/R, lazarette )
  • Hull and deck joint sealed by glue, bolted & laminated with mat and woven roving
  • Integral swim platform with extended hull underneath
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • Integral full protected keel & rudder shoe




  • Manship S/S #316 opening portlights
  • Manship S/S #316 hatches for pilothouse & fwd. stateroom
  • Oceanair hatch shade w/ insert screens
  • Diamond/Sea-Glaze Dutch doors for pilothouse P&S, salon & E/R entrance
  • Taco S/S #316 1-1/2″ solid upper & lower dual fender rails
  • S/S #316 oval shaped hand rail for fore deck & dinghy deck
  • S/S #316 telescope swim ladder
  • S/S #316 dia 2-1/2” aft. deck overhang support posts
  • Aluminum alloy window frames w/ power coated
  • Teak cap rail for Portuguese bridge, side deck & aft. deck
  • S/S #316 bow & stern flag pole socket
  • Teak burgee & flag staffs
  • Freeing port for fore, side & aft. deck
  • Molded inlay pattern non-skid to fore, side, aft, F/B decks & swim platform
  • Portuguese bridge access gate to fore deck
  • After deck side gates, swing in
  • Transom gates, swing in
  • Portuguese side gates, swing out, P&S
  • Storage lockers w/ teak grating inside Portuguese bridge
  • S/S #316 self-lock type exterior gate handle
  • Cantalupi exterior dome lights
  • Cantalupi exterior courtesy lights

Flybridge




  • Helm station in center w/ console box
  • S/S #316 dia. 32″ destroyer type steering wheel
  • S/S #316 grab rail
  • S/S #316 sliding door from F/B to pilothouse
  • FRP BBQ box
  • Polar wash basin
  • Todd helm seat ( 2 )
  • AFI 24V DC outlet
  • Chart counter top
  • Tinted plexiglass windscreen with S/S #316 bracket
  • Dinghy space on the fly bridge deck
  • FRP U-shaped settee w/ storage underneath

Cockpit




  • FRP settee w/ Sunbrella cushion
  • Teak table w/ S/S #316 table pedestal
  • Fresh water deck wash
  • Flojet saltwater wash down pump
  • Dedicated spiral stair to F/B
  • Steps to swim platform
  • Pop-up cleats at swim platform
  • Scandvik transom shower
  • FRP bureau ( can be acted as the 3rd station )




  • Light teak or cherry veneer ( straight grain or mountain grain )
  • Schwepper door locks & handles for interior doors
  • Lamp push button for all locker doors & drawers
  • Cantalupi lights system
  • Vimar switch & dimmer
  • Cabin reading lights
  • Solid teak & holly sole w/ teak border
  • Fiberglass “H” shaped floor beam
  • Vinyl & EVA foam panels for ceiling lining
  • Drapery for saloon and each staterooms
  • Selected sliding windows w/ tinted tempered glass
  • 2″ latex foam laminates w/ PU foam for all cushion of sofa & berth

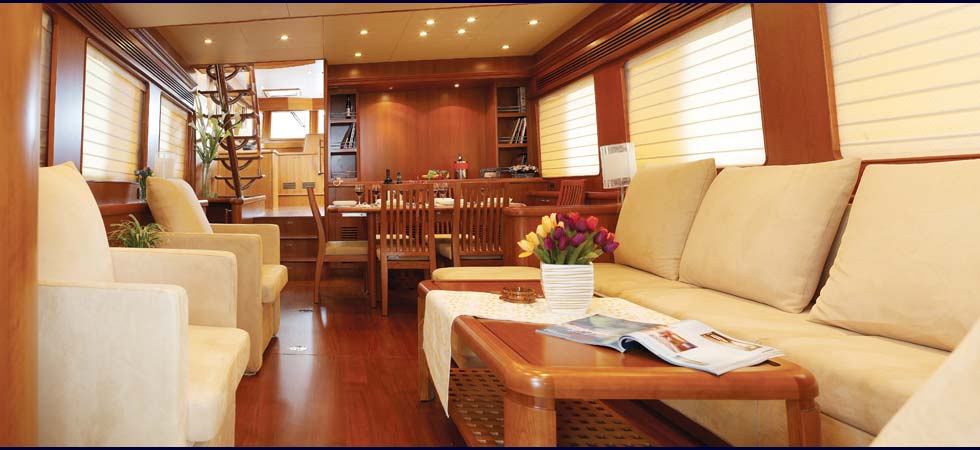

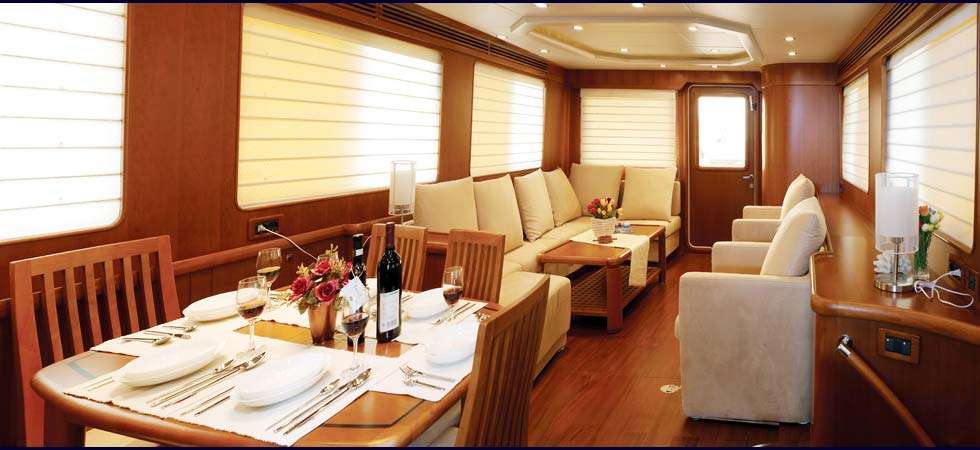

Saloon




  • U-shaped sofa w/ 5″ foam cushion
  • Storage underneath the sofa
  • Table & corner tables
  • Entertainment center w/ TV / video cabinet
  • Cantalupi wall light
  • Cabin reading light
  • Diamond/Sea-Glaze Dutch door for salon entrance
  • Emergency hatch to engine room
  • Corian or Granite bar counter top
  • Teak or cherry swivel chairs w/ 2″ foam cushion
  • Bamboo blinds w/ drapes
  • Self-lock window stopper

Gallery




  • Counter top w/ Integral bar
  • Corian or Granite counter top & back splash
  • Sub-Zero 700TC upright refrigerator
  • Jabsco 24V DC dia. 3” electric exhaust fan above stove
  • Force 10 4-burner propane stove w/ oven & alarm monitor panel set
  • GE microwave w/ built-in exhaust
  • Single lever swivel type faucet
  • Frankie S/S #316 double sink
  • Overhead cabinets
  • Drawers & storage lockers w/ shelves under counter
  • Trash bin w/ lid

8

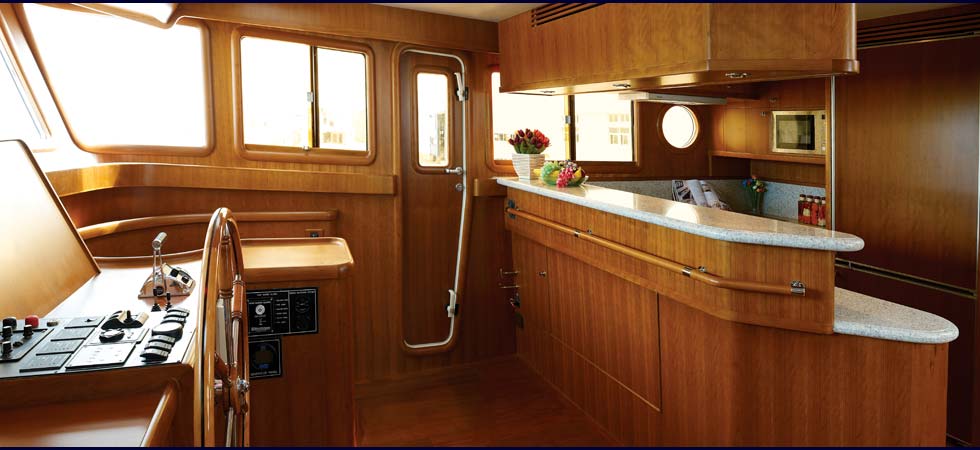

  • Helm station w/ instrument panels
  • Upper console box above steering station
  • Electric engine control
  • Diamond/Sea-Glaze Dutch doors for P&S side
  • Sliding watch berth behind raised seat
  • Chart table w/ drawer
  • S/S #316 or teak stair from pilot house to F/B
  • Raised seat w/ foot rest
  • Manship S/S #316 hatch
  • Oceanair hatch shade w/ insect screen
  • Teak overhead grab rail
  • Cantalupi red lights ( 2 )
  • Cantalupi step lights
  • Cantalupi dome lights
  • Daniel Smith chart lights
  • Cabin reading lights

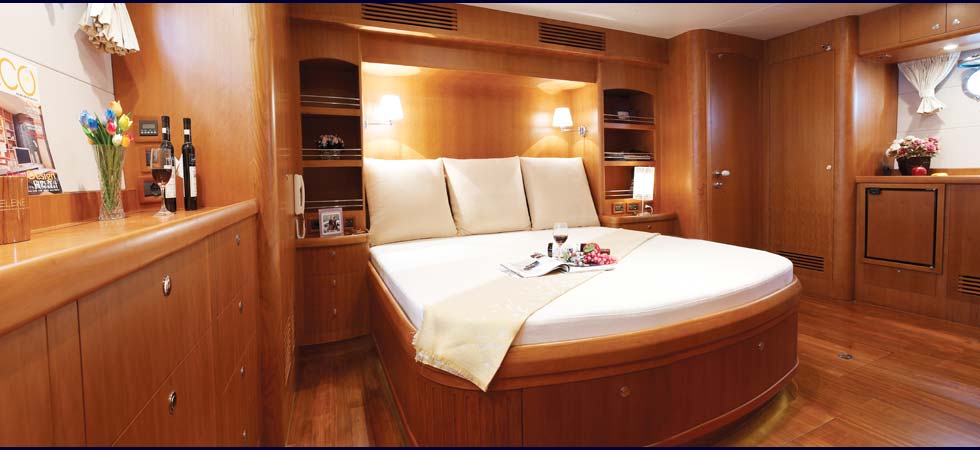

Master Cabin




  • Queen-size berth w/ 6″ foam mattress
  • Side cabinets & drawer bureaus
  • Safe located at master stateroom or office
  • Wardrobe w/ automatic light & aromatic cedar liner
  • TV / video cabinet
  • Teak, Cherry or Granite veneer counter top
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Manship S/S #316 opening portlights
  • Windline telescope escape ladder
  • Dedicated teak stairway to saloon




  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish head lining & FRP bulkhead
  • Corian or Granite counter top & back splash
  • Vanity unit w/ integrated wash basin
  • Itai Aluminum alloy shower door w/ teak removable grating panel
  • Manship S/S #316 opening portlights
  • Single lever hot / cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Vanity mirror w/ teak frame
  • Granite floor w/ stainless steel divider ( or teak & holly floor with teak boarder )
  • Teak removable grating for shower room

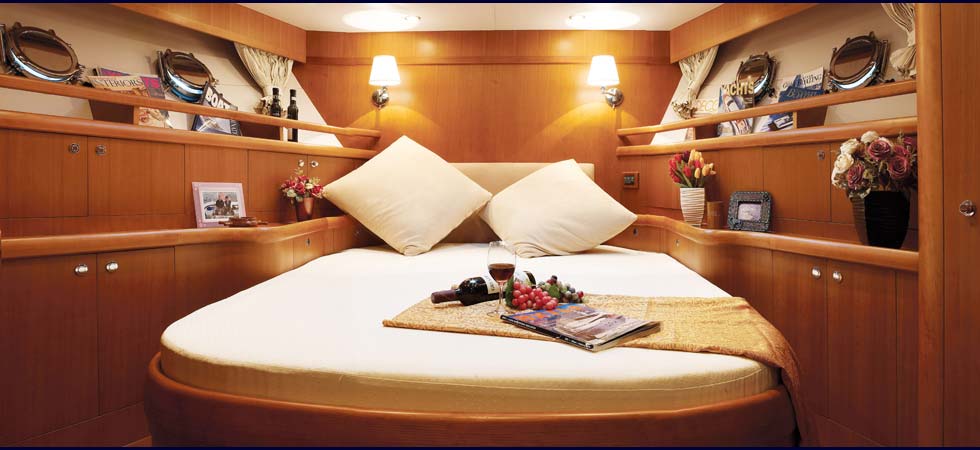

Cabins




  • Queen-size berth w/ 5″ foam mattress
  • Side cabinets & drawer bureaus
  • Wardrobe w/ automatic light & aromatic cedar for the liner
  • TV cabinet
  • Teak or Cherry veneer counter top
  • Cabin reading lights
  • Cantalupi dome lights
  • Windline telescope escape ladder
  • Manship S/S #316 hatch
  • Manship S/S #316 opening portlights with storm cover




  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & back splash
  • Cantalupi dome lights
  • Itai Aluminum sliding shower door
  • Manship S/S #316 opening portlights
  • Teak removable grating panel for shower room
  • Vanity unit w/ mirror
  • Itai Aluminum sliding shower door
  • Teak removable grating panel for shower room
  • Single lever hot / cold water shower faucet
  • Medicine cabinet w/ mirror door
  • Granite floor w/ stainless steel divider ( or teak & holly floor w/ teak border )




  • Teak battens on side ceiling

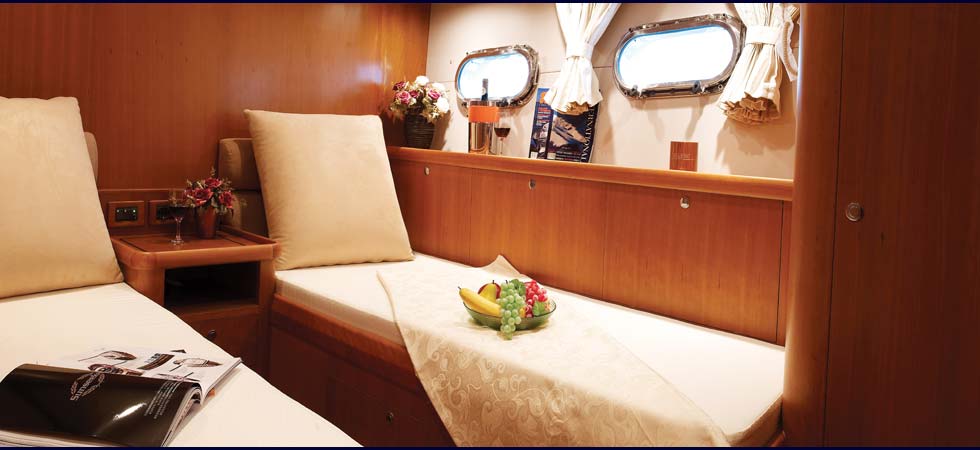

  • Twin berth w/ drawer underneath
  • Book shelves
  • 5″ foam mattress for each berth
  • Hanging locker w/ automatic light
  • Overhead cabinet at port side
  • Cabin reading lights
  • Vanity bureau
  • Vanity mirror w/ teak frame
  • Manship S/S #316 opening portlights




  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC 3″ exhaust fan
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & back splash
  • Cantalupi dome lights
  • Itai Aluminum sliding shower door
  • Manship S/S #316 opening portlights
  • Teak removable grating for shower room
  • Vanity unit w/ integral wash basin
  • Medicine cabinet w/ mirror door
  • Single lever hot / cold water shower faucet
  • Granite floor w/ stainless steel divider ( or teak & holly floor w/ teak border )




  • Dedicated access from side deck to crew quarters
  • Bunk w/ 4″ foam mattress & drawer underneath
  • Hanging locker w/ automatic light & aromatic cedar liner
  • Cantalupi dome lights
  • Cabin reading lights
  • Book shelf
  • Overhead locker
  • Laundry lockers w/ louvered door




  • Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Formica finished ceiling lining & FRP bulkhead
  • Corian or Granite counter top & back splash
  • Cantalupi dome lights
  • Vanity unit w/ integral wash basin
  • Single lever hot / cold water shower faucet
  • Teak removable grating panel for shower room




  • Single Engine Cummins QSM11 610HP@2300RPM
  • Electric engine control system at each helm station
  • Deluxe engine panel w/ complete instrumentation & alarms
  • Engine overheat & low oil pressure alarm
  • Aqua #22 propeller shaft ( dia. 3″=76.2mm )
  • PYI dripless shaft seal
  • Faster NiAlBr 4 blade propeller
  • Reverso gear driven oil change pump
  • FRP drip pan under engine
  • Hydraulift FRP wet box muffler
  • Engine room blowers dia. 5″ 120/230V AC ( 4 units )
  • Full protected FRP rudder w/ S/S #316 dia. 2-1/2″ shaft
  • S/S #316 pillars in engine room
  • Fluorescent light for E/R, commissary & lazarette
  • Watertight door to engine room




  • Hynautic hydraulic steering system for two stations
  • Handcrafted teak wheel in pilot house and S/S #316 wheel on F/B
  • Emergency tiller
  • Full protected FRP rudder

19




  • 120V AC or 240V AC system
  • One Northern Lights 20Kw. generator w/ sound shield, muffler and remote start switch panel located in P/H, includes dedicated 120 Amp / hr starting battery
  • Delco 105 Amp engine alternator
  • Heart Pathmaker emergency parallel switch
  • Marinco shore power inlets
  • Marinco TV & Tel inlet
  • Hubbell AC outlets throughout the boat
  • Newmar integrated galvanic isolator
  • Asko separated washer / dryer
  • Torrid S/S 30 gallons 120V/ 240V AC dual heating source water heater
  • AC/DC control panel w/ polarity indicator light, appropriate switches, meters & breakers
  • Hubbell GFCI outlet in head & flybridge
  • Copper bonding strap w/ ground cable attachment for each fitting
  • 3-bank 120V/240V AC battery charger system
  • Mastervolt or equivalent 3-bank 120V or 240V AC battery charger unit
  • Spare circuit breaker for optional Auto pilot system

20




  • 24V DC system
  • Maxwell HWVC 3500 windlass w/ up/down switches at foredeck & each helm stations
  • Aqua Signal navigation lights
  • Kahlenberg air horn
  • Exalto electric wipers for 3 front windshields w/ fresh water wiper wash
  • Groco automatic water pressure system
  • Rule sump pumps w/ automatic float switches
  • Vision AGM deep cycle batteries for house service, engine & generator starting
  • Cantalupi accommodation dome lights
  • Cantalupi step lights for interior & exterior
  • Stereo speakers in stateroom

Fuel System




  • Two FPR fuel tanks w/ internal baffles, sumps, balancing lines, inspection plates, total capacity 3,200 US gallons
  • Racor 75/1000 Max dual fuel filter / water separator for main engine
  • Racor 900MA fuel filter / water separator for generator
  • ESI fuel polishing system
  • Racor USCG & CE certified fuel line hose
  • Parker ball valve for fuel system
  • Electric fuel gauge
  • Magnetic fuel sight gauge for each fuel tank
  • Fuel management system

Plumbing System




  • Plastic water piping system
  • Electric water gauge
  • Two FRP water tanks w/ shut off valve, total capacity 530 gallons
  • One FRP 170 gallons holding tank w/ Y-valve & Jabsco macerator pump, deck discharge outlet & remote full display panel in master head
  • Sea cocks on all through hull fittings with double hose clamps
  • Bronze basket type internal sea water strainer for main engine
  • Rule electric bilge pumps w/ automatic float switch
  • Whale manual bilge pump
  • Status panel w/ warning signal in helm station to warn of bilge pump operation

23




  • FRP bow pulpit with chain wash dam
  • Maxwell HWVC 3500 24V DC electric horizontal windlass with capstan
  • Maxwell chain stopper
  • Maxwell chain meter
  • S/S #316 self-launching anchor roller
  • S/S #316 5″ diameter Samson post
  • S/S #316 hawse hole with cleat ( 8 units )
  • Fresh water chain wash down
  • Pilot house & fore deck windlass control switch

24


  • Soundown E/R sound insulation system including damping tile, 3″ sound insulation foam & Aluminum perforated plate
  • International anti-fouling bottom paint
  • Soundown Sylomer strip floating floor
  • International Gelshield primer coating
  • International boot top line
  • Epifanes interior varnish
  • Optional Awlgrip hull PU paint
  • Optional Mastervolt transformer
  • Optional Sidepower 25hp hydraulic bow & stern thruster
  • Optional Maxwell electrical capstan at cockpit
  • Optional Stidd helm seat 500 series
  • Optional Nutone central vacuum system
  • Optional Maxwell electrical capstan
  • Optional Stidd helm seat 500 series
  • Optional Raritan icemaker
  • Optional Nutone central vacuum system
  • Optional Broadwater 4-burner propane stove
  • Engine room FRP flooring
