Year: 2024
Price: US$1,319,760
Additional Charges: Plus GST, Duty & Freight
Boat Type: Power
Hull Type: Trawler
Location: Auckland
Engine/Fuel: Diesel
Hull Material: GRP


Length: 54 ft
LOA: 18.24 m
LWL: 15.93 m
Beam: 5.08 m
Bridge Clearance: 7.7 m
Displacement: 43.5 Tons


No. of Engines: 1 or 2
Engine Brand: Cummins or John Deere
Engine(s) HP: 260 hp
Cruising Speed: 9 knots
Max Speed: 11 knots

Builder / Designer

Builder: Jet Tern Marine
Designer: Howard Chan


Fuel: 5,677 Liters
Water: 1,514 Liters
Holding: 2,794 Liters


  • Cook gelcoat for hull, deck, superstructure and non-skid
  • Vinylester resin for the first five layers of lamination
  • Bi-axis uni-direction stitched roving/mat
  • Glass mat
  • Divinycell core sandwich structure for hull side shell and superstructure
  • Longitudinal stringers and transverse frames system
  • Five watertight bulkheads ( chain locker, fwd. E/R, after E/R, lazarette )
  • Collision locker
  • Hull and deck joint sealed by glue bolted and laminated with mat and woven roving.
  • Integral swim platform with extended hull underneath
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • Integral fully protected keel and rudder shoe
  • Hand-laid FRP single-skin hull bottom


  •  Manship S/S #316 opening portlights with safety covers
  • Manship S/S #316 hatches for pilothouse and fwd. stateroom
  • Diamond/Sea-Glaze Dutch doors for pilothouse P&S, salon and E/R entrance
  • Taco S/S #316 solid upper and lower dual fender rails
  • Oceanair hatch shade w/ insert screen
  • S/S #316 handrail for fore deck and dinghy deck
  • S/S #316 telescope swim ladder
  • S/S #316 dia 2-1/2″ aft. deck overhang support posts
  • Aluminium alloy window frames w/ powder coated
  • Teak cap rail for side deck and aft. deck
  • S/S #316 bow and stern flag pole socket
  • Teak burgee and flag staff
  • Freeing port for fore, side and aft. deck
  • Moulded inlay pattern non-skid to fore, side, aft, flybridge decks and swim platform
  • Portuguese bridge access gate to the foredeck
  • After the deck side gates
  • Transom gates swing-out
  • Portuguese bridge access gate to foredeck
  • Storage lockers inside the Portuguese bridge
  • S/S #316 self-lock type exterior gate handles
  • Cantalupi exterior dome lights
  • Cantalupi exterior courtesy lights
  • Internal settee w/ cushion moulded into front or Portuguese bridge
  • International anti-fouling bottom paint ( Tin free )
  • International Gelshield primer coating
  • Awlgrip boot top-line

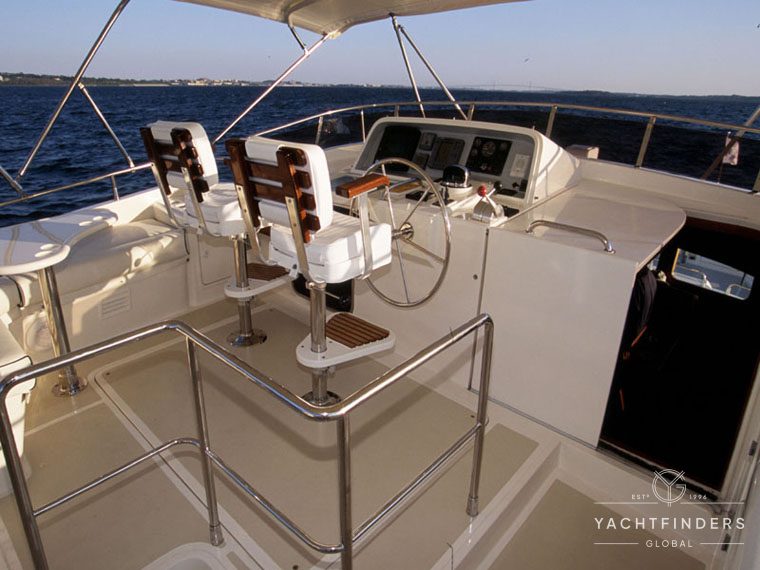

  •  Helm station in centre w/ console box
  • S/S #316 destroyer type steering wheel
  • S/S #316 grab rail
  • FRP sliding watertight door from flybridge to pilothouse
  • FRP BBQ cabinet
  • Polar washbasin w/ Scandvik folded faucet
  • Forespar Aluminum alloy hinged mast and boom ( or FRP radar arch )
  • AFI 24V DC outlet
  • Todd helm seat
  • Drink well w/ FRP lid
  • Chart countertop
  • Tinted plexiglass windscreen with S/S #316 bracket
  • Dinghy space on the flybridge deck
  • Optional hydraulic davit available for lift
  • Table and settee with storage underneath


  •  Dedicated spiral stair to flybridge with S/S #316 handrail or cabinet instead
  • Scandvik transom shower
  • FRP hatch to lazarette w/ S/S #316 ladder

  • Light teak ( straight grain or mountain grain )
  • Schweppes door locks and handles for interior doors
  • Lamp positive latching for all locker doors and drawers
  • Cantalupi lights system
  • Cabin reading lights
  • Solid teak and holly sole w/ teak border
  • Fiberglass “I” shaped floor beam
  • Vinyl and EVA foam panels for ceiling lining
  • Draperies for the saloon and each stateroom
  • Selected sliding windows with/ tinted tempered glass
  • Vimar switches
  • Epifanes one part varnish for interior

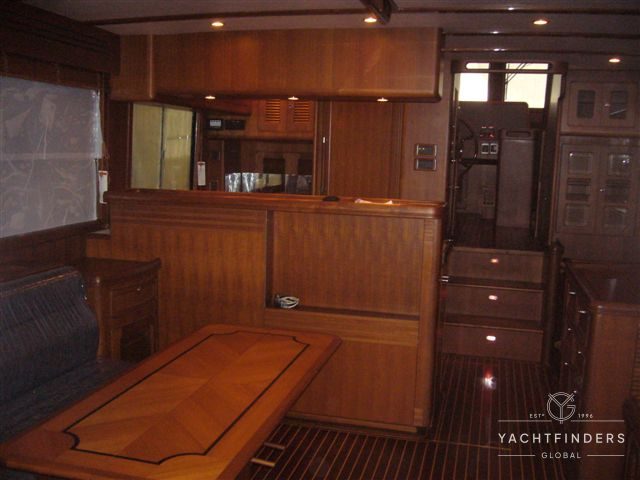

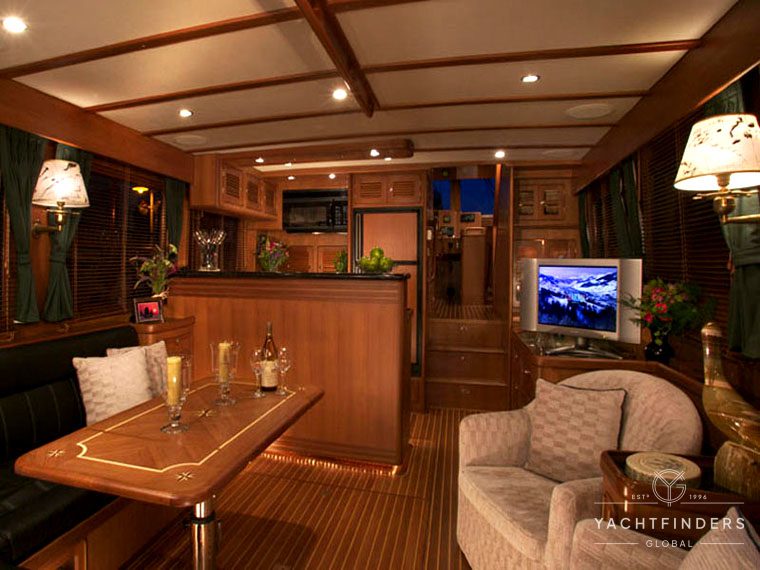

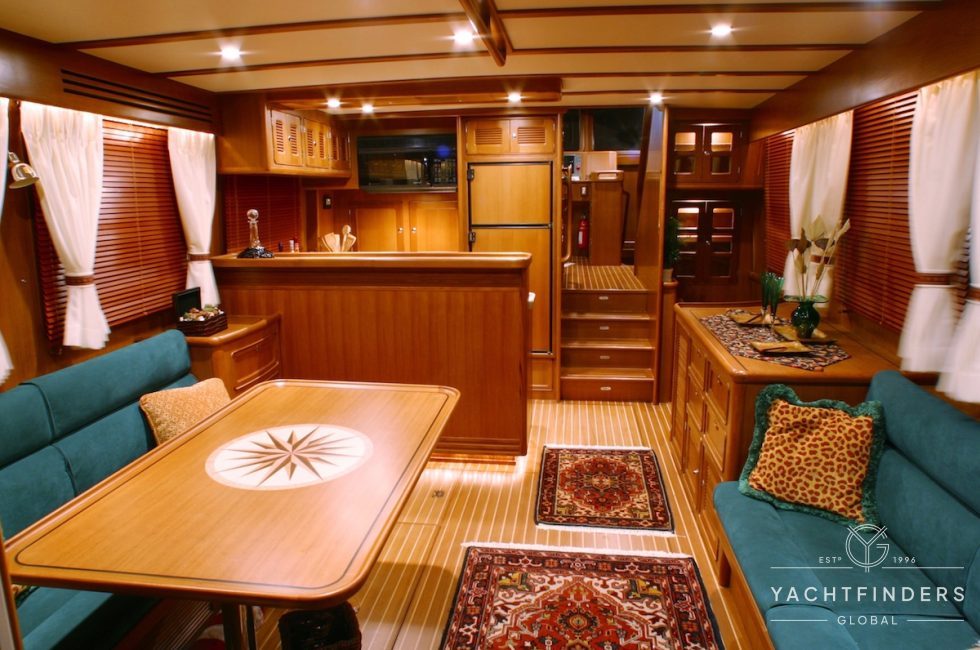

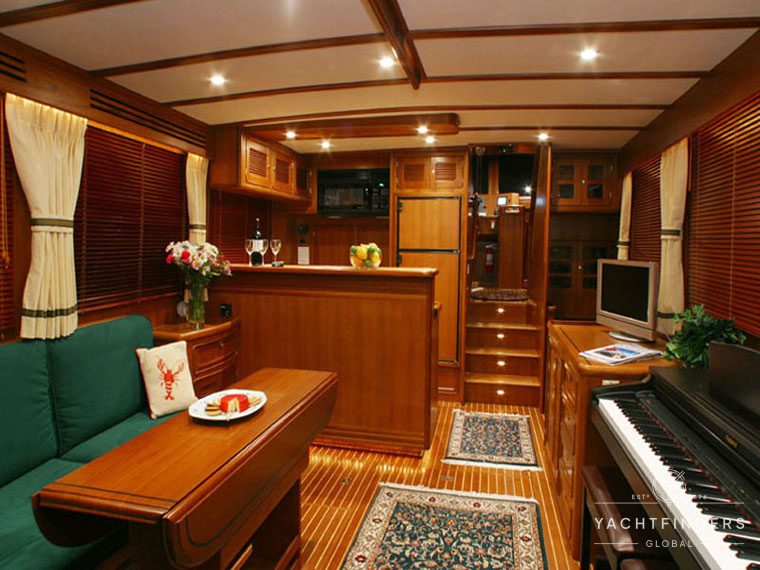

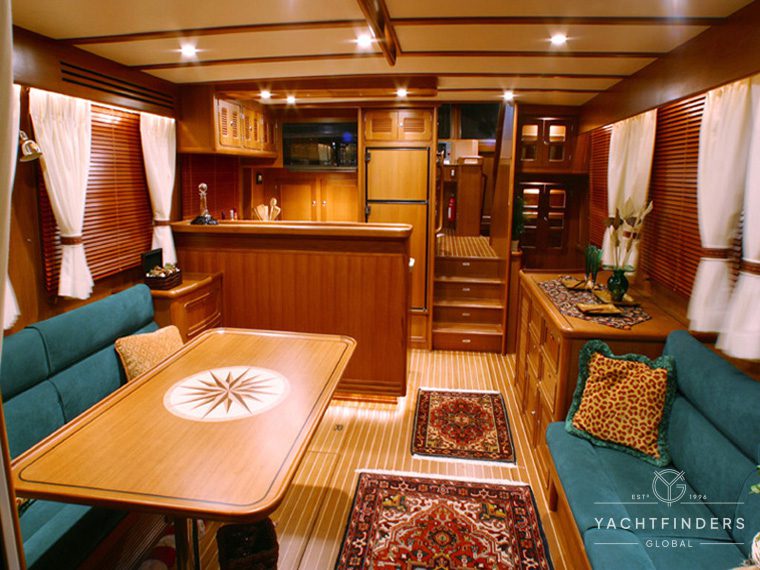

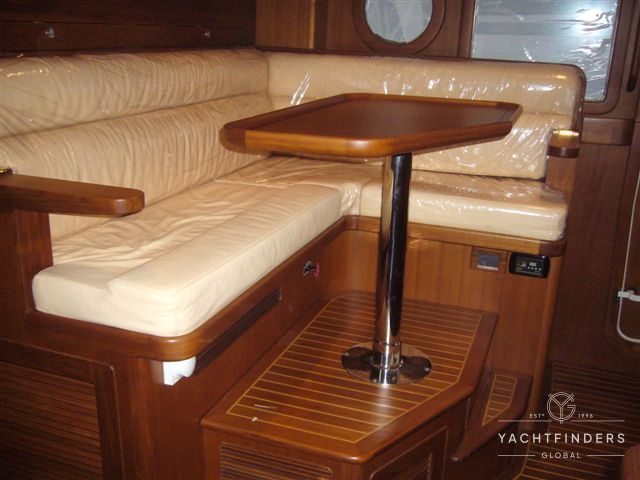

  •  L-shaped settee w/ 5″ foam cushion
  • Storage underneath the settee

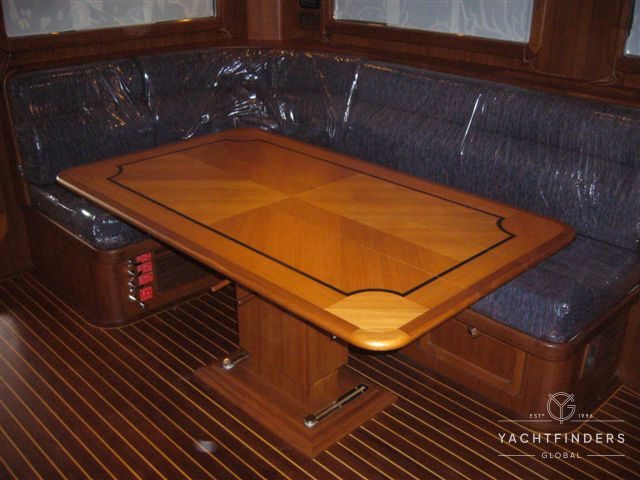

  • Hi-lo fold-up dining table
  • Entertainment centre for TV and sound system
  • Emergency hatch to engine room
  • Cantalupi dome lights
  • Cabin reading light
  • Diamond/Sea-Glaze Dutch door for salon entrance
  • Corian or Granite countertop
  • Exposed roof beams w/ wood caps
  • Teak overhead grab rail
  • Bamboo blinds w/ draperies
  • Self-lock window stopper

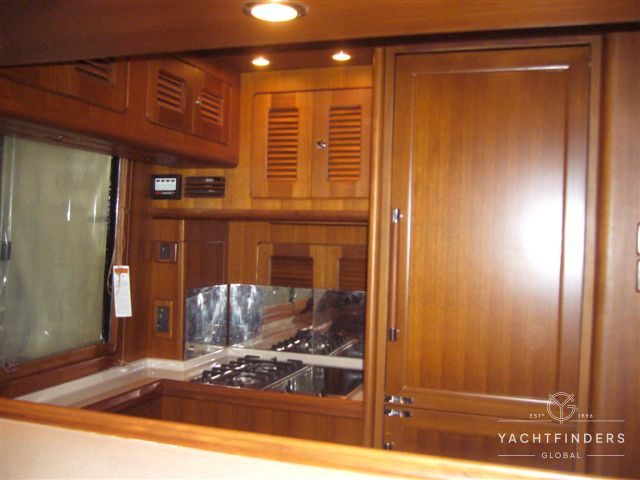

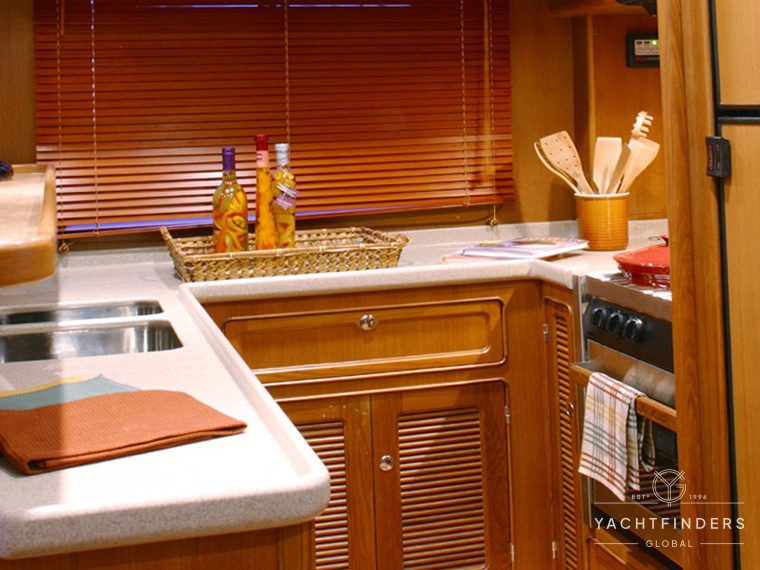

  •  Countertop w/ Integral bar

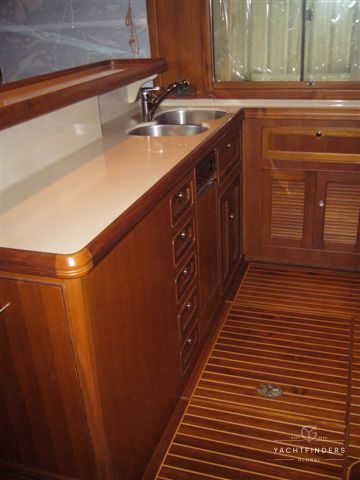

  • Corian or Granite countertop and backsplash
  • Sea Freeze DC/AC refrigerator ( JT28 )
  • Jabsco 24V DC dia. 3″ electric exhaust fan above the stove
  • Force 10 3-burner propane stove w/ alarm monitor panel set
  • GE microwave w/ built-in exhaust as an option
  • Overhang cabinet with wine glass storage
  • Grohe single lever swivel type faucet

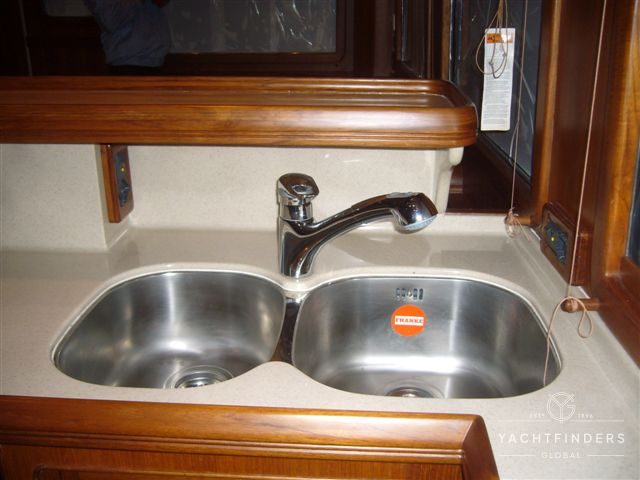

  • S/S #316 double sink
  • Drawers and storage lockers under the counter
  • Trash bin

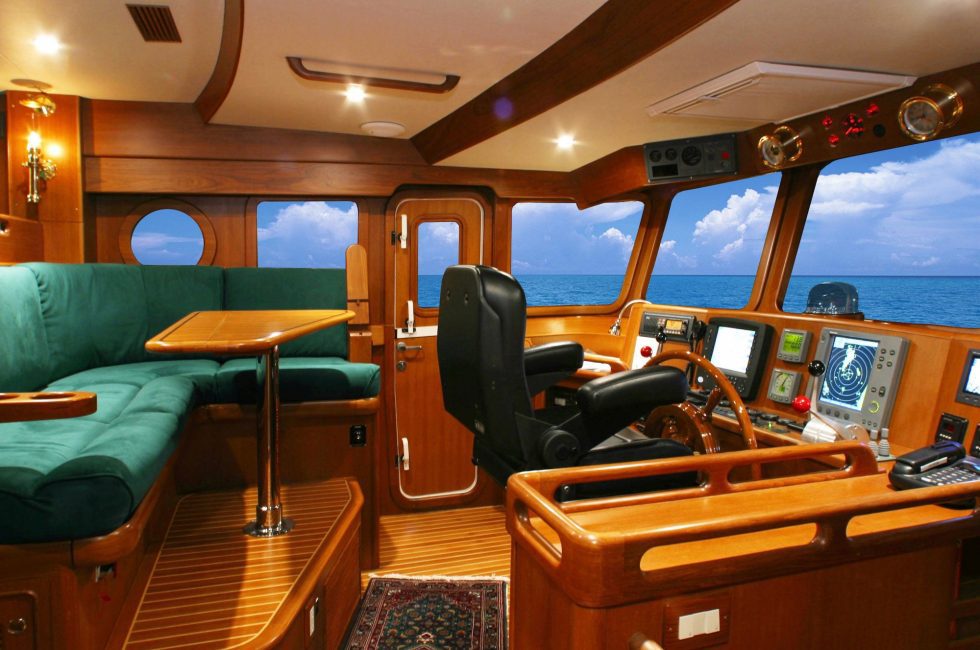

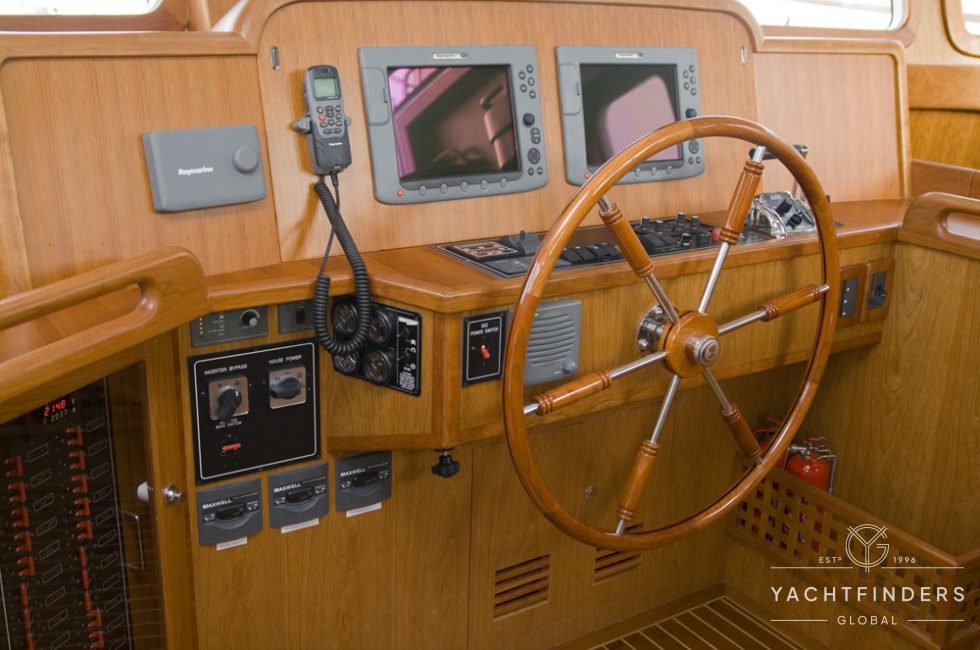

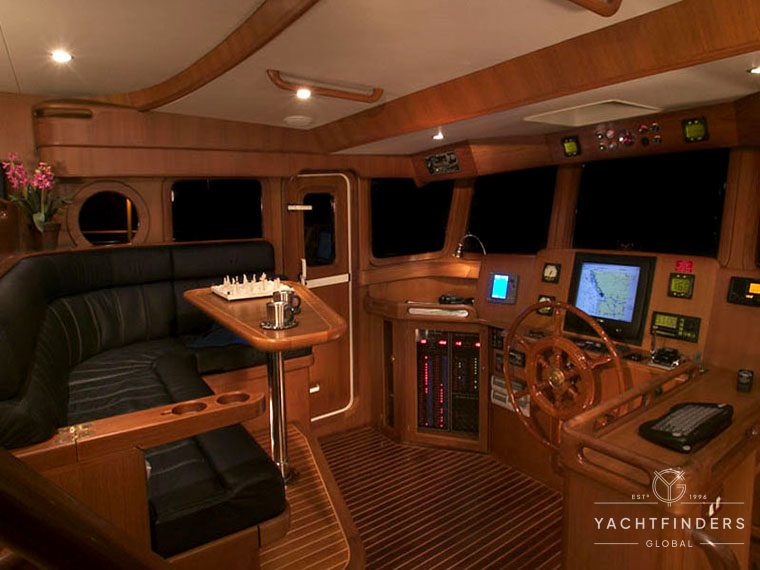

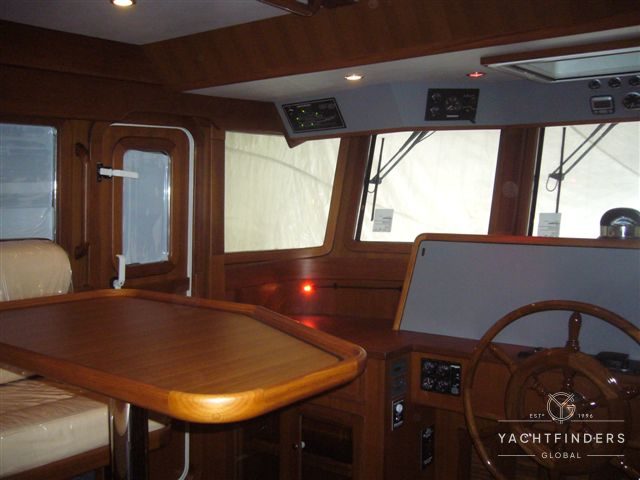

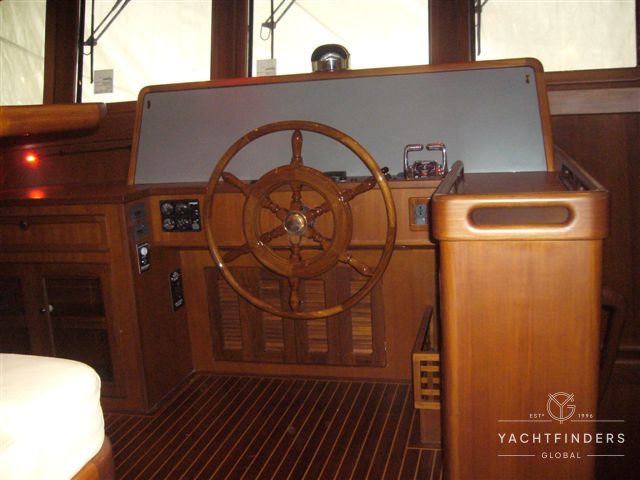

  • Helm station w/ instrument panels
  • Upper console box above steering station
  • Electronic engine control system
  • Hi-seat w/ footrest and table – providing a near panoramic view
  • Diamond/Sea-Glaze Dutch doors for P&S side

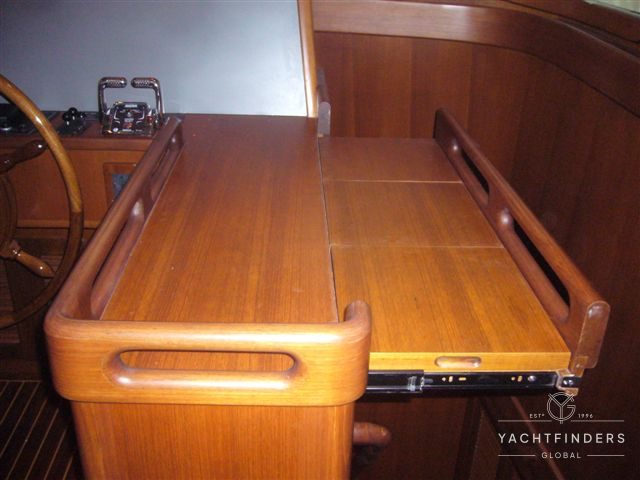

  • Sliding chart table w/ drawer
  • Sliding watch berth behind hi-seat
  • Dedicated teak stair from the pilothouse to F/B
  • Cantalupi dome lights
  • Cantalupi step lights
  • Daniel Smith chart lights
  • Cabin reading lights
  • Teak overhead grab rails

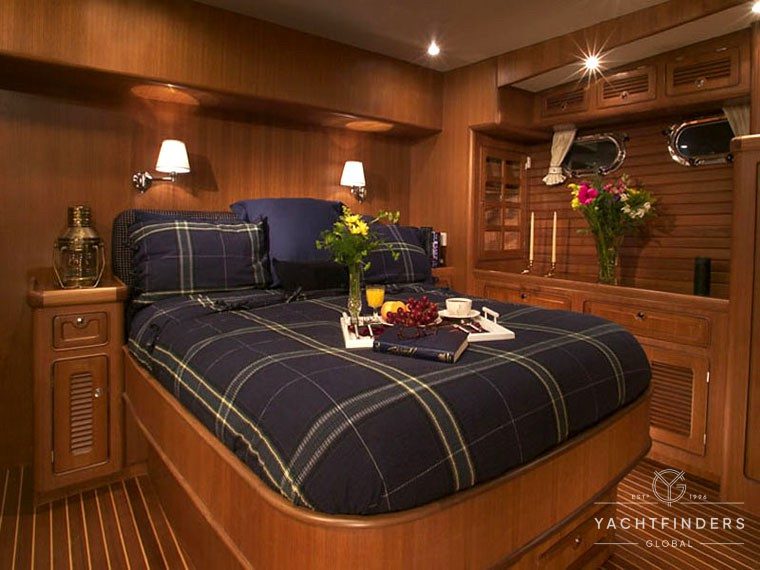

Master Cabin

  • Queen-size berth w/ 6″ foam mattress
  • Side cabinets and bureau drawers
  • Cedar-lined wardrobe with/ automatic light
  • TV cabinet
  • Wood veneer countertop
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Mirror w/ teak frame
  • Manship S/S #316 opening portlights

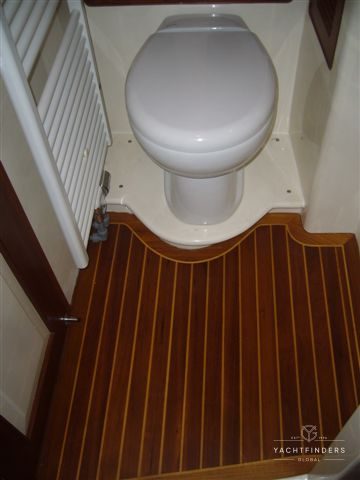

  •  Tecma 24V DC freshwater toilet
  • Jabsco 24V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish headlining and FRP bulkhead
  • Corian or Granite countertop and backsplash

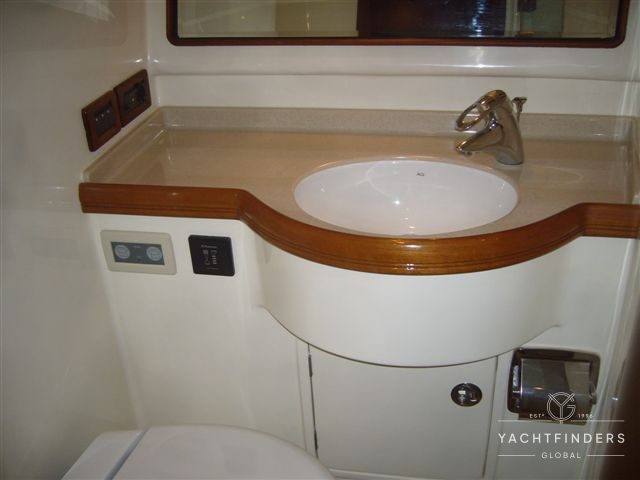

  • Vanity unit w/ integrated wash basin
  • Tempered clear glass sliding shower door
  • Mirror w/ teak frame
  • Grohe single lever hot/cold water shower faucet
  • Medicine cabinet
  • Shower room w/ teak removable grating panel
  • Granite floor ( or teak and holly floor with teak border)
  • S/S #316 tissue paper holder
  • Manship S/S #316 opening portlights

Vip Cabin

  • Queen-size berth w/ 5″ foam mattress
  • Front and side cabinets
  • Hanging lockers w/ automatic light
  • Wood countertop
  • Cabin reading lights
  • Cantalupi dome lights
  • Windline telescope escape ladder
  • Manship S/S #316 hatch
  • Manship S/S #316 opening portlights

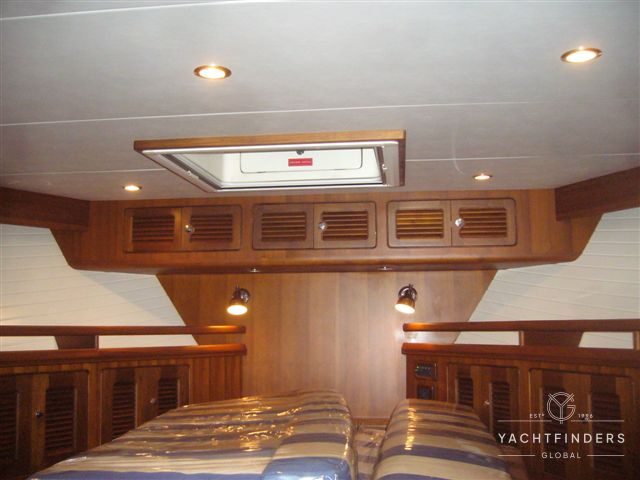

Guest Cabin

  •  Hi-lo berth
  • 4″ foam mattress for each berth
  • Hanging lockers w/ automatic light
  • Overhead cabinet
  • Bookshelves
  • Overhead cabinet at port side
  • Cabin reading lights
  • Cantalupi dome lights
  • Choice of optional floorplan

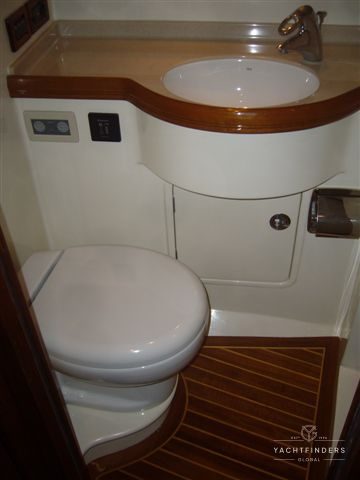

  • Tecma 24V DC freshwater toilet
  • Shower room w/ teak removable grating panel
  • Cantalupi dome lights
  • Tempered clear glass sliding shower clear door
  • Vanity unit w/ integral wash basin
  • Grohe single lever hot and cold shower faucet
  • Granite floor ( or teak and holly floor w/ teak border )
  • Mirror w/ teak frame
  • S/S #316 tissue paper holder

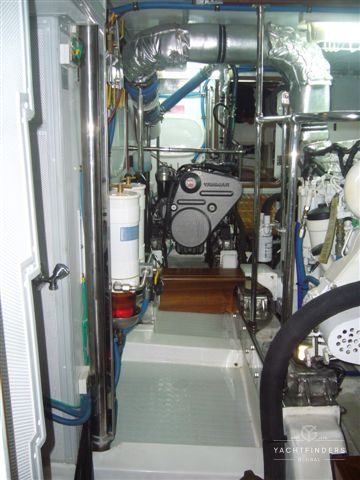

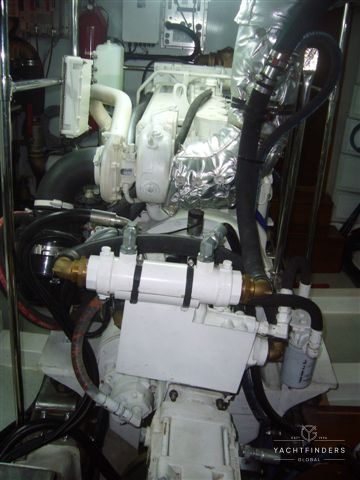

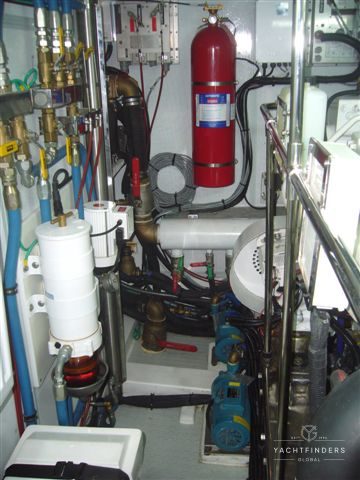

  • Single Cummins QSL9 405HP@2100RPM (or Single John Deere 6125AFM 389HP@1900RPM,M2)
  • Electronic engine control system at each helm station
  • Deluxe engine panel w/ complete instrumentation and alarms
  • Engine overheat and low oil pressure alarm
  • Aqua #22 propeller shaft
  • PYI dripless shaft seal
  • Faster NiAlBr 4-blade propeller
  • Jabsco 24V DC dia. 4″ engine room blowers
  • FRP drip pan under engine
  • Hydraulics FRP wet box muffler
  • Full protected FRP rudder w/ S/S #316 rudder shaft
  • S/S #316 pillars in the engine room
  • Fluorescent light for E/R, commissary and lazarette
  • Watertight door from master stateroom to engine room
  • Soundown E/R sound insulation system including damping tile, 3″ sound insulation foam & Aluminum perforated plate


  • Hynautic hydraulic steering system for pilothouse and F/B
  • Handcrafted teak wheel in pilot house and S/S #316 dia. 30″ wheel on F/B
  • Emergency tiller
  • Full protected FRP rudder


  • 120V AC and 240V AC system

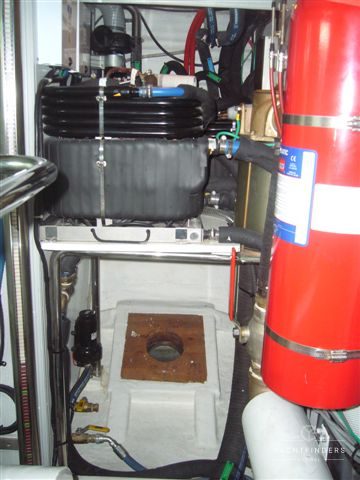

  • Northern Lights 12Kw. Generator w/ sound shield, muffler and remote start switch panel located in P/H, including dedicated 120 Amp/hr starting battery in FRP box with lid
  • Delco 105 Amp engine alternator
  • Mastervolt 120V / 240V AC battery charger system
  • Newmar Integrated galvanic isolator
  • Splendid washer/dryer
  • Grunert 120V/230V AC holding plate freezer
  • Torrid 20 gallons 120V/240V AC dual heating source water heater
  • Marinco 120V/240V 60hz 50Amp shore power inlets
  • Marinco TV and Tel inlet
  • Hubbell AC outlets throughout the boat and GFCI in the head and flybridge
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters and breakers
  • Copper bonding strap w/ ground cable attachment for each fitting


  • 24V DC system
  • Maxwell HWC 2200 windlass w/ up/down switches at foredeck and each helm stations
  • Aqua Signal navigation lights
  • Kahlenberg air horn
  • Exalto 24V DC electric wipers for three front windshields, including fresh water wash
  • Johnson 24V DC automatic water pressure pump with accumulator tank
  • Rule sump pumps w/ Ultra float switches
  • Vision AGM deep cycle batteries are for house service, engine, and generator starting.
  • Cantalupi accommodation dome lights
  • Cantalupi step lights for interior and exterior
  • Cabin reading lights
  • Prewiring for Stereo speakers in the stateroom

Fuel System

  •  Total capacity 1,300 US gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection ports and plates
  • Racor 75/1000 Max dual fuel filter/water separator for the main engine
  • Racor 900MA fuel filter/water separator for generator
  • ESI fuel polishing system
  • Racor USCG and CE-certified fuel line hose
  • Parker ball valve for fuel system
  • Electric fuel gauge
  • Magnetic fuel sight gauge for each fuel tank
  • Fuel management system
  • Reverso oil change pump

Plumbing System

  • Two FRP water tanks w/ shut off valve, total capacity 400 US gallons
  • One FRP holding tank w/ Y-valve and Jabsco macerator pump, deck discharge outlet and remote full display panel in the master head, total capacity 120 US gallons
  • Electric water gauge
  • Plastic water piping system
  • Sea cocks on all through hull fittings with double hose clamps
  • Bronze basket type internal sea water strainer for main engine
  • Rule electric bilge pumps w/ Ultra float switch
  • Whale manual bilge pump
  • Rule sump pumps in both master and guest head
  • Status panel w/ warning signal in helm station to warn of bilge pump operation


  • FRP bow pulpit with chain wash dam
  • Maxwell 24V DC horizontal electric windlass
  • S/S #316 self-launching anchor roller
  • S/S #316 dia. 5″ diameter Samson post
  • S/S #316 hawse hole with cleat ( 8 units )
  • Freshwater chain wash down


  • Vimar switches with dimmers
  • S/S #316 frame for Bimini top
  • Sidepower 11hp electric bow & stern thruster
  • S/S #316 window frames
  • Teak deck to side, aft. decks and swim platform
  • Portuguese side door
  • The second helm seat on the flybridge
  • The 3rd station at cockpit
