General


Year: 2024
Price: US$803,250
Additional Charges: Plus GST, Duty & Freight
Boat Type: Power
Hull Type: Displacement Motoryacht
Location: New Boat
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 45 ft
LOA: 14.76m
Beam: 4.78m
Draft: 1.59m
Displacement: 62,830 lbs

Engines


No. of Engines: 1
Engine Brand: Cummins or John Deere
Engine(s) HP: 230
Cruising Speed: 9 Knots
Max Speed: 10 Knots

Builder / Designer


Builder: Jet Tern Marine
Designer: Howard Chen

Tankage


Fuel: 3785 Litres
Water: 870 Litres
Holding: Yes

1


  • Cook Gelcoat for hull, deck, superstructure & non-skid
  • Vinylester resin for the first four layers of lamination
  • Cymax bi-axis uni-direction stitched roving/mat
  • Taiwan Glass mat
  • Divinycell core sandwich structure for hull side shell above the waterline & superstructure
  • Longitudinal stringers & transverse frames system
  • Four watertight bulkheads ( chain locker, fwd. E/R, after E/R, lazarette )
  • Hull and deck joint sealed by glue bolted & laminated with mat and woven roving
  • Fixed swim platform
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • Integral fully protected keel & rudder shoe
  • Hand-laid FRP single-skin hull bottom
  • Cruiser stern

2


  • Manship S/S #316 opening portlights
  • Manship S/S #316 hatches for pilothouse & fwd. stateroom
  • Diamond/Sea-Glaze Dutch doors for pilothouse P&S, saloon entrance
  • Taco S/S #316 solid upper & lower dual fender rails
  • S/S #316 handrail for foredeck & dinghy deck
  • S/S #316 telescope swim ladder
  • S/S #316 dia 2-1/2″ aft. deck overhang support posts
  • Aluminium alloy window frames w/ powder coated
  • Teak cap rail for side & afterdeck
  • S/S #316 bow & stern flag pole socket
  • Teak cap rail for side & afterdeck
  • Teak burgee & flagstaffs
  • Freeing port for fore, side & aft. deck
  • Moulded inlay pattern non-skid to fore, main & flybridge decks
  • Transom gates swing out, P&S
  • Afterdeck side gate, swing-out
  • Portuguese bridge gate, swing-out
  • Storage lockers w/ teak removable grating panel inside Portuguese bridge
  • S/S #316 self-lock type exterior gate handle
  • FRP bench seat at Portuguese Bridge (option)
  • Cantalupi exterior dome lights
  • Cantalupi exterior courtesy lights

Flybridge


  • Helm station in centre w/ console box
  • S/S #316 destroyer type steering wheel
  • S/S #316 grab rail
  • Sliding watertight door from flybridge to pilothouse
  • Forespar Aluminum alloy hinged mast & boom
  • Todd helm seat (a second helm seat is an option )
  • Drink well w/ FRP lid
  • Chart countertop
  • Tinted plexiglass windscreen with S/S #316 bracket
  • Entertainment space on the F/B deck

Cockpit


  • Scandvik transom shower
  • FRP bureau ( optional item )
  • FRP hatch to lazarette w/ S/S #316 ladder

5


  • Light teak or cherry veneer ( straight grain or mountain grain )
  • Schweppes door locks & handles for interior doors
  • Lamp push-button for all locker doors & drawers
  • Solid teak & holly sole w/ teak border
  • Fiberglass “H” shaped floor beam
  • Vinyl & EVA foam panels for ceiling lining
  • Drapes for the saloon and each stateroom
  • Selected sliding windows with/ tinted tempered glass

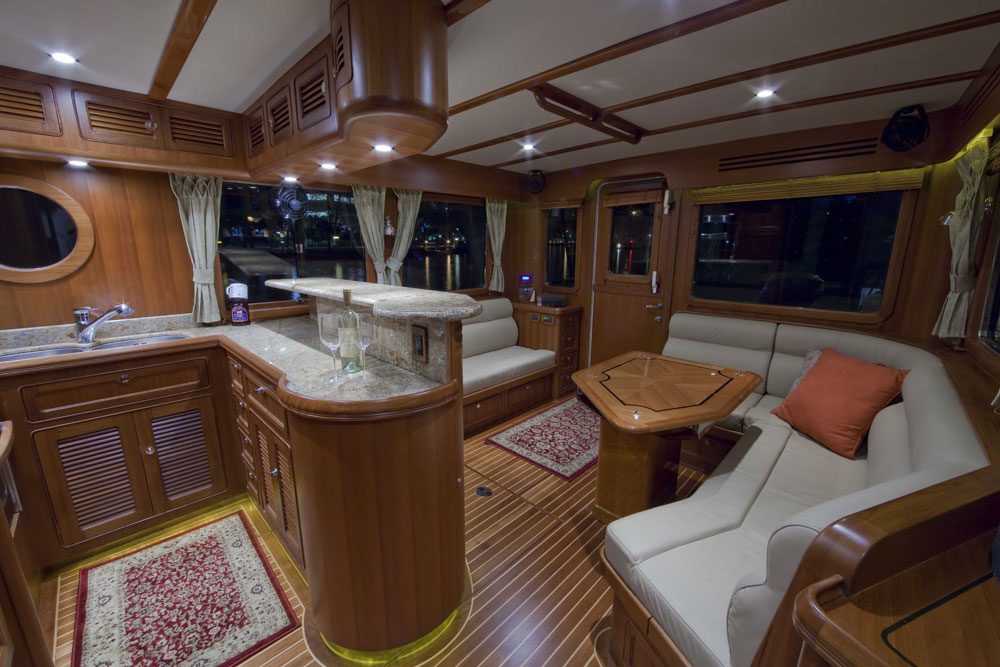

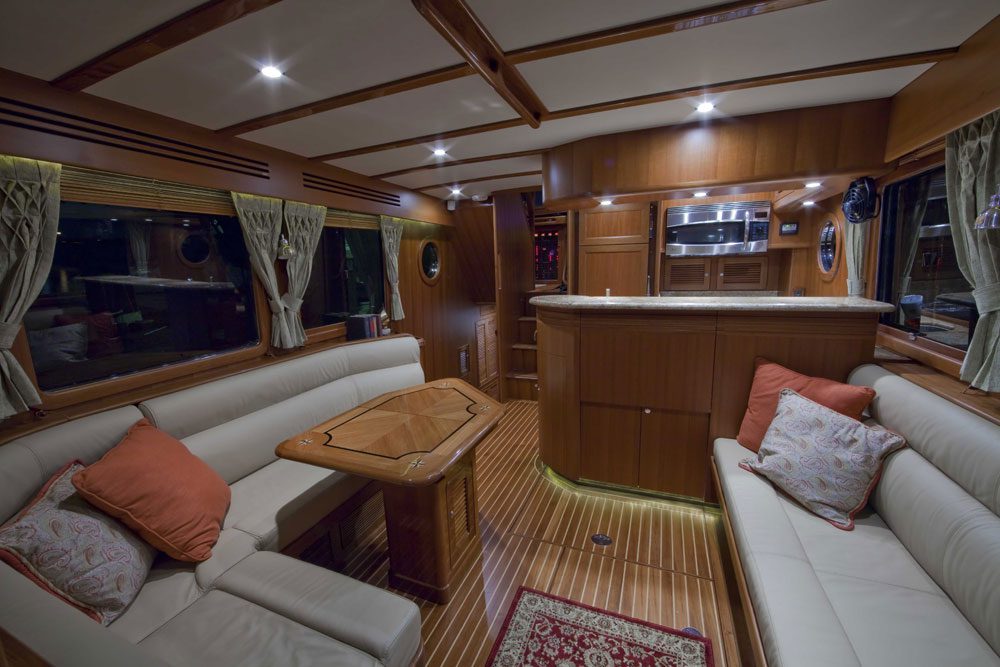

Saloon


  • L-shaped sofa w/ 5″ foam cushion
  • Storage underneath the sofa
  • Hi-lo fold-up dining table
  • TV cabinet w/ sliding doors
  • Entertainment centre w/ TV cabinet
  • Emergency hatch to the engine room
  • Cantalupi dome lights
  • Cabin reading lights
  • Corian or Granite countertop
  • Diamond/Sea-Glaze Dutch door for salon entrance
  • Exposed roof beams w/ wood caps
  • Teak overhead grab rail
  • Bamboo blinds
  • Self-lock window stopper
  • Starboard side gallery

Gallery


  • Countertop w/ Integral bar
  • Overhang cabinets with wine glass storage
  • Corian or Granite countertop & backsplash
  • Tundra T-80 DC/AC refrigerator
  • Jabsco 12V DC dia. 3″ electric exhaust fan above the stove
  • GE microwave w/ built-in exhaust as an option
  • Single lever swivel type faucet
  • Frankie S/S #316 double sink
  • Drawers & storage lockers under the counter
  • Trash bin
  • Force 10 3-burner propane stove w/ alarm monitor panel

8

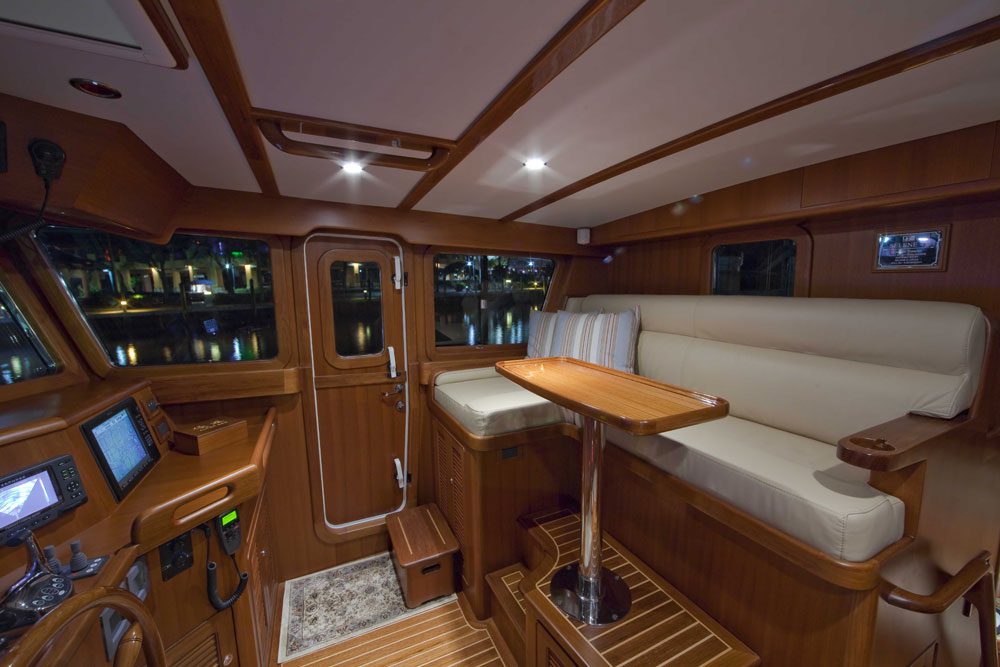

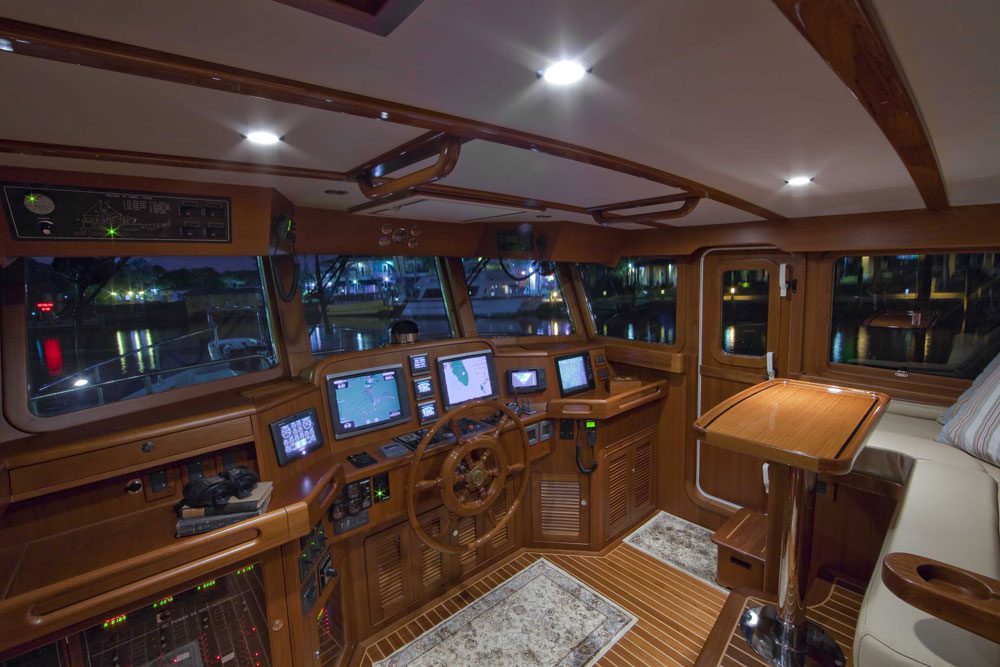

  • Helm station w/ instrument panels
  • Upper console box above steering station
  • Digital Amp gauge
  • Digital Volt gauge
  • Morse mechanical engine control system
  • Hi-seat w/ footrest & table
  • Diamond/Sea-Glaze Dutch doors for pilothouse P&S
  • Sliding chart table w/ drawer
  • Sliding watch berth behind hi-seat
  • Dedicated teak stair from the pilothouse to F/B
  • Cantalupi dome lights
  • Cantalupi step lights
  • Daniel Smith chart lights ( 1 )
  • Cabin reading lights
  • Teak overhead grab rails

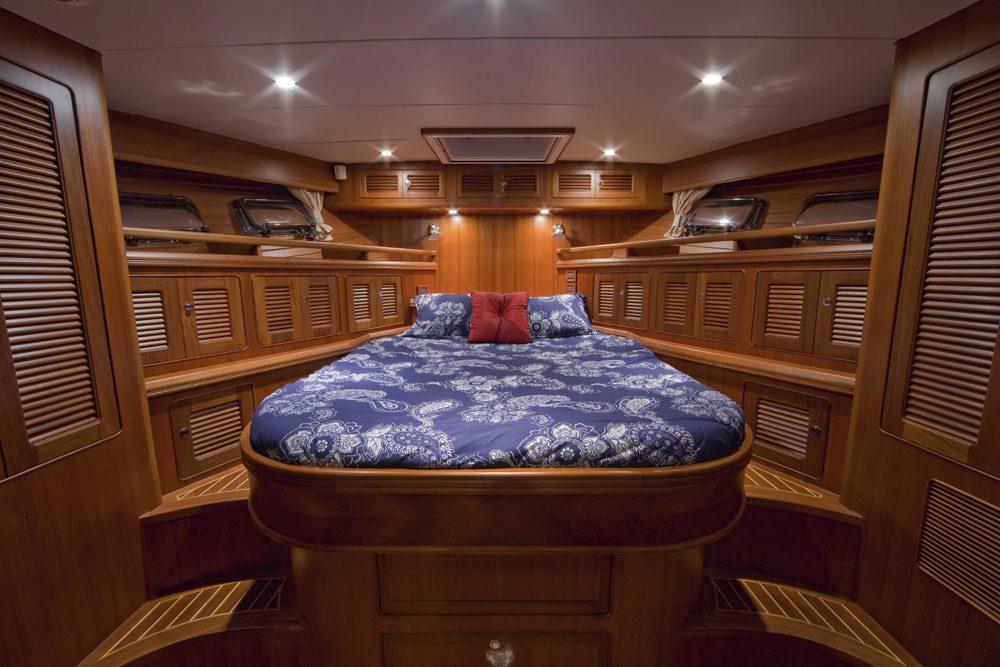

Master Cabin


  • Queen-size berth w/ 5″ foam mattress
  • Side cabinets & drawer bureaus
  • Side & front cabinets
  • Drawer bureaus
  • Wardrobe w/ automatic light & aromatic cedar liner
  • TV cabinet w/ sliding door
  • Teak or Cherry veneer countertop
  • Cantalupi reading lights
  • Cantalupi dome lights
  • Manship escape hatch
  • Manship S/S #316 opening portlights
  • Bookshelves
  • Windline telescope escape ladder

10

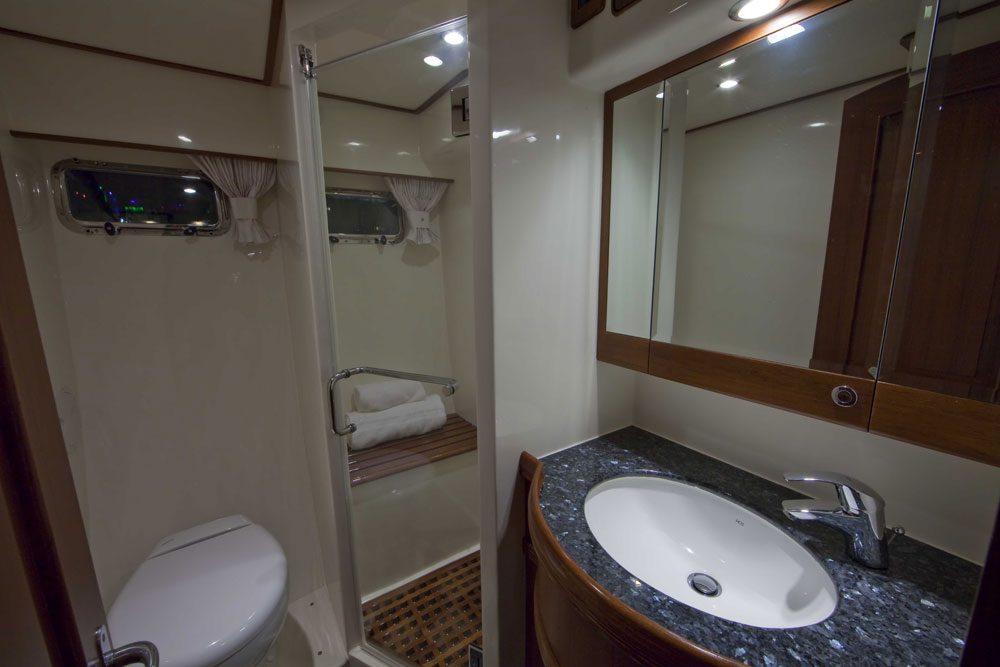

  • Tecma 12V DC freshwater toilet
  • Jabsco 12V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish ceiling lining & FRP bulkhead
  • Corian or Granite counter top & backsplash
  • Vanity unit w/ integrated washbasin
  • Mirror w/ teak frame
  • Itai Aluminum sliding shower door
  • Manship S/S #316 opening portlights
  • Single lever hot & cold water shower faucet
  • Medicine cabinet
  • Shower room w/ teak removable grating panel
  • Granite floor w/ stainless steel divider ( or teak & holly floor with teak border )

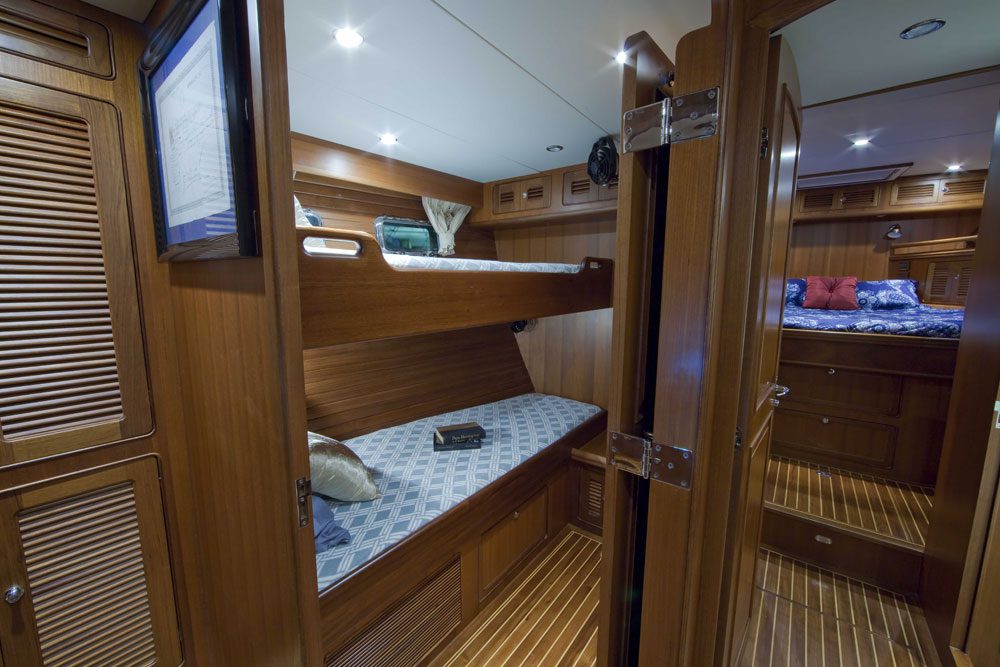

Guest Cabin


  • Hi-lo berth
  • 4″ foam mattress for each berth
  • Hanging lockers w/ automatic light
  • Overhead cabinet
  • Cabin reading lights
  • Cantalupi dome lights
  • Side countertop with storage locker underneath

12


  • Tecma 12V DC freshwater toilet
  • Jabsco 12V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Formica finish ceiling lining & FRP bulkhead
  • Granite or Corian countertop & backsplash
  • Manship S/S #316 opening portlights
  • Itai sliding shower door
  • Vanity unit w/ integral washbasin
  • Single lever hot & cold shower faucet
  • Granite floor w/ stainless steel divider ( or teak & holly floor w/ teak border )
  • Mirror w/ teak frame

13


  • Access hatch to commissary w/ teak step
  • Wine cellar
  • Cabinets & storage
  • Rubber non-skid floor
  • Ceiling lights
  • Choice of being deleted to enlarge the engine room

14

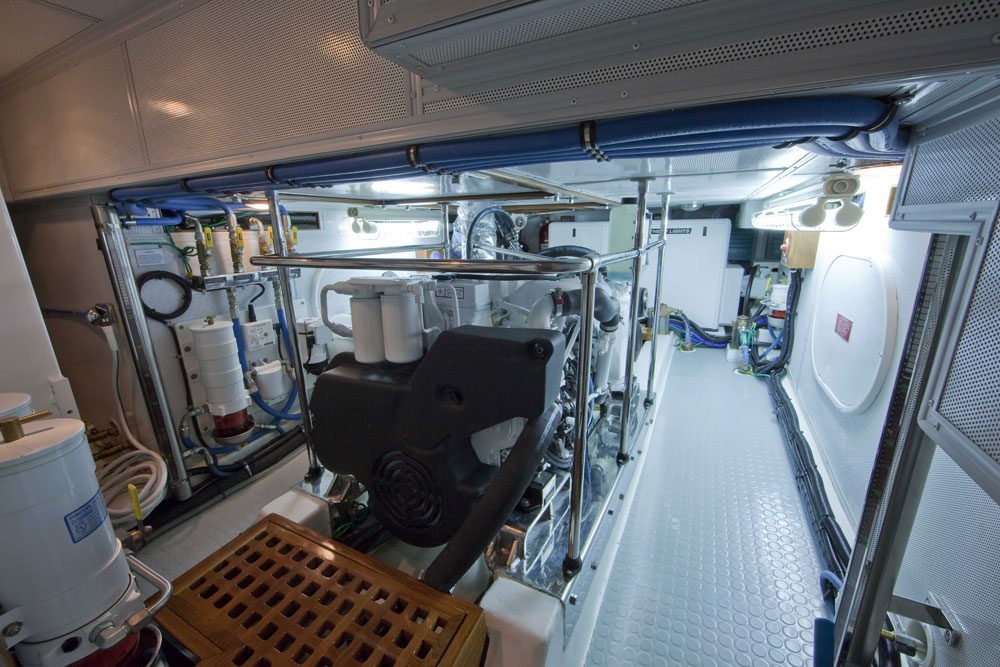

  • Single Cummins QSB5.9 230HP@2600RPM
  • Deluxe engine panel w/ complete instrumentation & alarms
  • Engine overheat & low oil pressure alarm
  • Morse mechanical engine control system at each helm station
  • Aqua #22 propeller shaft ( dia. 2-1/2″=63.5mm )
  • PYI dripless shaft seal
  • Faster NiAlBr 4-blade propeller
  • Jabsco 12V DC dia. 4″ engine room blowers
  • FRP drip pan under engine
  • Hydraulic FRP wet box muffler
  • Full protected FRP rudder w/ S/S #316 rudder shaft
  • S/S #316 pillars in the engine room
  • Fluorescent light for E/R, commissary & lazarette
  • Watertight door to the engine room

15


  • Hynautic hydraulic steering system for pilothouse & F/B
  • Handcrafted teak wheel in pilothouse and S/S #316 dia. 28” wheel on F/B
  • Emergency tiller
  • Full protected FRP rudder

16


  • 120V AC or 240V AC system
  • Northern Lights 8Kw. Generator w/ sound shield, muffler and remote start switch panel located in P/H, includes dedicated 120 Amp/hr starting battery in FRP box with lid
  • Delco 105 Amp engine alternator
  • Heart Pathmaker emergency parallel switch
  • Newmar 3-bank 120V / 240V AC battery charger system
  • Tundra upright DC / AC refrigerator
  • Combomatic washer/dryer w/ louvred door
  • Grunert 120V/230V AC holding plate freezer
  • Torrid 20 gallons 120V/240V AC dual heating source water heater
  • Marinco 120V/240V 60hz 50Amp shore power inlets
  • Marinco TV & Tel Inlet
  • Hubbell AC outlets throughout the boat and GFCI in the head & flybridge
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters & breakers
  • Copper bonding strap w/ ground cable attachment for each fitting

17


  • 12V DC system
  • Muir HR2500 windlass w/ control switches at foredeck & each helm stations
  • Aqua Signal navigation lights
  • AFI 12V DC air horn
  • Roca 12V DC electric wipers for three front windshields w/ freshwater wash
  • Rule 12V DC sump pumps w/ automatic float switches
  • Rule sump pumps w/ automatic float switches
  • Jabsco 12V DC dia. 3″ electric exhaust fan above the stove
  • Cantalupi accommodation dome lights
  • Cantalupi step lights for interior & exterior
  • Floject 12V DC electric pressurized fresh water pump
  • Floject 12V DC deck wash pump
  • Stereo speakers in saloon w/ wiring to cabinet
  • Vision AGM deep cycle batteries for house service, engine & generator starting

Fuel System




  • Total capacity 1000 US gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection ports & plates
  • Racor 75/900 Max dual fuel filter/water separator for the main engine
  • Racor 900MA fuel filter/water separator for generator
  • ESI fuel polishing system
  • Racor USCG & CE certified fuel line hose
  • Parker ball valve for the fuel system
  • Electric fuel gauge
  • Magnetic fuel sight gauge for each fuel tank
  • Fuel management system

Plumbing System


  • One FRP water tank w/ shut off valve & sight gauge, total capacity 230 US gallons
  • One FRP holding tank w/ Y-valve, Jabsco macerator pump, deck discharge outlet & remote full display panel in the master head, total capacity 60 US gallons
  • Electric water gauge
  • Plastic water piping system
  • Seacocks on all through-hull fittings with double hose clamps
  • Bronze basket-type internal sea water filter for the main engine
  • Rule electric bilge pumps w/ automatic float switch
  • Whale manual bilge pump
  • Shower sump pumps in both master & guest head
  • Status panel w/ warning signal in helm station to warn of bilge pump operation

20


  • Muir 12V DC electric windlass
  • Muir chain stopper
  • Chain meter ( optional item )
  • S/S #316 self-launching anchor roller
  • S/S #316 dia. 5″ Samson post
  • S/S #316 hawsehole with cleats
  • Seawater chain wash down ( optional item )

21


  • Soundown E/R sound insulation system including damping tile, 3″ sound insulation foam & Aluminum perforated plate
  • International anti-fouling bottom paint ( Tin free )
  • Epifanes one part varnish for interior
  • International Gelshield primer coating
  • International boot top-line
  • Optional Sidepower 11hp electric bow & stern thruster
  • Optional Hynautic hydraulic engine control system
  • Optional Oceanair hatch shade w/ insert screen
  • Optional Teak parquet floor with black ebony border
  • Teak yacht nameboards
  • Engine room FRP flooring
