General


Year: 2024
Price: $POA
Additional Charges: Plus GST, Duty & Freight
Boat Type: Power
Hull Type: Trawler
Location: New Boat
Engine/Fuel: Diesel
Hull Material: GRP

Dimensions


Length: 38 ft
LOA: 13.7m
Beam: 4.42m
Draft: 1.42m
Displacement: 41,000 lbs

Engines


No. of Engines: 1
Engine Brand: Cummins or John Deere
Engine(s) HP: 230
Cruising Speed: 9 Knots
Max Speed: 11 Knots

Builder / Designer


Builder: Jet Tern Marine
Designer: Howard Chen

Tankage


Fuel: 2270 Litres
Water: 680 Litres
Holding: Yes

1


  • Bi-axis uni-direction stitched roving mat
  • Glass Mat
  • Divinycell core sandwich structure for hull side shell above waterline and superstructure
  • Longitudinal stringers and transverse frames system
  • 3 watertight bulkheads
  • chain locker, fwd. E/R, after E/R )
  • Hull and deck joint sealed by glue, bolted and laminated with mat and woven roving
  • Recessed bow thruster tunnel
  • Integral FRP stern thruster casing
  • Integral full protected keel and rudder shoe
  • Hand laid FRP single skin hull bottom
  • Integral swim platform with extended hull underneath
  • Cruiser stern

2


  • Manship S/S #316 opening portlights
  • Manship S/S #316 hatches for fwd. and after stateroom
  • Aritex port and starboard sliding door
  • Taco S/S #316 solid upper and lower dual fender rails
  • S/S #316 handrail for foredeck, aft. deck and flybridge decks
  • S/S #316 telescope ladder
  • Teat Burgee and flagstaffs
  • Aluminium alloy window frames w/ powder coated
  • S/S #316 bow and stern flag pole socket
  • Teak cap rail for side and after. deck
  • Freeing port for fore, side, aft. deck and flybridge decks
  • Moulded inlay pattern non-skid to fore, side, aft. deck and flybridge decks
  • Transom gates with step plate
  • Side deck side gate, P&S
  • FRP steps from aft. deck to flybridge
  • Perko exterior courtesy lights
  • Scandvik transom shower
  • FRP settee at the cockpit
  • FRP hatch to lazarette w/ S/S #316 ladder
  • International anti-fouling paint
  • International Gelshield primer coating
  • International boot top line

Flybridge


  • Helm station in centre w/ console box
  • S/S #316 destroyer type steering wheel
  • S/S #316 grab rail
  • S/S #316 bracket for fender
  • Forespar Aluminum alloy hinged mast and boom
  • Todd helm seat
  • Drink well w/ FRP lid
  • Entertainment space on the flybridge deck
  • AFI 12V DC outlet
  • Hatch on flybridge
  • Polar washbasin w/ Scandvik folded faucet
  • Table and Settee w/ storage underneath
  • Tinted plexiglass windscreen in S/S #316 bracket

4


  • Light teak or cherry veneer ( straight grain or mountain grain )
  • R & C door locks and handles for interior sliding doors
  • Schweppes door locks and handles for bathroom
  • Lamp positive latching for all locker doors and drawers
  • Solid teak and holly sole w/ teak border
  • Fiberglass “I” shaped floor beam
  • Vinyl and EVA foam panels for ceiling lining
  • Draperies for the saloon and each stateroom
  • Settee with fabrics
  • Hanging lockers w/ automatic light
  • Storage cabinets
  • Epifanes one part varnish for interior

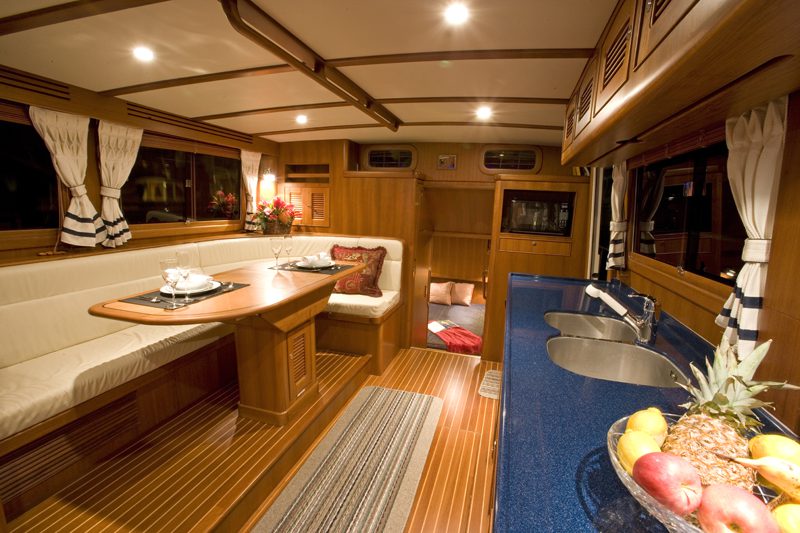

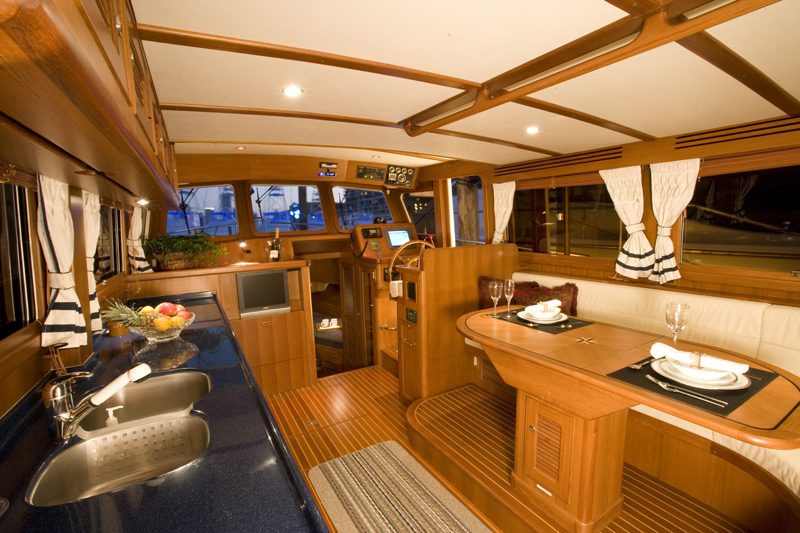

Saloon


  • L-shaped settee w/ 5″ cushion set
  • Fold-up dining table
  • TV cabinet w/ sliding doors
  • Emergency hatch to the engine room
  • Sliding door for saloon entrance
  • Cantalupi dome lights
  • Cabin reading light
  • Corian or Granite countertop
  • Exposed roof beams w/ wood caps
  • Teak overhead grab rail
  • Bamboo blinds
  • Self-lock window stopper

Gallery


  • Overhang cabinets with wine glass storage
  • Corian or Granite countertop and backsplash
  • Force 10 3-burners propane stove and oven w/ alarm monitor panel set
  • Jabsco 12V DC electric exhaust fan above the stove
  • Tundra DC/AC refrigerator
  • Single lever swivel type faucet
  • S/S double sinks
  • Drawers and cabinets w/ shelves under counter
  • Overhang cabinets with wine glass storage

7

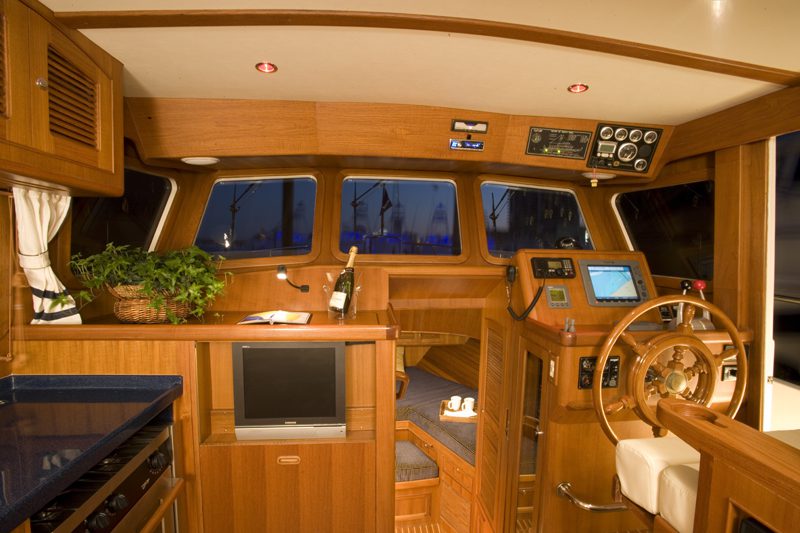

  • Helm station w/ instrument panels
  • Upper console panel box above steering station
  • Digital Amp gauge
  • Digital Volt gauge
  • Hynautic hydraulic engine control system
  • Hi-seat w/ footrest
  • Sliding door P&S
  • Cantalupi dome lights
  • Cantalupi step lights
  • Teak stair from the pilothouse to fwd. stateroom

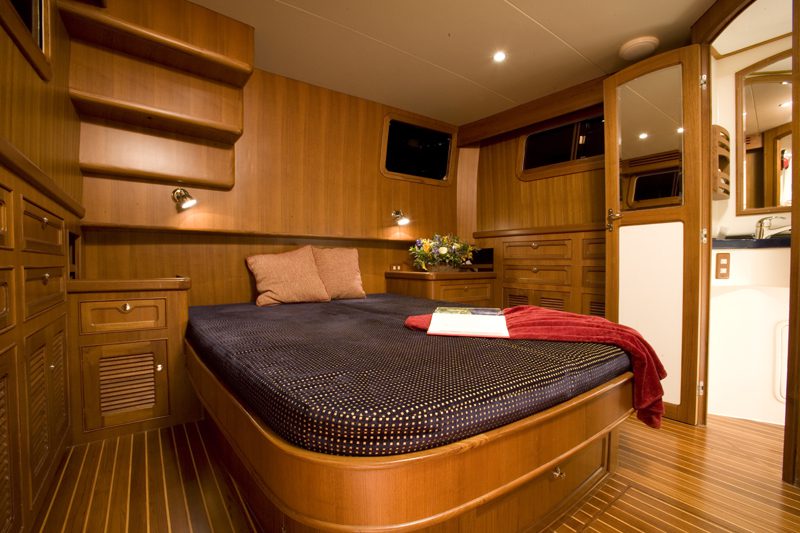

Master cabin


  • Queen-size berth w/ 5″ foam mattress
  • Drawer bureaus and side cabinets
  • Cedar-lined wardrobe w/ automatic light
  • Teak or Cherry veneer countertop
  • Cabin reading lights
  • Cantalupi dome lights
  • Manship escape hatch
  • Manship S/S #316 opening portlights

9


  • The head compartment at the portside
  • Vanity unit
  • Porcelain washbasin w/ integral countertop
  • Shower room w/ teak removable grating panel at the starboard side
  • Single lever hot and cold water shower faucet
  • Tecma 12V DC freshwater toilet
  • Jabsco 12V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Hubbell waterproof AC outlet in head
  • Mirror with teak frame
  • Medicine cabinet
  • S/S #316 tissue paper holder

Guest Cabin


  • Vee berth arrangement w/ 5″ foam mattress /li>
  • Cedar-lined wardrobe w/ automatic light
  • Cantalupi dome lights
  • Cabin reading lights
  • Manship escape hatch
  • Manship S/S #316 opening portlights
  • Front cabinets

11


  • Head/shower room located at portside
  • Vanity unit
  • Porcelain washbasin w/ integral countertop
  • Single lever hot and cold water shower faucet
  • Teak removable grating panel
  • Tecma 12V DC freshwater toilet
  • Jabsco 12V DC dia. 3″ exhaust fan
  • Cantalupi dome lights
  • Hubbell waterproof AC outlet in head
  • Mirror with teak frame
  • S/S #316 tissue paper holder

12


  • Single Cummins QSB5.9 230HP@2600RPM
  • Deluxe engine panel w/ complete instrumentation and alarms
  • Complete engine instrumentation at control station with
  • Hynautic hydraulic engine control system at each helm station
  • Aqua #22 propeller shaft ( dia. 2-1/4″=57mm )
  • PYI dripless shaft seal
  • Faster NiAlBr 4 blade propeller
  • Jabsco 12V DC dia. 4″ engine room blowers
  • FRP drip pan under engine
  • Hydraulic FRP wet box muffler
  • Full protected FRP rudder w/ S/S #316 rudder shaft
  • Engine overheat and low oil pressure alarm
  • Fluorescent light for E/R
  • Watertight door to the engine room
  • Soundown E/R sound insulation system including damping tile, 3″ sound insulation foam & Aluminum perforated plate

13


  • Hynautic hydraulic steering system for pilothouse and flybridge
  • Handcrafted teak wheel in the pilothouse and S/S #316 dia. 28″ wheel on the flybridge
  • Emergency tiller
  • Full protected FRP rudder

14


  • 120V AC or 240V AC system
  • Marinco 120V/240V 60hz 30Amp shore power inlets
  • Marinco TV and Tel inlet
  • Hubbell AC outlets throughout the boat, and GFCI in head and flybridge
  • Newmar 3-bank 120V / 240V AC battery charger system
  • Newmar 30 amp galvanic isolator
  • Tundra upright DC/AC refrigerator
  • Raritan 12 gallons 120V or 240V AC dual heating source hot water heater
  • AC/DC control panel w/ polarity indicator lights, appropriate switches, meters and breakers
  • Copper bonding strap w/ ground cable attachment for each fitting
  • Two Zinc plates at transom for grounding system

15


  • 12V DC system
  • Muir HR1200 windlass w/ control switches at foredeck and each helm stations
  • Sidepower 8hp electric bow thruster
  • AFI 12V DC air horn
  • Aqua Signal navigation lights
  • Exalto 12V DC electric wipers for 3 front windshields w/ freshwater wash
  • Rule 12V DC sump pumps w/ automatic float switches
  • Rule sump pumps w/ automatic float switches
  • Jabsco 12V DC dia. 3″ electric exhaust fan above the stove
  • Cantalupi accommodation dome lights
  • Cantalupi step lights for interior and exterior
  • Floject 12V DC electric pressurized fresh water pump
  • Perko step lights for exterior
  • Stereo speakers in saloon
  • Vision AGM deep cycle batteries for house service, engine and generator starting
  • Vimar Switch

Fuel System


  • Total capacity 600 US gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection ports and plates
  • Racor 75/900 Max dual fuel filter/water separator for engine
  • Ball valve for fuel system
  • Electric fuel gauge
  • Magnetic fuel sight gauge for each fuel tank
  • Fuel management system

Plumbing System


  • One FRP water tanks w/ shut off valve and sight gauge, total capacity 200 US gallons
  • One FRP holding tank w/ Y-valve, Jabsco macerator pump, deck discharge outlet and remote full display panel in the master head, total capacity 55 US gallons
  • Electric water gauge
  • Raritan 12 gallons 120V or 240V AC dual heating source hot water heater
  • Plastic water piping system
  • Seacocks on all through-hull fittings with double hose clamps
  • Bronze basket type internal sea water strainer for the main engine
  • Rule electric bilge pumps w/ automatic float switch
  • Whale manual bilge pump
  • Shower sump pumps in both master and fwd. head
  • Status panel w/ warning signal in helm station to warn of bilge pump operation

18


  • Muir 12V DC electric windlass
  • Muir chain stopper
  • S/S #316 self-launching anchor roller
  • S/S #316 dia. 5″ diameter Samson post
  • S/S #316 hawsehole with cleats
  • FRP bow pulpit with chain wash dam
  • Pilothouse and foredeck windlass control switch
