Accommodation

PILOTHOUSE

• Helm station w/ instrument panels
• Upper console panel above steering station
• Digital Amp gauge
• Digital Volt gauge
• Hynautic hydraulic engine control system
• Hi-seat w/ footrest
• Cantalupi LED dome lights
• Cantalupi LED step lights
• Teak stair from the pilothouse to FWD. stateroom

GUEST STATEROOM

• Double berth w/ 5” foam mattress
• Drawer bureaus & side cabinets
• Wardrobe w/ automatic light & aromatic cedar liner
• Teak or Cherry veneer countertop
• Cabin reading lights
• Cantalupi LED dome lights
• Manship escape hatch
• Manship S/S #316 opening portlights

FORWARD STATEROOM

• Queen-size berth arrangement w/ 5” foam mattress
• Wardrobe w/ automatic light & aromatic cedar liner
• Teak or Cherry veneer countertop
• Cantalupi LED dome lights
• Cabin reading lights
• Manship escape hatch
• Manship S/S #316 opening portlights

FORWARD HEAD

• Head/shower room located at portside
• Vanity unit
• Porcelain washbasin w/ integral countertop
• Single lever hot & cold water shower faucet
• Teak removable grating panel
• Tecma 12V DC freshwater toilet
• Jabsco 12V DC dia. 3” exhaust fan
• Cantalupi LED dome lights
• Hubbell waterproof AC outlet in head
• Mirror with teak frame
• S/S #316 tissue paper holder

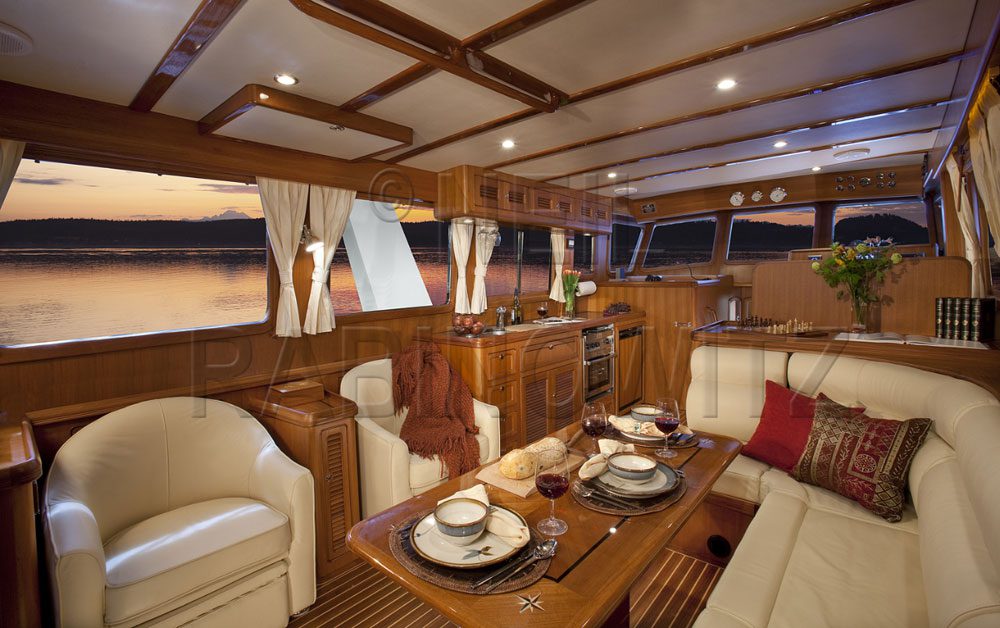

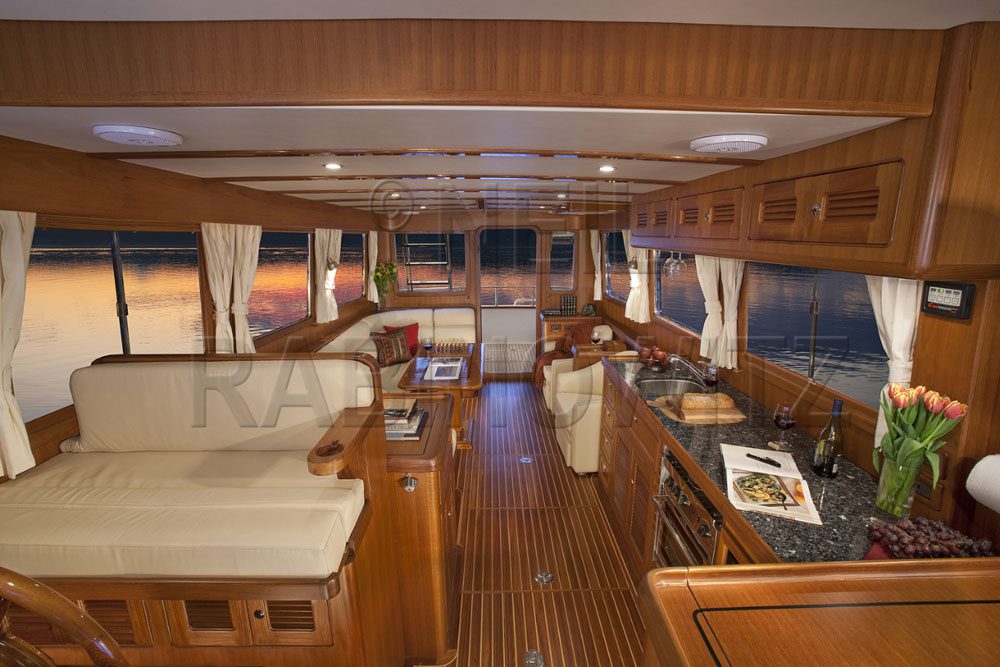

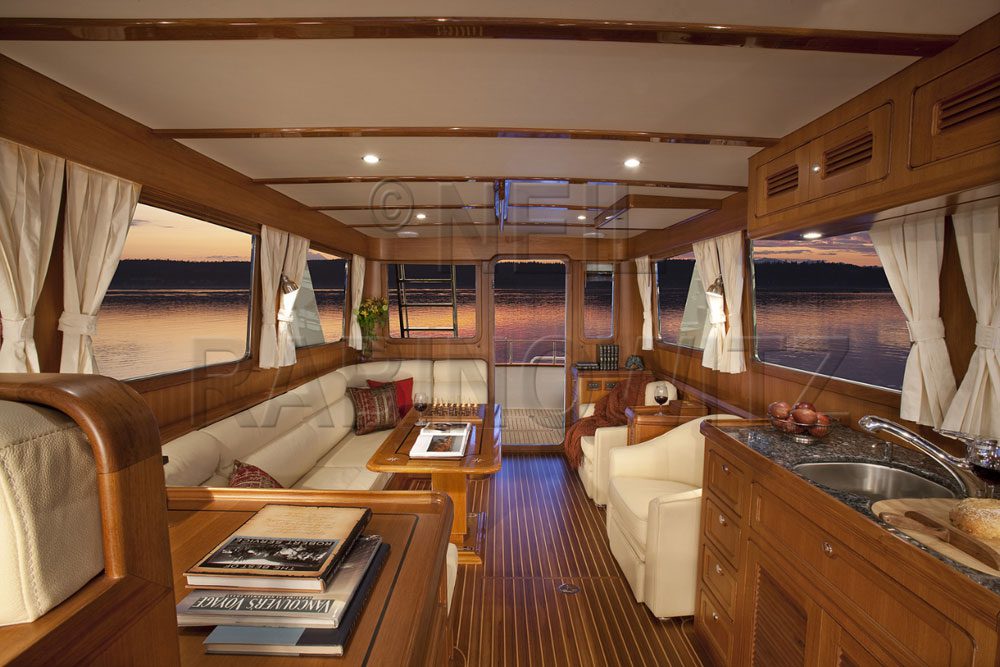

Saloon

• L-shaped sofa w/ 5” cushion set
• Fold-up dining table
• Overhang TV cabinet on the ceiling
• Emergency hatch to the engine room
• Diamond Sea Glaze Douch door for saloon entrance
• Corian or Granite countertop
• Cantalupi LED dome lights
• Cabin reading lights
• Bamboo blinds
• Exposed roof beams w/ wood caps
• Teak overhead grab rail
• Self-lock window stopper

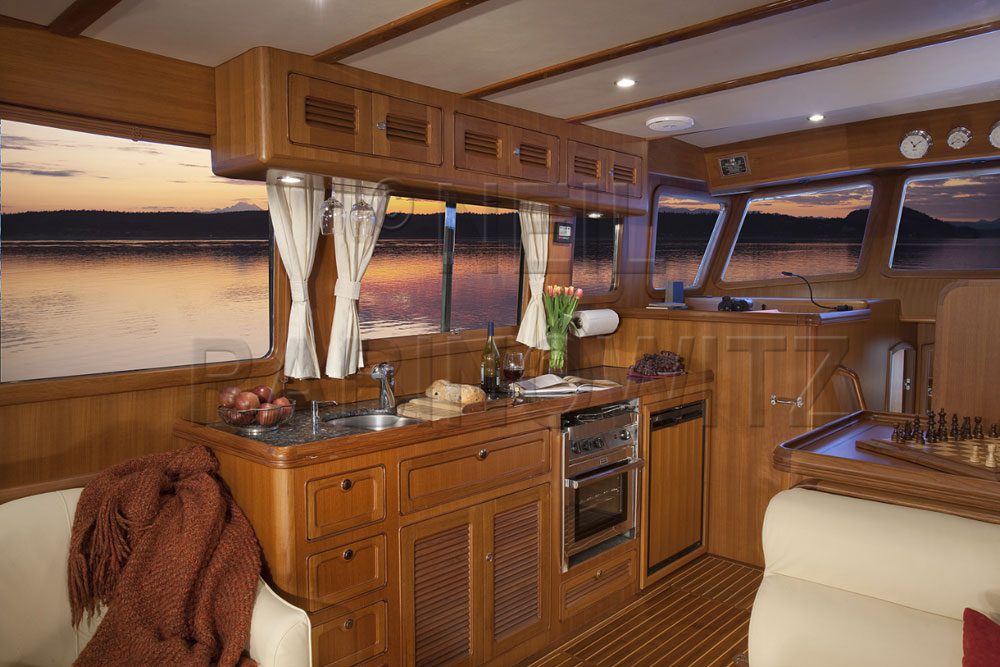

Gallery

• Corian or Granite countertop w/ backsplash
• Drawers & cabinet w/ shelves under counter
• Overhang cabinets with wine glass storage
• Force 10 3-burner propane stove w/ alarm monitor panel set
• Waeco CR-1110U/F DC/AC refrigerator
• Jabsco 12V DC electric exhaust fan above the stove
• Frankie S/S double sinks w/ single lever swivel type faucet
• Single lever swivel type faucet

Construction

• Cook Gelcoat for hull, deck, superstructure & non-skid
• Vinylester resin for the first four layers of lamination
• Cymax bi-axis uni-direction woven roving/mat
• Taiwan Glass mat
• Divinycell core sandwich structure for hull side shell above the water line & superstructure
• Hand-laid FRP single-skin hull bottom
• Longitudinal stringers & transverse frames system
• Three watertight bulkheads ( chain locker, fwd. E/R, after E/R )
• Hull and deck joint sealed by glue bolted & laminated with mat and woven roving
• Integral swim platform with extended hull underneath
• Integral FRP stern thruster casing
• Recessed bow thruster tunnel
• Integral fully protected keel & rudder shoe

Exterior

• Manship S/S #316 opening portlights
• Manship S/S #316 hatches for fwd. stateroom
• S/S #316 window frames
• S/S #316 handrail foredeck, aft. deck & roof
• S/S #316 telescope ladder
• S/S #316 stern flag pole socket
• Teak burgee & flagstaffs
• Teak cap rail for side & afterdeck
• Freeing port for fore, side, and aft. deck
• Moulded inlay pattern non-skid to fore, side deck
• Teak deck for side, aft. deck & swim flatform (Option)
• Transom gate, swing in
• Side deck gates swing out, and the Starboard side
• S/S #316 ladder from foredeck to roof
• Perko exterior courtesy lights
• Scandvik transom shower
• FRP settee at the cockpit
• FRP hatch to lazarette w/ S/S #316 ladder
• FRP locker w/ sink and shower（option）

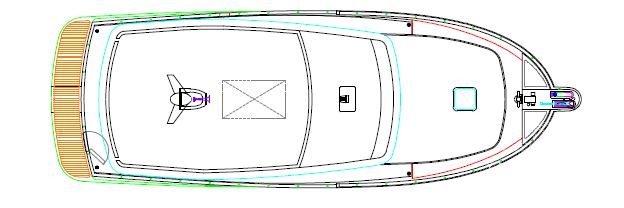

ROOF

• S/S #316 grab rail
• FRP hinged mast
• AFI 12V DC outlet
• Davit (Option)
• AFI #11106 Horn

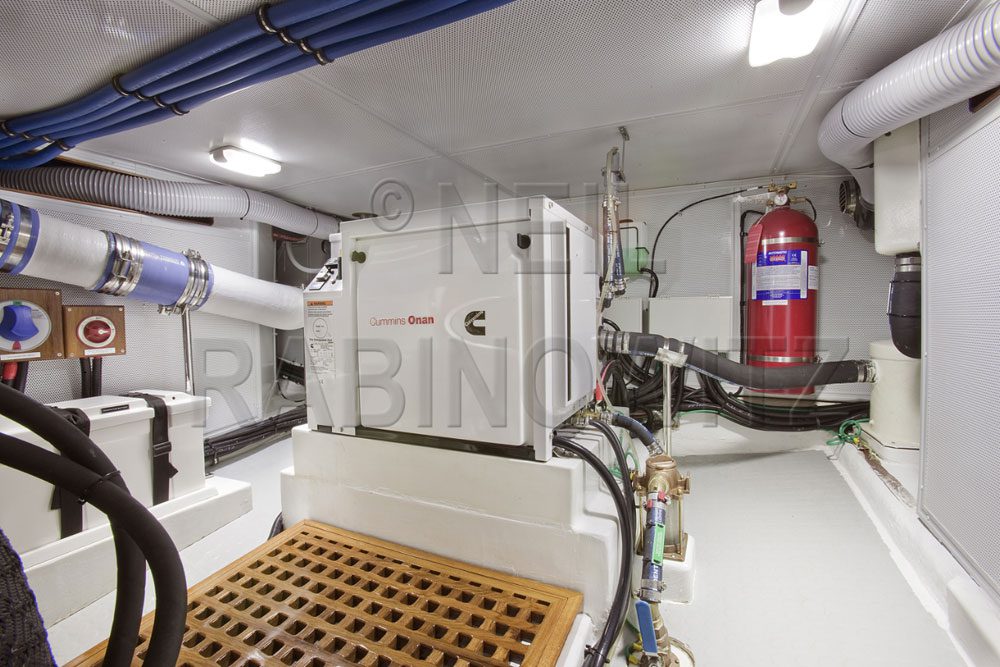

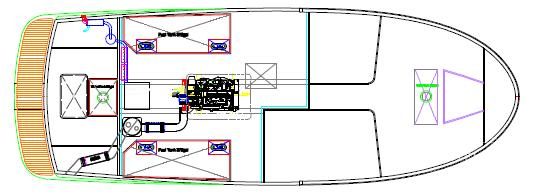

Engine

PROPULSION

• Single Cummins QSB5.9HD 230 BHP @ 2600 RPM Intermittent Duty
• Complete engine instrumentation at the control station with
• Deluxe engine panel w/ complete instrumentation & alarms
• Engine overheat & low oil pressure alarm
• Morse mechanical engine control system at each helm station
• Engine #630 propeller shaft ( dia. 2-1/2”=64mm )
• Faster NiAlBr 4-blade propeller
• PYI dripless shaft seal
• Jabsco 12V DC dia. 4” engine room blowers
• FRP drip pan under engine
• Hydraulic FRP wet box muffler
• Full protected FRP rudder w/ S/S #316 rudder shaft
• Hella LED lights for E/R

STEERING SYSTEM

• Hynautic hydraulic steering system for a pilothouse
• Handcrafted teak wheel in the pilothouse
• Emergency tiller
• Full protected FRP rudder

Electrical System

AC ELECTRICAL SYSTEM

• 240V AC system
• Marinco 120V/240V 60hz 30 Amp shore power inlets
• Wimar AC outlets throughout the boat and GFCI in the head
• Newmar 30 amp galvanic isolator
• Mastervolt 3-bank 120V / 240V AC battery charger system
• HeartPathmaker emergency parallel switch
• Waeco DC / AC refrigerator
• Raritan 12 gallons 120V or 240V AC dual heating source water heater
• AC/DC control panel w/ polarity indicator lights, appropriate switches, meters & breakers
• Copper bonding strap w/ ground cable attachment for each fitting
• Two Zinc plates at the transom for the grounding system
• DC ELECTRICAL SYSTEM
• 12V DC system
• Muir HR1200 windlass w/ control switches at foredeck & helm stations
• Sidepower 6hp electric bow thruster
• Aqua Signal navigation lights
• AFI 12V DC air horn
• Roca 12V DC electric wipers for three front windshields w/ freshwater wash
• Rule 12V DC sump pumps w/ automatic float switches
• Jabsco 12V DC dia. 3” electric exhaust fan above the stove
• Floject 12V DC electric pressurized fresh water pump
• Cantalupi LED accommodation dome lights
• Cantalupi LED step lights for interior
• Perko step lights for exterior
• Vision AGM deep cycle batteries for house service, engine & generator starting
• Pre-wire for stereo speakers in saloon

Fuel System

• Total capacity 600 US gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection ports & plates
• Racor 75/900Max dual fuel filter/water separator for engine
• ESI fuel polishing system ( optional item )
• Ball valve for fuel system
• Electric fuel gauge
• Magnetic fuel sight gauge for each fuel tank
• Fuel management system

Plumbing System

• One FRP water tank w/ shut off valve & sight gauge, total capacity 250 US gallons
• One FRP holding tank w/ Y-valve, Jabsco macerator pump, deck discharge outlet & remote full display panel in the master head, total capacity 60 US gallons
• Electrical water gauge
• Plastic water piping system
• Raritan 12 gallons 120V or 240V AC dual heating source water heater
• Seacocks on all through-hull fittings with double hose clamps
• Bronze basket-type internal seawater filter for the main engine
• Rule electric bilge pumps w/ automatic float switch
• Whale manual bilge pump
• Shower sump pumps for master & fwd. head
• Status panel w/ warning signal in helm station to warn of bilge pump operation

Mooring

• FRP bow pulpit with chain wash dam
• Muir 12V DC electric windlass
• Muir chain stopper
• Chain meter ( optional item )
• S/S #316 self-launching anchor roller
• S/S #316 5” diameter Samson post
• S/S #316 hawsehole with cleat
• Pilothouse & foredeck windlass control switch
• Saltwater chain wash down ( optional item )

Owners Comments

• Soundown E/R sound insulation system including damping tile, 3” sound insulation foam & Aluminum perforated plate
• Epifanes one part varnish for interior
• International Anti-fouling paint ( Tin free )
• International Gelshield primer coating
• International boot top-line
• ZF electrical engine control system ( optional item )
• Oceanair hatch shade w/ insert screen ( optional item )
• Two Zinc plates at the transom for the grounding system
